CyberPower RMCARD205 SNMP Remote Management Card for UPS & ATS PDU Systems
CyberPower RMCARD205 SNMP Remote Management Card for UPS & ATS PDU Systems
Low stock: 5 left
Save 13%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower RMCARD205 UPS & ATS PDU Remote Management Card
This is a Remote Power Management Adapter designed for select CyberPower UPS systems and ATS PDUs. The CyberPower RMCARD205 provides full-featured network management, enabling remote monitoring, control, and scheduling via standard web browser, CLI, SNMP, or NMS. MPN: RMCARD205; UPC: 649532619375. It supports event logging, status recording, and notifications via email, SMS, SNMP traps, or Syslog, with PowerPanel Business Edition software for automatic shutdown protection.
Advanced Network Management Features
- Remote Access & Control – Manage UPS and PDUs over LAN via web interface, CLI, SNMP, or NMS; ideal for enterprise data centers.
- Scheduling Capabilities – Program shutdown, startup, and reboot sequences for automated power management.
- Event Management – Configure actions, log events, record status, and send alerts via email, SMS, SNMP traps, or Syslog.
- PowerPanel Business Software – Enables graceful auto-shutdown of servers and workstations during power events to prevent data loss.
- Dual RJ-45 Ports – Supports Fast Ethernet with Tx/Rx LED indicators and Ethernet RJ-45 network protection.
- SNMP/HTTP/NMS/Enviro Port – Comprehensive SNMPv1/v3 support for integration with network management systems.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand Name | CyberPower |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | RMCARD205 |
| Product Model | RMCARD205 |
| Product Series | UPS Hardware |
| Product Type | Remote Power Management Adapter |
| UPC | 649532619375 |
| Product Color | Black |

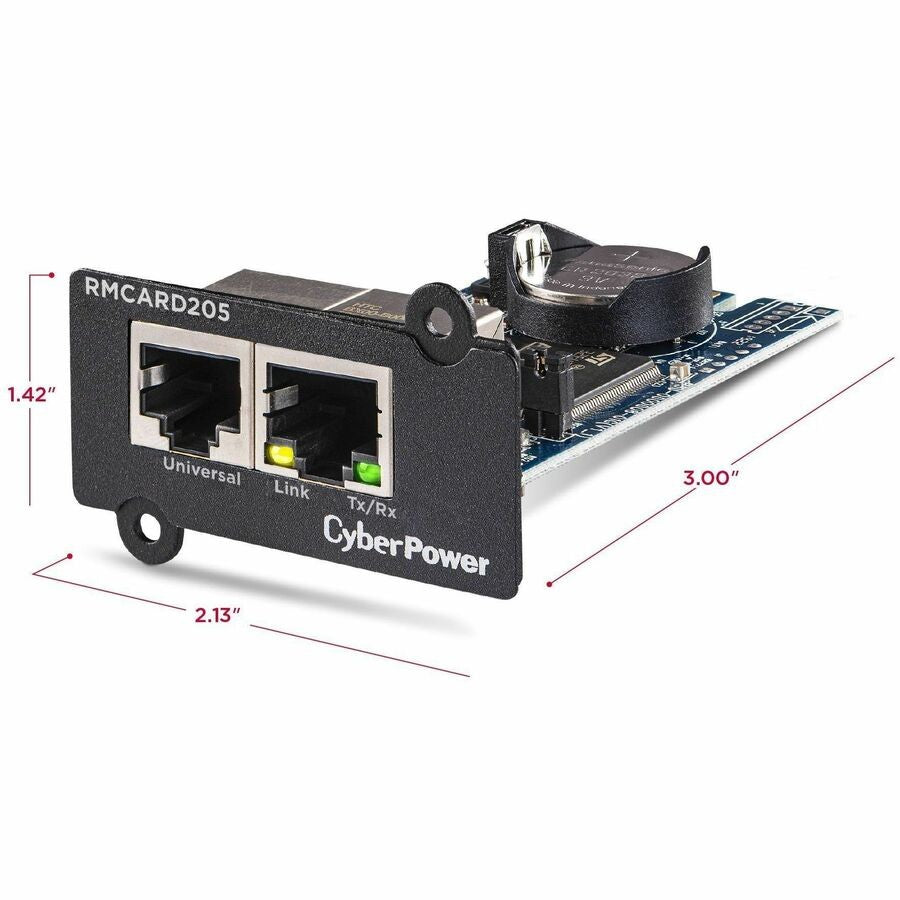

| Height | 1.4" |
| Width | 2.1" |
| Depth | 3" |
| Weight (Approximate) | 1.28 oz |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| Data Link Protocol | Ethernet 100Base-TX, Ethernet 10Base-T |
| LED Indicators | Tx/Rx |
| Supported Protocols | TCP/IP, UDP, FTP, DHCP, DNS, SSH, Telnet, HTTP, HTTPS, SNMPv3, SNMP v1, IPv4, IPv6, NTP, SMTP, SSL, RADIUS, LDAP, LDAPS, TLS, Syslog |
| Additional Protocols | Cisco EnergyWise v1.2.0+, DHCP RFC 2131, DNS RFC 1035, FTP RFC 959, HTTP v1.1 RFC 2616, HTTPS RFC 2818, LDAP v3 RFC 2251, LDAPS v3 RFC 4513, MIB RFC 1213/1628, NTP RFC 958, RADIUS RFC 2865, SCP v2 RFC 4253/4254, SMTP RFC 2821, SMTPS RFC 3207, SNMP v1 RFC 1155/1156/1157, SSH v2 RFC 4253/4254, SSL v3 RFC 6101, Syslog RFC 5424, TCP/IP v4 RFC 791, Telnet RFC 854, TLS v1 RFC 2246 |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Operating Relative Humidity | 0 - 90% (non-condensing) |
| Operating Elevation | 0 - 10000 ft (0 - 3048 m) |
| Storage Temperature | 14 - 122 °F (-10 - 50 °C) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Storage Elevation | 0 - 50000 ft (0 - 15239 m) |
| Safety | FCC DoC Class A, CE |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Package Contents | RMCARD205 UPS & ATS PDU Remote Management Card - SNMP/HTTP/NMS/Enviro Port, Quick Start Guide, Spare Jumper |
Why Choose CyberPower RMCARD205
Especially suited for enterprise installations, the RMCARD205 delivers robust remote power management with extensive protocol support and broad compatibility across CyberPower UPS and PDU lines. RoHS compliant for environmental responsibility.
Upgrade your power infrastructure management—Order CyberPower RMCARD205 today!
Brand: CyberPower
Type: Management Adapter/Card
Features: Remote Monitoring
Color: Black
Model: RMCARD205
MPN: RMCARD205
Compatible Model: RMCARD205
Country of Origin: China
Item Height: 1.4"
Item Width: 2.1"
Item Length: 3"
UPC: 649532619375
