CyberPower PDU81001 100-120V 15A Switched Metered-by-Outlet PDU
CyberPower PDU81001 100-120V 15A Switched Metered-by-Outlet PDU
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU
This is a CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU. It provides outlet-level power monitoring in real time along with individual outlet control for remote reboots, load shedding, and controlled power-cycling. The unit supports inputs between 100-120V and includes eight NEMA 5-15R outlets along with a rack mount design, built-in web interface via RJ-45 ethernet connection, interactive digital display, and power event notifications.
Key Features
- Switched with Metered-by-Outlet PDU Type
- Single Phase operation
- NEMA 5-15P plug connector
- 8 x NEMA 5-15R receptacles
- LCD Display feature
- Remote Outlet Switching supported
- Network RJ-45 interface
- Protocols supported include IPv4, TCP, IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD, SNMP
- Rack-mountable horizontal mounting in 1U height
- 12 ft cord length
- Application for Server and Network Device
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Brand | CyberPower |
| Product Series | Switched Metered-by-Outlet PDU |
| Model | PDU81001 |
| MPN | PDU81001 |
| UPC | 649532616961 |
| PDU Type | Switched with Metered-by-Outlet |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Network RJ-45 | Yes |
| Remote Outlet Switching | Yes |
| Color | Black |
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Cord Length | 12 ft |

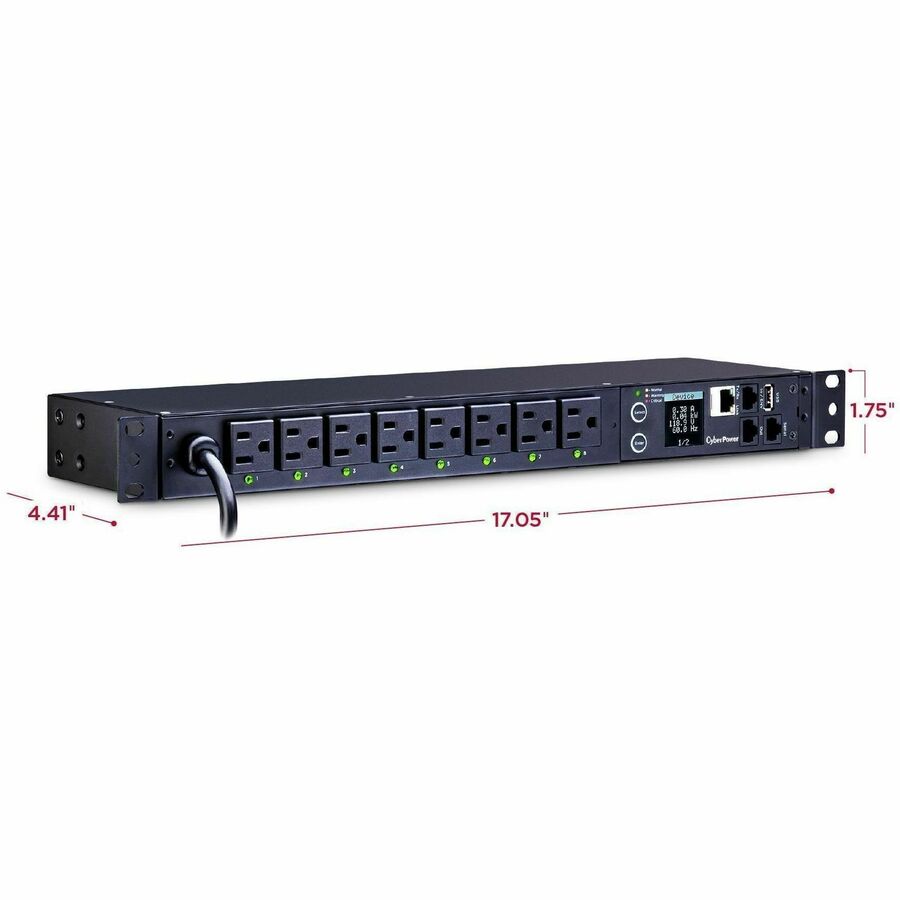

| Height | 1.8" |
| Width | 17.1" |
| Depth | 4.4" |
| Weight | 5.73 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Application/Usage | Server, Network Device |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Certifications & Standards | UL62368, FCC Class A, ICES-003: Issue 7 |
Package Contents
- PDU81001 8-Outlet PDU
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
UPC: 649532616961
MPN: PDU81001
Maximum Power: 120 W
Item Height: 1.75 in
Number of Outlets: 8
Item Width: 17.5 in
Compatible Brand: Universal
Voltage Compatibility: 120 V
Color: Black
Brand: CyberPower
Maximum Input Current: 15 A
Features: Rack Mountable
Compatible Model: Universal
Type: Power Distribution Panel
Model: PDU81001
