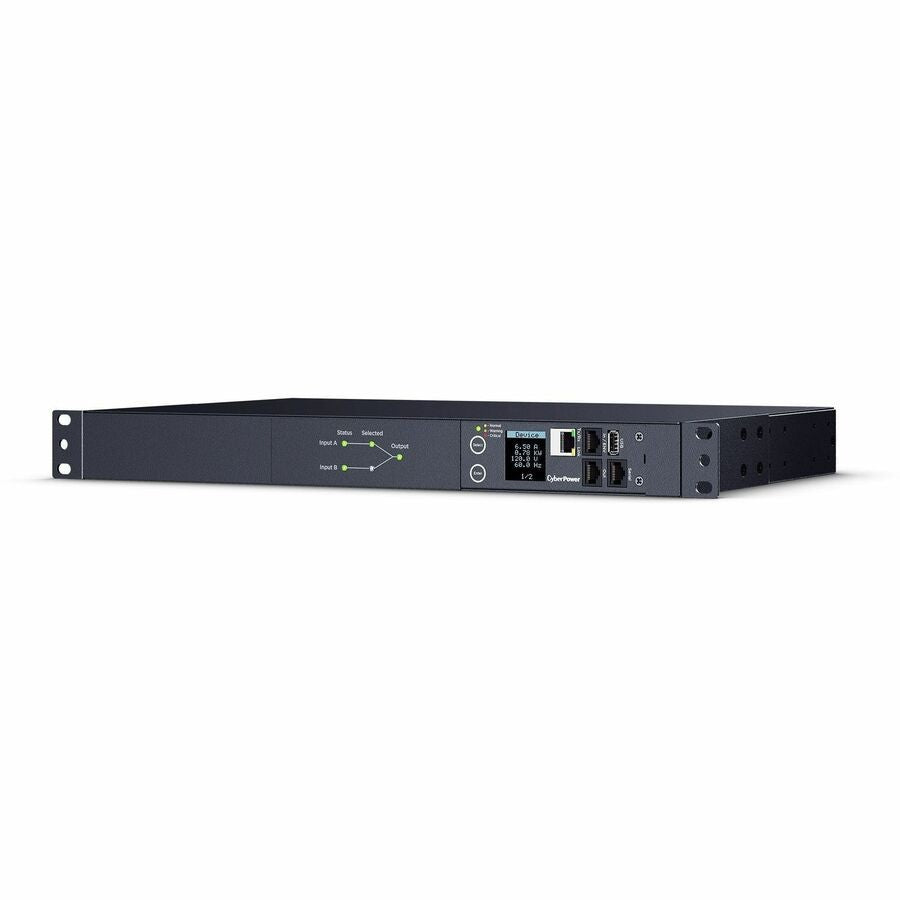

CyberPower PDU44001 Single Phase 100 - 120 VAC 15A Switched ATS PDU

This is a CyberPower PDU44001 Single Phase 100 - 120 VAC 15A Switched ATS PDU. The unit supplies power redundancy to single-corded equipment in data centers and network closets by automatically switching between primary and secondary sources when thresholds are exceeded or power fails. It supports 100-120 V AC input with 10 NEMA 5-15R outlets and dual NEMA 5-15P cords connected to separate sources A and B.

Real-time remote and local monitoring is available through the built-in web interface along with outlet management. Front-panel LED indicators display source status while a multifunction LCD provides selectable background color. Additional capabilities include power event notifications and upgradeable firmware.

Key Features

• Switched ATS PDU design with modular construction for single-phase operation
• Automatic transfer between primary and secondary power sources with 2-7 ms transfer time

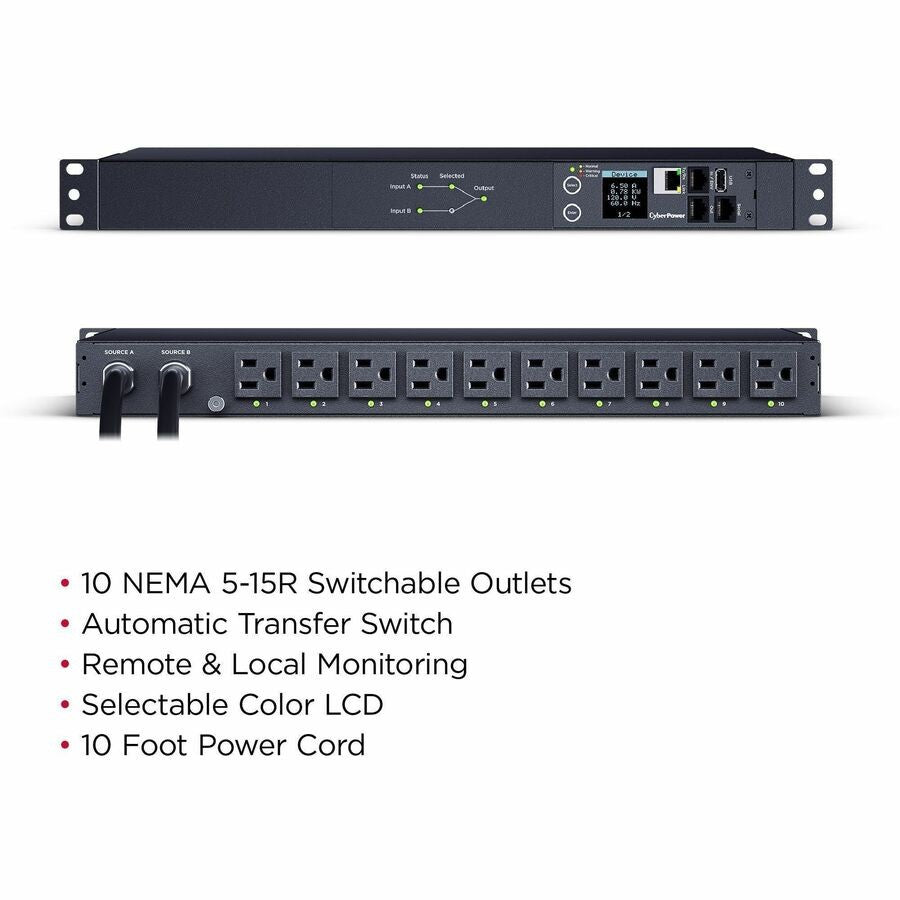

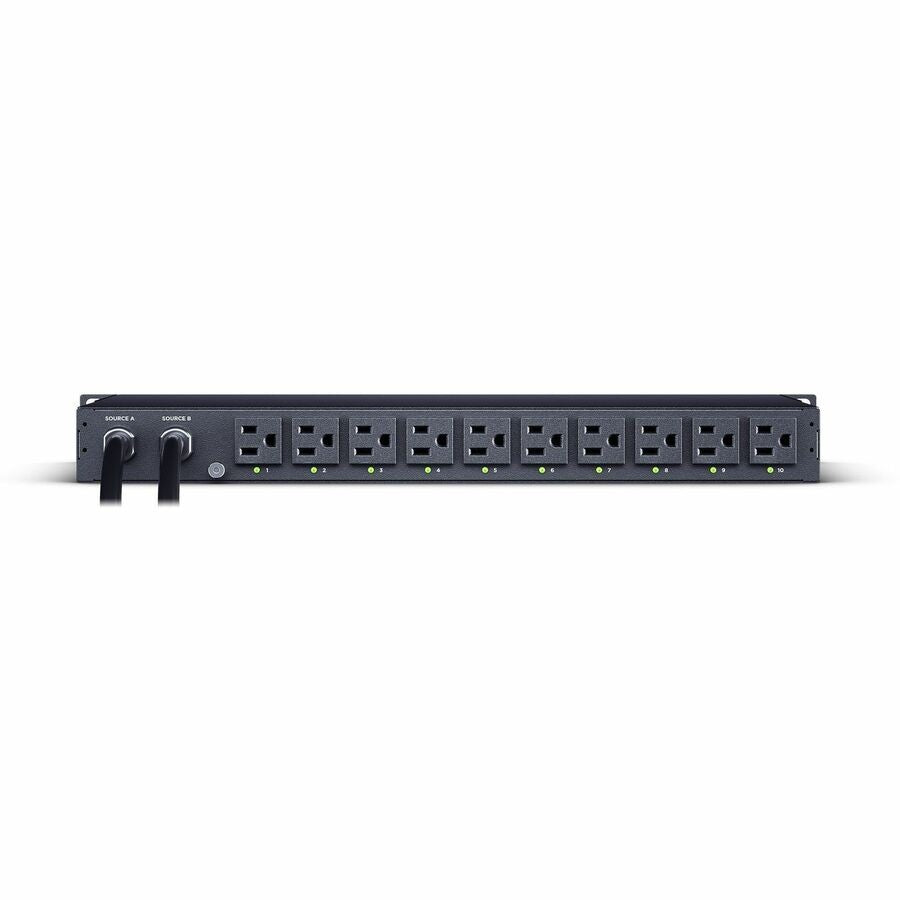

• 10 NEMA 5-15R receptacles with cord retention tray
• Remote outlet switching enabled via network connection
• IPv4 and IPv6 protocol support including SNMPv1/v3, HTTP/HTTPS, SSH, Telnet, DHCP, SMTP, FTP, DNS, NTP, RADIUS, LDAP(S), Syslog, CLI, and Windows AD

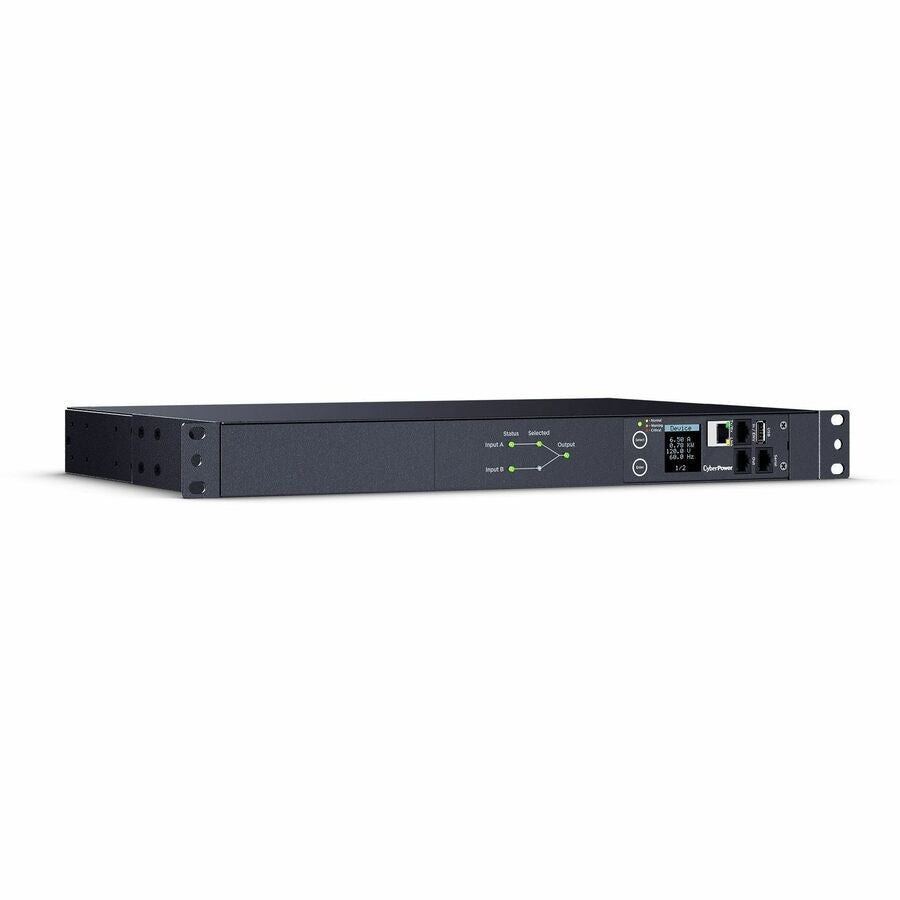

• Multifunction LCD display and LED source status indicators
• Optional environmental sensor connection via RJ45 port

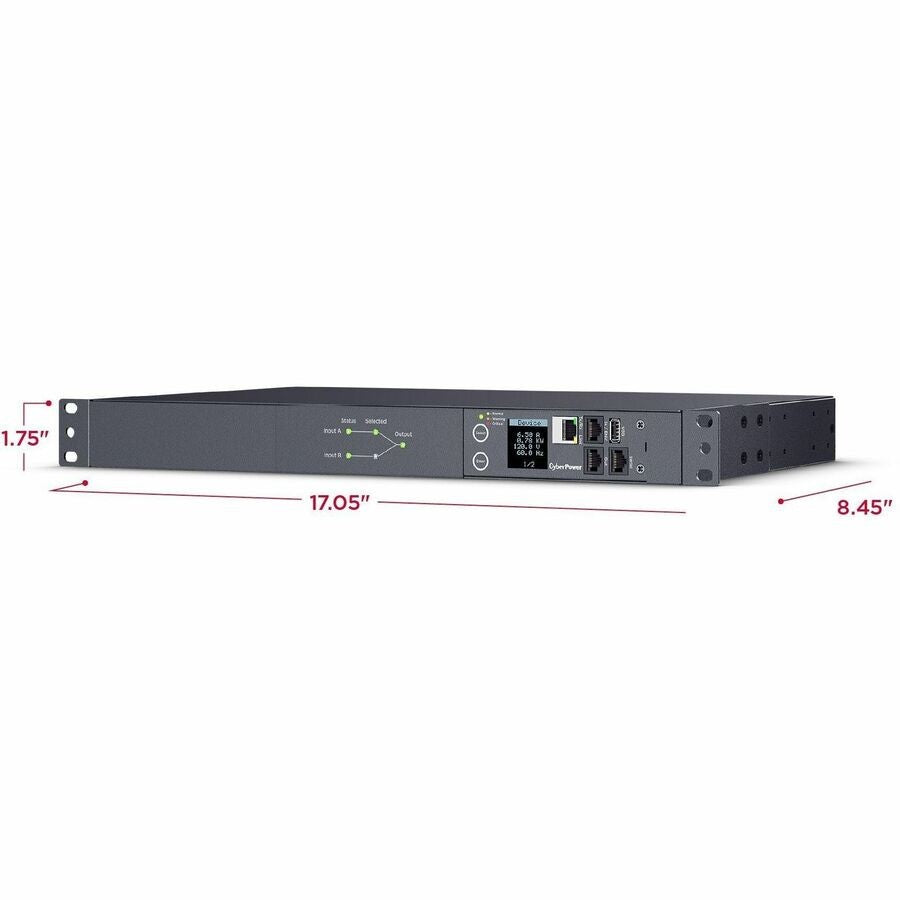

• Metal construction with black finish and horizontal 1U rack-mount orientation
• 10 ft cord length with straight NEMA 5-15P plugs
• UL62368 via cTUVus, FCC Class A, ICES-003 Issue 7, and RoHS compliance

Comprehensive Technical Specifications
