CyberPower PDU41101 24 Outlet 0U Switched PDU L5-20P
CyberPower PDU41101 24 Outlet 0U Switched PDU L5-20P
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

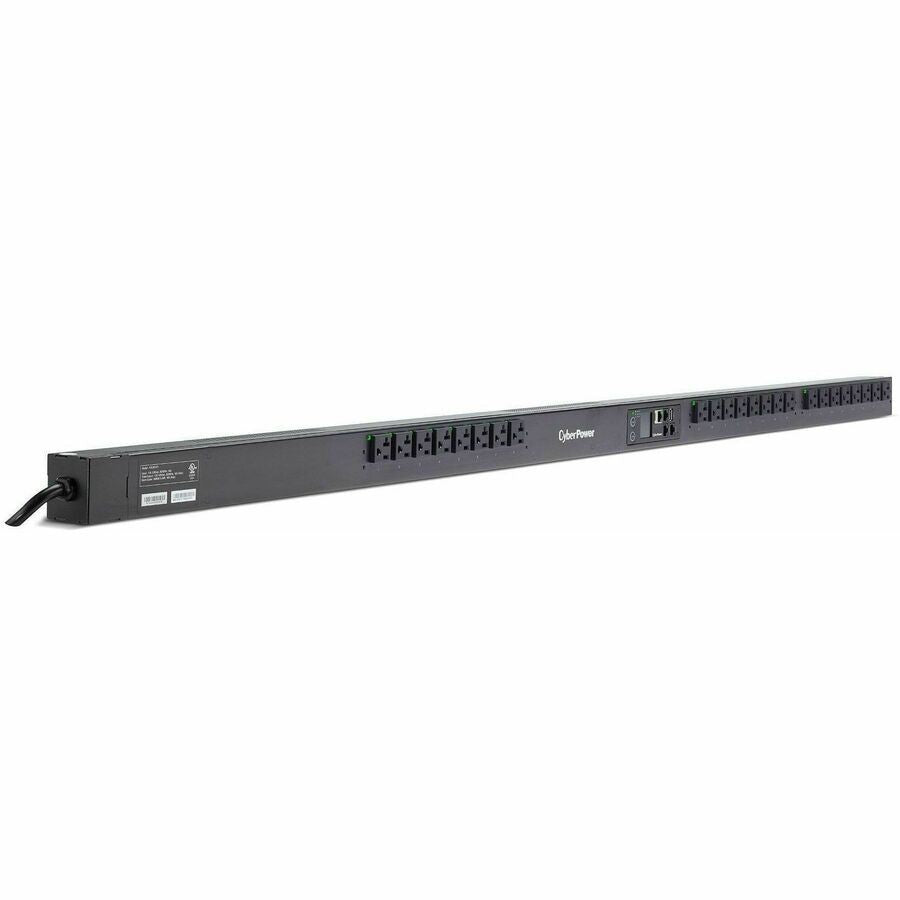

CyberPower PDU41101 100 - 120 VAC 20A Switched PDU
This is a 0U rackmount switched power distribution unit that provides 120V 20A output with 24 outlets. The CyberPower PDU41101 distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. It supports remote management via the CyberPower Management Console over an RJ45 Ethernet connection and local control through an LCD interface.
Key Features of CyberPower PDU41101 Switched PDU
- 24 NEMA 5-20R Outlets – Delivers switched power distribution from one NEMA L5-20P input plug.
- Remote Outlet Switching – Individual or group outlet control via web browser and network connection.
- LCD Display – Multifunction local interface for outlet status and management.
- Network Protocols – Supports IPv4, IPv6, SNMPv1/v3, HTTP/HTTPS, SSH, Telnet, DHCP, SMTP, FTP, RADIUS, LDAP(S), and Windows AD.
- Scheduling Capabilities – Enables remote reboot, load shedding, power sequencing, and unauthorized load lockout.
- Metal Construction – Black finish with horizontal or vertical rack-mount and wall-mount options.
- 10 ft Power Cord – Includes NEMA L5-20P plug with 5-20P adapter.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Manufacturer | CyberPower Systems, Inc |
| Model | PDU41101 |
| MPN | PDU41101 |
| UPC | 649532621590 |
| PDU Type | Switched |
| Phase | Single Phase |
| Input Voltage | 100-120 VAC |
| Input Current | 20 A (derated 16 A) |
| Input Frequency | 50-60 Hz |
| Input Plug | NEMA L5-20P (with 5-20P adapter) |
| Output Voltage | 100-120 VAC |
| Outlets | 24 x NEMA 5-20R |
| Cord Length | 10 ft (3 m) |
| Rack Height | 0U |
| Mount Type | Rack-mountable, Wall-mountable (Horizontal/Vertical) |
| Form Factor | Rack |
| Material | Metal |
| Color | Black |
| Dimensions (HxWxD) | 65.6 x 1.9 x 1.9 in |
| Weight | 15.43 lb |
| Network Port | RJ-45 |
| Remote Outlet Switching | Yes |
| LCD | Multifunction LCD |
| Operating Temperature | 32-140 °F (0-60 °C) |
| Storage Temperature | 5-149 °F (-15-65 °C) |
| Operating Humidity | 0-95% (non-condensing) |
| Operating Elevation | 0-11483 ft (0-3500 m) |
| Storage Elevation | 0-49213 ft (0-14999 m) |
| Certifications | UL62368, FCC Class A, ICES-003 Issue 7, RoHS, UL Listed |
| Country of Origin | China |
| Application | Data Center, Network Device |
Management and Environmental Details
The unit supports upgradeable firmware and optional environmental sensors via RJ45. Overload protection is not included. It is designed for horizontal or vertical wallmount installation and includes a circuit quantity of 1.
Brand: CyberPower
Type: Power Distribution Panel
Features: Rack Mountable
Color: Black
Model: PDU41101
MPN: PDU41101
Compatible Model: PDU41101
Form Factor: Rack
Number of Outlets: 24
Maximum Input Current: 20 A
Country of Origin: China
UPC: 649532621590
