CyberPower PDU41023 16-Outlet 1U Switched PDU L5-30P 12ft
CyberPower PDU41023 16-Outlet 1U Switched PDU L5-30P 12ft
Low stock: 2 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower PDU41023 16-Outlet 1U Switched PDU L5-30P 12ft
This is a CyberPower PDU41023 Single Phase 100 - 120 VAC 30A Switched PDU. The unit is a 1U rackmount switched power distribution unit that provides 100-120Vac 30A output via sixteen NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. Switched outlet receptacles can be managed individually or collectively over the network using the CyberPower Management Console via web browser and RJ45 Ethernet port or locally from the Power Control Display.
Product Series: Switched PDU. Product Model: PDU41023. Manufacturer: CyberPower Systems, Inc. Manufacturer Part Number: PDU41023. UPC: 649532937660. Country of Origin: PHILIPPINES. Master Pack Qty: 1.
Key Features
- Switched PDU with remote outlet switching enabled
- 16 controllable NEMA 5-20R outlets total with 8 front and 8 rear
- 2 outlet banks with 20A overload protection per bank
- Network management via IPv4/v6 SNMPv1/v3 HTTP/HTTPs TCP/IP UDP DHCP NTP DNS SMTP SSH SSL TLS Telnet FTP Syslog RADIUS LDAP LDAPS Windows AD
- Onboard display with LED status indicators and Tx/Rx indicators
- Cord retention tray and external site ground pin
- Adjustable mounting brackets included
- Form factor supported: 1U rackmount horizontal
- Operating temperature range 32 to 140 degrees F
- Storage temperature range 5 to 149 degrees F
- RoHS compliant and UL62368 listed
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Brand | CyberPower |
| Model | PDU41023 |
| MPN | PDU41023 |
| UPC | 649532937660 |
| Product Type | PDU |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Controllable Outlets | 16 |
| Outlets Front | 8 |
| Outlets Rear | 8 |
| Outlets Total | 16 |
| Outlets Number of Banks | 2 |
| Input Current | 30 A |
| Derated Input Current | 24 A |
| Maximum Input Current | 30 A |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Nominal Output Voltage | 100 - 120 VAC |
| Input Frequency | 60 Hz |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Plug Type | NEMA L5-30P |
| Plug Style | Straight |
| Cord Length | 12 ft |
| Circuit Breaker | Yes |
| Overload Protection | 20A x 2 |
| Overload Protection Each Bank | 20A |
| Remote Outlet Switching | Yes |
| Network RJ-45 | Yes |
| Hardware Connection Port | RJ45 |
| Meter Readout | Power Control Display |
| Management Protocols | IPv4/v6 SNMPv1/v3 HTTP/HTTPs TCP/IP UDP DHCP NTP DNS SMTP SSH SSL TLS Telnet FTP Syslog RADIUS LDAP LDAPS Windows AD |
| LED Indicators | Tx/Rx |
| Features | Onboard Display LED Status Indicator |
| Locking Receptacles | Cord Retention Tray |
| Protection Type | Overload Protection |
| Rack Height | 1U |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Style | Horizontal Rackmount |
| Form Factors Supported | 1U Rackmount |
| Product Color | Black |
| Color Family | Black |
| Product Material | Metal |
| Material of Construction | Metal |

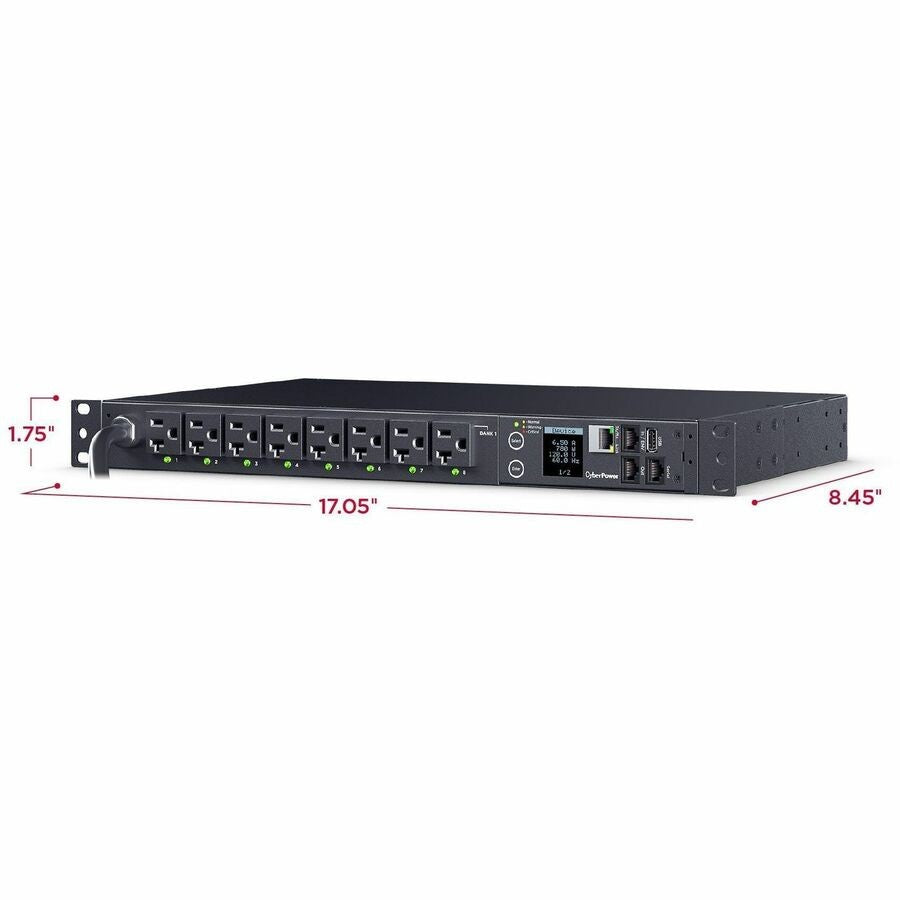

| Height | 1.8" |
| Width | 17.1" |
| Depth | 8.5" |
| Weight Approximate | 9.90 lb |
| Physical Dimensions WxHxD mm | 433 x 44 x 215 |
| Physical Dimensions WxHxD in | 17.05 x 1.75 x 8.45 |
| Physical Dimensions WxHxD cm | 43.31 x 4.45 x 21.46 |
| Operating Temperature | 32 to 140 degrees F |
| Storage Temperature | 5 to 149 degrees F |
| Operating Relative Humidity | 0 to 95 percent non-condensing |
| Operating Elevation | 0 to 11483 ft |
| Storage Elevation | 0 to 49213 ft |
| Environmental Compliance | RoHS |
| Certifications and Standards | UL62368 FCC Class A |
| UL Listed | Yes |
| Safety | UL62368 |
| Application Usage | Data Center Network Closet VoIP Phone System |
| USB Charge Port | No |
| Adjustable Mounting Brackets | 1 set |
| Cord Retention Tray Cord Organizers | Yes |
| External Site Ground Pin | Yes |
Package Contents
PDU41023 unit, adjustable mounting brackets set, cord retention tray, documentation.
Brand: CyberPower
Type: PDU
Features: Rack Mountable
Color: Black
Model: PDU41023
MPN: PDU41023
Compatible Model: PDU41023
Form Factor: Rack
Voltage Compatibility: 120 V
Number of Outlets: 16
Country of Origin: Philippines
Item Height: 1.8"
Item Width: 17.1"
Item Length: 8.5"
UPC: 649532937660
