CyberPower PDU41021 16-Outlet 1U Switched PDU 15A 12ft NEMA 5-15P
CyberPower PDU41021 16-Outlet 1U Switched PDU 15A 12ft NEMA 5-15P
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower PDU41021 16-Outlet 1U Switched PDU 15A 12ft NEMA 5-15P

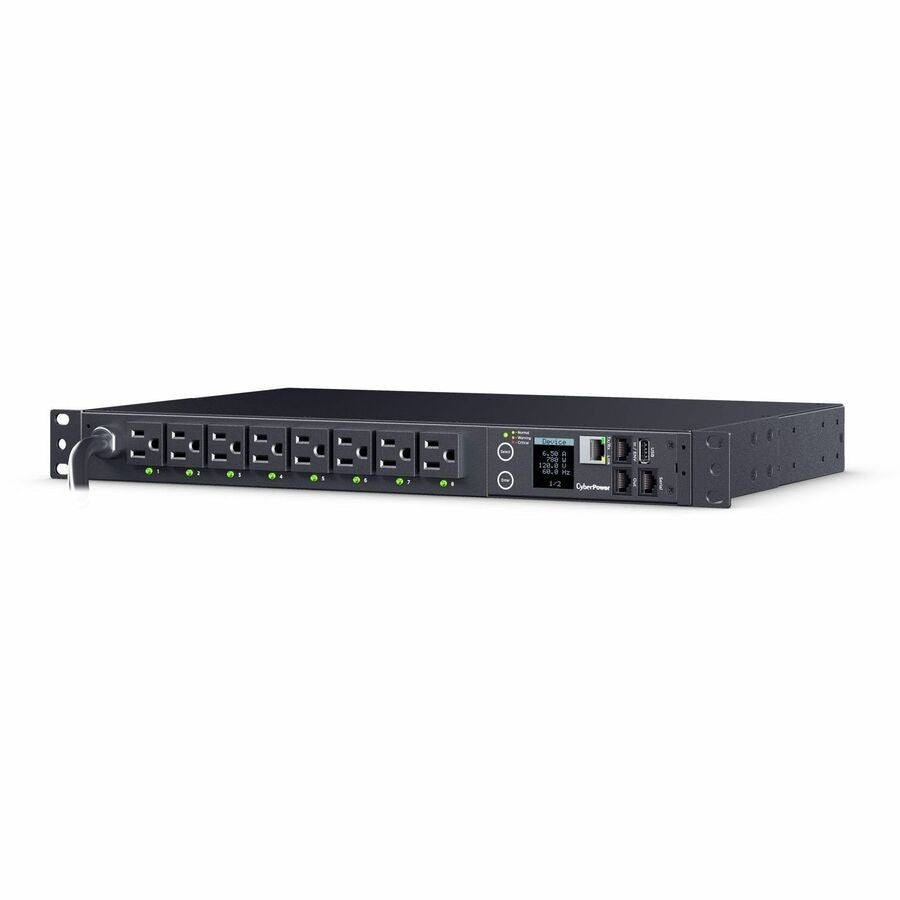

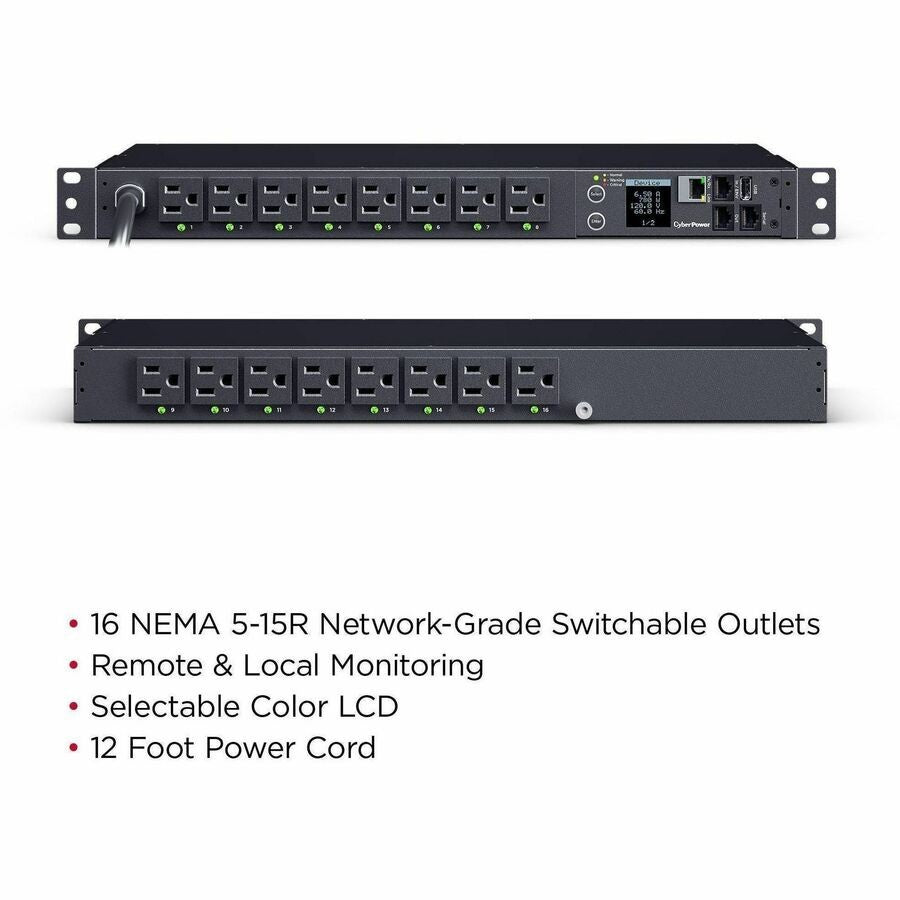

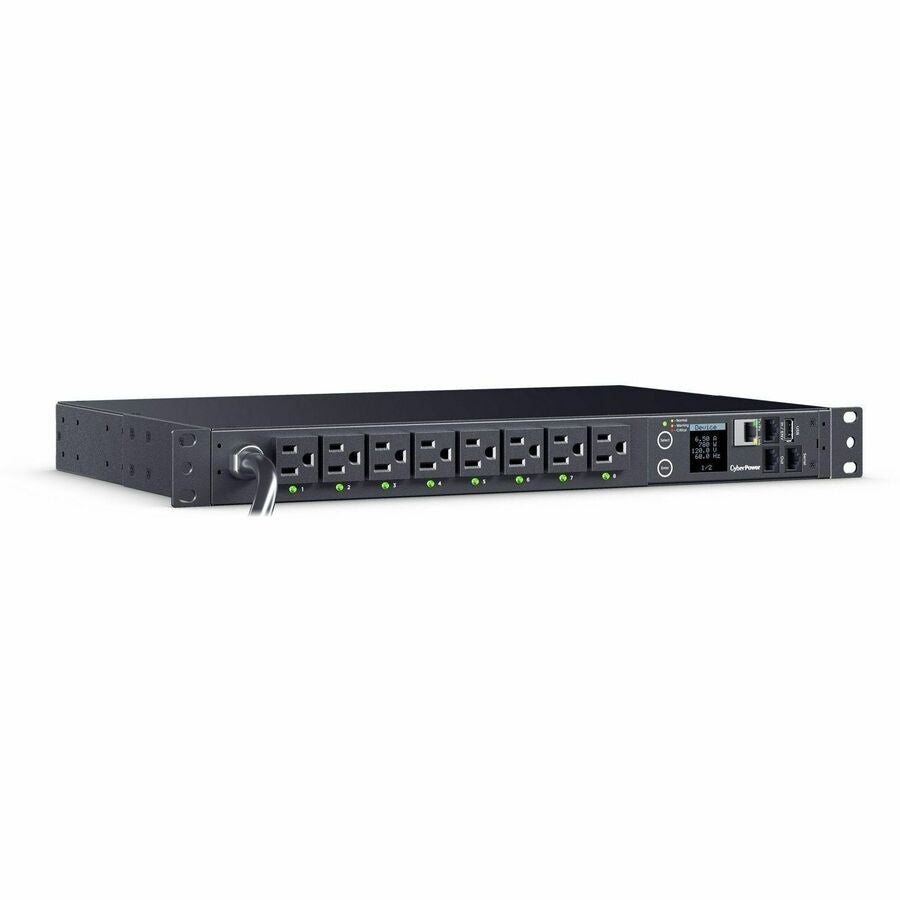

This is a CyberPower PDU41021 Single Phase 100 - 120 VAC 15A Switched PDU. The unit is a 1U rackmount switched power distribution unit that supplies 100-120Vac 15A output through sixteen NEMA 5-15R receptacles from a single NEMA 5-15P input plug. Switched outlets are managed individually or collectively over the network via the CyberPower Management Console, web browser, RJ45 Ethernet port, or locally from the Power Control Display.
Key Features of CyberPower PDU41021 Switched PDU
- Switched Outlet Control – Individual or group outlet switching via network or local LCD display.
- Network Management – Supports IPv4/v6, SNMPv1/v3, HTTP/HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog, RADIUS, LDAP, LDAPS, and Windows AD.
- LCD Display and Indicators – Multifunction LCD with Tx/Rx LED status indicators and Power Control Display readout.
- Overload Protection – Built-in circuit breaker rated at 15A with cord retention tray.
- Rack Mounting – 1U horizontal or vertical rack-mountable metal construction with adjustable brackets.
- Firmware Upgradeable – Supports firmware updates via network connection.
- Environmental Monitoring – Optional environmental sensor connection via RJ45 port.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cyberpower |
| Manufacturer | CyberPower Systems, Inc |
| Model | PDU41021 |
| MPN | PDU41021 |
| UPC | 649532937653 |
| Product Type | PDU |
| PDU Type | Switched |
| Phase | Single Phase |
| Input Plug | NEMA 5-15P |
| Input Current | 15 A (derated 12 A) |
| Input Frequency | 50-60 Hz |
| Output Voltage | 100-120 V AC |

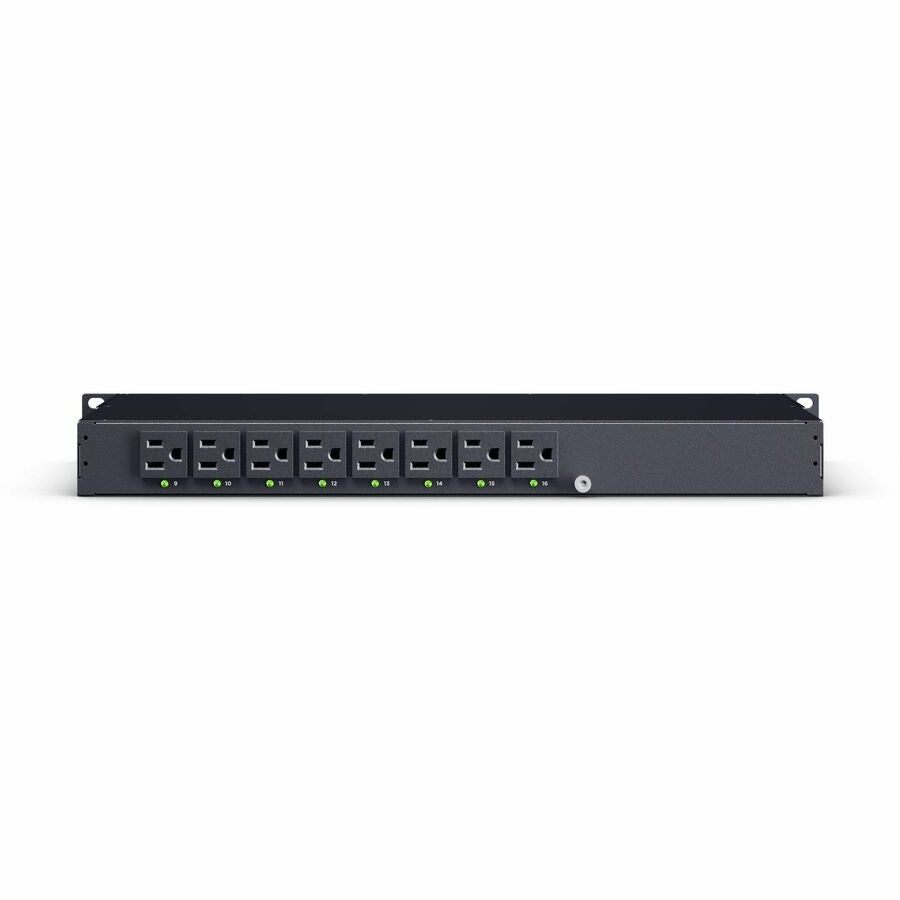

| Output Receptacles | 16 x NEMA 5-15R (8 front, 8 rear) |
| Number of Banks | 2 |
| Cord Length | 12 ft |
| Rack Height | 1U |
| Mounting | Horizontal/Vertical Rack-mountable |
| Material | Metal |
| Color | Black |

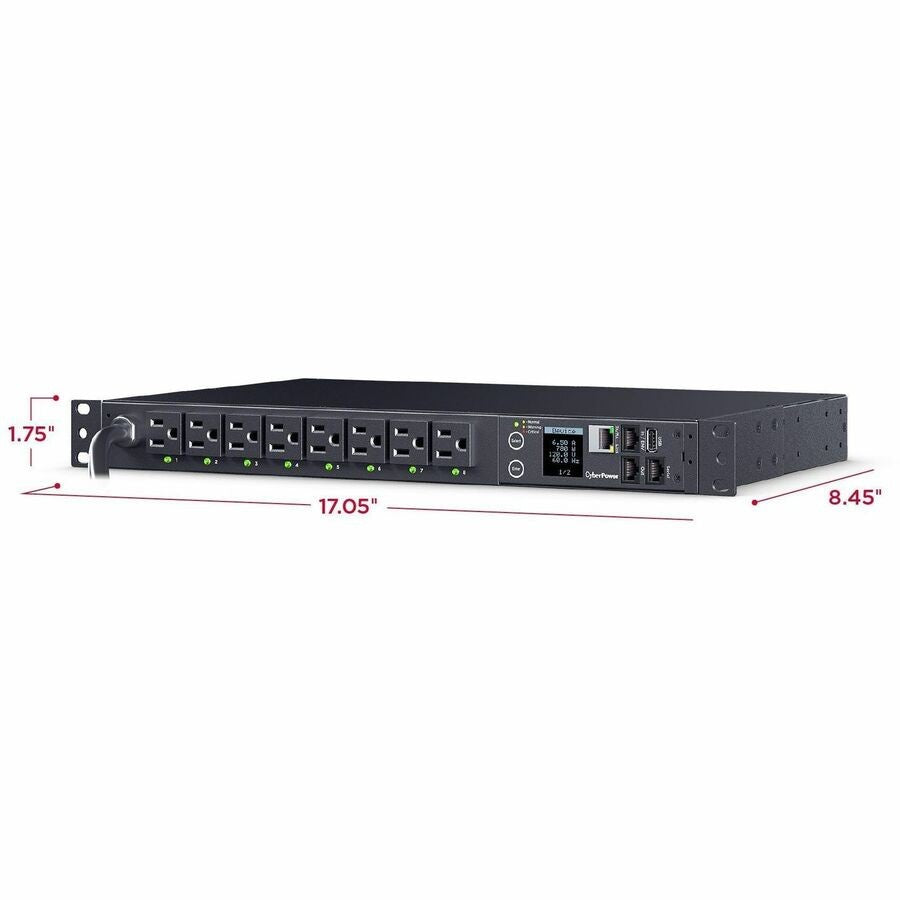

| Dimensions (Unit) | 17.05 x 1.75 x 8.45 in (433 x 44 x 215 mm) |
| Weight (Unit) | 8.4 lb (3.81 kg) |
| Shipping Dimensions | 21.75 x 5 x 16 in (552.45 x 127 x 406.4 mm) |
| Shipping Weight | 12.2 lb (5.53 kg) |
| Operating Temperature | 32-140 °F (0-60 °C) |
| Storage Temperature | 5-149 °F (-15-65 °C) |
| Operating Humidity | 0-95% non-condensing |
| Operating Elevation | 0-11483 ft (0-3500 m) |
| Storage Elevation | 0-49213 ft (0-14999 m) |
| Remote Outlet Switching | Yes |
| Network Port | RJ-45 |
| Environmental Sensor Port | Optional via RJ45 |
| Certifications | UL62368, FCC Class A, RoHS, UL Listed |
| Country of Origin | Philippines |
| Application | Data Center, Network Closet, VoIP Phone System |
Package Contents
- CyberPower PDU41021 Switched PDU
- Adjustable mounting brackets (1 set)
- Cord retention tray / organizers
- User manual
Order the CyberPower PDU41021 today for reliable switched power distribution.
Brand: CyberPower
Type: PDU
Voltage Compatibility: 120 V
Features: LED Display
Color: Black
Model: PDU41021
MPN: PDU41021
Compatible Model: PDU41021
Number of Outlets: 16
Maximum Input Current: 15 A
Country of Origin: Philippines
UPC: 649532937653
