CyberPower PDU41001 8-Outlet 1U Switched PDU 120V 15A

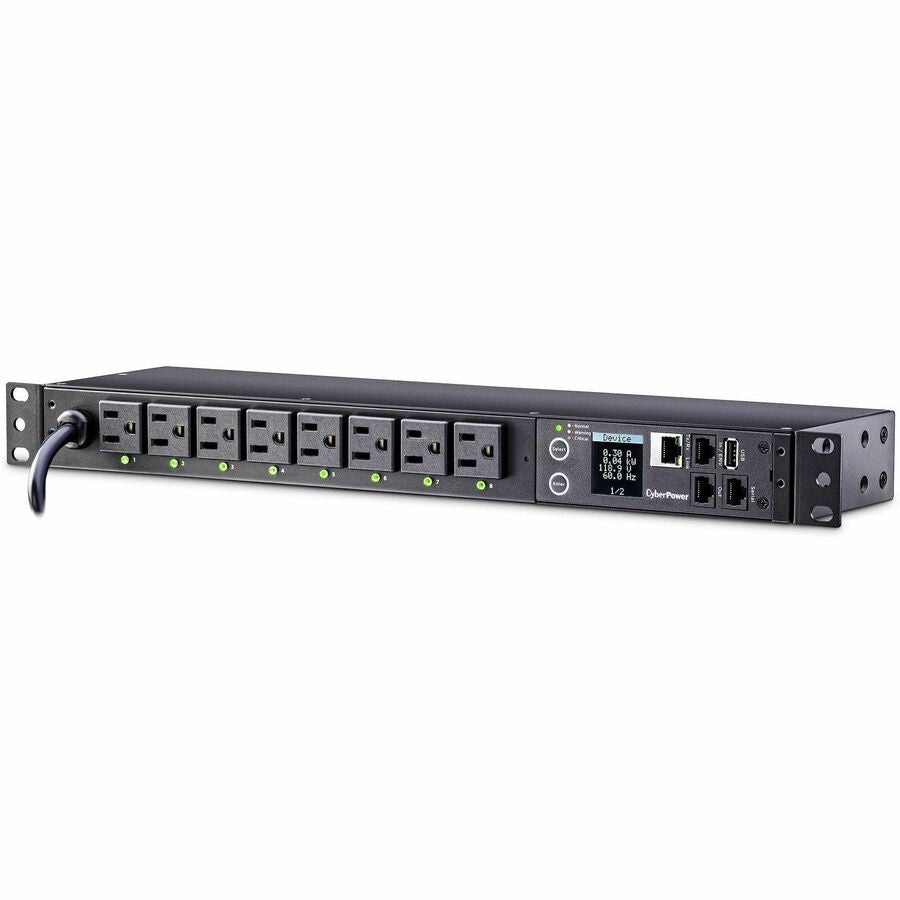

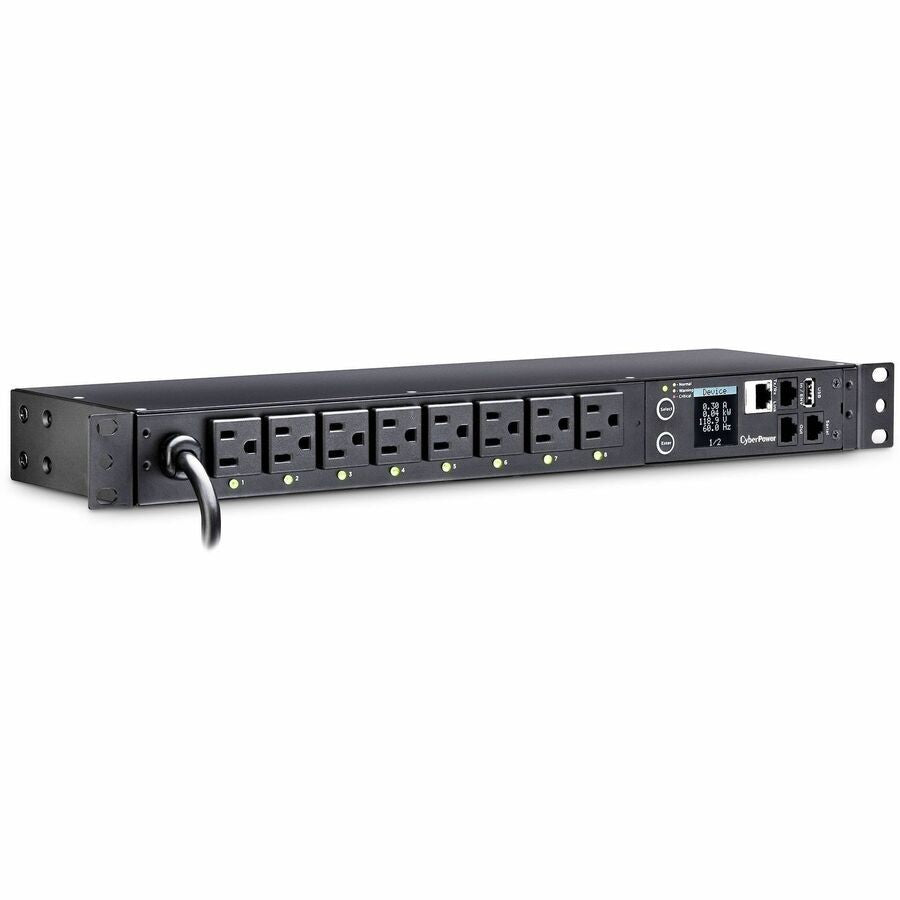

This is a CyberPower PDU41001 Single Phase 100 - 120 VAC 15A Switched PDU, an 8-outlet (front) 1U rackmount switched power distribution unit that provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Switched outlet receptacles can be managed individually or collectively over the network using CyberPower Management Console, web browser, and RJ45 Ethernet port, or locally via LCD controls. MPN: PDU41001; UPC: 649532614073.
Key Features of CyberPower PDU41001 Switched PDU

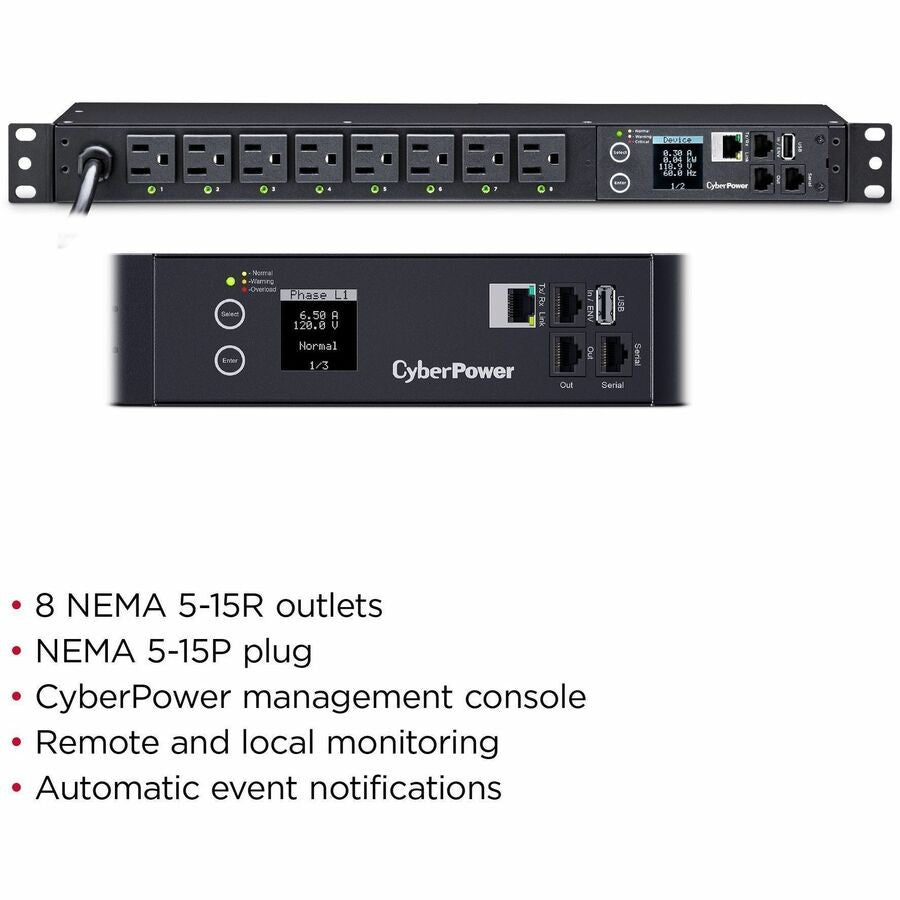

- Switched PDU Design – 8 front-facing NEMA 5-15R outlets for precise power control in rack environments.
- Network Management – Supports remote individual or group outlet switching via RJ45 Ethernet.

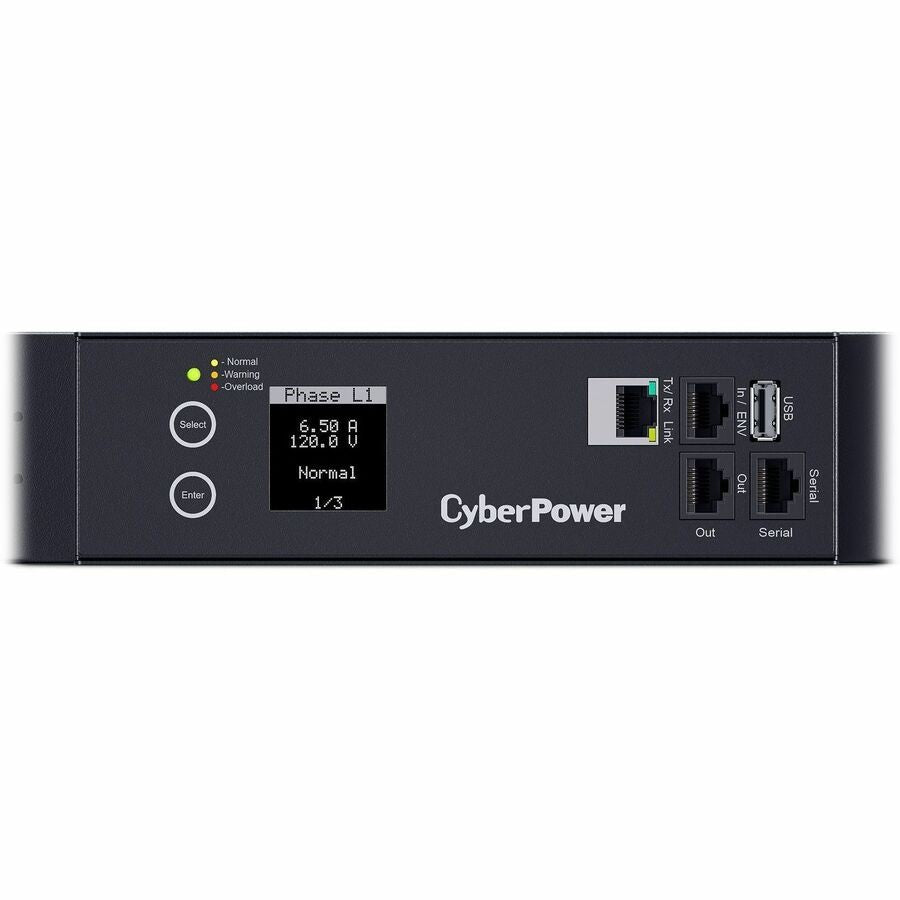

- Local LCD Controls – On-unit display and LED indicators for status monitoring.
- Overload Protection – Integrated circuit breaker safeguards connected equipment.
- Cord Retention Tray – Secures cables to prevent accidental disconnection.
- Versatile Mounting – 1U rackmount, wall-mountable, horizontal/vertical orientation.
- Extensive Protocols – IPv4/IPv6, SNMPv1/v3, HTTP/HTTPS, SSH, Telnet, and more for comprehensive integration.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Brand Name | CyberPower |
| Product Series | Switched PDU |
| Product Model | PDU41001 |
| Product Name | Switched PDU41001 8 Outlets PDU |
| Product Type | PDU |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Features | LED Status Indicator, LCD Display |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 100 V AC, 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Remote Outlet Switching | Yes |
| Network Port | RJ-45 (Yes) |
| Supported Protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPS, SSH, SSL/TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Product Color | Black |
| Mount Type | Rack-mountable, Wall-mountable |
| Mounting Orientation | Horizontal |
| Form Factor | Horizontal/Vertical |
| Rack Height | 1U |
| Cord Length | 12 ft |

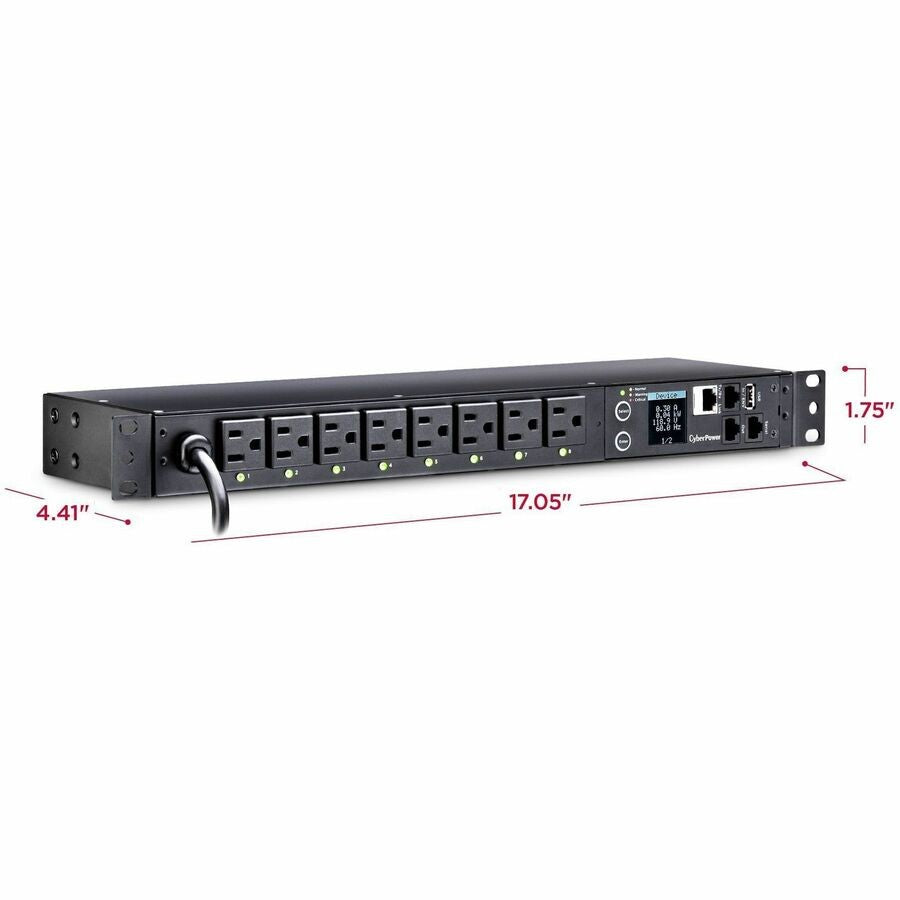

| Height | 1.8" |
| Width | 4.4" |
| Depth | 17.1" |
| Weight (Approximate) | 5.70 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Application/Usage | Network Device, Server |
| Certifications & Standards | UL62368, FCC Class A, ICES-003: Issue 7 |
| Energy Star | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| MPN | PDU41001 |
| UPC | 649532614073 |
Package Contents
- PDU41001 8-Outlet PDU
- 4 x Mounting Brackets (2 short and 2 long)
- 10 x Flat Head M4x8 Bracket Mounting Screws
- Cord Retention Tray
- 10 x Cable Ties
- 6 x M3x6 Cord Retention Tray Mounting Screws
- 6 x M5x12 Screws
- 6 x Washers
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- CD
Enhance your rack power management with CyberPower PDU41001—add to cart now!
Brand: CyberPower
Type: PDU
Features: Rack Mountable
Color: Black
Model: PDU41001
MPN: PDU41001
Compatible Model: PDU41001
Country of Origin: China
Voltage Compatibility: 120 V
Number of Outlets: 8
Maximum Input Current: 15 A
UPC: 649532614073
