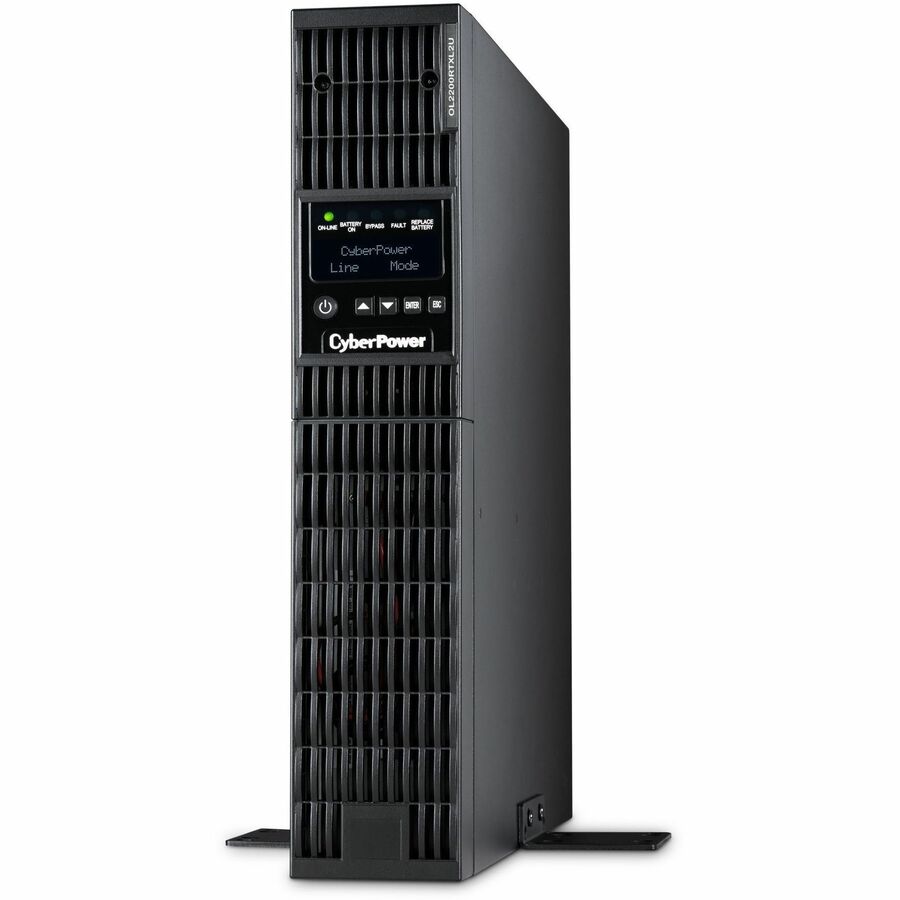

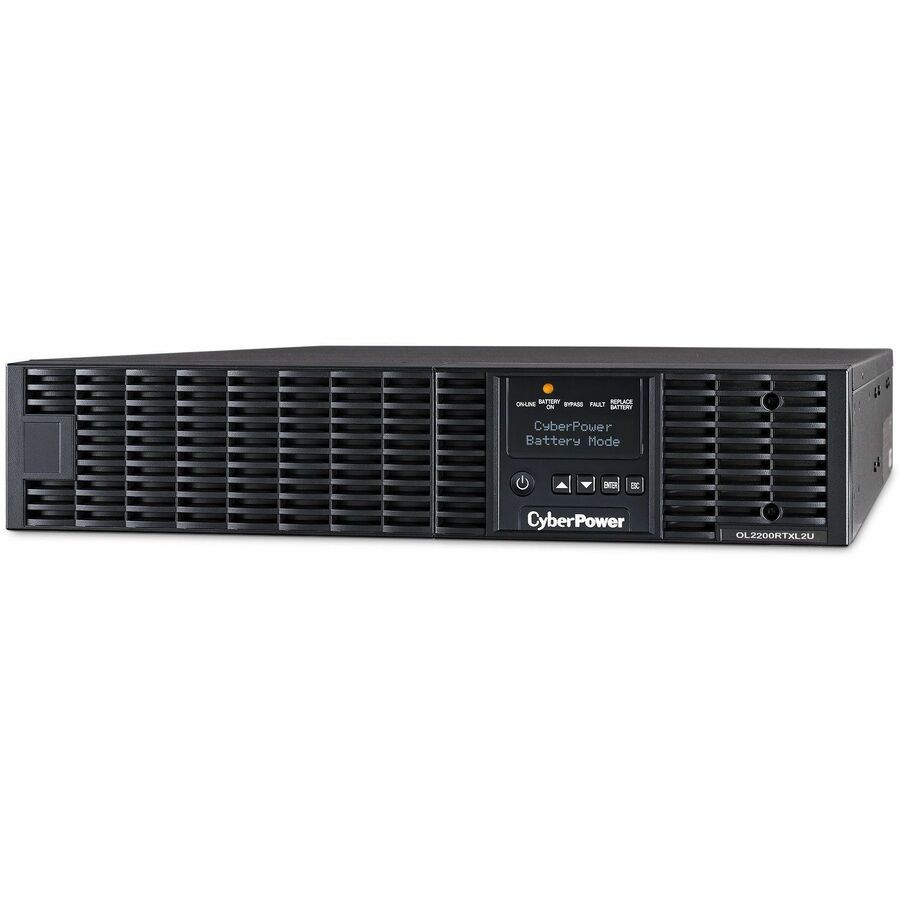

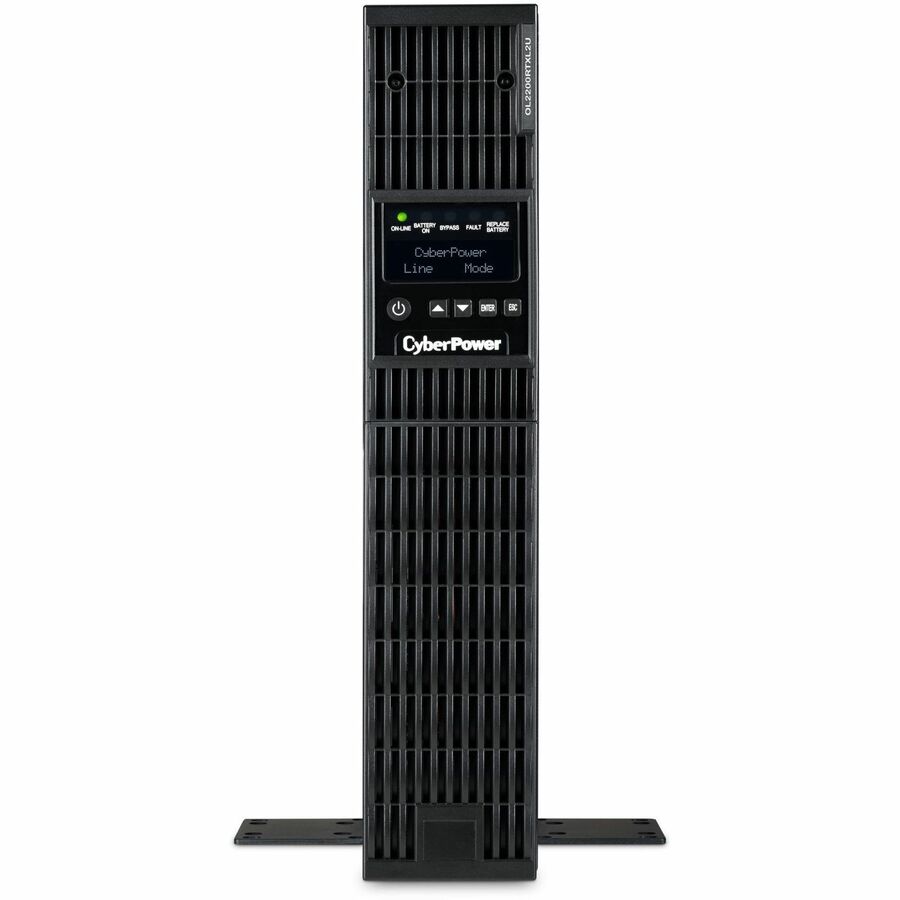

CyberPower OL2200RTXL2U Smart App Online UPS Systems

The CyberPower OL2200RTXL2U is a double conversion online UPS that delivers 2200 VA / 1800 W of sine wave power with zero transfer time. It supports mission-critical equipment including servers, network devices, storage systems, PBX, and VoIP hardware while offering generator compatibility and an extendable LCD control panel.

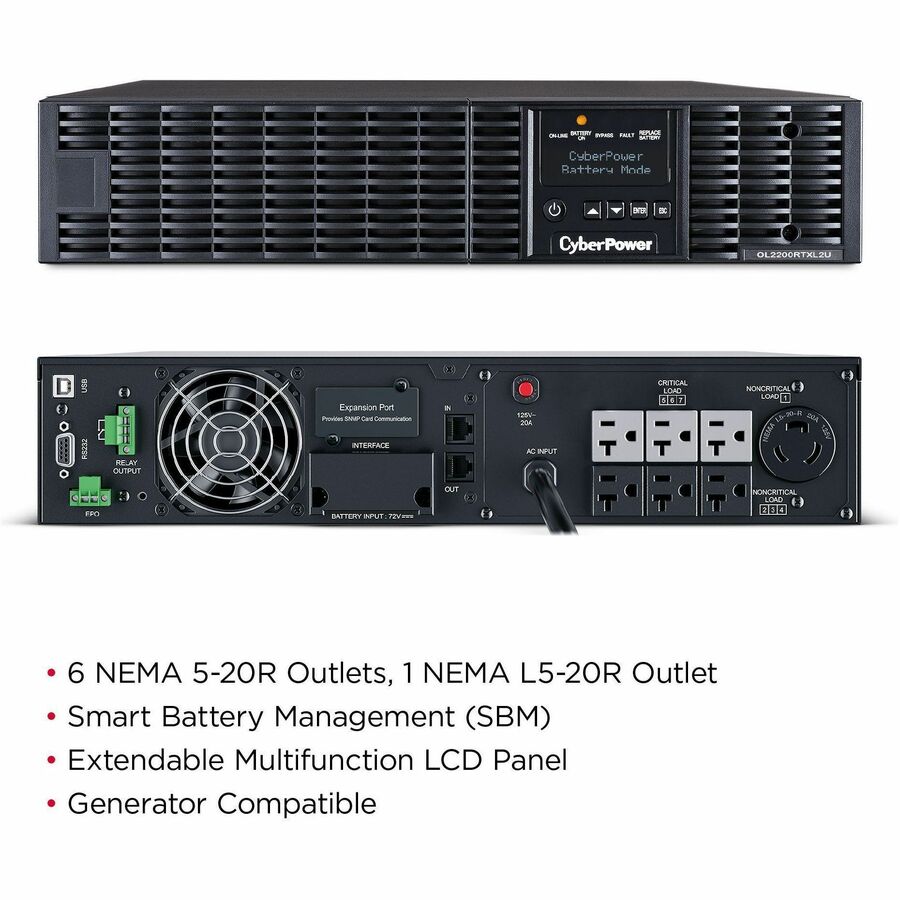

Key capabilities include Smart Battery Management, ECO Mode efficiency above 95 percent, Fast Charge Technology, and support for Extended Battery Modules. The unit provides NEMA 5-20P and NEMA L5-20P input options along with six NEMA 5-20R and one NEMA L5-20R receptacles.

Key Features

• Double conversion online topology with pure sine wave output and 0 ns transfer time
• 2200 VA / 1800 W load capacity with 3:1 crest factor
• Smart App Online series with LCD display and removable/rotatable control panel option
• Generator compatible with input frequency range 40-70 Hz
• ECO Mode energy saving with greater than 95 percent efficiency
• Smart Battery Management and Fast Charge Technology
• Network management via optional relay card or SNMP/HTTP card
• Short circuit, overload, EMI/RFI, and surge protection rated 1335 J
• Replaceable sealed lead-acid battery pack with 4-hour recharge time
• Metal construction in 2U rack/tower form factor

Comprehensive Technical Specifications

Package Contents

• Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
• User Manual
• Registration card
• 2 x Rackmount rails
• 2 x Hanging brackets
• 2 x Rackmount ears
• USB communication cable
• Serial interface cable (RS-232)
• 8 x M5X7L black flat head screws
• 12 x M5X12L black pan head screws
• 6 x M5X6L silver pan head screws
• 8 x Plastic washers
• 12 x Screw hole dust covers
• 12 x Rubber pads
• Software download card
