CyberPower OL1000RTXL2UN 1000VA Rack/Tower UPS
CyberPower OL1000RTXL2UN 1000VA Rack/Tower UPS
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower OL1000RTXL2UN Smart App Online UPS Systems
This is a Double Conversion Online UPS manufactured by CyberPower Systems, Inc. The CyberPower OL1000RTXL2UN Smart App Online UPS Systems delivers 1000 VA / 900 W capacity with pure sine wave output, zero transfer time, and generator compatibility for mission-critical equipment protection.
Key Features of CyberPower OL1000RTXL2UN Smart App Online UPS Systems
- Double Conversion Topology – Provides seamless power correction and sine wave output to prevent unnecessary shutdowns of sensitive equipment.
- Smart App Online Series – Includes factory-installed RMCARD205 for remote management via web browser, CLI, or NMS, plus extendable LCD control panel.
- GreenPower UPS ECO Mode – Achieves efficiency greater than 94 percent while supporting Fast Charge Technology and Smart Battery Management.
- Extended Battery Module Support – Allows runtime expansion with replaceable sealed lead-acid batteries and cold-start capability.
- Comprehensive Protection – Features EMI/RFI noise filtering, short-circuit protection, overload protection, and 1780 J surge energy rating.
- Network and Serial Connectivity – Equipped with USB HID-compliant port, serial port, RJ-11/RJ-45 dataline protection, EPO port, and dry contacts.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Manufacturer | CyberPower Systems, Inc |
| Product Series | Smart App Online UPS |
| Model | OL1000RTXL2UN |
| MPN | OL1000RTXL2UN |
| UPC | 649532621910 |
| Product Type | Double Conversion Online UPS |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 60 V AC - 69 V AC, 100 V AC - 125 V AC |
| Output Voltage | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Input Frequency | 40 Hz - 70 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1780 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R (8 x NEMA 5-15R) |
| Transfer Time | 0 ns |
| Crest Factor | 3:1 |
| Circuit Breaker Current Rating | 15 A |
| Dataline Protection | RJ-11, RJ-45 |
| Display | LCD |
| Network Management | Dry Contact, Relay Card, SNMP Manageable |
| Interfaces/Ports | Serial Port, Network (RJ-45), USB (HID Compliant), EPO Port |
| Battery Chemistry | Lead Acid (Sealed) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 3 |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Form Factor | Rack/Tower |
| Rack Height | 2U |

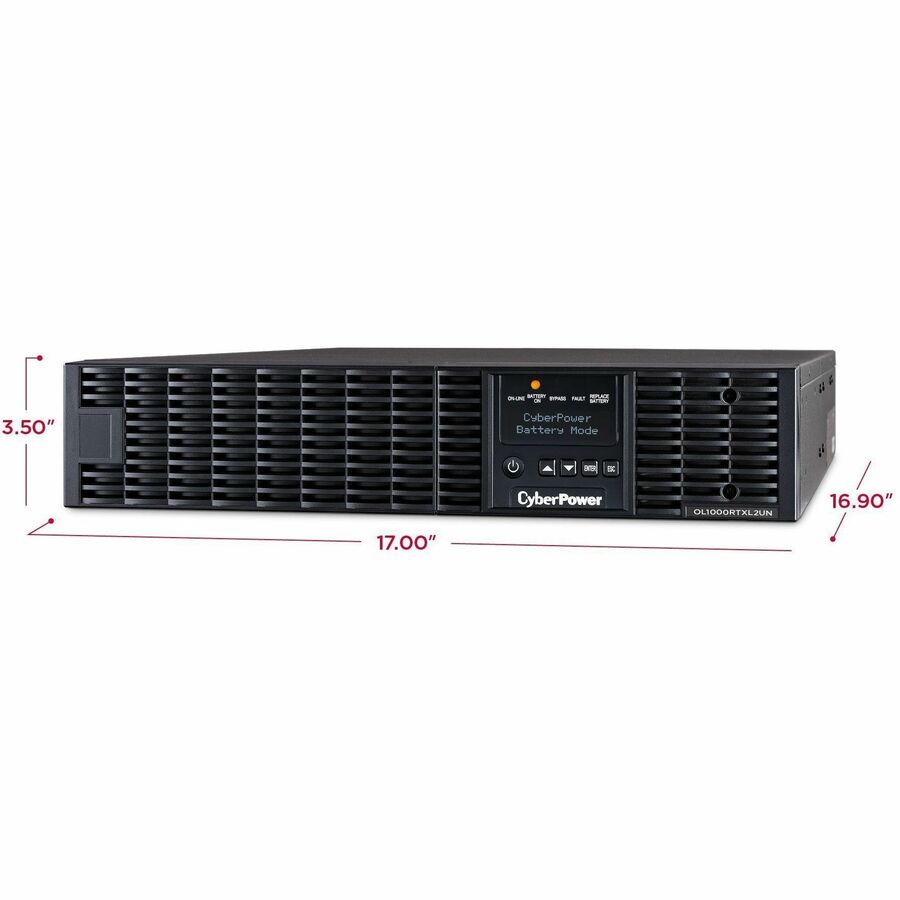

| Height | 3.5" |
| Width | 17" |
| Depth | 16.9" |
| Weight (Approximate) | 39.60 lb |
| Color | Black |
| Material of Construction | Metal |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% (non-condensing) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Sound Emission | 55 dB(A) |
| Thermal Dissipation | 80.30 W |
| Certifications & Standards | UL 1778 |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmental Compliance | RoHS |
| Software Included | PowerPanel Business |
| Package Contents | Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPS, User Manual, Registration Card, 2 x Rackmount Rails, 2 x Rackmount Ears, 2 x Hanging Brackets, Phone Line, USB Communication Cable, Serial Interface Cable (RS-232), screws, washers, dust covers, rubber pads, Software Download Card |
Package Contents for CyberPower OL1000RTXL2UN Smart App Online UPS Systems
Includes the UPS unit, user manual, registration card, rackmount hardware (rails, ears, brackets), communication cables (USB, serial, phone line), mounting screws and accessories, plus a software download card for PowerPanel Business.
Brand: CyberPower
Type: Double Conversion Online UPS
Compatible Brand: For CyberPower
Color: Black
MPN: OL1000RTXL2UN
Compatible Model: OL1000RTXL2UN
Features: Cold Start
Model: OL1000RTXL2UN
Form Factor: Rack/Tower
UPC: 649532621910
