CyberPower CP2RAIL02 4-Post Rackmount Rail Kit 2U/3U UPS
CyberPower CP2RAIL02 4-Post Rackmount Rail Kit 2U/3U UPS
Low stock: 5 left
Save 26%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
CyberPower CP2RAIL02 4-Post Rackmount Rail Kit 2U/3U UPS

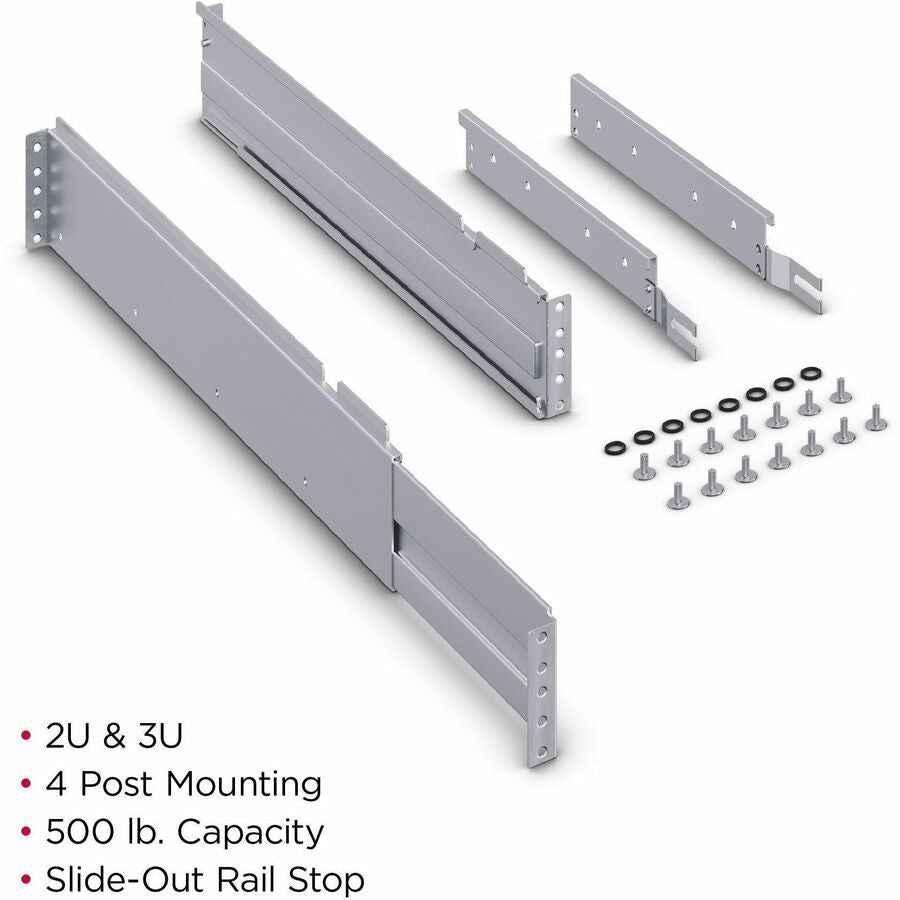

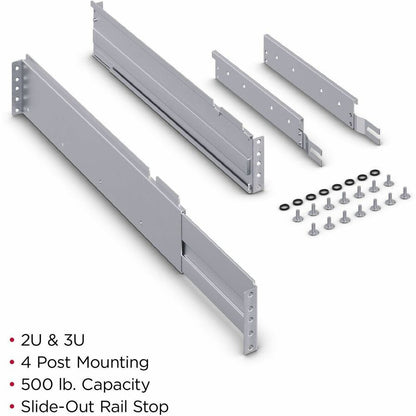

This is a CyberPower CP2RAIL02 4-Post Rack Mount Rail Kit, a mounting solution designed for select 2U and 3U UPS systems. The kit features two adjustable rails that extend from 20.1" to 35.8" and supports equipment weighing up to 500 pounds. MPN: CP2RAIL02; UPC: 649532931057. Engineered by CyberPower Systems, Inc. for secure 4-post rack installations.
Key Features of CyberPower CP2RAIL02 Rackmount Rail Kit
- 4-Post Mounting – Secures UPS equipment at both front and back of the rack for stability.
- Adjustable Rails – Expandable from 20.1" to 35.8" to accommodate various rack depths.
- Single-Person Installation – Uses half-thread screws in square holes for temporary rear support during setup.
- Slide-Out Rail Stop – Allows equipment to extend a safe distance from the rack before locking.
- Steel Construction – Durable black steel build supports up to 500 lb maximum load.
- Five-Year Limited Warranty – Covers defects in materials and workmanship under normal use.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CyberPower Systems, Inc. |
| Brand Name | CyberPower |
| Product Series | UPS Hardware |
| Manufacturer Part Number | CP2RAIL02 |
| UPC | 649532931057 |
| Product Type | Mounting Rail Kit |
| Device Supported | UPS |
| Product Name | UPS Mounting Solution for 2U and 3U Racks |
| Maximum Load Capacity | 500 lb |
| Product Color | Black |
| Product Material | Steel |
| Height | 3.40" |
| Width | 0.80" |
| Depth | 20.10" |
| Weight (Approximate) | 6 lb |
| Rail Adjustment Range | 20.1" to 35.8" |
| Compatibility | PR750RT2U, PR750RTXL2U, PR1000RT2U, PR1000RTXL2U, PR1500RT2U, PR2000RT2U |
| Country of Origin | Philippines |
| Warranty | Five-Year Limited |
Installation Guide for CyberPower CP2RAIL02 Rail Kit
Supports single-person installation in standard racks.
- Insert half-thread screws into square holes on the rear side of the rack for temporary rail support.
- Adjust rails to fit rack depth between 20.1" and 35.8".
- Secure rails at front and back for 4-post mounting.
- Mount compatible 2U or 3U UPS onto rails.
- Utilize slide-out rail stop for safe equipment extension and access.
Why Choose CyberPower CP2RAIL02?
Provides robust, adjustable mounting for heavy UPS systems with easy installation and extended warranty support from CyberPower.
Secure your rackmount UPS with CyberPower CP2RAIL02—Order today!
Brand: CyberPower
Type: Mounting Rail Kit
MPN: CP2RAIL02
Country of Origin: Philippines
Rack Unit Height: 2 U
Weight Capacity: 500 lb
Manufacturer Warranty: 5 Years
UPC: 649532931057
