Cooler Master V850 SFX Gold 850W 80+ Gold Power Supply
Cooler Master V850 SFX Gold 850W 80+ Gold Power Supply
Low stock: 5 left
Save 22%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

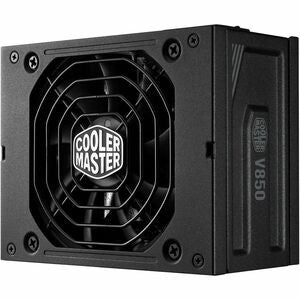

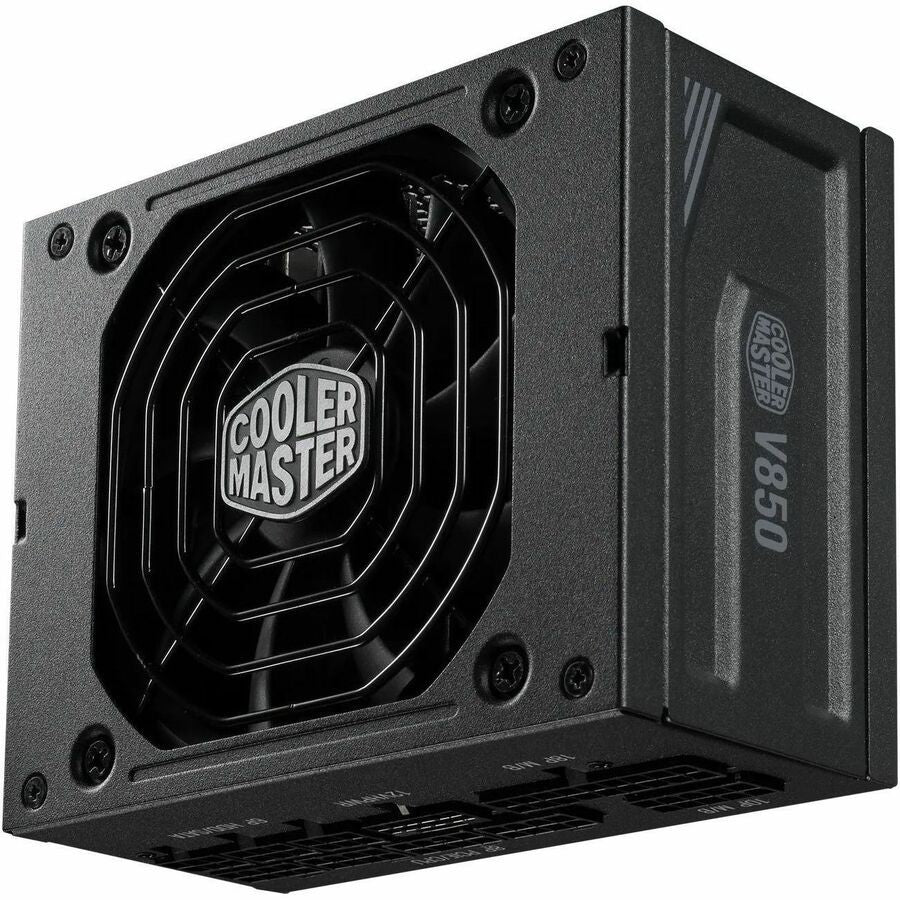

Cooler Master V850 SFX Gold 850W 80+ Gold Power Supply
This is a fully modular SFX power supply unit delivering 850W of power for high-performance desktop PCs. The Cooler Master V850 SFX Gold features 80 PLUS Gold certification, ATX 3.0 compliance, and a compact design ideal for small form factor builds. Manufacturer Part Number: MPY-8501-SFHAGV-3U1; UPC: 884102071010. It includes an SFX-to-ATX bracket for versatile compatibility from mini-ITX to E-ATX systems.
Key Features of Cooler Master V850 850W SFX Gold PSU
- Small But Mighty SFX Design – Leading compact SFX power supply in a space-saving mini form factor for SFF builds.
- 80 PLUS Gold Certified – Achieves over 90% efficiency at typical loads for reduced energy waste and heat.
- ATX 3.0 & PCIe 5.0 Ready – Includes support with a durable 90-degree 12+4-pin (12VHPWR) connector for improved electrical durability, lower temperatures, and safety.
- High-Quality Japanese Capacitors – Large capacitors enhance efficiency and minimize ripple noise.

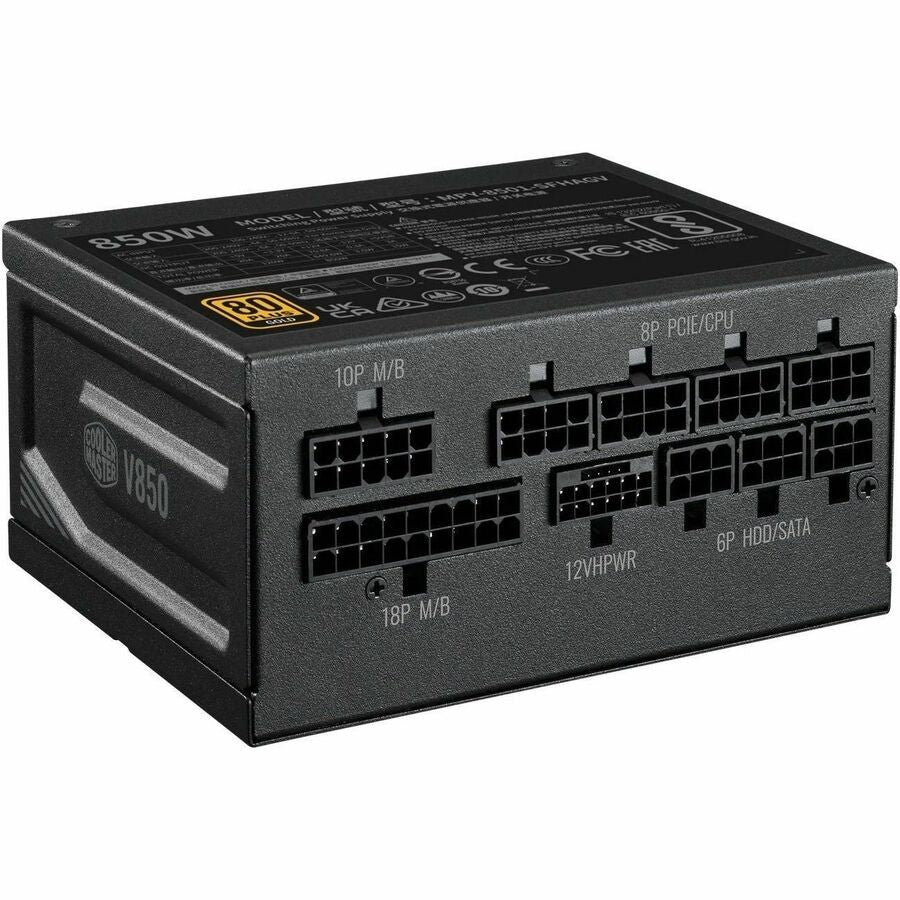

- Fully Modular Cabling – Reduces clutter, boosts airflow, and optimizes thermal performance.

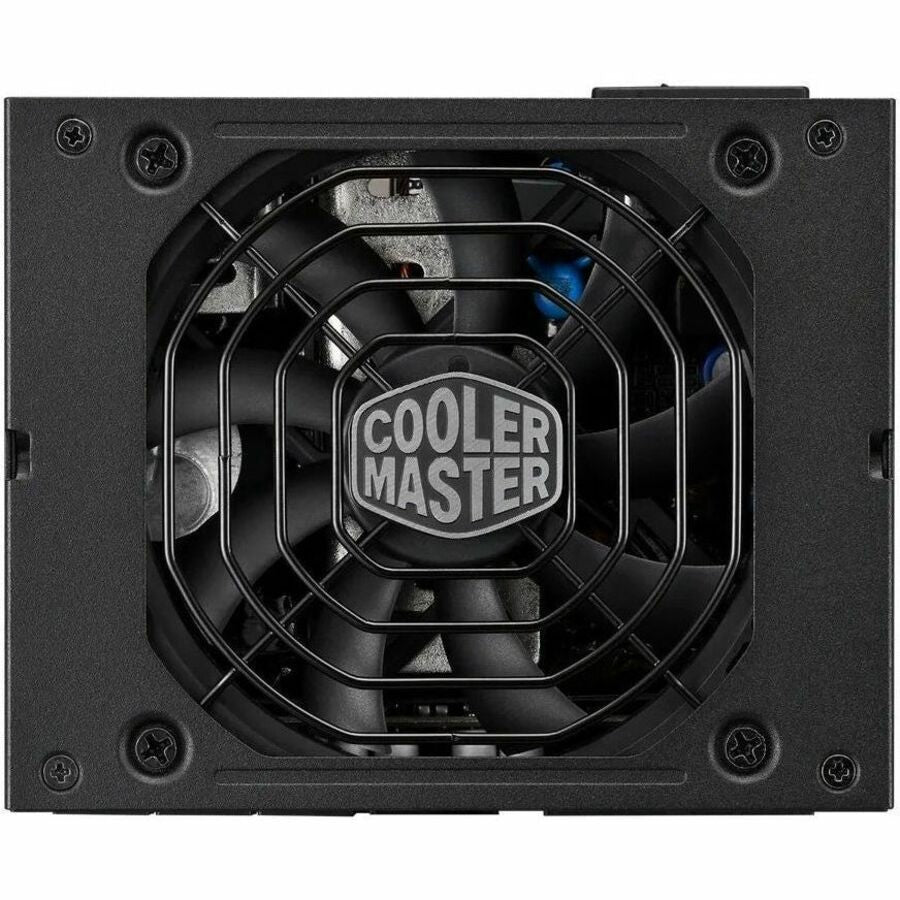

- 92mm Fluid Dynamic Bearing Fan – Single fan for quiet, reliable cooling.
- Comprehensive Protections – Over Voltage, Over Power, Short Circuit, Over Current, Under Voltage, Over Temperature, Surge, and Inrush Current protection.
- MTBF 100,000 Hours – Ensures long-term reliability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cooler Master |
| Manufacturer | Cooler Master Co., Ltd |
| MPN / Manufacturer Part Number | MPY-8501-SFHAGV-3U1 |
| Product Model | MPY-8501-SFHAGV-3XX |
| UPC | 884102071010 |
| Product Type | Power Supply |
| Form Factor | SFX (with SFX-to-ATX bracket) |
| Specification Compliance | SFX, ATX 3.0, SFX12V v3.42 |
| Total Output Power | 850 W |
| Efficiency | 90% (80 PLUS Gold certified) |
| Power Factor Correction | Active PFC |
| Modular | Yes (Fully Modular) |
| Number of Fans | 1 |
| Fan Diameter | 92 mm |
| MTBF | 100,000 Hours |
| Input Voltage | 120 V AC / 230 V AC |
| Input Frequency | 60 Hz |
| Output Voltages | 3.3 V DC @ 20 A, 5 V DC @ 20 A, 12 V DC @ 70.8 A, -12 V DC @ 0.3 A |
| Output Currents | 20 A (3.3V/5V), 70.80 A (12V), 300 mA (-12V) |

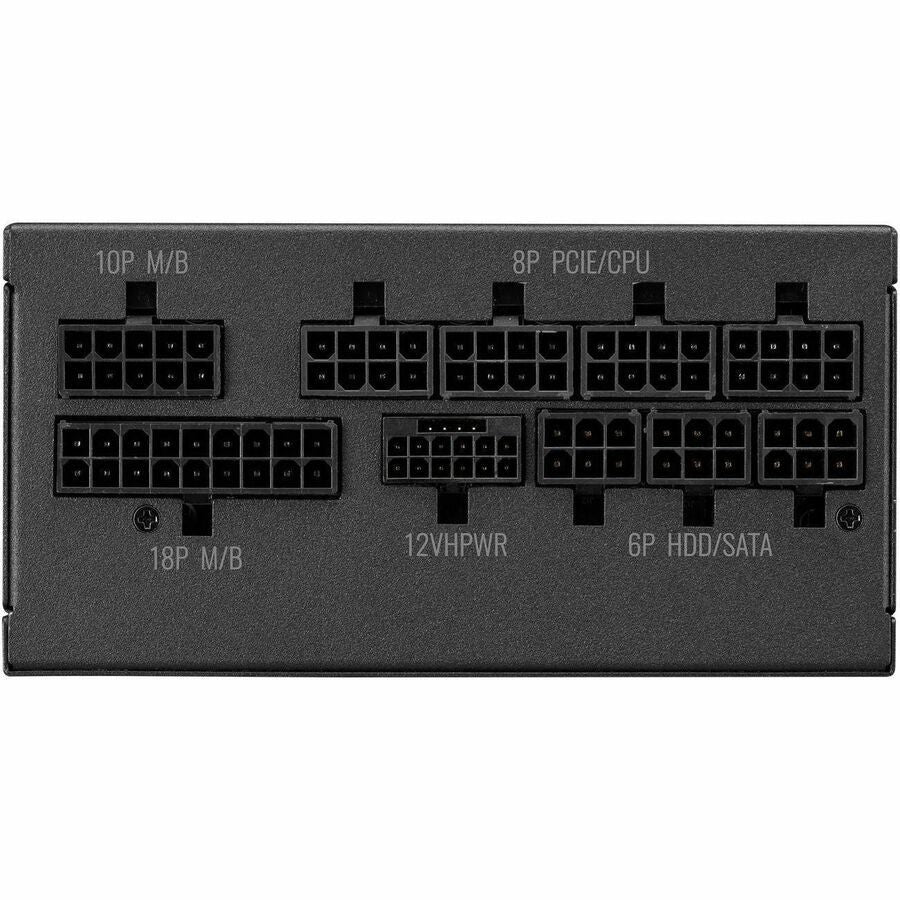

| Number of SATA Power Connectors | 8 |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of 4-pin Molex Power Connectors | 4 |
| Product Color | Black |
| Product Height | 2.5 inches |
| Product Width | 4.9 inches |
| Weight (Approximate) | 3.96 lb |
| Compatibility | Desktop Computer (mini-ITX to E-ATX) |
| Environmental Certification | ErP Lot 3 |
| Energy Efficiency Certification | 80 Plus Gold |
Why Choose Cooler Master V850 SFX Gold 850W Power Supply
Engineered for compact, high-power PC builds, this PSU combines superior efficiency, modular design, and robust protections with Japanese capacitors and ATX 3.0 support for future-proof performance in gaming rigs and workstations.
Power your PC build with Cooler Master V850 SFX Gold—Order now!
Brand: Cooler Master
Type: Power Supply
Color: Black
Features: Modular
Compatible Brand: Cooler Master
Model: MPY-8501-SFHAGV-3XX
MPN: MPY-8501-SFHAGV-3U1
Compatible Model: MPY-8501-SFHAGV-3XX
Maximum Power: 850 W
Connectors: SATA I
Voltage Compatibility: 120 V
Form Factor: SFX
Cooling: 1 Fan
Item Height: 2.5 inches
Item Width: 4.9 inches
UPC: 884102071010
