Cooler Master MWE Gold V2 850W 80+ Gold Full Modular ATX PSU MPE-8501-AFAAG-US
Cooler Master MWE Gold V2 850W 80+ Gold Full Modular ATX PSU MPE-8501-AFAAG-US
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

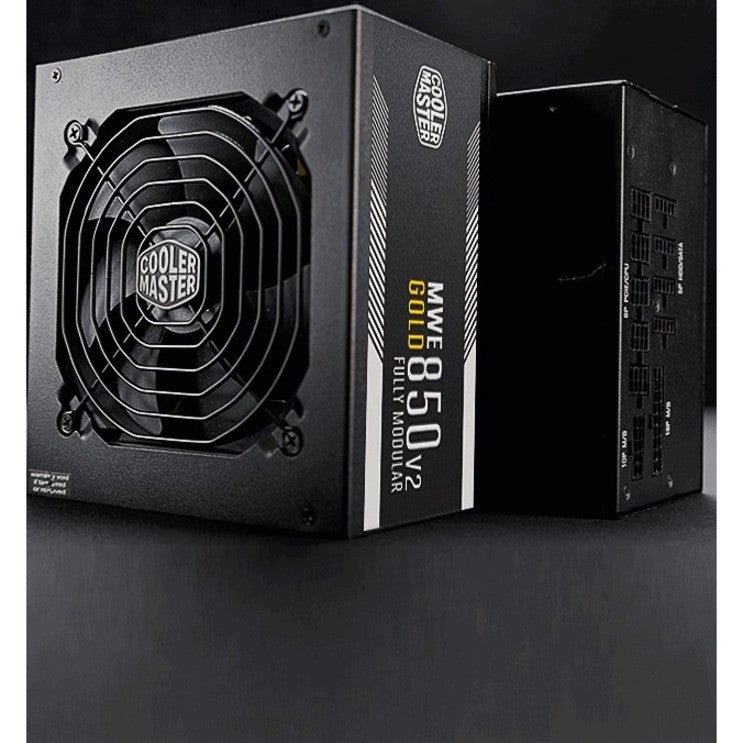

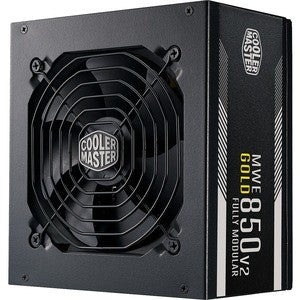

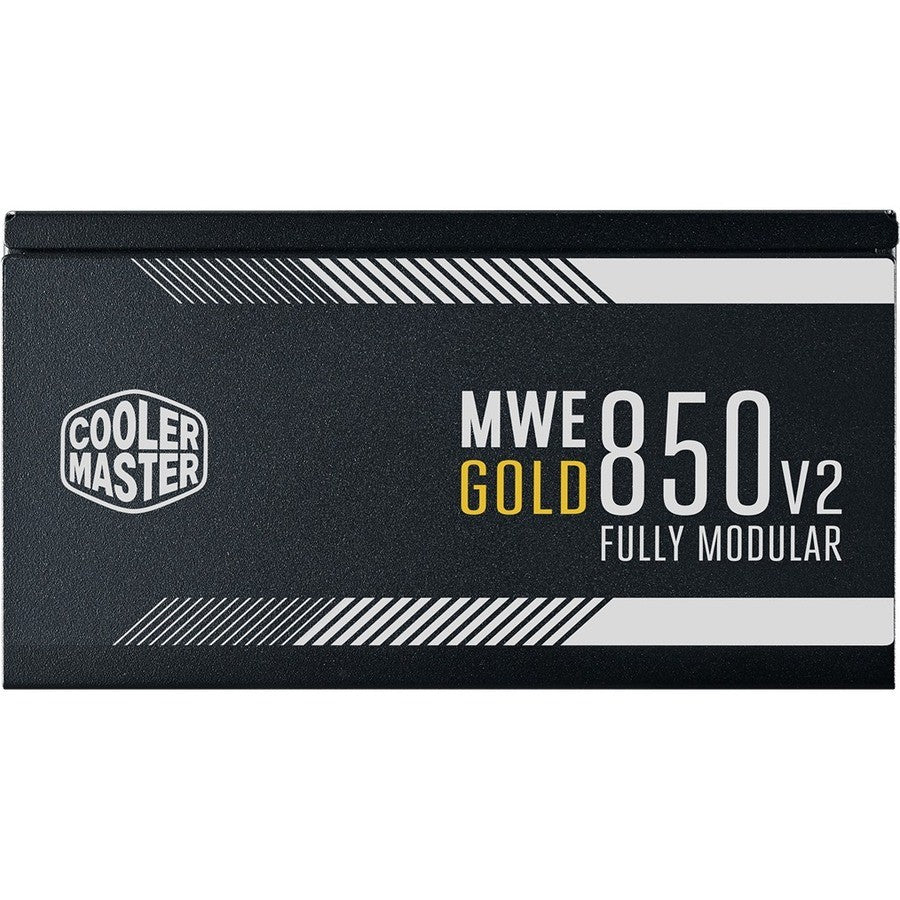

Cooler Master MWE Gold 850W 80+ Gold Full Modular ATX PSU
This is a full modular 80 PLUS Gold ATX power supply unit from Cooler Master's MWE Gold V2 series. The Cooler Master Full Modular 80 Plus Gold ATX Power Supply Unit delivers 850W of reliable power with 90% efficiency, HDB fan cooling, and universal motherboard compatibility via 2 EPS connectors. MPN: MPE-8501-AFAAG-US; UPC: 884102078590. Designed for desktop computers, it supports high-intensity applications up to 50°C operating temperature.
Key Features of Cooler Master MWE Gold V2 850W PSU
- 80 PLUS Gold Certification – Guarantees minimum 90% efficiency at typical loads for reduced energy waste and lower operating costs.

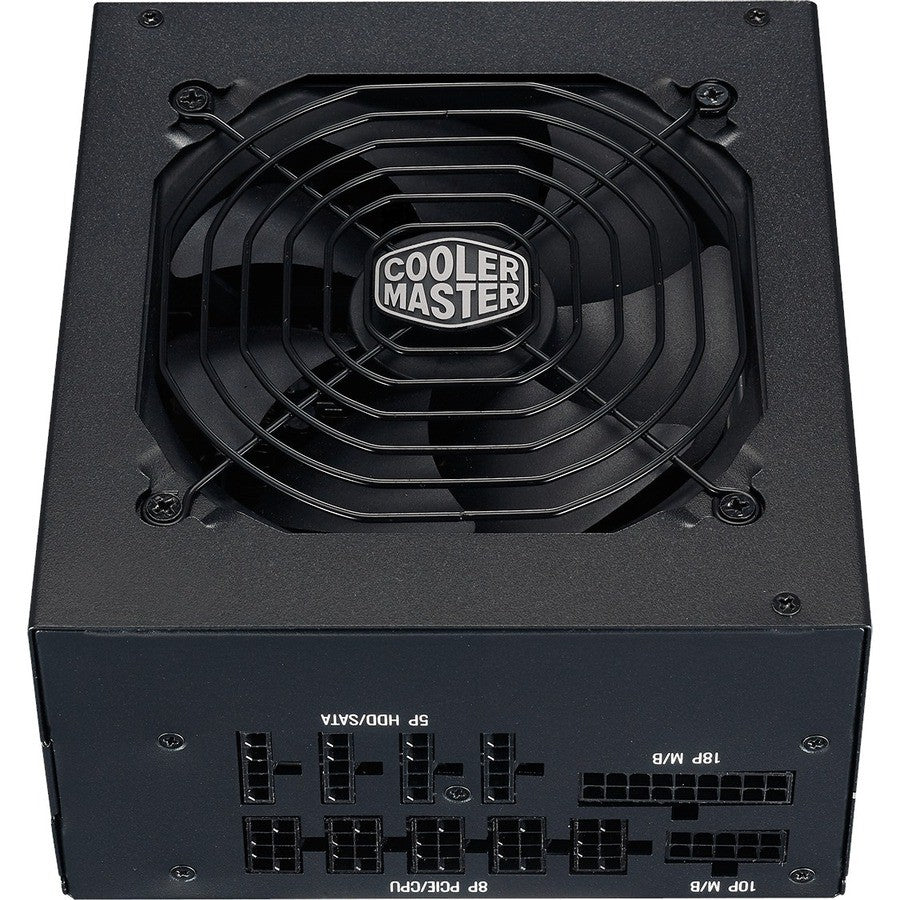

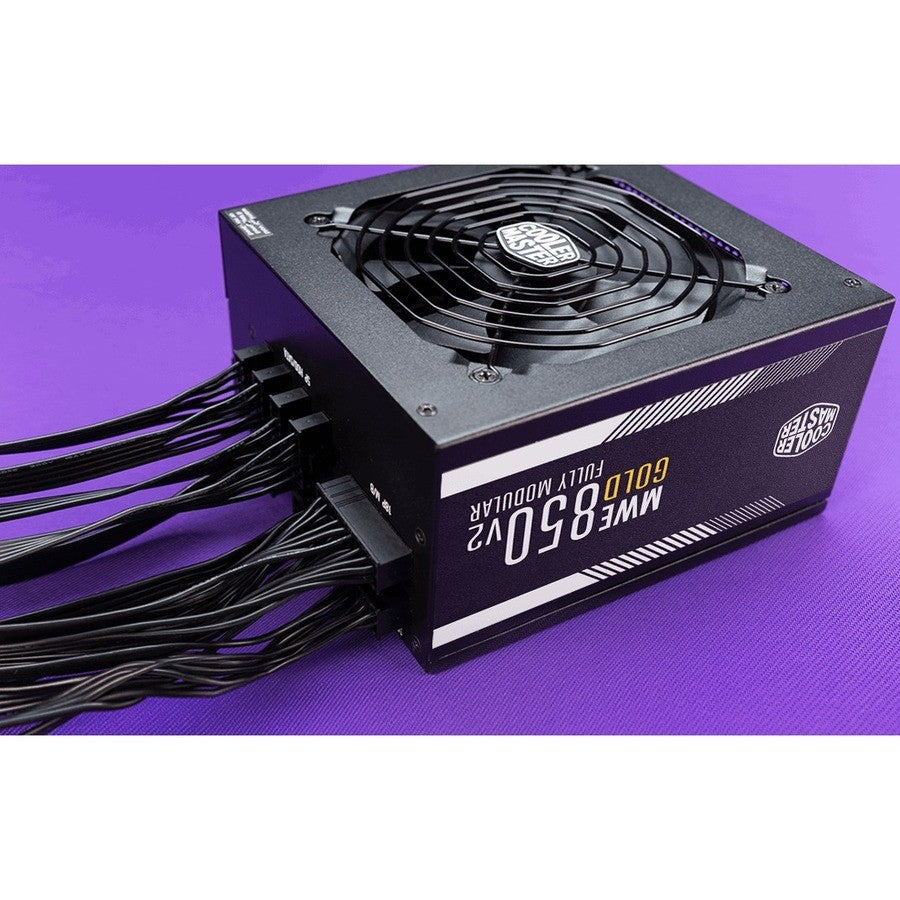

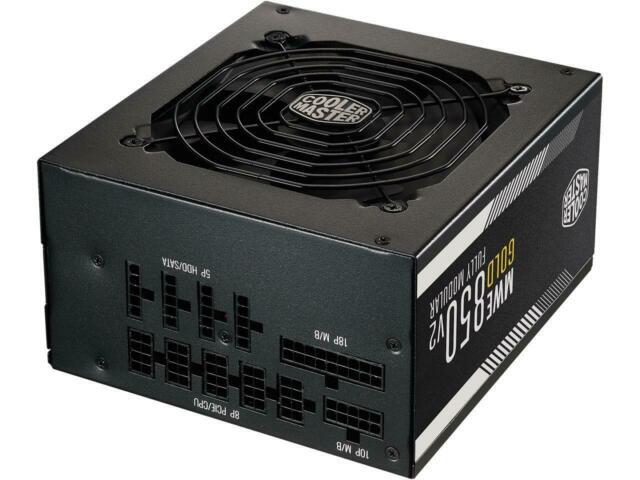

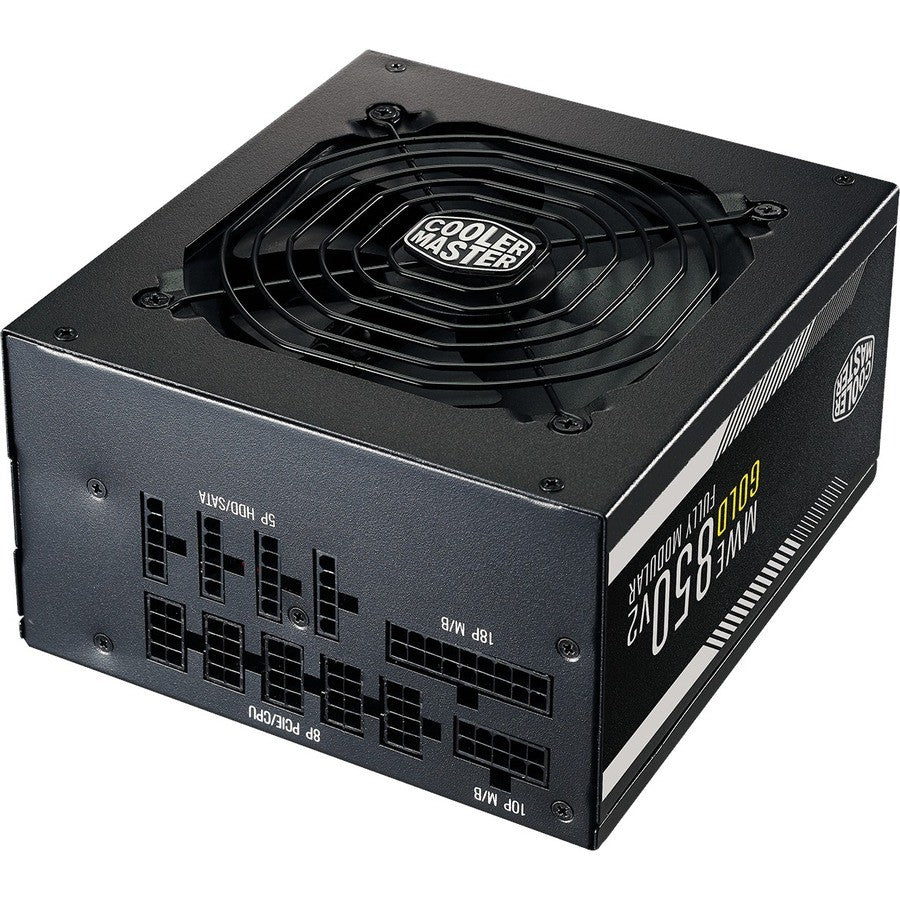

- Full Modular Cabling – Flat black cables allow customization; only connect necessary cables to minimize clutter, improve airflow, and enhance aesthetics.

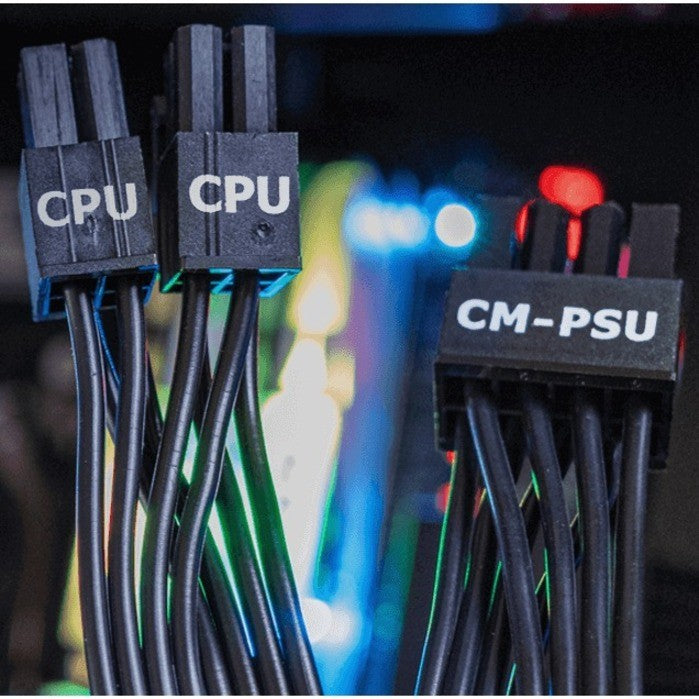

- 2 EPS Connectors – Ensures compatibility with all current-generation motherboards from 550W to 850W models.

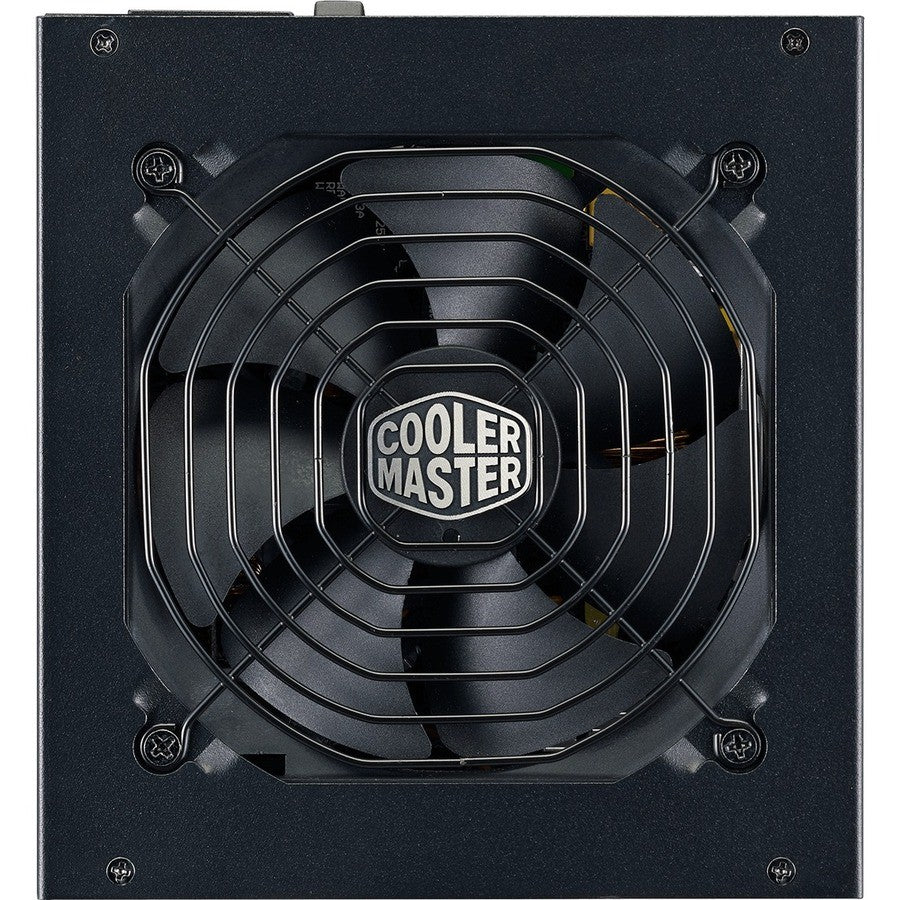

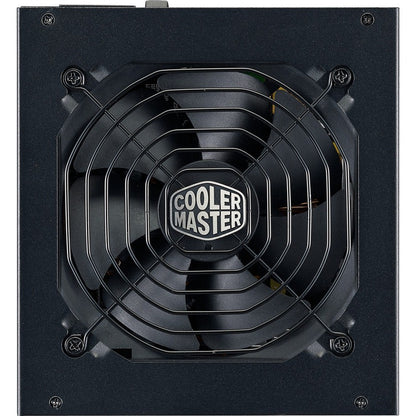

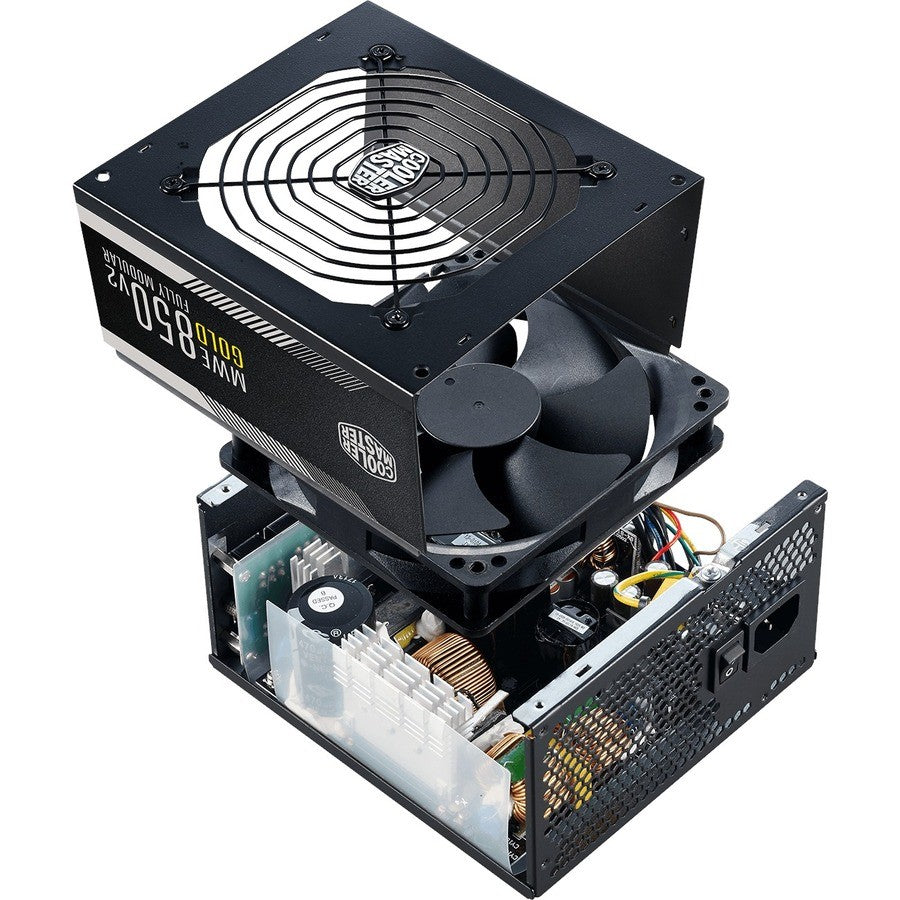

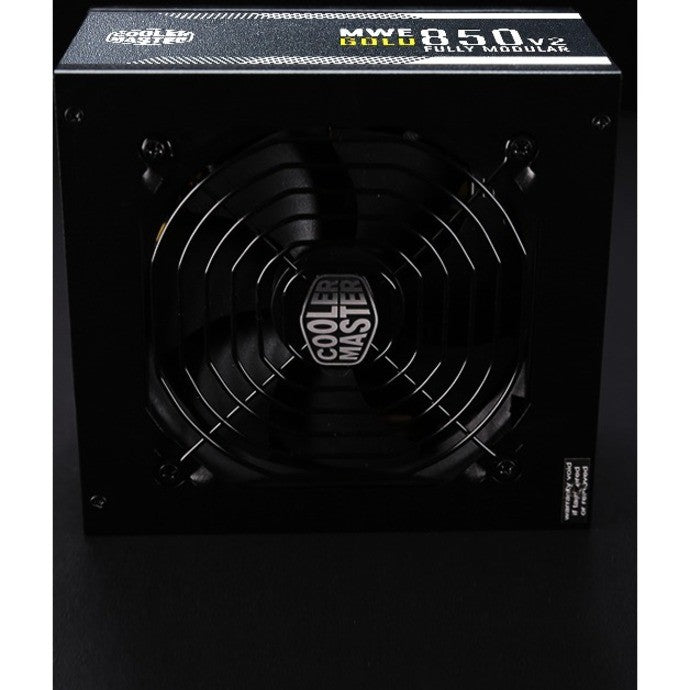

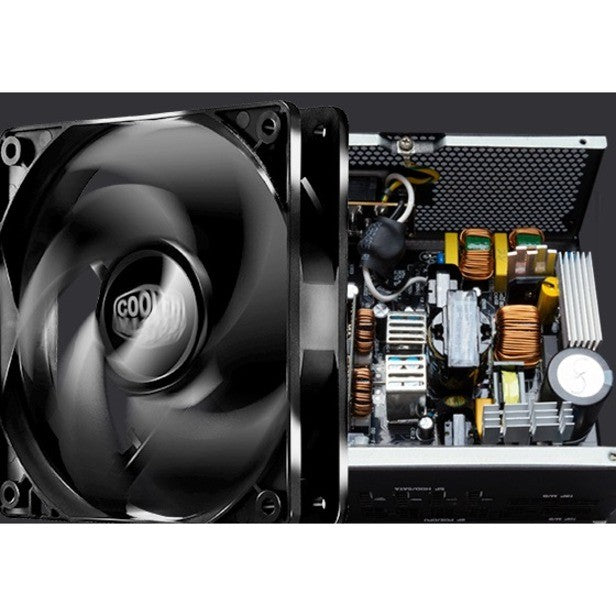

- HDB Fan with Quiet Cooling – Hydro Dynamic Bearing fan provides silent operation, long lifespan, and reduced ripple noise.
- High Temperature Resilience – Operates safely up to 50°C, ideal for overclocking and demanding workloads.
- ATX12V/EPS12V Compliance – Meets industry standards for stable power delivery to desktop components.
- 5-Year Warranty – Standard manufacturer warranty for peace of mind.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cooler Master |
| Manufacturer | Cooler Master Co., Ltd |
| Product Line | MWE Gold |
| Product Model | MPE-8501-AFAAG |
| MPN | MPE-8501-AFAAG-US |
| Manufacturer Part Number | MPE8501AFAAGUS |
| UPC | 884102078590 |
| Product Type | Power Supply |
| Output Power | 850 W |
| Efficiency | 90% |
| Energy Efficiency Certification | 80 Plus Gold |
| Specification Compliance | ATX12V/EPS12V |
| Modular | Yes (Full Modular) |
| Number of Fans | 1 (HDB Fan) |
| Input Voltage | 120 V AC, 230 V AC |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC |

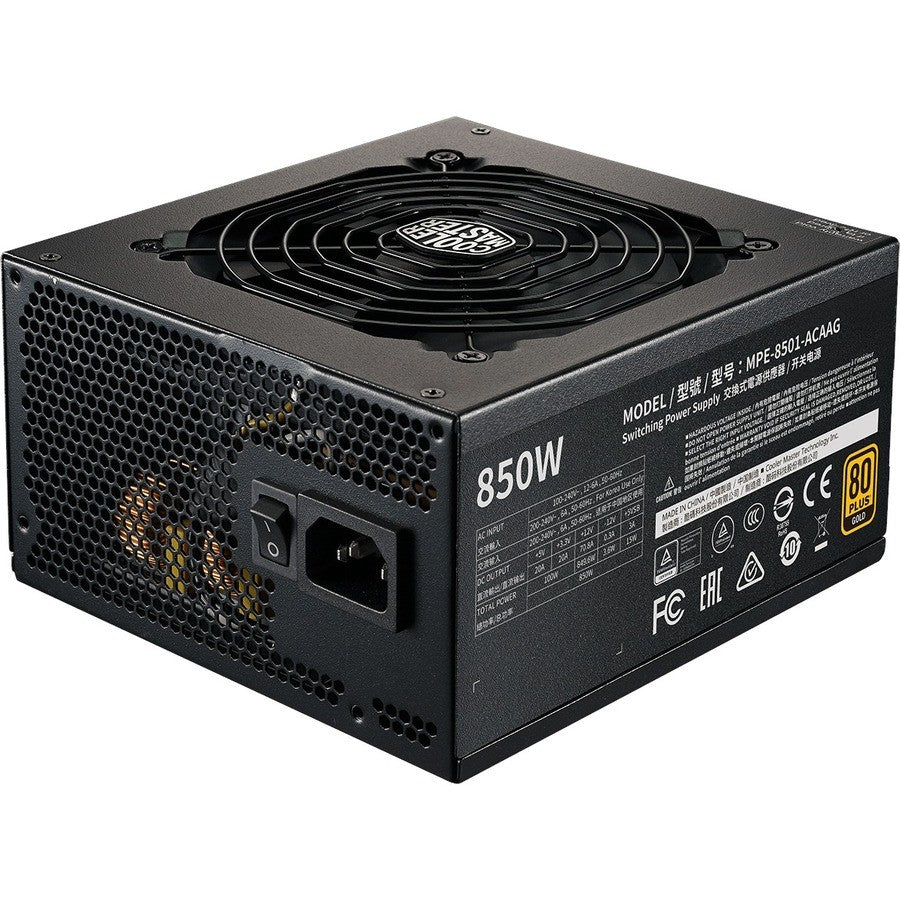

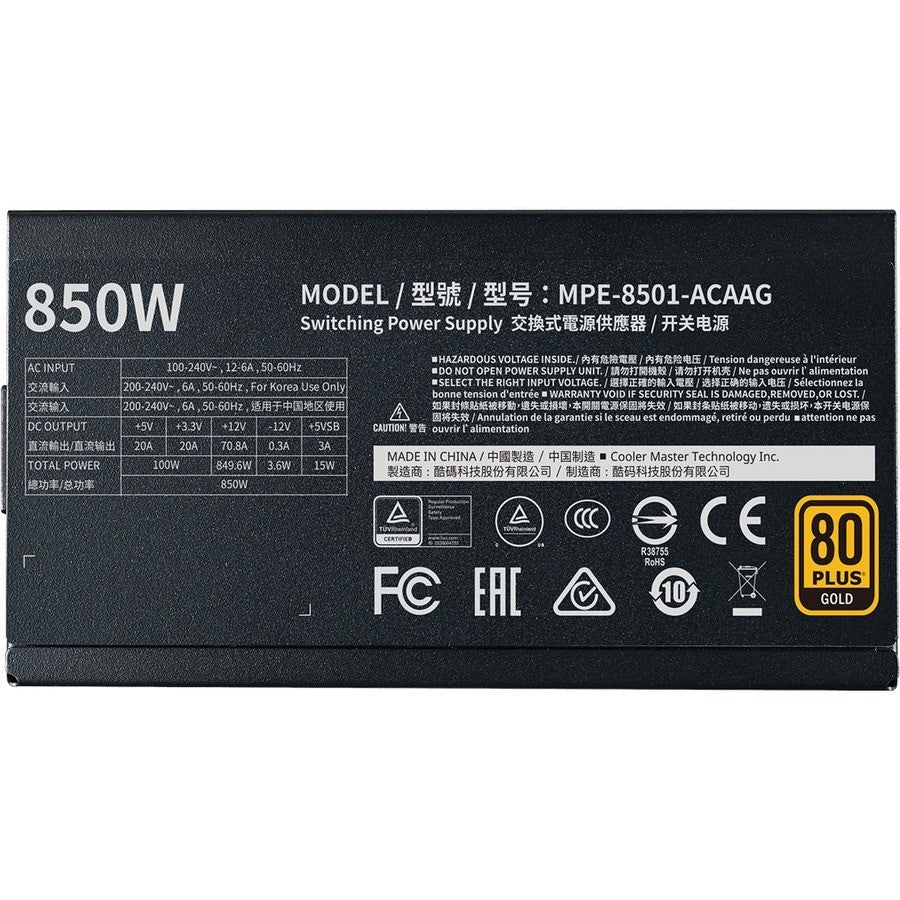

| Output Voltage Detail | 3.3 V DC @ 20 A; 5 V DC @ 20 A; 12 V DC @ 70.8 A; 12 V DC @ 300 mA; 5 V DC @ 3 A |
| Output Current | 20 A; 70.80 A; 300 mA; 3 A |
| Form Factor | Internal (ATX) |
| Product Color | Black |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 6.3" |
| Weight (Approximate) | 4.78 lb |
| Compatibility | Desktop Computer |
| Package Contents | Full Modular 80 Plus Gold ATX Power Supply Unit; 2 x EPS Connectors |
| Country of Origin | China |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); China Restriction of Hazardous Substances (China RoHS); Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Warranty | 5 Years |
Installation & Maintenance for ATX Power Supply
Standard ATX installation applies; pro tip: Ensure proper cable routing for optimal airflow.
- Power off and unplug system; remove side panel.
- Mount PSU in case with fan facing intake or exhaust per build.

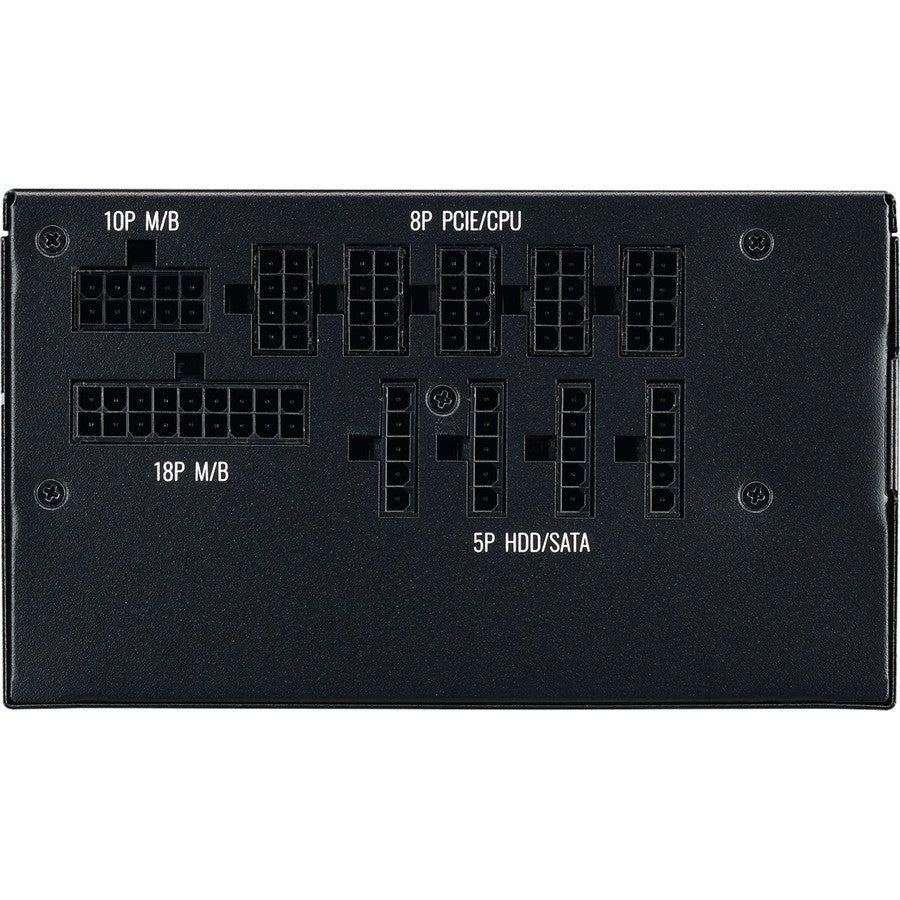

- Connect modular cables: 24-pin ATX, EPS to motherboard, PCIe/SATA to components.
- Secure cables with ties; verify connections.
- Test power-on; monitor temperatures during initial use.
- Maintenance: Dust fan periodically; operate within 50°C ambient.
Why Choose Cooler Master MWE Gold 850W PSU
The MWE Gold V2 series offers an affordable entry to 80 PLUS Gold efficiency with full modularity, quiet HDB cooling, and robust build for reliable desktop performance.
Power your build reliably—Order the Cooler Master MWE Gold 850W today!
Color: Black
Country of Origin: China
Manufacturer Warranty: 5 Years
Voltage Compatibility: 120 V
Form Factor: ATX
Cooling: 1 Fan
Item Height: 3.4 in
Item Width: 5.9 in
Item Length: 6.3 in
UPC: 884102078590
MPN: MPE-8501-AFAAG-US
Maximum Power: 850 W
Compatible Brand: Universal
Brand: Cooler Master
Maximum Wattage: 850 W
Features: Noise Filtering
Compatible Model: Universal
Connectors: 2xEPS
Type: Power Supply Module
Model: MWE Gold 850 V2
