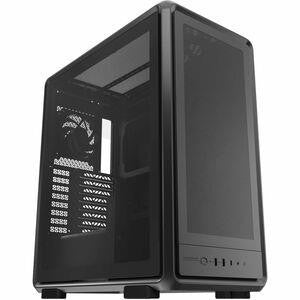

Cooler Master MasterFrame 500 Mesh Mid-Tower ATX Case Black
Cooler Master MasterFrame 500 Mesh Mid-Tower ATX Case Black
Low stock: 5 left
Save 24%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Cooler Master MasterFrame 500 Mesh Mid-Tower ATX Case Black
This is a Cooler Master Premium Modular ATX Case MasterFrame 500 Mesh, a premium open-frame mid-tower chassis designed for high-performance components, advanced cooling setups, and extensive customization. Embracing the FreeForm 2.0 design philosophy, it features enhanced mesh panels for superior airflow and supports ATX to E-ATX motherboards with full access to modular design files. MPN: MF500M-KHNN-S01; UPC: 884102132599. Ideal for PC builders, modders, and creators seeking versatile, maker-driven builds in black finish with pre-installed non-ARGB PWM fans.
Key Design and Performance Features
- FreeForm 2.0 Exo-Structure – Exposed frame for maximum adaptability and flexible configurations across various build scenarios.
- Versatile & Maker-Driven – Open-source design with interchangeable and swappable panels for endless personalization and unique style expression.

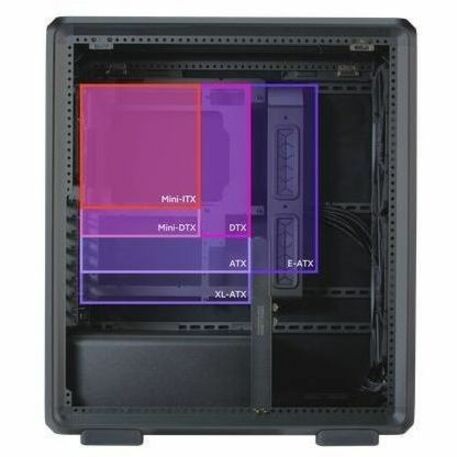

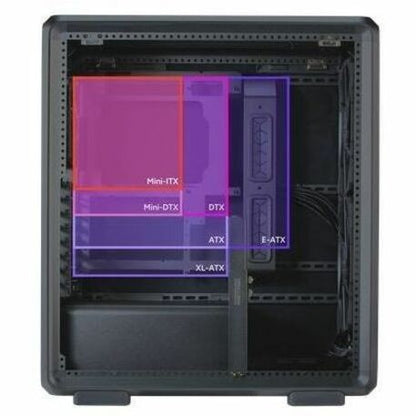

- Flexible Motherboard Support – Compatible with Mini-ITX, Mini-DTX, Micro ATX, ATX, EATX, and SSI CEB motherboards for broad build options.
- Extensive Cooling Support – Up to 8 fans and dual 360mm radiators for optimal thermal performance; pre-installed: front dual SickleFlow 200 non-ARGB PWM fans and rear 120 non-ARGB PWM fan (4 fans total: 2x 200mm, 2x 120mm).
- Ample GPU Clearance – Supports graphics cards up to 390mm (15.35 inches) with included GPU support bracket to prevent sag and ensure stability.
- Tool-Free Panel Removal – Effortless access for builds, upgrades, and modifications without tools.
- Enhanced Mesh Panels – Optimized airflow; dust filters and removable filters included for easy maintenance.
- I/O Panel – 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C, audio in/out, microphone, and headphone/microphone combo port.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cooler Master Co., Ltd |
| Brand Name | Cooler Master |
| Product Line | MasterFrame 500 |
| Product Model | MF500M-KHNN-S01 |
| MPN | MF500M-KHNN-S01 |
| UPC | 884102132599 |
| Product Type | Computer Case |
| Form Factor | Mid-tower |
| Color Family | Black |
| Product Color | Black |
| Product Material | Galvanized Cold Rolled Steel (SGCC), Steel, Aluminium, Tempered Glass |
| Cooler Type | Fan Cooler |
| Motherboard Supported | Mini ITX, Mini DTX, Micro ATX, ATX, EATX, SSI CEB |
| Number of Fans Supported | 8 |
| Fan Support Details | Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm; Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm; Rear: 1x 120mm; Bottom: 1x 120mm |
| Number of Fans Installed | 4 |
| Installed Fan Size Details | 2 x 120mm, 2 x 200mm (Non-ARGB SickleFlow PWM: Front dual 200mm, Rear 120mm) |
| Fan Size Supported | 4.72" (120mm), 5.51" (140mm), 7.09" (180mm), 7.87" (200mm) |
| Features | Dust Filter, Removable Filter, Tool-Free Panel Removal, GPU Support Bracket, Swappable Panels |
| Number of Internal 2.5" Bays | 1 |
| Number of Total Expansion Bays | 1 |
| Total Number of Expansion Slots | 8 |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type C |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Maximum CPU Cooler Height | 7.48" |
| Maximum GPU Length | 15.35" |
| Maximum PSU Length | 9.25" |
| Height | 21.4" |
| Width | 10.3" |
| Depth | 18.5" |
| Weight (Approximate) | 31.09 lb |
| Country of Origin | China |
| Manufacturer Warranty | 2 Year |
Package Contents and Build Essentials
- Premium Modular ATX Case MasterFrame 500 Mesh
- GPU Support Bracket
Pro Build Tips for MasterFrame 500 Mesh
Open-frame design simplifies component access; universal guidance for mid-tower cases includes verifying clearances before installation.
- Plan layout using modular panels for cable management and airflow optimization.
- Install motherboard first on exposed frame, then CPU cooler within 190mm height limit.
- Mount GPU with support bracket to avoid sag on cards up to 390mm.
- Position PSU in rear compartment, max 235mm length.
- Test fans and I/O connectivity post-assembly; clean filters regularly for sustained airflow.
Why Choose Cooler Master MasterFrame 500 Mesh
Empowers high-end PC builds with superior cooling, customization freedom, and robust construction for gamers, creators, and enthusiasts demanding performance and style.
Build your ultimate PC with the Cooler Master MasterFrame 500 Mesh—Order now!
Brand: Cooler Master
Chipset/GPU Model: MF500M-KHNN-S01
MPN: MF500M-KHNN-S01
Country of Origin: China
Manufacturer Warranty: 2 Years
Chipset Manufacturer: Does not apply
UPC: 884102132599
