Cooler Master MasterFan MF120 Halo² White Edition
Cooler Master MasterFan MF120 Halo² White Edition
Low stock: 5 left
Save 21%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

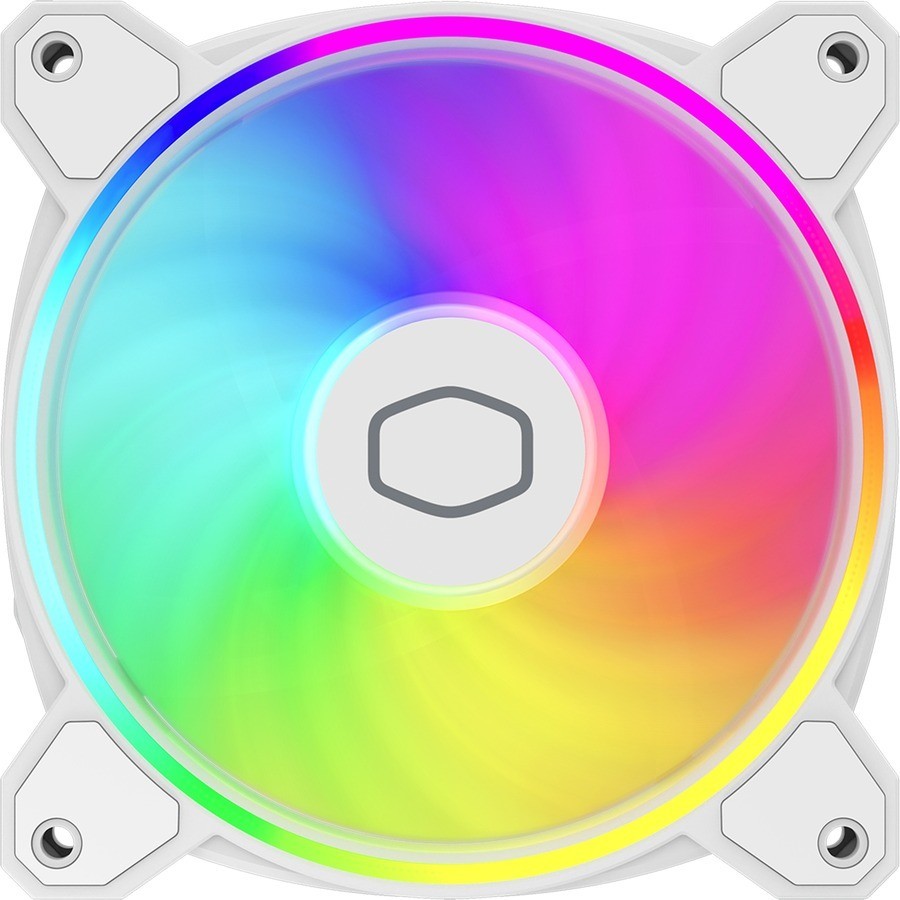

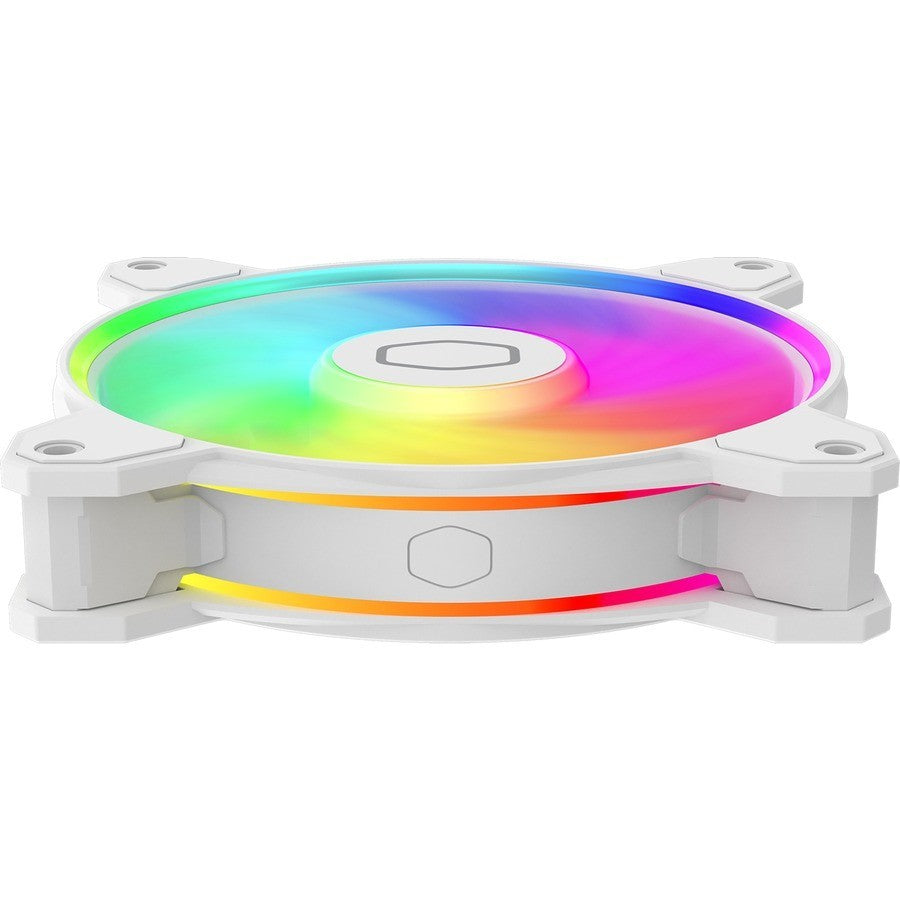

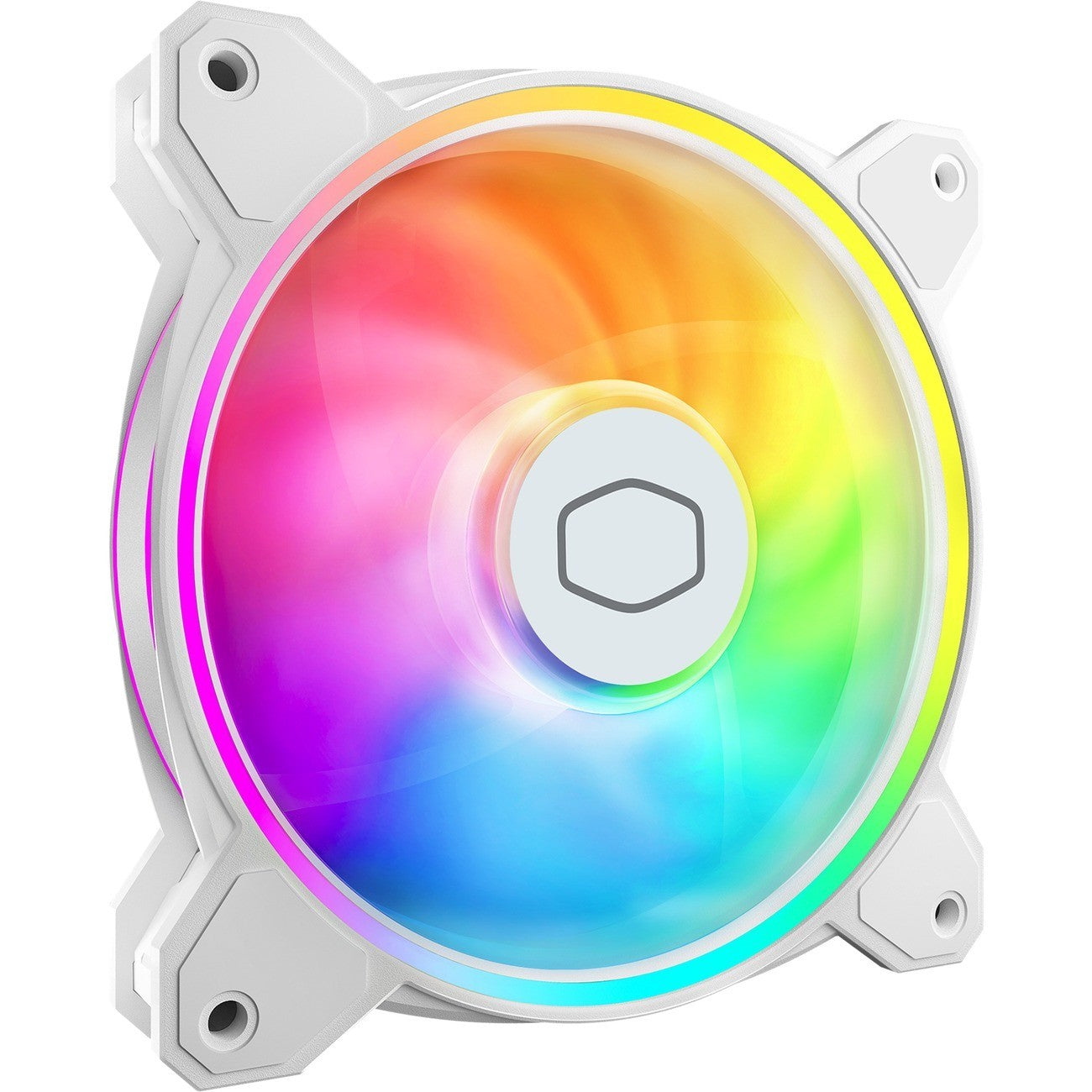

Cooler Master MasterFan MF120 Halo² White Edition
This is a premium 120mm PC case fan designed for enhanced cooling and vibrant ARGB lighting. The Cooler Master MasterFan MF120 Halo² White Edition features a white frame and blades with Halo² ring illumination using 24 addressable LEDs. MPN: MFL-B2DW-21NP2-R2; UPC: 884102099809. It supports daisy-chaining for simplified cable management in PC builds.
Key Features of Cooler Master MasterFan MF120 Halo² White Edition
- Halo² ARGB Lighting – 24 individually addressable LEDs in a signature ring design for customizable effects visible from all angles.
- Daisy-Chain Design – Interlocking system connects multiple fans with a single cable for PWM control and ARGB syncing.
- Optimized Blade Design – Seven blades with ring structure deliver high airflow and static pressure for radiators and cases.
- Quiet Rifle Bearing – Provides smooth operation with reduced vibration and longevity.
- White Edition Aesthetics – Matches light-themed PC builds with clean white color scheme.
- PWM Control – Speed adjusts from 650 to 1800 RPM based on system temperature.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cooler Master |
| MPN | MFL-B2DW-21NP2-R2 |
| UPC | 884102099809 |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm |
| Package Dimensions (H x W x D) | 1.20 x 5.10 x 7.00 inches |
| Weight | 0.50 lbs (package) |
| Fan Speed | 650~1800 RPM |
| Max Airflow | 47 CFM |
| Max Static Pressure | 1.61 mmH2O |
| Noise Level | 6.5~27 dBA |
| Bearing Type | Rifle Bearing |
| LEDs | 24 ARGB LEDs |
| Connectors | 4-pin PWM, 3-pin 5V ARGB |
| Power Input | 12V DC, 0.12A |
| Color | White Edition |
Installation Guide for MasterFan MF120 Halo²
Simple setup for PC cases and radiators; typically 5-10 minutes per fan.
- Prepare Case: Select mounting location and ensure clearance for 25mm thickness.
- Mount Fan: Secure with included screws; orient airflow direction (intake/exhaust).
- Connect Cables: Plug 4-pin PWM to motherboard fan header and 3-pin ARGB to ARGB header.
- Daisy Chain: Link additional fans using interlocking connectors. Pro tip: Route cables neatly with zip ties for airflow optimization.
- Configure: Use motherboard software or Cooler Master controller for lighting and speed settings. Test for vibration-free operation.
- Maintenance: Dust with compressed air periodically; no lubrication needed for rifle bearing.
Why Choose Cooler Master MasterFan MF120 Halo² White Edition
Engineered for balanced performance in airflow, pressure, and noise, with seamless ARGB integration for custom PC lighting setups.
Elevate your PC cooling with Cooler Master MasterFan MF120 Halo² White Edition—Order now!
Compatible Brand: Universal
Color: White
Bearing Type: Rifle
UPC: 884102099809
MPN: MFL-B2DW-21NP2-R2
Maximum Airflow Volume: 45 CFM
Material: Plastic
Fan Light Color: White
Brand: Cooler Master
Fan Diameter: 120 mm
Type: Case Fan
Power Connection: 4-Pin
Voltage: 12 V
Maximum Fan Speed: 1800 RPM
Item Height: 4.7 in
Country of Origin: China
