Cooler Master MasterBox NR200 MCB-NR200-KNNN-S00 Mini ITX Case Black

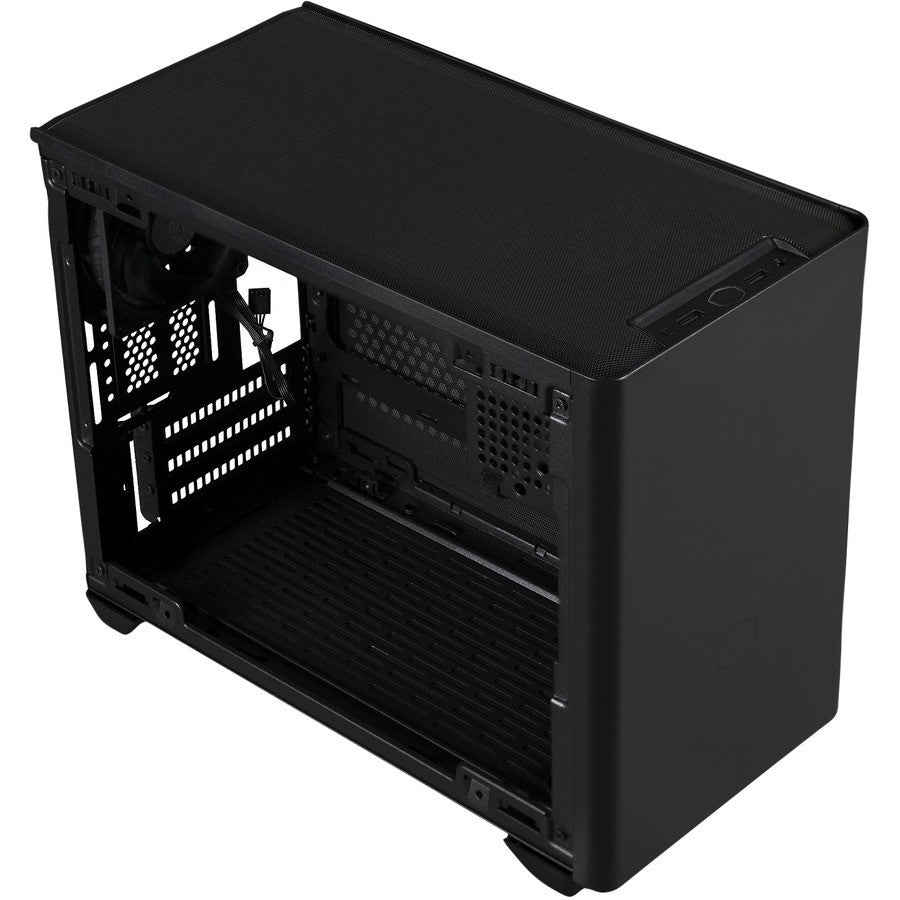

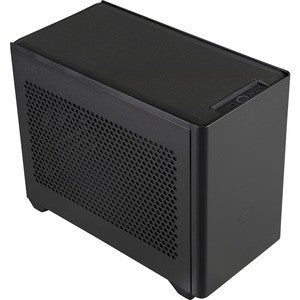

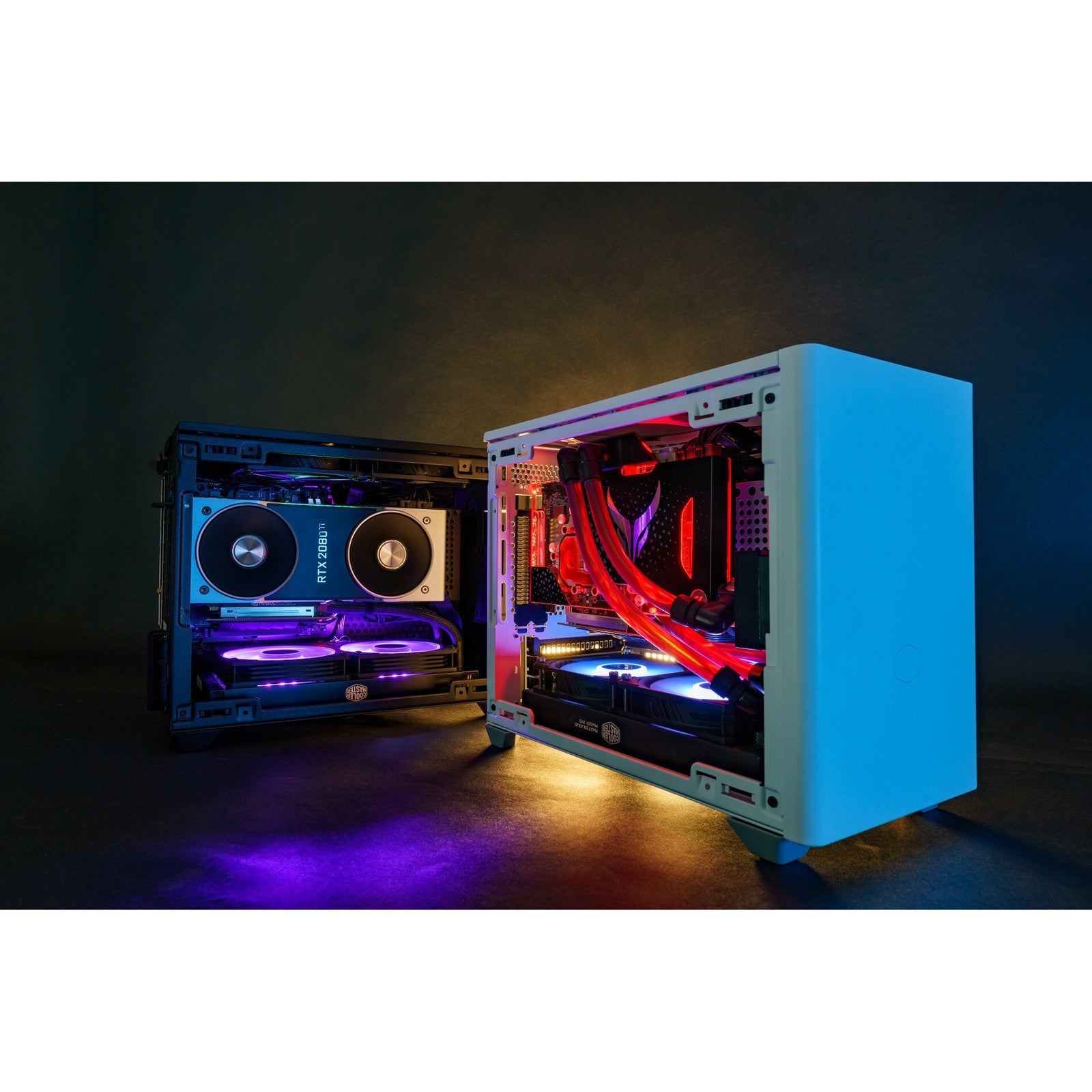

This is a Cooler Master MasterBox MCB-NR200-KNNN-S00 Computer Case, a compact 18-liter Mini-tower designed for Mini-ITX and Mini-DTX motherboards. The Cooler Master MasterBox NR200 maximizes ATX-level features in a small form factor with open ventilation, support for up to 7 fans including 2 pre-installed SickleFlow fans (one 92mm and one 120mm), triple-slot GPU compatibility up to 330mm length and 156mm width, CPU coolers up to 155mm height, and radiators up to 280mm. MPN: MCB-NR200-KNNN-S00; UPC: 884102079054. Built with thick powder-coated SGCC steel, mesh, and plastic for durability and airflow.
Key Features of Cooler Master MasterBox NR200 Case
- Compact 18-Liter Design – Packs core ATX chassis features into half the volume for space-saving builds with maximum component compatibility, ease of use, and thermal efficiency.

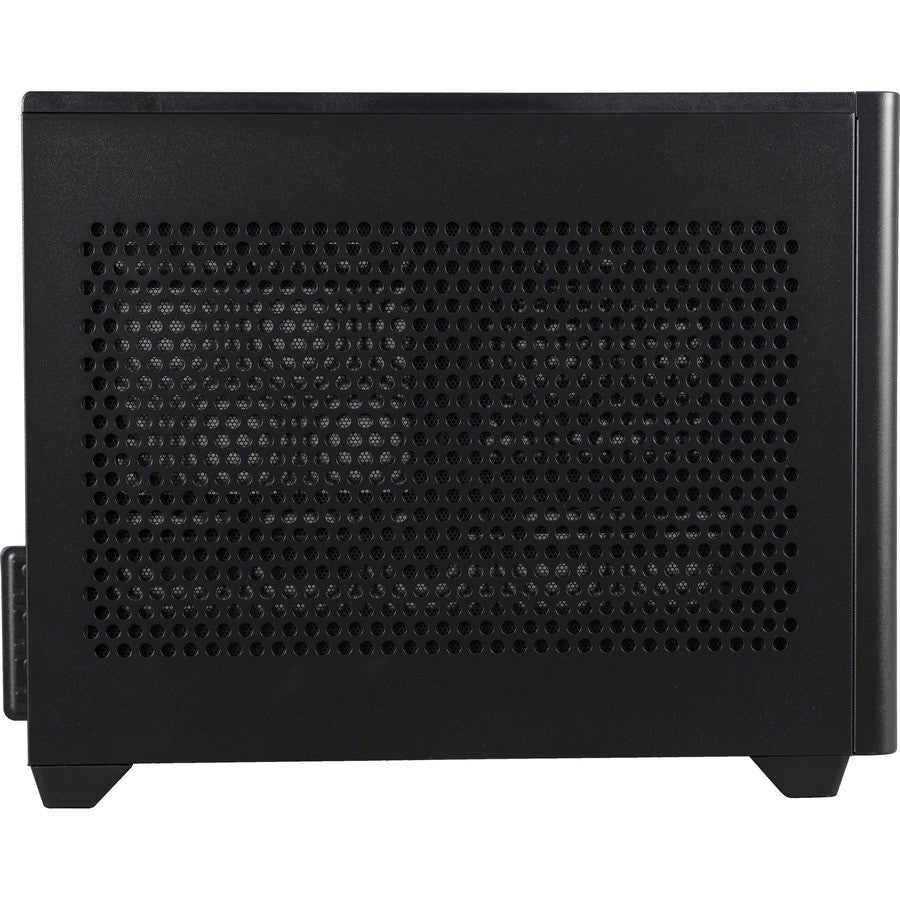

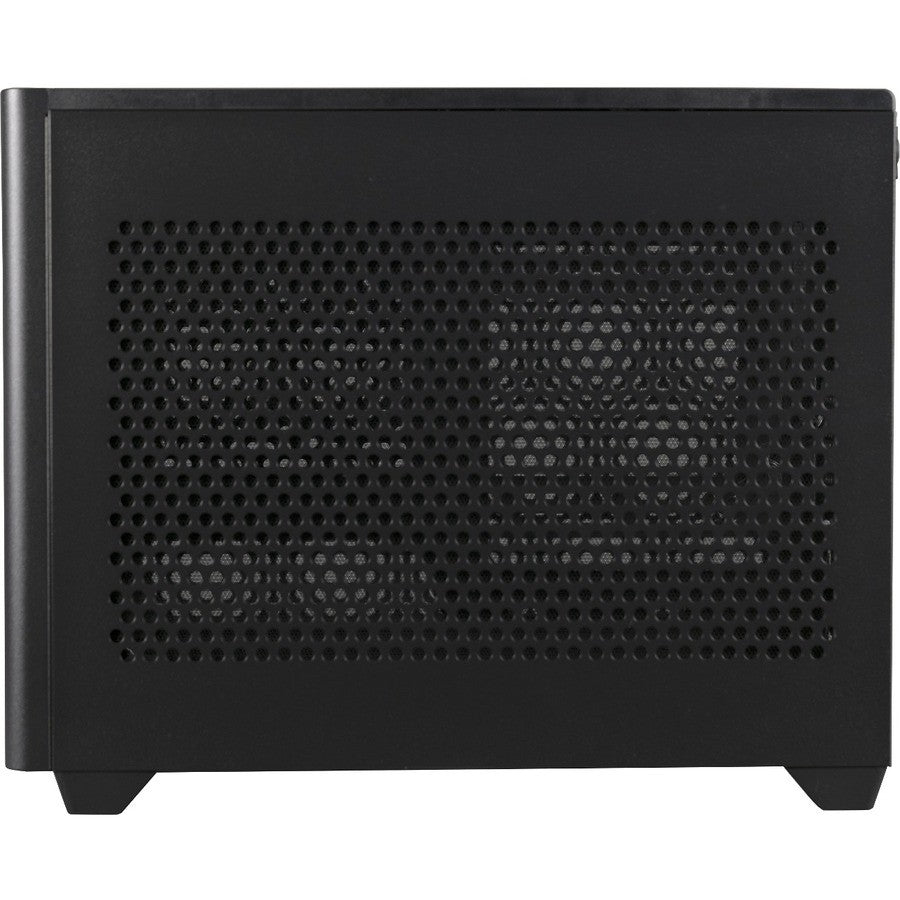

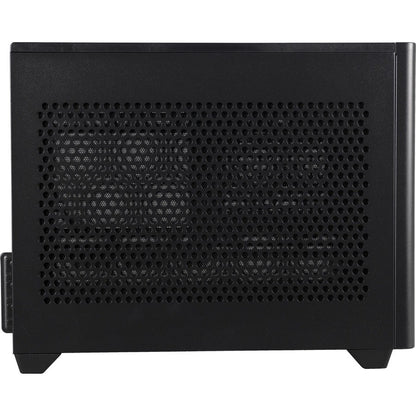

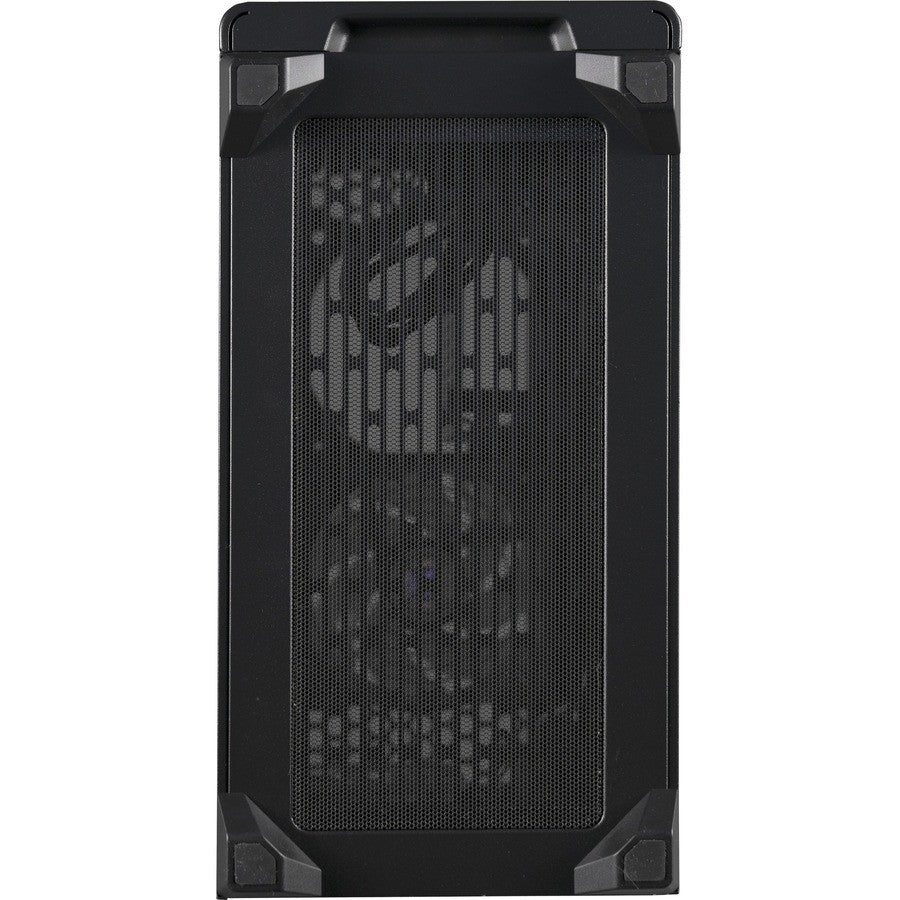

- Unrestricted Cooling Potential – Supports up to 7 fans across five ventilated panels; includes one 92mm (3.62") and one 120mm (4.72") SickleFlow fan; CPU cooler clearance up to 155mm (6.10"); radiator support up to 280mm.
- Triple-Slot GPU Support – Accommodates GPUs up to 330mm long and 156mm wide; rear PCI slots for vertical mounting (riser cable sold separately).

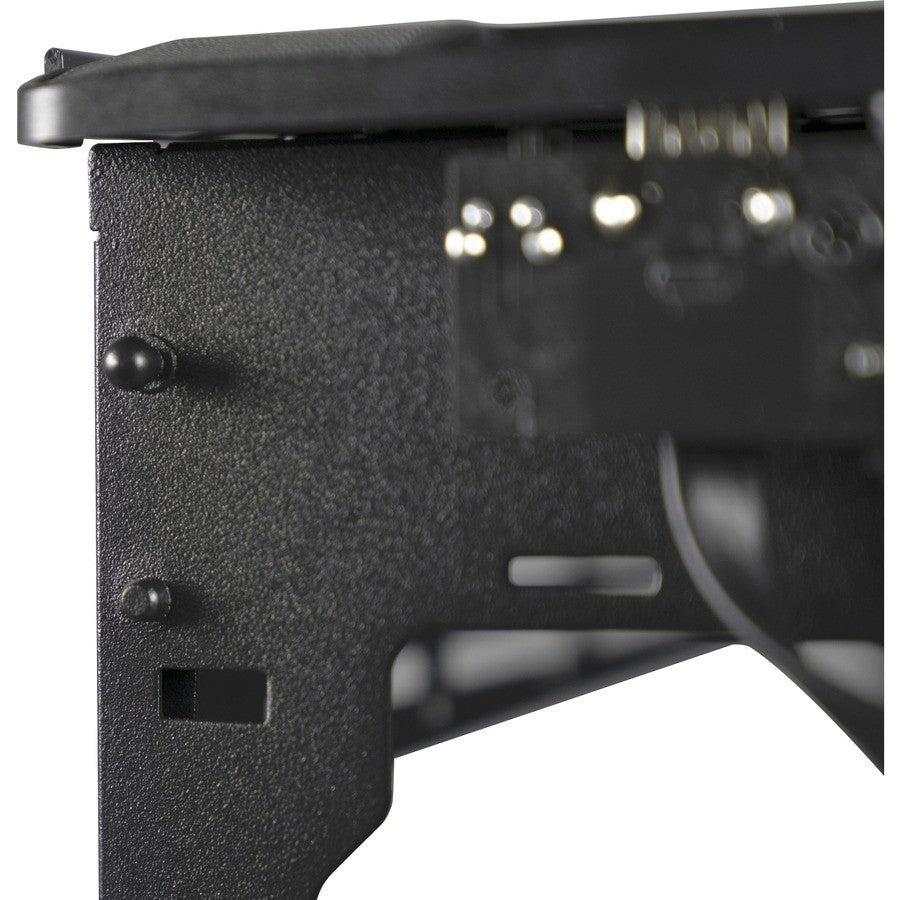

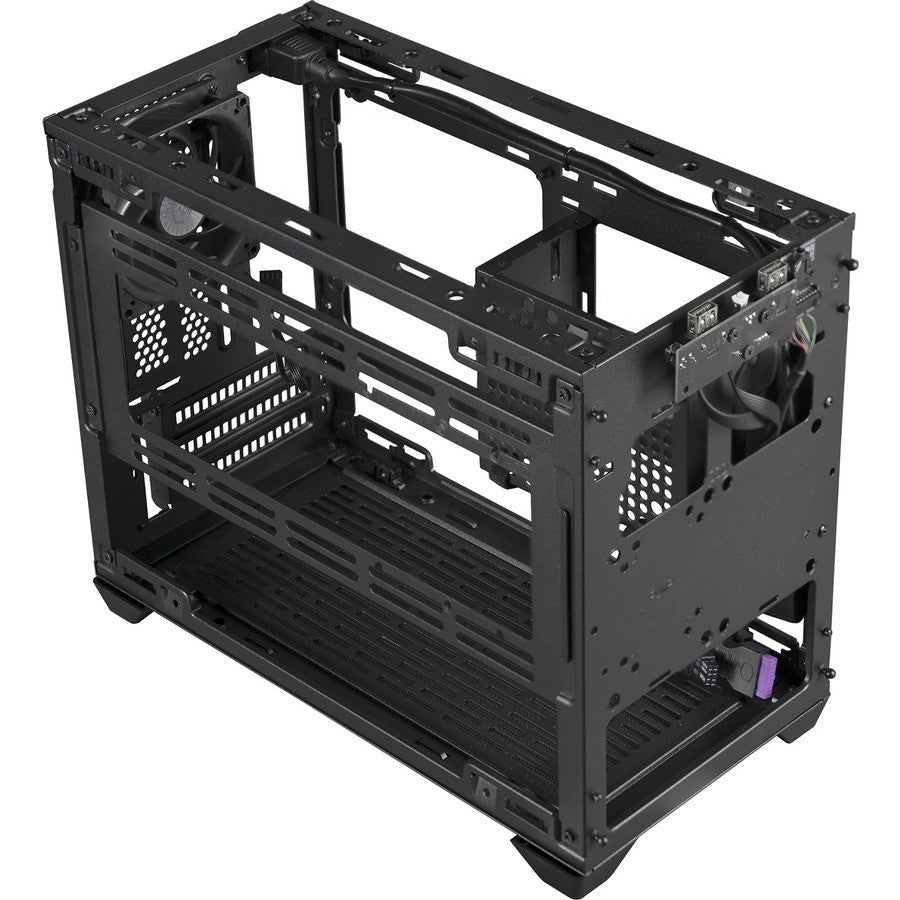

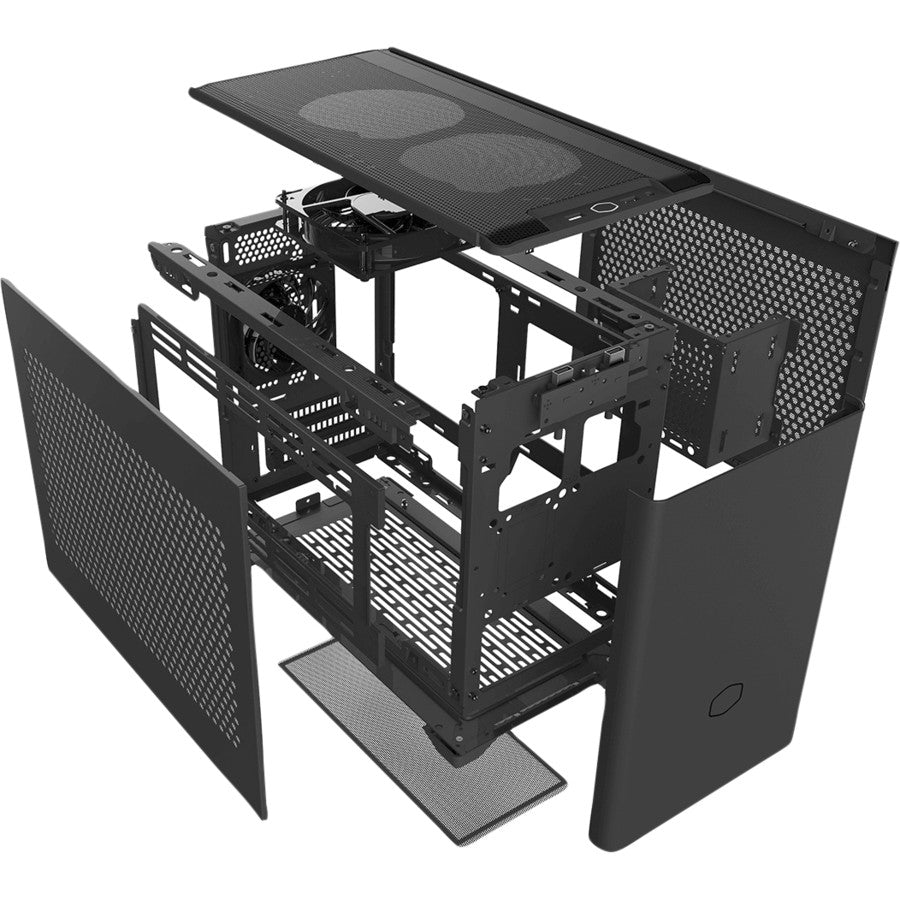

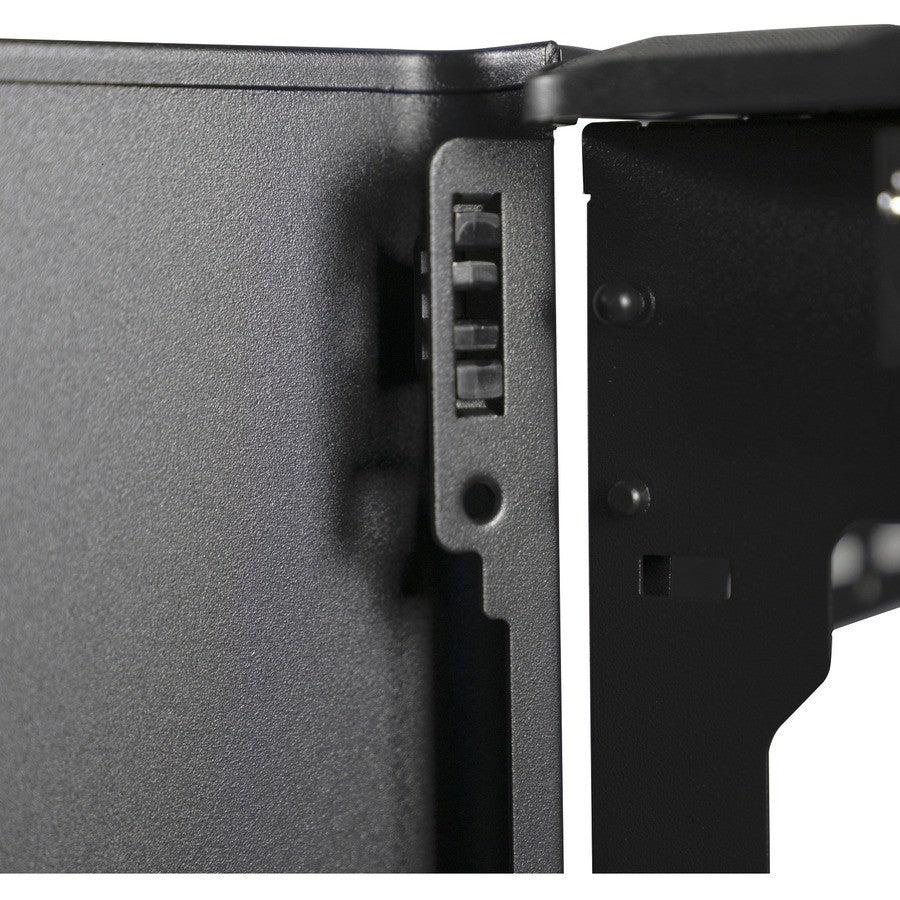

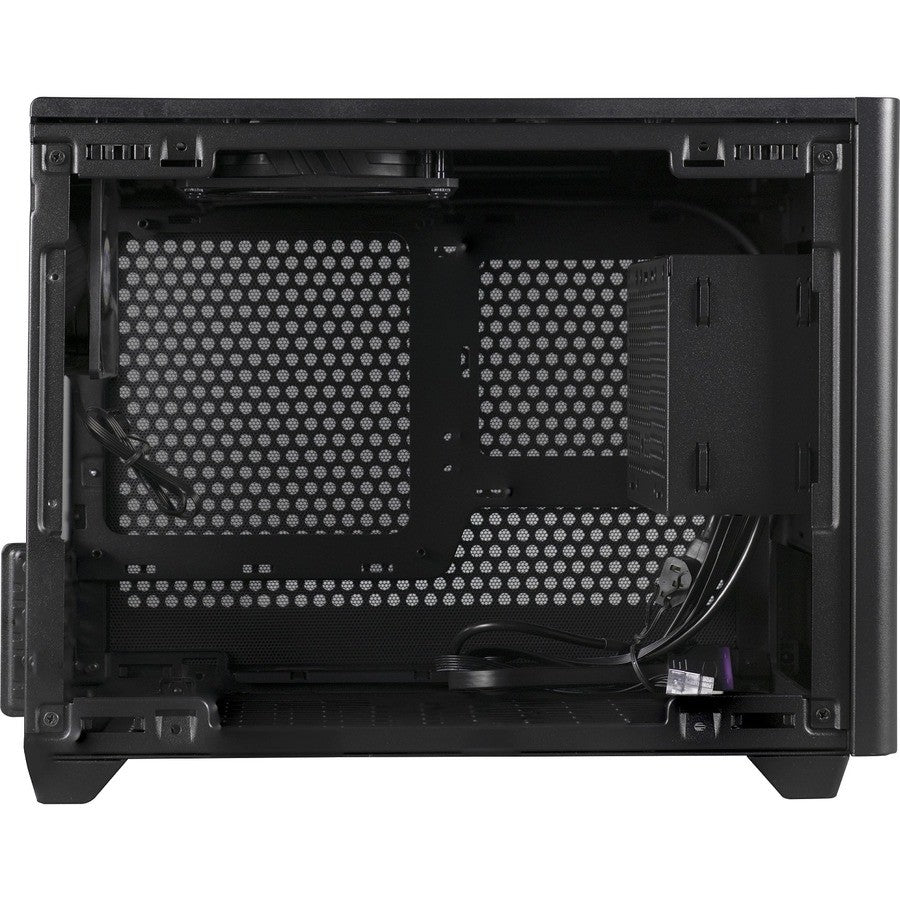

- Tool-Free and 360-Degree Accessibility – Panels and top fans secured with pins for easy removal; all frame parts dismantlable with screws for multi-angle internal access.

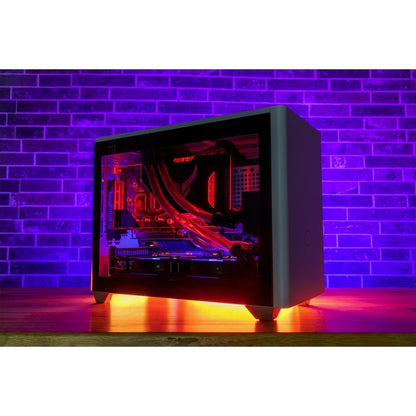

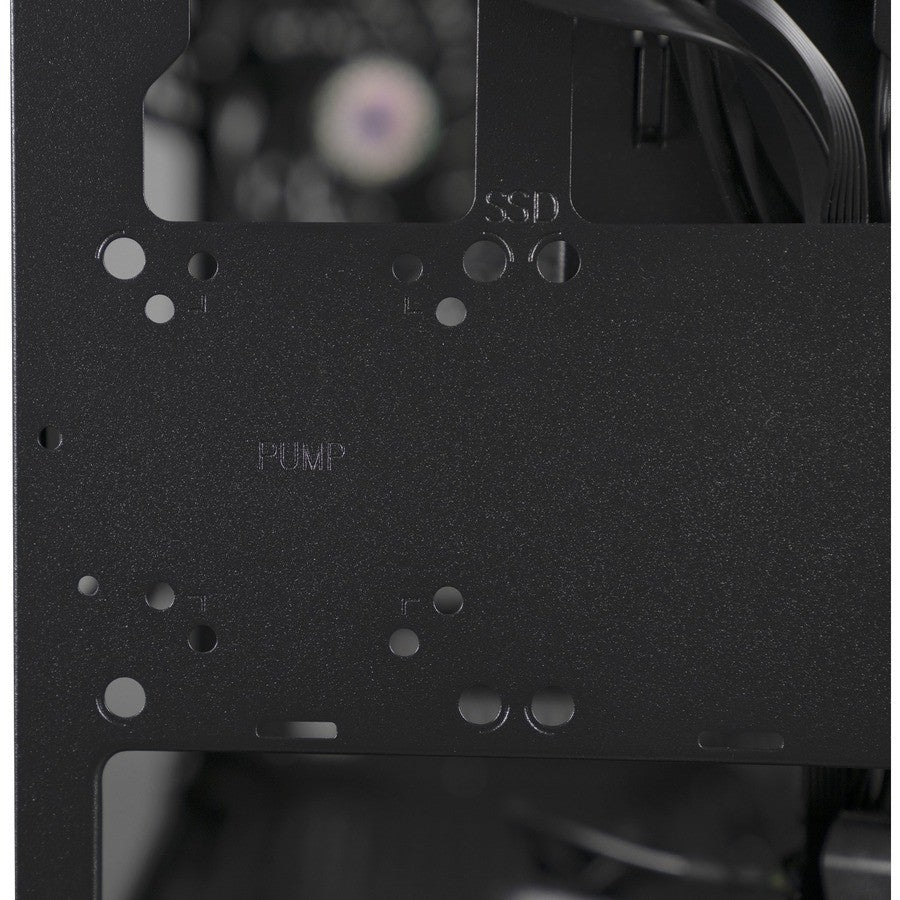

- High-Quality Construction – Thick powder-coated SGCC steel, mesh panels, and plastic; durable for travel; two pump locations and side/bottom radiator mounts for custom water cooling.
- Multiple Motherboard and PSU Options – Mini-ITX and Mini-DTX support; front-mount PSU up to 130mm (5.12") length for motherboards up to 244 x 226 mm.

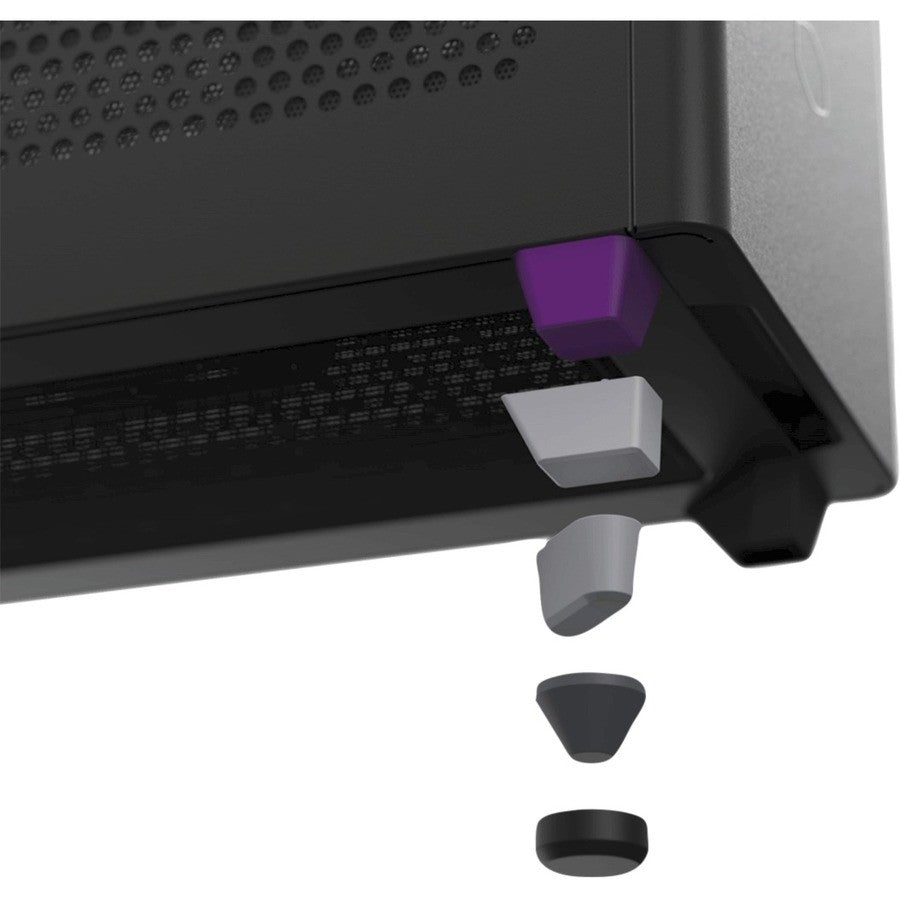

- Customization Options – 3D printable feet in various shapes/sizes/colors; optional tempered glass panel, custom riser cable, or 2x 120mm SickleFlow fans.

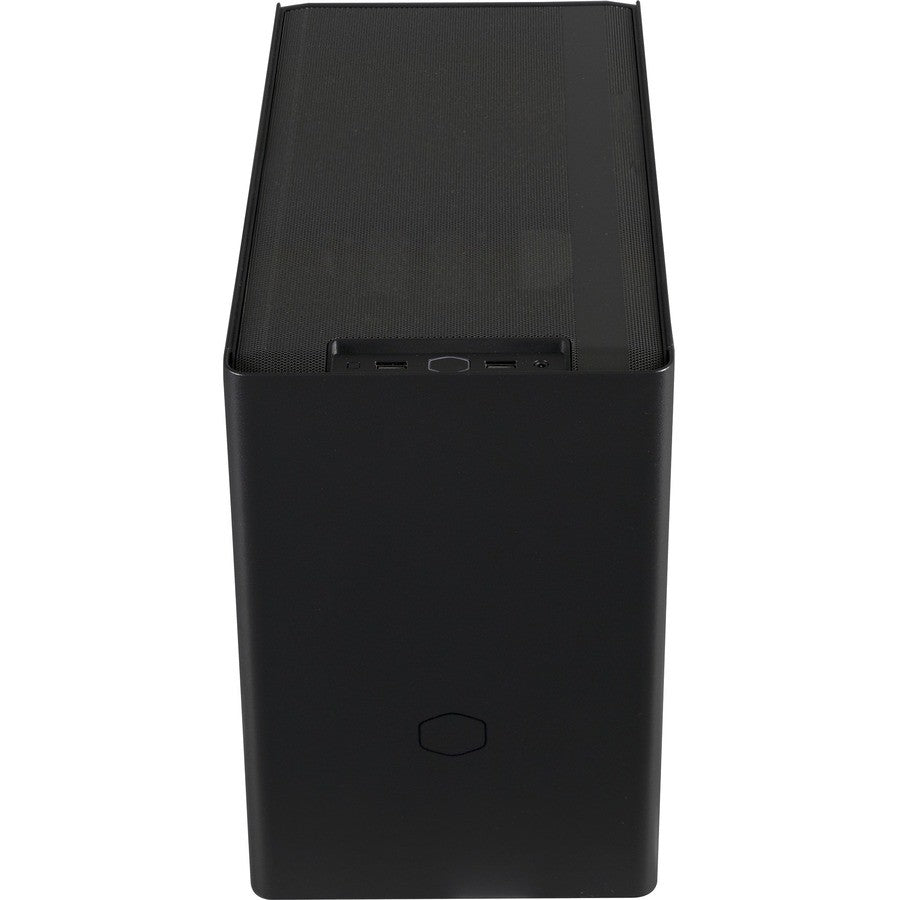

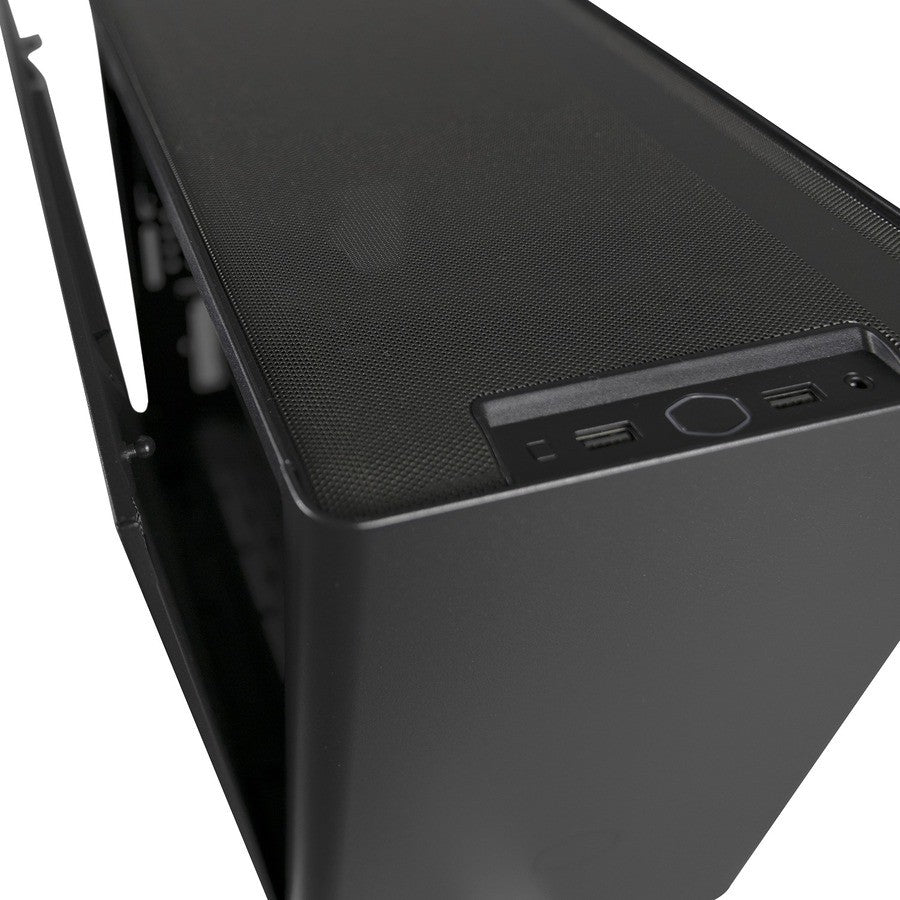

- Front I/O – 2x USB ports, 1x audio in, 1x audio out.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cooler Master |
| Manufacturer | Cooler Master Co., Ltd |
| Product Line | MasterBox |
| Product Model | MCB-NR200-KNNN-S00 |
| MPN | MCB-NR200-KNNN-S00 |
| UPC | 884102079054 |
| Product Type | Computer Case |
| Form Factor | Mini-tower |
| Motherboard Supported | Mini ITX, Mini DTX |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 2 |
| Installed Fan Size | 3.62" (92mm), 4.72" (120mm) SickleFlow |
| Number of External 5.25" Bays | 0 |
| Number of Internal 5.25" Bays | 0 |
| Number of Internal 3.5" Bays | 1 |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 2.5"/3.5" Bays | 1 |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 3 |
| Total Number of USB Ports | 2 (Front USB: Yes) |
| Total Number of Audio In Ports | 1 (Front Audio In: Yes) |
| Total Number of Audio Out Ports | 1 (Front Audio Out: Yes) |
| Power Supply Installed | No |
| Number of Power Supplies Supported | 1 |
| Color | Black |
| Product Material | Mesh, Plastic, Steel (SGCC powder coated) |
| Maximum CPU Cooler Height | 6.10" (155mm) |
| Maximum PSU Length | 5.12" (130mm) |
| Case Dimensions (HxWxD) | 7.3" x 14.8" x 11.5" (185mm x 376mm x 292mm) |
| Weight (Approximate) | 10.14 lb (4.6 kg) |
| Case Volume | 18 liters |
| Maximum GPU Length | 330mm |
| Maximum GPU Width | 156mm (triple-slot) |
| Maximum Radiator Length | 280mm |
| Country of Origin | China |
Easy Assembly and Customization for NR200 Case
Tool-free panels and full disassembly support simplify builds.
- Remove panels with pins for internal access.

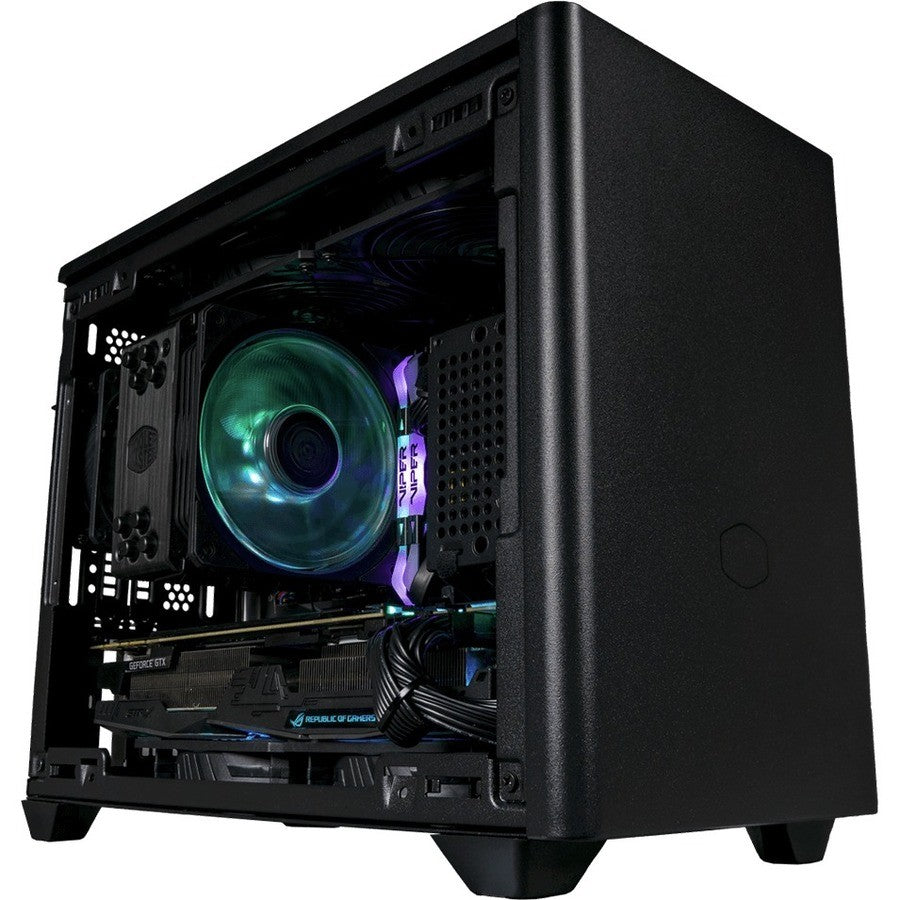

- Install motherboard (Mini-ITX/DTX), CPU cooler (up to 155mm), and RAM.
- Mount GPU (up to 330x156mm) horizontally or vertically (riser separate).

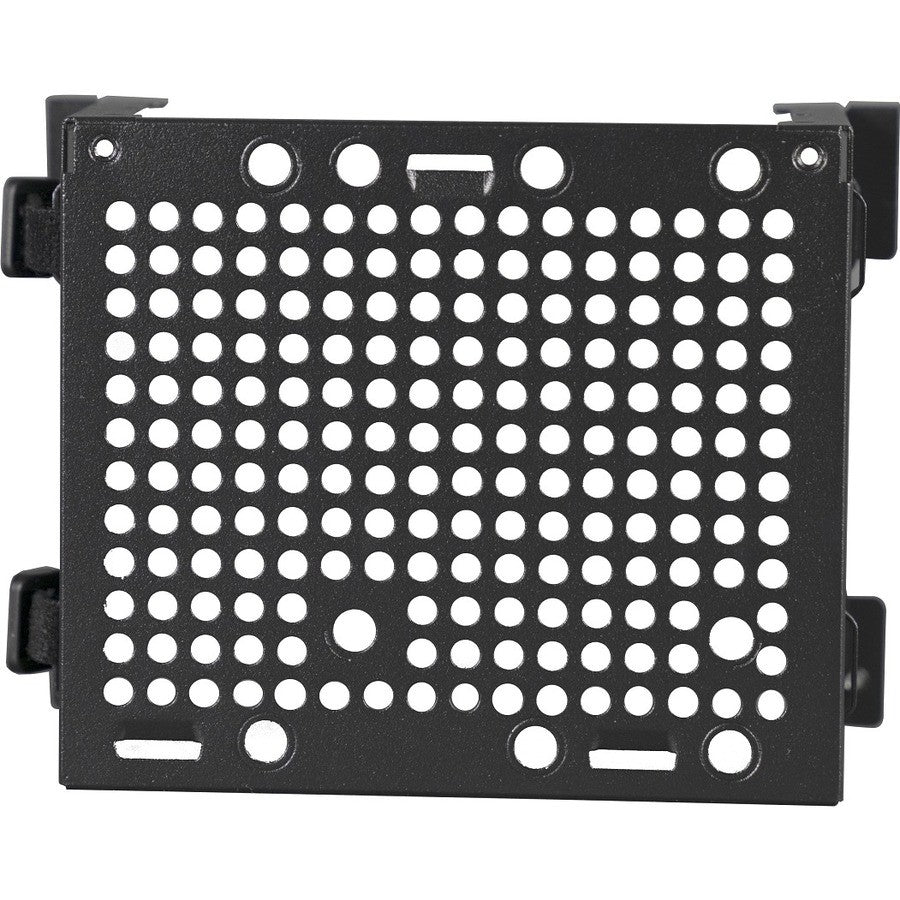

- Add storage in 1x 3.5", 2x 2.5", 1x 2.5"/3.5" bays.
- Configure cooling: up to 7 fans, radiators up to 280mm, pumps in designated spots.
- Pro tip: Front-mount PSU for larger motherboards; print custom feet for stability.
Why Choose Cooler Master MasterBox NR200?
The NR200 delivers high-end SFF performance with versatile cooling, robust build quality, and user-friendly design for compact, powerful PC systems.
Build compact with Cooler Master MasterBox NR200 MCB-NR200-KNNN-S00—Order today!
Brand: Cooler Master
Color: Black
Model: MCB-NR200-KNNN-S00
MPN: MCB-NR200-KNNN-S00
Case Material: Plastic
Country of Origin: China
Form Factor: Mini-ITX
Case Type: Mini Tower Case
Number of 3.5 in Drive Bays: 1
Front Ports: USB
Item Height: 7.3 in
Item Width: 14.8 in
Item Length: 11.5 in
UPC: 884102079054
