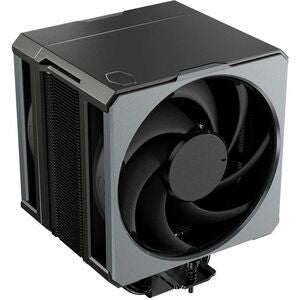

Cooler Master Hyper 612 APEX CPU Air Cooler
This is a high-performance dual-tower CPU air cooler designed for demanding systems, the Cooler Master Hyper 612 APEX. Featuring in-house designed super conductive composite heat pipes, dual Mobius 120P fans, and a blackout stealth aesthetic with enhanced visual design, it delivers precision cooling while offering extra clearance for RAM and motherboards. MPN: MAP-T6PN-225PK-R1; UPC: 884102127267. It is 30% smaller than its previous generation yet maintains performance with no memory interference.
Premium Cooling Features
- Six Heat Pipes Design – In-house super conductive composite heat pipes for superior heat dissipation.
- Dual Mobius 120P Fans – Provide maximum airflow of 75.20 CFM and static pressure of 3.63 mmH2O.
- Loop Dynamic Bearing – Ensures 22.8-year fan life with quiet operation at 30 dB(A) max noise.

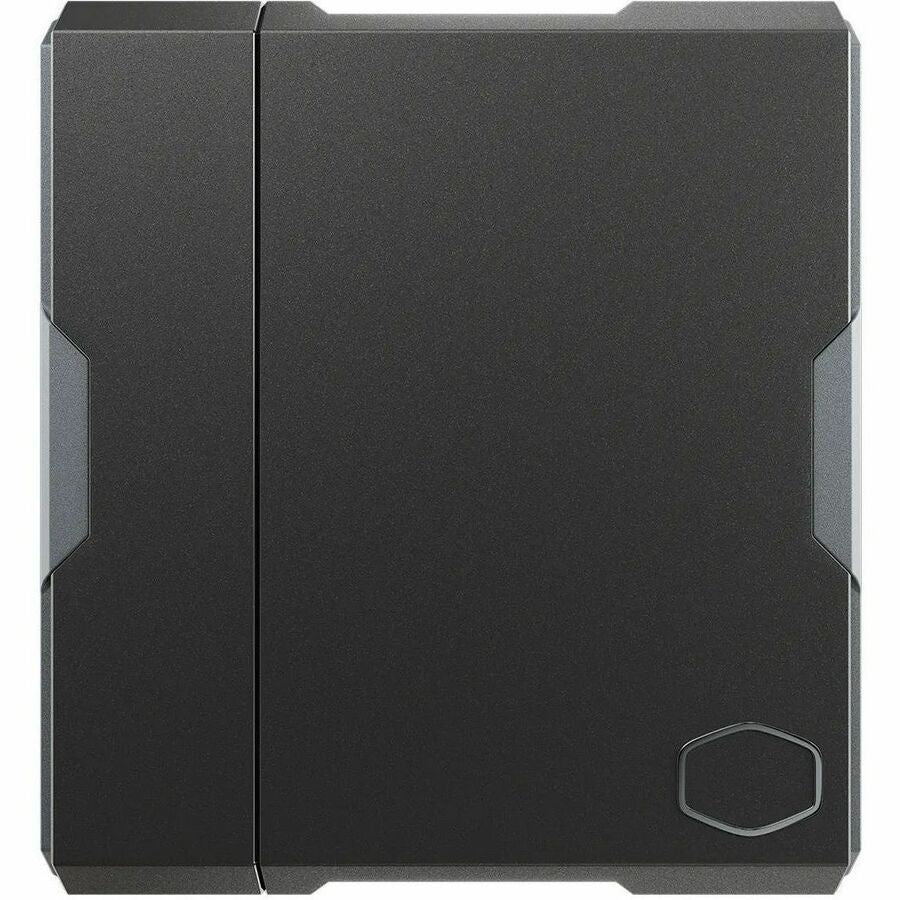

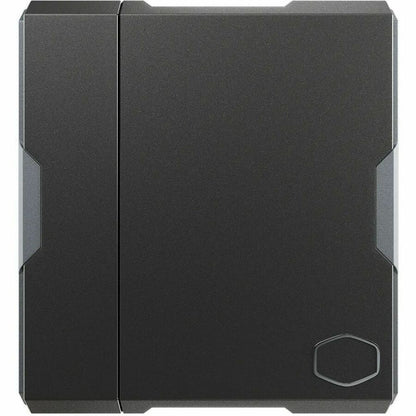

- Blackout Stealth Aesthetic – Sleek lines and modern finishes on top cover for personalization and visual appeal.
- Easy Installation – Simplified mounting process compatible with latest Intel and AMD CPUs.
- Compact Size – 30% smaller than prior model with full RAM and motherboard clearance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cooler Master Co., Ltd |
| Brand Name | Cooler Master |
| Product Line | Hyper 612 APEX |
| Product Name | Hyper 612 APEX |
| Manufacturer Part Number | MAP-T6PN-225PK-R1 |
| UPC | 884102127267 |
| Product Type | Cooling Fan |
| Cooler Type | Air |
| Number of Fans | 2 |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Speed (Max) | 2400 RPM |
| Maximum Airflow | 75.20 CFM |
| Noise Levels (A-Weighted) | 30 dB(A) |
| Fan Life | 22.8 Years |
| Maximum Air Pressure | 3.63 mmH2O |
| Compatible Intel Sockets | LGA-1851, LGA-1700, LGA-1200, LGA-1151 (H4), LGA-1150 (H3), LGA-1155 (H2), LGA-1156 (H) |
| Compatible AMD Sockets | AM4, AM5 |
| Connectors | 4-Pin (PWM) |
| Maximum Power Consumption | 2.16 W |
| Rated Current | 180 mA |
| Color Family | Black |
| Product Color | Black |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Heatsink Height | 6.3" |
| Heatsink Width | 4.5" |
| Package Weight | 4.30 lbs |
| Package Height | 6.60" |
| Package Width | 9.10" |
| Package Depth | 7.60" |
| Application/Usage | CPU, Processor, Motherboard, PC |
Installation & Maintenance
Designed for easy installation on compatible sockets. Follow motherboard manual for thermal paste application and mounting.
- Prepare CPU socket and apply thermal paste evenly. Pro tip: Use a pea-sized amount for optimal spread.
- Mount the backplate and brackets per included instructions.
- Secure heatsink, attach fans with PWM cables to motherboard headers.
- Test system temperatures under load.
- Clean dust from fins periodically with compressed air; avoid direct contact.
Why Choose Cooler Master Hyper 612 APEX
Engineered for high-performance PCs with premium features like composite heat pipes and quiet dual fans, providing reliable cooling and aesthetics in a compact form.
Elevate your PC cooling with Cooler Master Hyper 612 APEX—Order now!
Brand: Cooler Master
Type: Fan
Color: Black
Fan Light Color: Black
Compatible Brand: Cooler Master
MPN: MAP-T6PN-225PK-R1
Manufacturer Warranty: 10 Years
Socket Compatibility: LGA 1151
Power Connection: 4-Pin
Fan Diameter: 120 mm
Maximum Fan Speed: 2400 RPM
UPC: 884102127267
