Cisco Catalyst C1200-8P-E-2G 8-Port PoE+ Gigabit Ethernet Switch
Cisco Catalyst C1200-8P-E-2G 8-Port PoE+ Gigabit Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

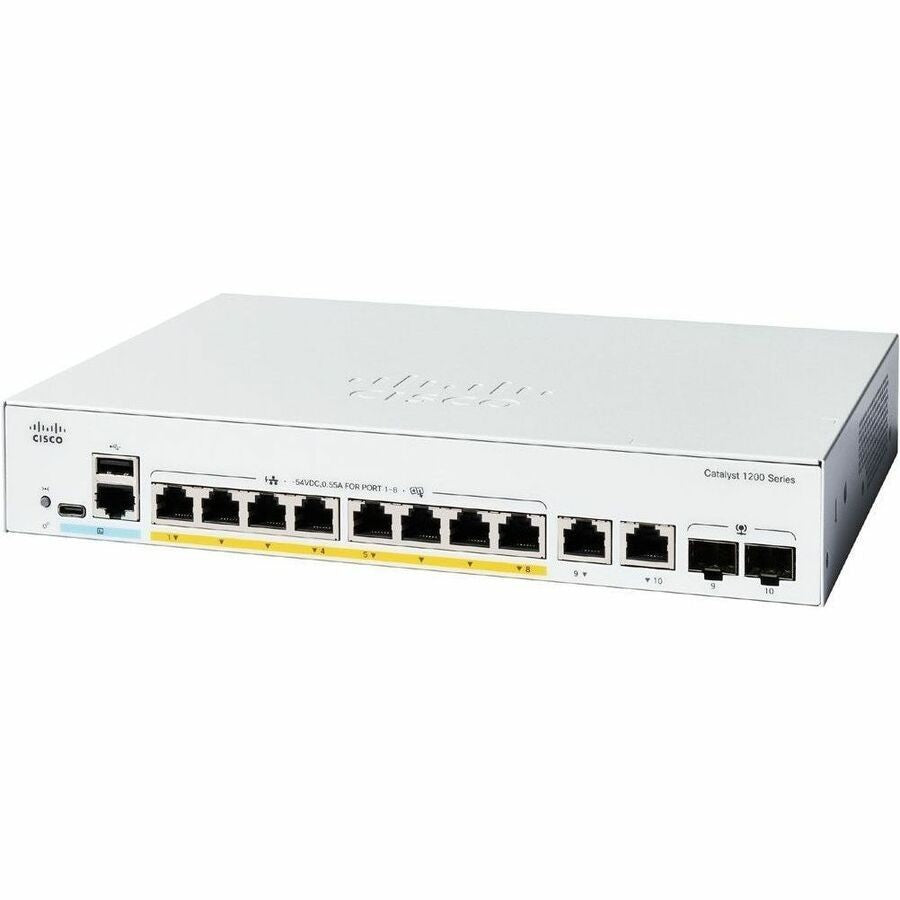

Cisco Catalyst C1200-8P-E-2G 8-Port PoE+ Gigabit Ethernet Switch
This is a Cisco Catalyst C1200-8P-E-2G Ethernet Switch, an affordable fanless smart switch from the Catalyst 1200 Series designed and built for small and medium-sized businesses. It combines powerful performance, reliability, flexible management options, comprehensive security capabilities, and Layer 3 static routing features. Managed through the Cisco Business mobile app or dashboard, it operates on customized Linux OS software for sharing online resources and connecting computers, phones, and wireless access points. MPN: C1200-8P-E-2G; UPC: 889728521796; D&H Item Number: C12008PE2G.
Key Features and Capabilities
- Fanless Design – Silent operation suitable for office environments.
- 10 Gigabit Ethernet Ports – 8 x PoE+ ports for powering devices like IP phones, wireless access points, and IP cameras; 2 x combo Gigabit Ethernet uplinks.
- Layer 3 Support – Static routing beyond typical unmanaged switches.
- PoE Budget of 67 W – Supports IEEE 802.3af/at PoE+ for connected devices.
- 2 SFP Slots – Shared mini-GBIC expansion for fiber uplinks supporting 1000Base-X.
- Comprehensive Networking Standards – IEEE 802.1x, 802.3az, 802.3ad, 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1w, 802.1s, 802.3af, 802.3at, 802.1p, 802.11ac, 802.1Q, 802.1ab.
- Manageable – Web UI, CLI, mobile app, and dashboard options.
- Rack-Mountable 1U Form Factor – Compact for enterprise, business, and office deployments.
- Media Support – Optical fiber and twisted pair cabling.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-8P-E-2G |
| Product Name | Catalyst C1200-8P-E-2G Ethernet Switch |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | C1200-8P-E-2G / C12008PE2G |
| UPC | 889728521796 |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+; 2 x Gigabit Ethernet Combo |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X; 10/100/1000Base-T |
| Layer Supported | 3 |
| Features | Fanless |
| Networking Standards | IEEE 802.1x; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.3af; IEEE 802.3at; IEEE 802.1p; IEEE 802.11ac; IEEE 802.1Q; IEEE 802.1ab |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 67 W |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 80.86 W |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Height | 1.7" |
| Width | 10.6" |
| Depth | 7.3" |
| Weight (Approximate) | 3.37 lb |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Application/Usage | Enterprise; Business; Office; IP Phone; Wireless Access Point; IP Camera |
Applications and Use Cases
Build a reliable, easy-to-use business network at an affordable price. Ideal for connectivity to cloud applications in small and medium-sized businesses, providing security, Layer 3 features, and simplified management via Cisco Business tools.
Why Choose Cisco Catalyst C1200-8P-E-2G
The next generation of affordable smart switches offers performance and features far beyond unmanaged switches, at a lower cost than fully managed options, with flexible management and robust security for business networks.
Enhance your network with the Cisco Catalyst C1200-8P-E-2G Ethernet Switch—Order today!
Brand: Cisco
Type: Ethernet Switch
Model: C1200-8P-E-2G
MPN: C1200-8P-E-2G
Number of LAN Ports: 10
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Interface: Ethernet (RJ-45)
Network Management Type: Partially Managed
Maximum Data Transfer Rate: 1 Gbps
Form Factor: Rack Mountable
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
UPC: 889728521796
