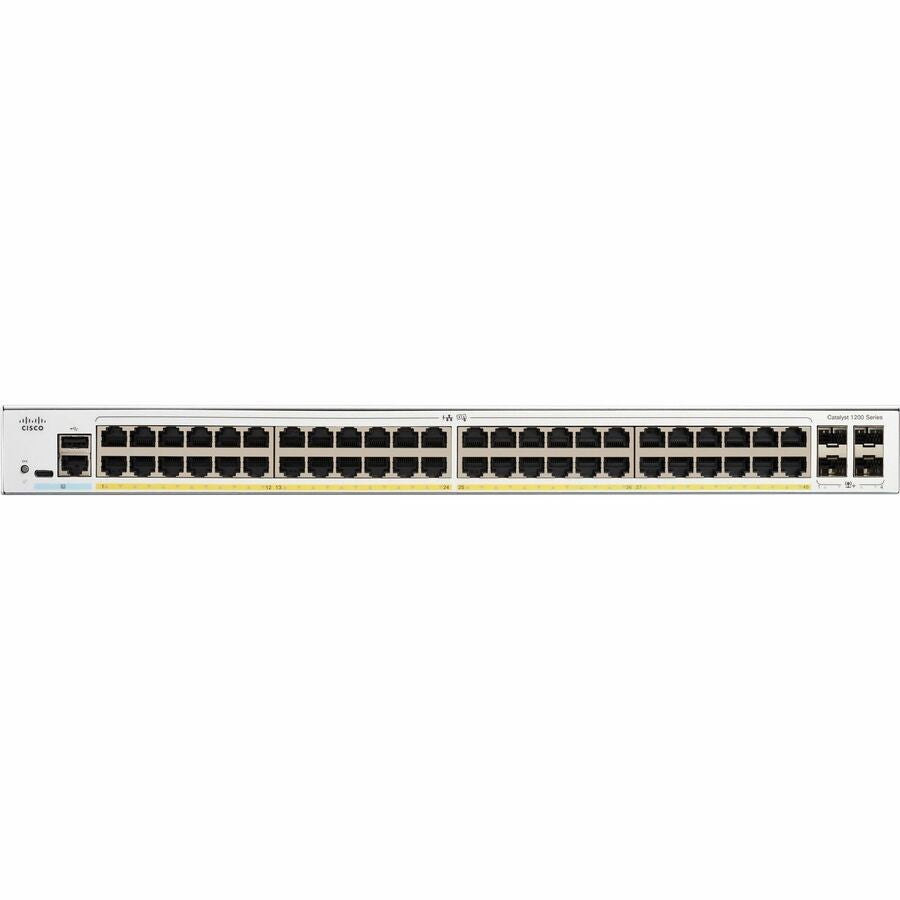

Cisco Catalyst C1200-48P-4X Ethernet Switch
Cisco Catalyst C1200-48P-4X Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Cisco Catalyst C1200-48P-4X Ethernet Switch
This is a Cisco Catalyst C1200-48P-4X Ethernet Switch from the Catalyst 1200 Series. It is an affordable smart switch designed and built for small and medium-sized businesses with 48 Gigabit Ethernet PoE+ ports and 4 10 Gigabit Ethernet SFP+ expansion slots. The switch operates on customized Linux OS software and supports Layer 3 static routing.
Networking plays a crucial role in every business journey. The Cisco Catalyst 1200 Series combines powerful performance and reliability with a complete suite of features needed for a small or medium-sized business network at a lower cost than fully managed switches. It is managed through the Cisco Business mobile app or dashboard and provides flexible management options along with comprehensive security capabilities.
Key Features
- 48 x Gigabit Ethernet PoE+ ports and 4 x 10 Gigabit Ethernet SFP+ expansion slots
- Layer 3 static routing support
- PoE budget of 375 W
- Manageable via Cisco Business mobile app or dashboard
- Supports IEEE 802.3af and IEEE 802.3at PoE standards
- 1U rack-mountable form factor
- Customized Linux OS software
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-48P-4X |
| Manufacturer Part Number | C120048P4X |
| UPC | 889728521758 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+; 4 x 10 Gigabit Ethernet Expansion Slot |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 10GBase-X |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.3af; IEEE 802.3at; IEEE 802.1p; IEEE 802.11ac; IEEE 802.1Q; IEEE 802.1ab |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 463.32 W |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 13.8" |
| Weight (Approximate) | 11.97 lb |
| Application/Usage | Enterprise; Business; Office; IP Phone; Wireless Access Point; IP Camera |
Brand: Cisco
Type: Ethernet Switch
Model: C1200-48P-4X
Form Factor: Rack Mountable
MPN: C120048P4X
Number of LAN Ports: 48
Ethernet Technology: 10 Gigabit Ethernet (10000-Mbit/s)
Interface: Ethernet (RJ-45)
Network Management Type: Fully Managed
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
UPC: 889728521758
