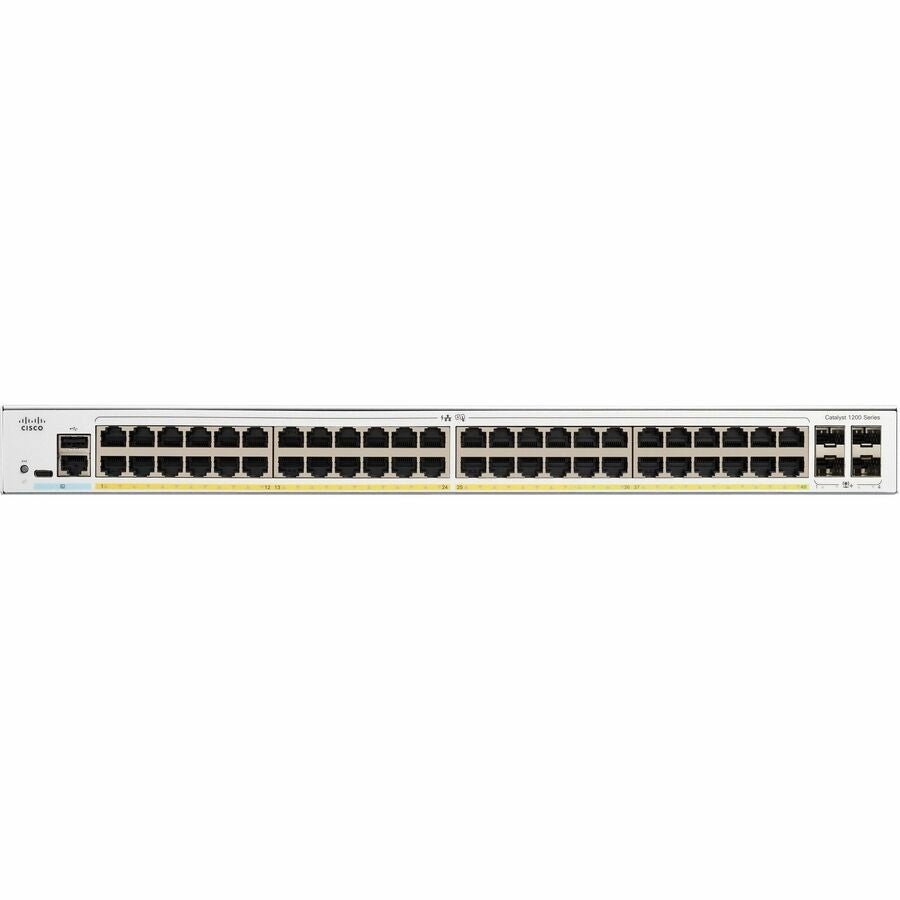

Cisco Catalyst C1200-48P-4G Ethernet Switch
This is a Cisco Catalyst C1200-48P-4G Ethernet Switch from the Catalyst 1200 Series. It is an affordable smart switch designed and built for small and medium-sized businesses, providing Layer 3 static routing, flexible management options, and comprehensive security capabilities at a lower cost than fully managed switches. The switch operates on customized Linux OS software and supports management through the Cisco Business mobile app or dashboard.
Key Features of Cisco Catalyst C1200-48P-4G Ethernet Switch
- 48 Gigabit Ethernet PoE+ Ports – Delivers up to 30W per port with a total PoE budget of 375 W for connecting computers, phones, wireless access points, IP cameras, and IP phones.
- 4 SFP Uplink Slots – Supports optical fiber connectivity with 1000Base-X for high-speed expansion and stacking.
- Layer 3 Static Routing – Enables advanced traffic management beyond unmanaged or consumer-grade switches.
- Power over Ethernet Plus (PoE+) – Supplies power through Ethernet cables for simplified deployment of wireless access points and other devices.
- Quality of Service (QoS) and VLAN Support – Prioritizes delay-sensitive traffic for unified communications including IP telephony and video surveillance.
- Rack-Mountable Form Factor – Fits standard racks with dimensions of 1.7 inches height, 17.5 inches width, and 13.8 inches depth.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-48P-4G |
| Manufacturer Part Number | C120048P4G |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+; 4 x Gigabit Ethernet SFP |
| Media Type Supported | Twisted Pair; Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 1000Base-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.11ac; IEEE 802.1x; IEEE 802.3az; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.3ad; IEEE 802.1Q; IEEE 802.1p; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at |
| Manageable | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply; AC |
| Power Consumption | 451.95 W |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 13.8" |
| Weight (Approximate) | 11.97 lb |
| Application/Usage | IP Phone; IP Camera; Business; Small Office; Enterprise Network |
| UPC | 889728521741 |
Business Applications
The Cisco Catalyst C1200-48P-4G supports high-speed desktop connectivity, flexible wireless access point deployment, and unified communications by converging IP telephony and video surveillance onto a single Ethernet network. It provides reliable performance for sharing online resources among computers, phones, and other networking devices in small and medium-sized business environments.
Cisco Catalyst C1200-48P-4G Ethernet Switch – reliable Layer 3 smart switching for business networks.
Brand: Cisco
Type: Ethernet Switch
Model: C1200-48P-4G
Form Factor: Rack Mountable
MPN: C120048P4G
UPC: 889728521741
