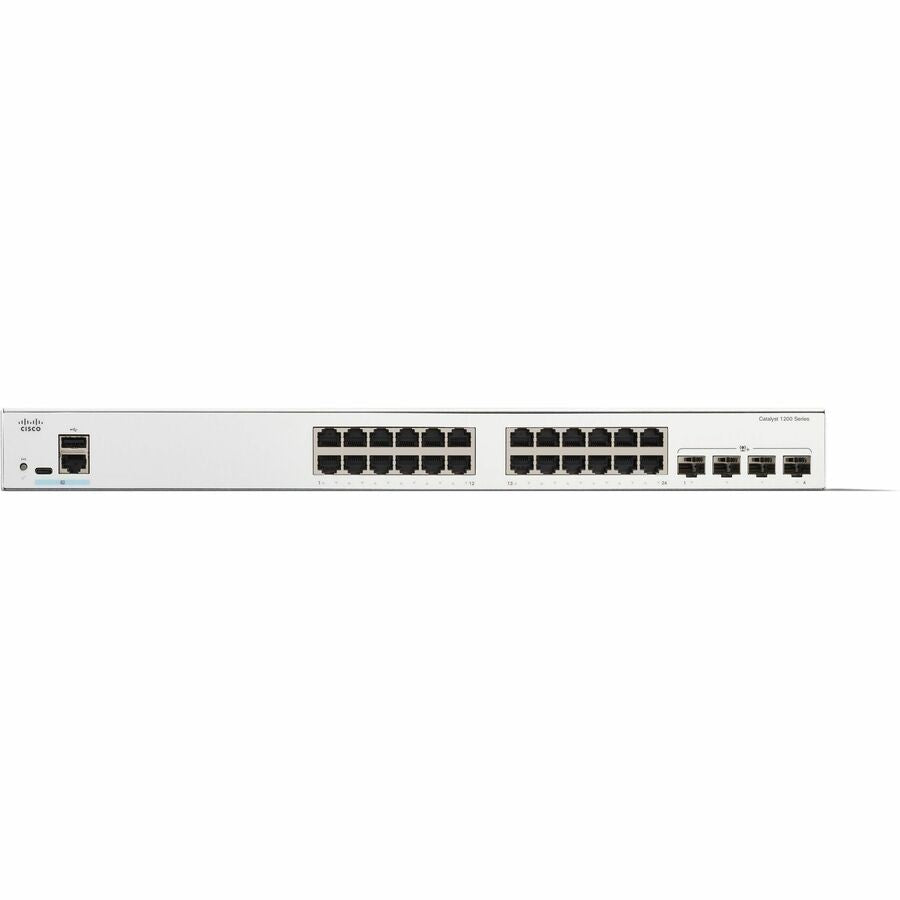

Cisco Catalyst C1200-24T-4X 24-Port 10G Layer 3 Switch
Cisco Catalyst C1200-24T-4X 24-Port 10G Layer 3 Switch
Low stock: 5 left
Save 25%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Cisco Catalyst C1200-24T-4X Ethernet Switch – 24-Port 10G Layer 3 Manageable
This is a Cisco Catalyst C1200-24T-4X Ethernet Switch, a next-generation affordable smart switch for small and medium-sized business networks. Featuring 24 Gigabit Ethernet ports and 4 x 10G SFP+ uplinks, it supports Layer 3 static routing, comprehensive security, and flexible management via Cisco Business mobile app or dashboard. MPN: C1200-24T-4X; UPC: 889728521734. Build reliable connectivity for computers, IP phones, wireless access points, and IP cameras.
Key Features of Cisco Catalyst C1200-24T-4X Ethernet Switch
- 24 x Gigabit Ethernet RJ-45 Ports – 10/100/1000Base-T for high-speed wired connections.
- 4 x 10G SFP+ Uplink Slots – Modular expansion with shared SFP+ support for 10GBase-X fiber or copper.
- Layer 3 Capabilities – Static routing beyond basic Layer 2, ideal for business networks.
- Fanless Design – Silent operation suitable for office environments.
- Comprehensive IEEE Standards – Supports 802.1x, 802.3az Energy Efficient Ethernet, PoE (802.3af/at), VLANs (802.1Q), and more.
- Rack-Mountable 1U Form Factor – Compact for standard 19-inch racks.
- Manageable via App/Dashboard – Customized Linux OS for easy setup and monitoring.
- Media Support – Twisted pair and optical fiber for versatile deployments.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cisco Systems, Inc. |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24T-4X |
| Product Name | Catalyst C1200-24T-4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network; 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.3af; IEEE 802.3at; IEEE 802.1p; IEEE 802.11ac; IEEE 802.1Q; IEEE 802.1ab |
| Manageable | Yes |
| Features | Fanless |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 27.25 W |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 9.5" |
| Weight (Approximate) | 6.13 lb |
| Application/Usage | Enterprise; Business; Office; IP Phone; Wireless Access Point; IP Camera |
| UPC | 889728521734 |
| Manufacturer Part Number | C1200-24T-4X |
| Manufacturer Warranty | Limited Lifetime |
| Country of Origin | China |
Why Choose Cisco Catalyst C1200-24T-4X for Business Networking
Operates on customized Linux OS software with flexible management options and security features. Provides powerful performance at lower cost than fully managed switches, perfect for sharing resources in small to medium networks.
Enhance your network with Cisco Catalyst C1200-24T-4X Ethernet Switch—Order now!
Brand: Cisco
Type: Ethernet Switch
Model: C1200-24T-4X
MPN: C1200-24T-4X
Country of Origin: China
Number of LAN Ports: 24
Ethernet Technology: 10 Gigabit Ethernet (10000-Mbit/s)
Interface: Ethernet (RJ-45)
Network Management Type: Fully Managed
Maximum Data Transfer Rate: 10 Gbps
Form Factor: Rack Mountable
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
Manufacturer Warranty: Lifetime
UPC: 889728521734
