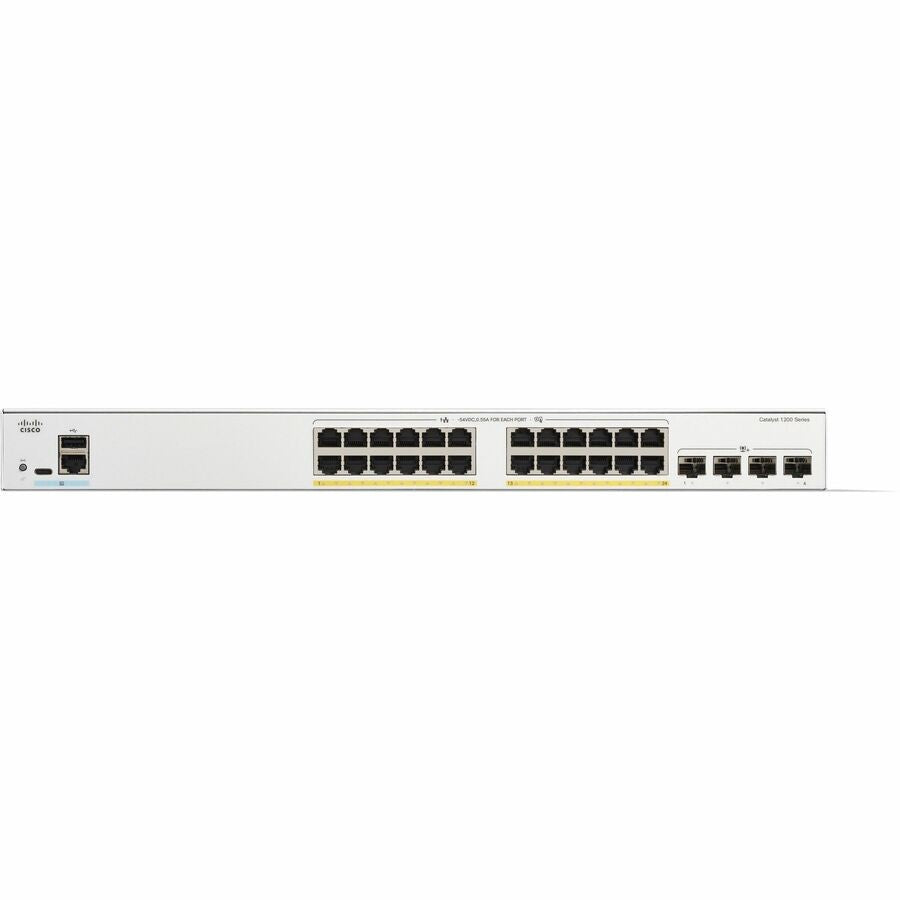

Cisco Catalyst C1200-24P-4X Ethernet Switch

This is a Cisco Catalyst C1200-24P-4X Ethernet Switch manufactured by Cisco Systems, Inc. It belongs to the Catalyst product line and 1200 series, designed as a fanless, manageable Layer 3 device for small and medium-sized business networks. The switch supports 24 Gigabit Ethernet PoE+ ports along with 4 SFP+ expansion slots for 10 Gigabit Ethernet connectivity, delivering a PoE budget of 195 W and operating on a customized Linux OS with flexible management options via the Cisco Business mobile app or dashboard.

The unit provides Layer 3 static routing, comprehensive security capabilities, and support for multiple IEEE networking standards. It accepts input voltages of 120 V AC or 230 V AC at 50 Hz or 60 Hz, consumes up to 236.90 W, and mounts in a 1U rack configuration. Applications include enterprise, business, office, IP phone, wireless access point, and IP camera deployments.

Key Features

• Fanless design for silent operation
• 24 x Gigabit Ethernet PoE+ ports
• 4 x 10 Gigabit Ethernet SFP+ expansion slots with shared SFP support
• Uplink port and modular construction
• Layer 3 support with static routing
• Manageable via mobile app or dashboard
• PoE budget of 195 W
• Support for optical fiber and twisted pair media
• Compatibility with IEEE 802.1x, 802.3az, 802.3ad, 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1w, 802.1s, 802.3af, 802.3at, 802.1p, 802.11ac, 802.1Q, and 802.1ab standards
• Rack-mountable 1U form factor

Comprehensive Technical Specifications
