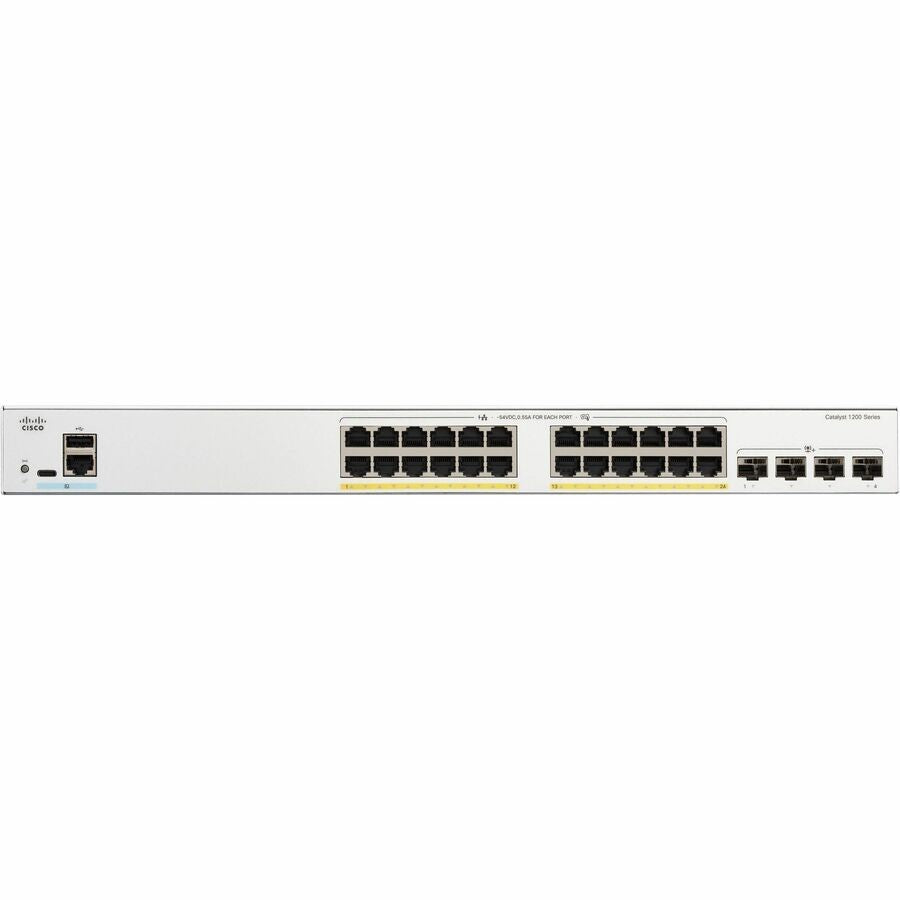

Cisco Catalyst C1200-24FP-4X Ethernet Switch
Cisco Catalyst C1200-24FP-4X Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Cisco Catalyst C1200-24FP-4X Ethernet Switch
This is a Cisco Catalyst C1200-24FP-4X Ethernet Switch. It is an affordable smart switch designed and built for small and medium-sized businesses with Layer 3 static routing, comprehensive security capabilities, and flexible management options through the Cisco Business mobile app or dashboard.
The switch operates on customized Linux OS software and supports connections for computers, phones, wireless access points, and other devices while providing reliable performance at a lower cost than fully managed switches.
Key Features
- Fanless design for silent operation
- 24 x Gigabit Ethernet PoE+ ports
- 4 x 10 Gigabit Ethernet SFP+ expansion slots with shared SFP support
- Layer 3 support with static routing
- Manageable via mobile app or dashboard
- PoE budget of 375 W
- Supports IEEE 802.3af and IEEE 802.3at standards
- 1U rack-mountable form factor
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cisco Systems |
| Manufacturer Item Number | C1200-24FP-4X |
| UPC | 889728521697 |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24FP-4X |
| Product Type | Ethernet Switch |
| Features | Fanless |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+; 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.3af; IEEE 802.3at; IEEE 802.1p; IEEE 802.11ac; IEEE 802.1Q; IEEE 802.1ab |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 437.40 W |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 13.6" |
| Weight (Approximate) | 10.14 lb |
| Application/Usage | Enterprise; Business; Office; IP Phone; Wireless Access Point; IP Camera |
Brand: Cisco
Type: Ethernet Switch
Model: C1200-24FP-4X
Form Factor: Rack Mountable
MPN: C1200-24FP-4X
UPC: 889728521697
