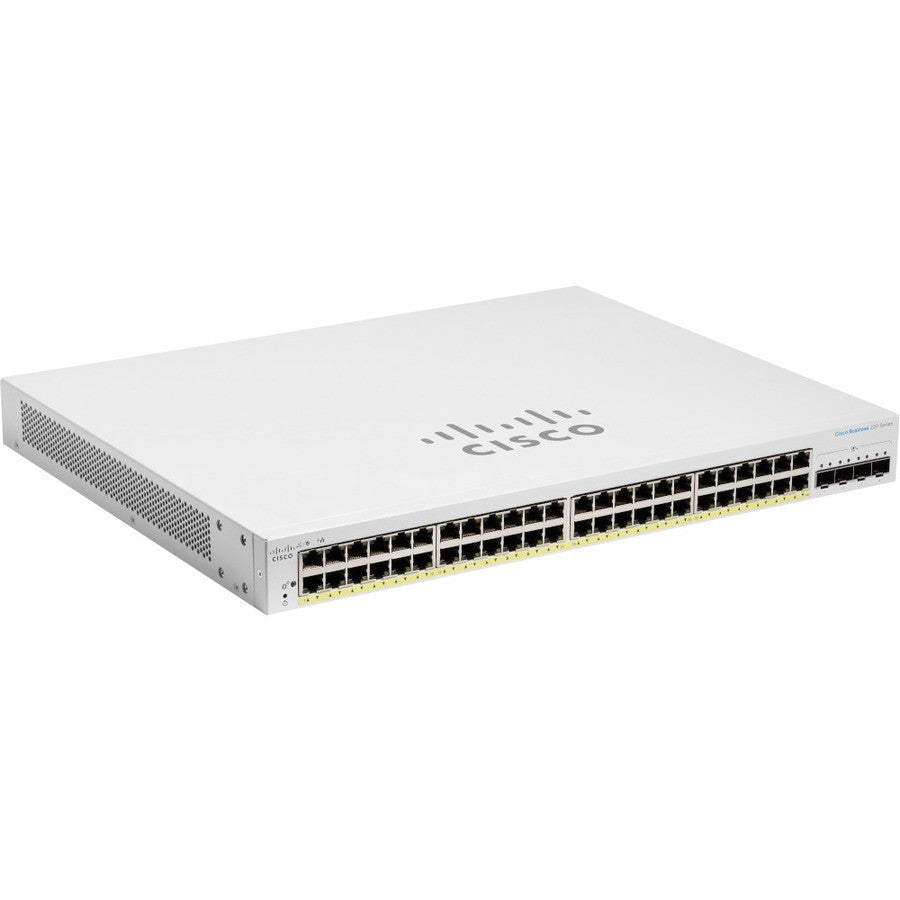

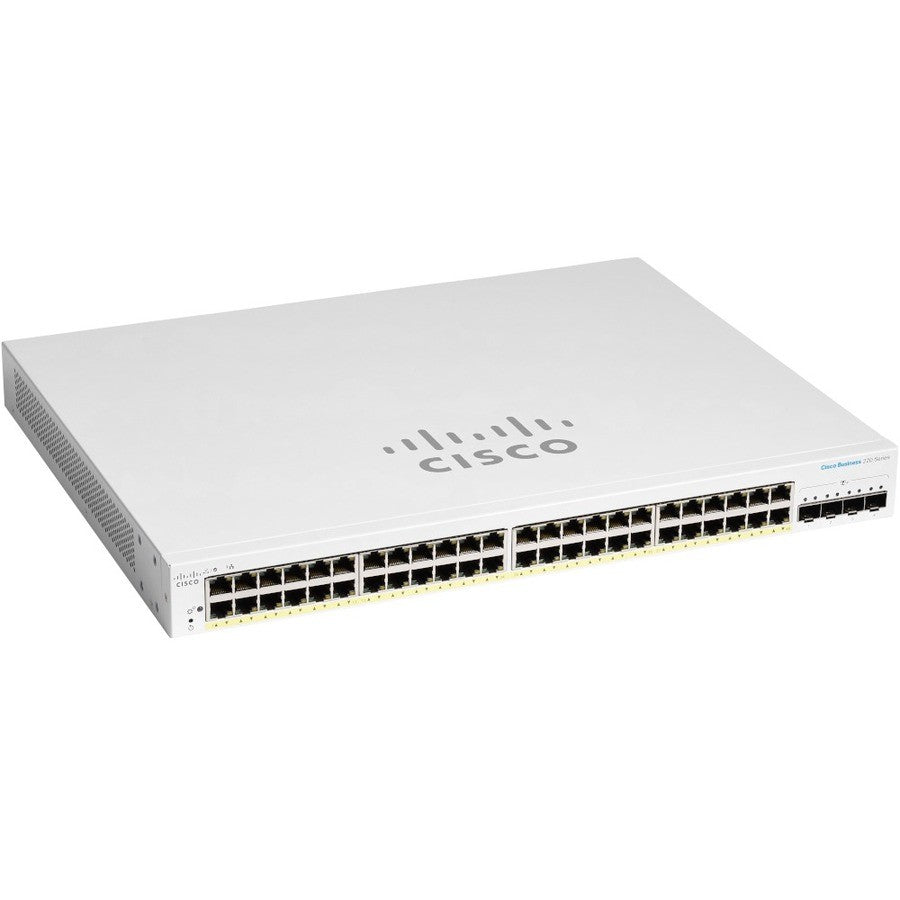

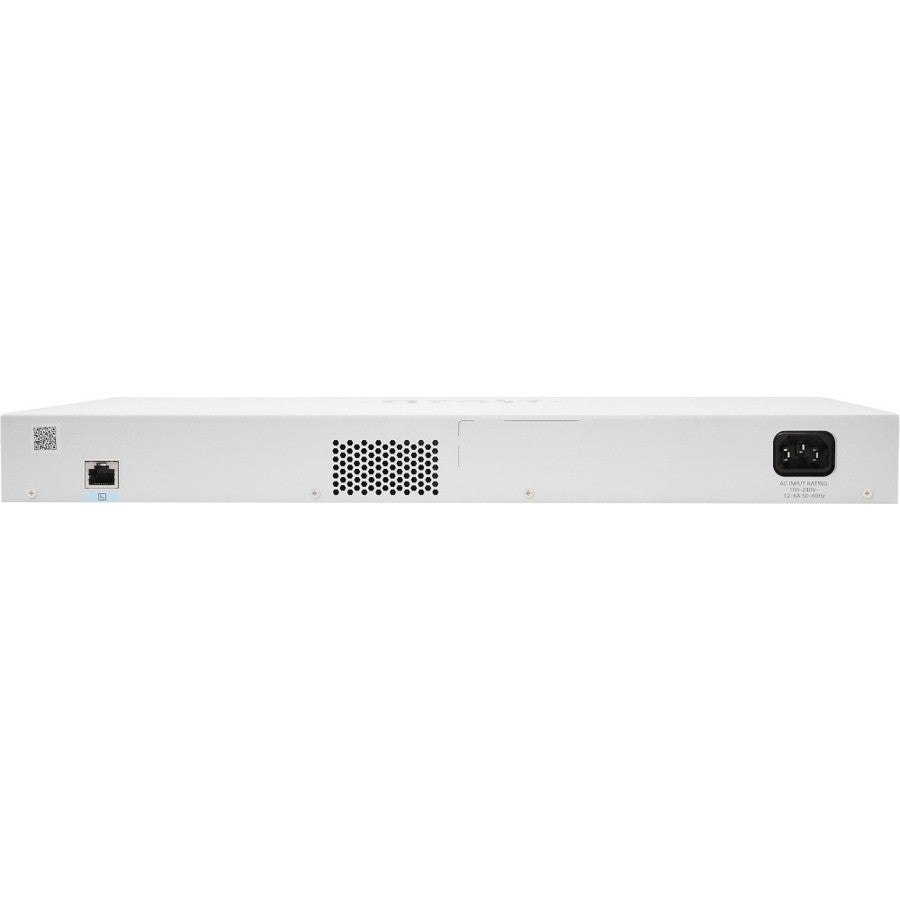

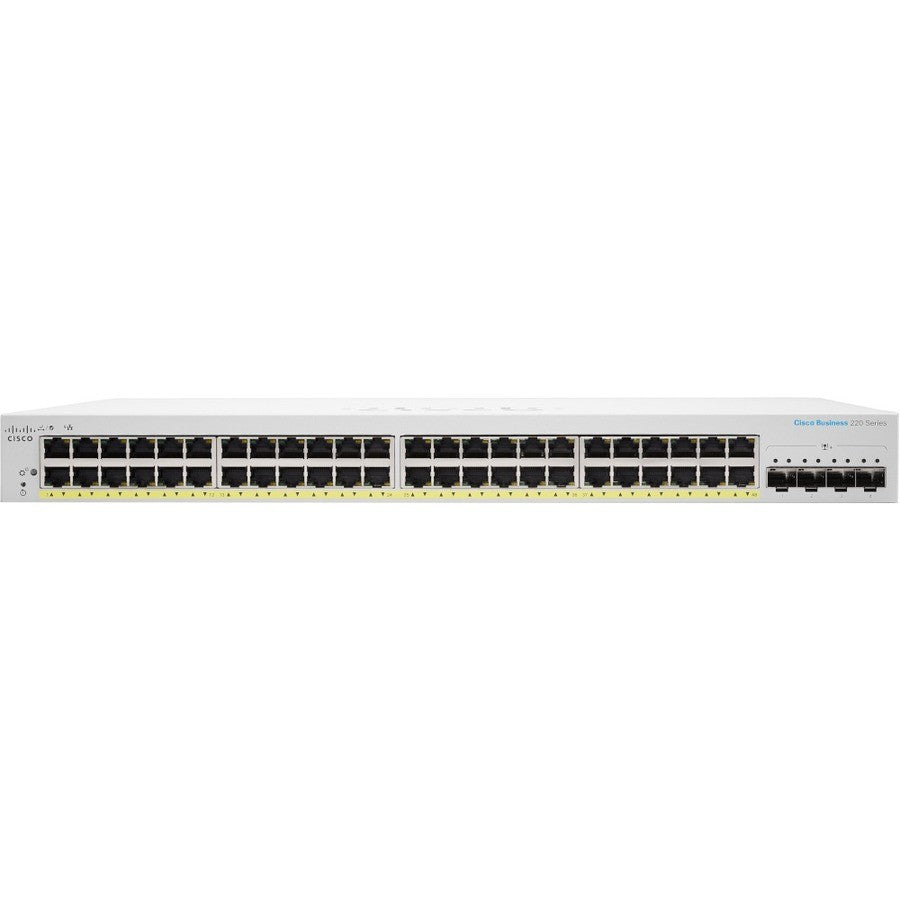

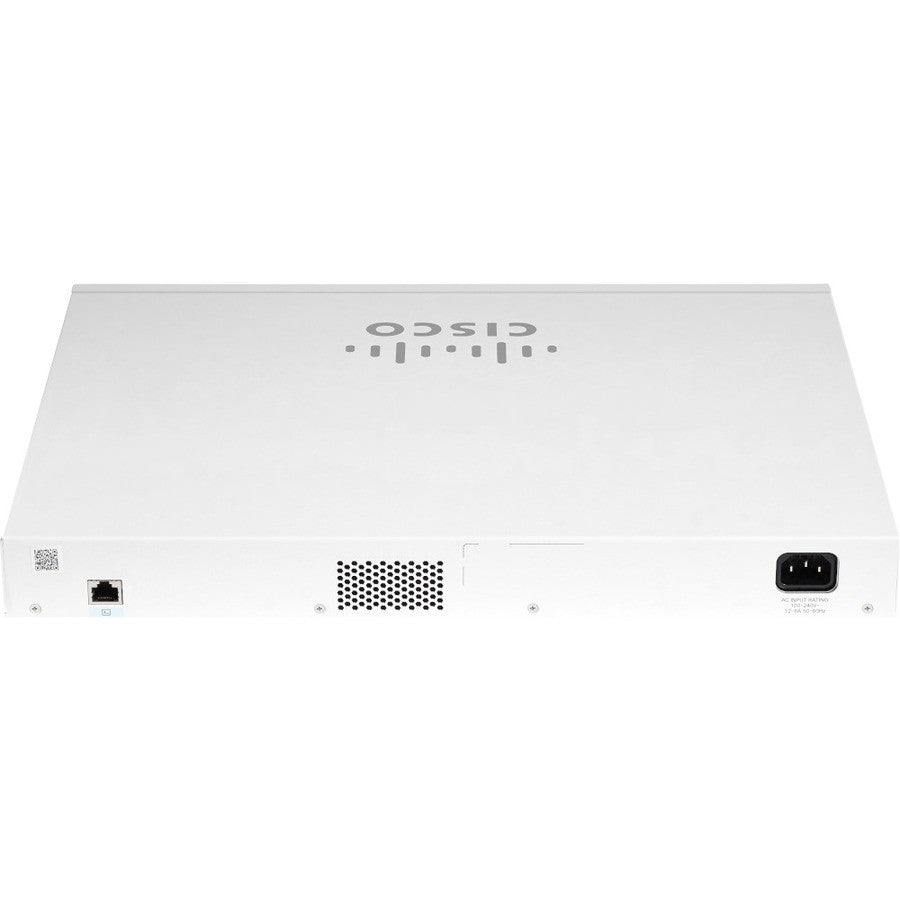

Cisco Business CBS220-48P-4X Ethernet Switch

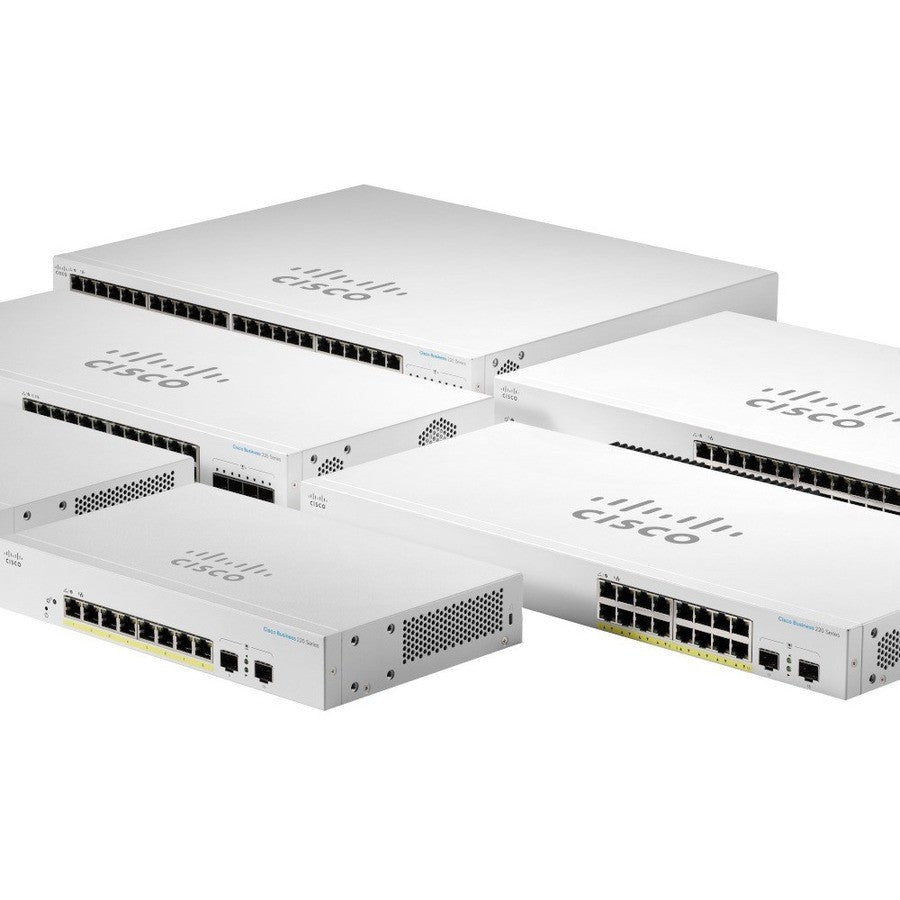

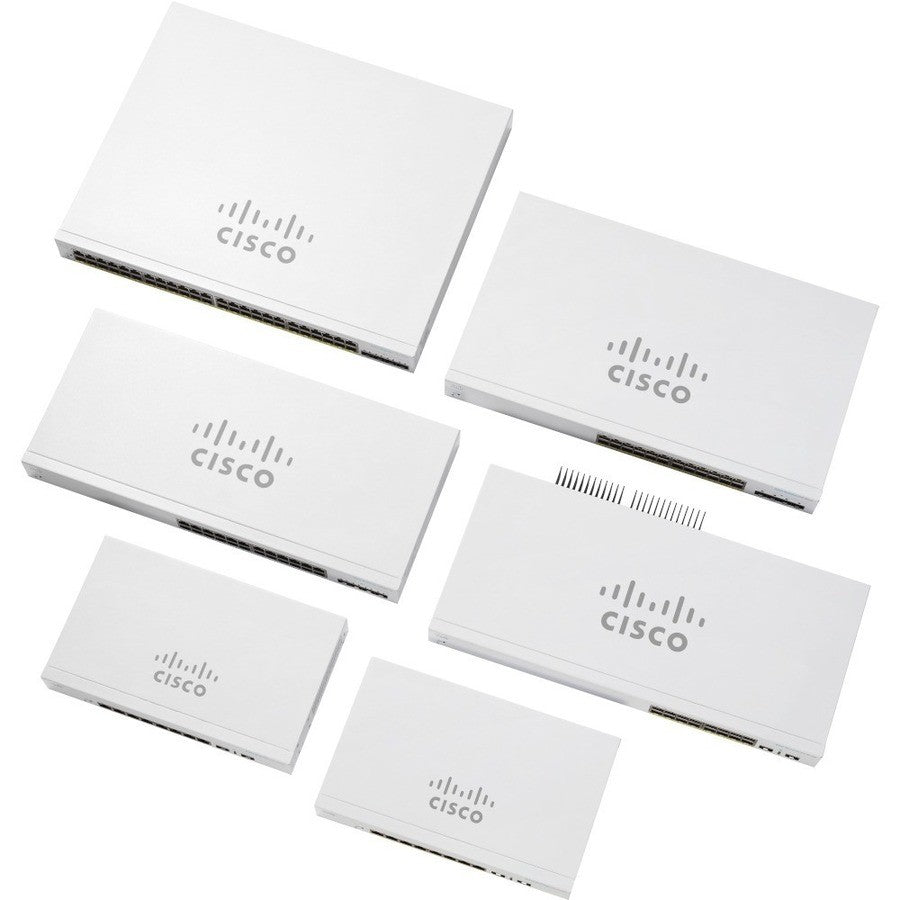

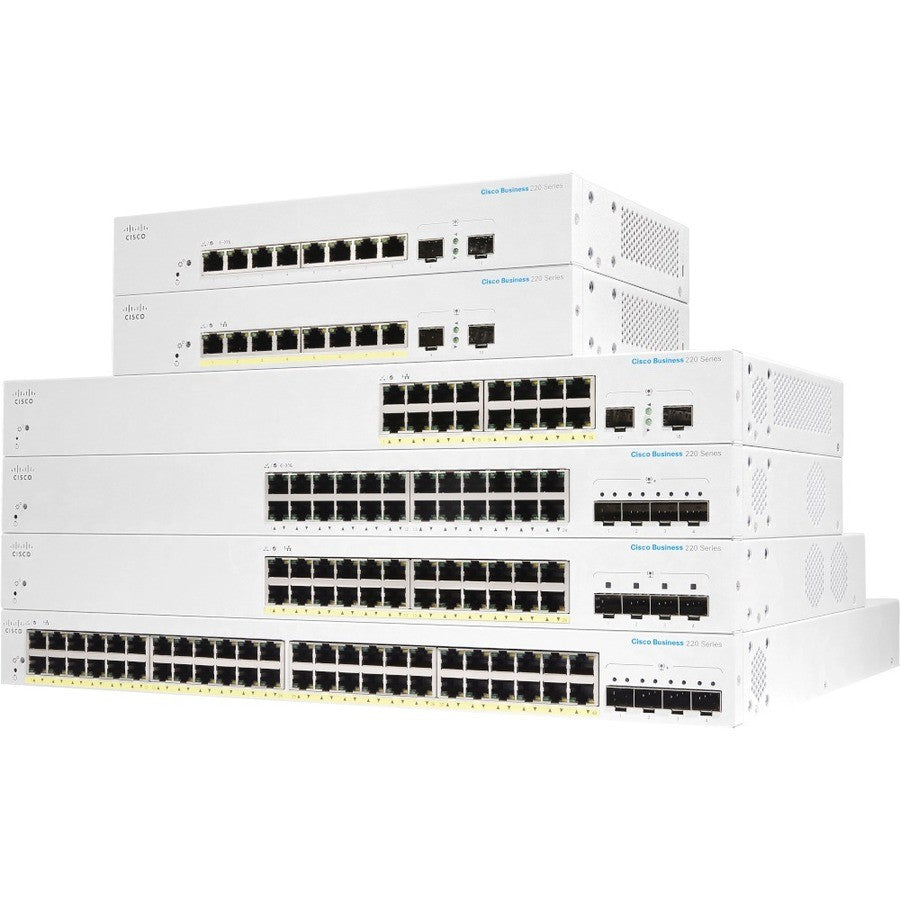

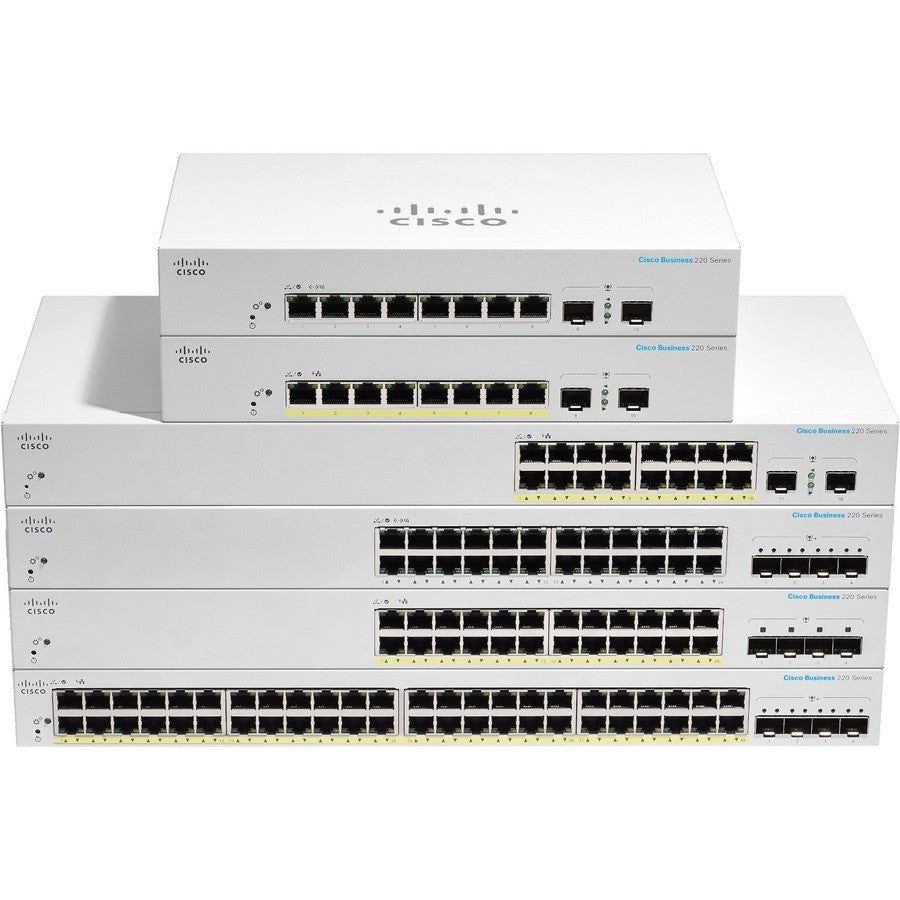

This is a Cisco Business CBS220-48P-4X Ethernet Switch manufactured by Cisco Systems. It belongs to the Business 220 Series of smart switches and provides 48 Gigabit Ethernet PoE+ ports along with 4 10 Gigabit Ethernet SFP+ expansion slots. The switch supports Layer 2 management, Power over Ethernet with a 382 W budget, and rack-mountable installation for small business networking environments.
The device delivers simple and affordable business networking with support for converged data, voice, and video services. It includes an intuitive dashboard for deployment and monitoring along with customizable features for security and reliability.
Key Features
- 48 x Gigabit Ethernet PoE+ ports and 4 x 10 Gigabit Ethernet SFP+ expansion slots
- PoE budget of 382 W with support for IP cameras, videophones, and wireless access points
- Layer 2 manageable switch with QoS capabilities for prioritizing delay-sensitive traffic
- Supports 10/100/1000Base-T and 10GBase-X network technologies
- Rack-mountable form factor with 1.7 inch height
- Power consumption of 55.10 W from internal power supply operating at 50/60 Hz
- Environmentally friendly construction compliant with WEEE directive
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 220 |
| Product Model | CBS220-48P-4X |
| Manufacturer Part Number | CBS220-48P-4X-NA |
| UPC | 889728345163 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+; 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | Gigabit Ethernet; 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Layer Supported | 2 |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 382 W |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply |
| Power Consumption | 55.10 W |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 13.8" |
| Weight (Approximate) | 11.82 lb |
| Package Contents | Business CBS220-48P-4X Ethernet Switch; Power Cord; Mounting Kit; Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Package Contents
- Business CBS220-48P-4X Ethernet Switch
- Power Cord
- Mounting Kit
- Quick Start Guide
Brand: Cisco
Type: Ethernet Switch
Model: CBS220-48P-4X
Form Factor: Rack Mountable
MPN: CBS220-48P-4X-NA
Number of LAN Ports: 48
Interface: Ethernet (RJ-45)
Product Line: Business
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 2
UPC: 889728345163
