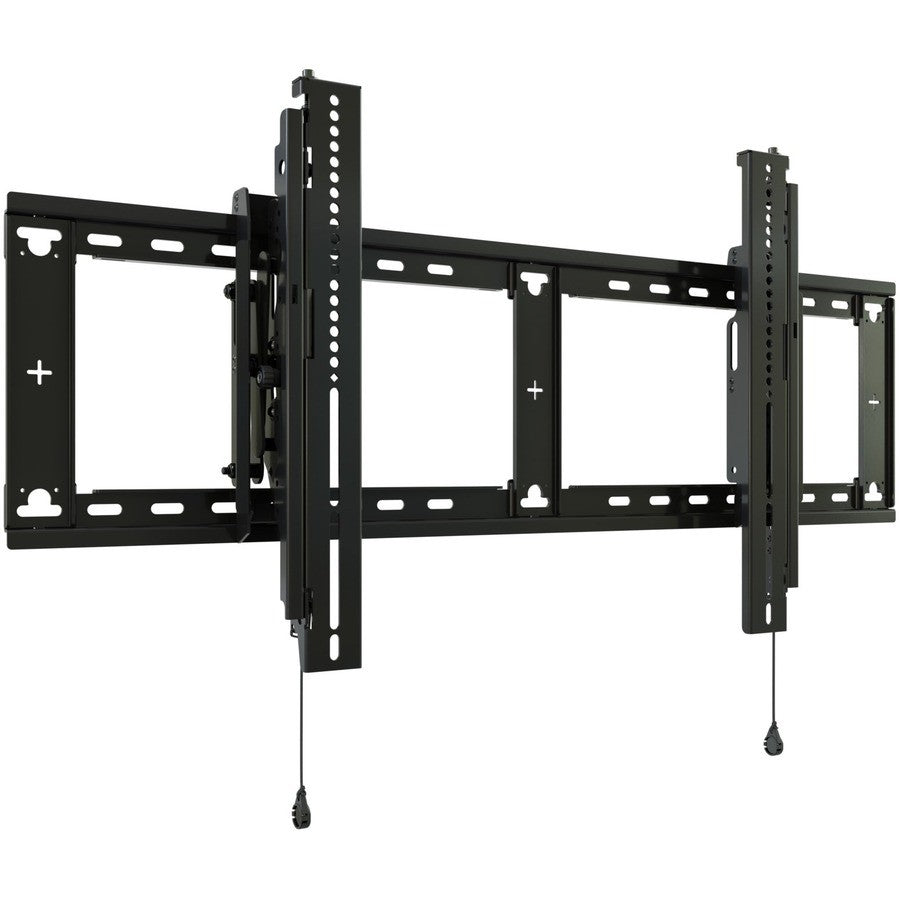

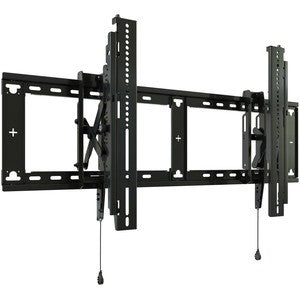

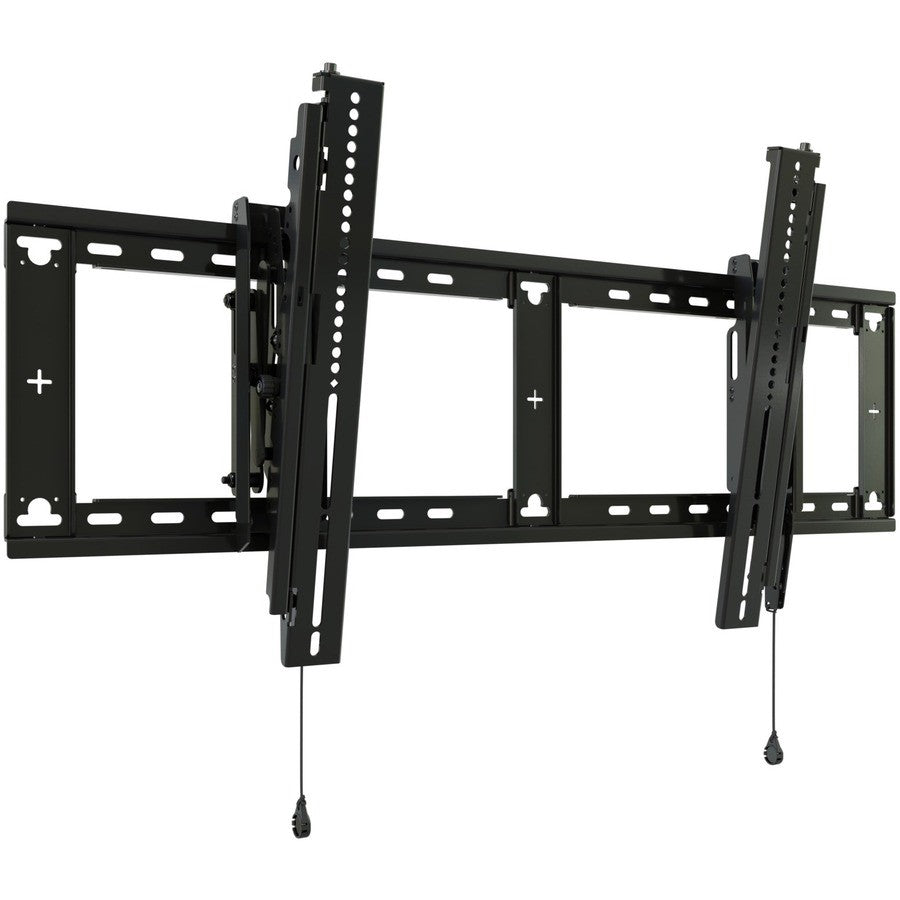

Chief RLXT3 Large Fit Extended Tilt Wall Mount for 43"-86" Displays
This is a Chief Fit Large Extended Tilt Display Wall Mount designed for 43-86 inch displays. The RLXT3 from Chief Mfg. offers robust support for VESA wall mounting with tilt functionality, MPN RLXT3, UPC 841872176659. It features post-installation leveling and extends from the wall for optimal viewing, supporting displays up to 150 lbs with universal mounting patterns up to 863 x 450 mm.
Advanced Features of Chief RLXT3 Tilt TV Mount

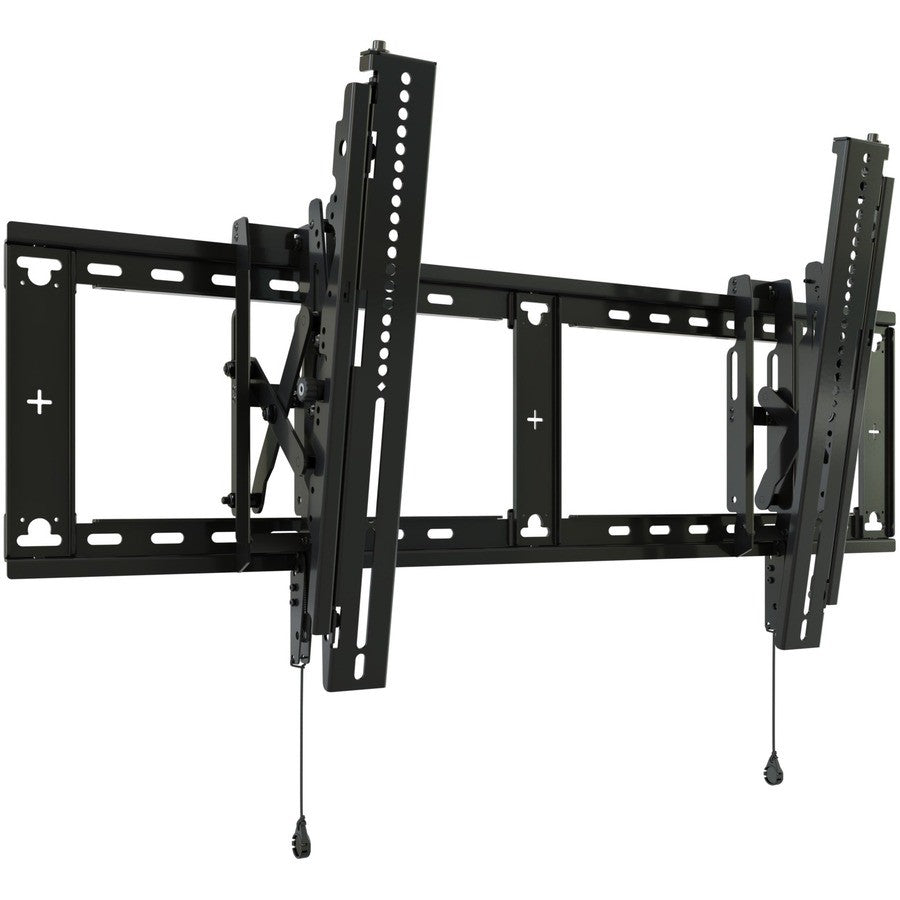

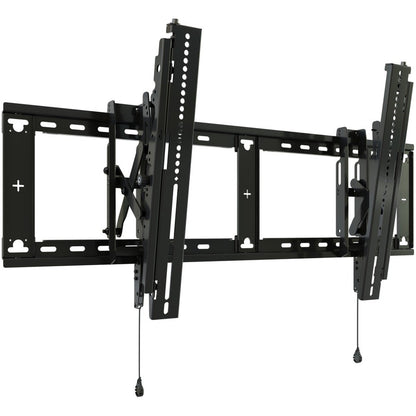

- Extended Tilt Mechanism – Provides +/- 10° forward and back tilt for precise screen positioning.
- Post-Installation Leveling – 0.75" (19 mm) adjustment ensures perfect alignment after mounting.
- Flexible Lateral Adjustment – Allows side-to-side fine-tuning for centered installation.
- Magnetic Pull/Release System – Simplifies display attachment and removal.
- Universal VESA Compatibility – Supports patterns up to 863 x 450 mm for 43-86" displays.
- Height Adjustable – Accommodates various display sizes and wall positions.
- Theft Resistant Design – Secure locking enhances safety.
- Robust Construction – Holds up to 150 lbs (68 kg) with UL and TUV safety approvals.
- Variable Extension – Minimum 2.67" (68 mm) depth, extends to 6" (152 mm) from wall.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Chief |
| Manufacturer | Chief Mfg. / Legrand Group |
| MPN | RLXT3 |
| UPC | 841872176659 |
| Product Line | Large FIT |
| Product Type | Wall Mount |
| Device Supported | Display |
| Minimum Screen Size | 43" |
| Maximum Screen Size | 85" (up to 86" per title) |
| Maximum Load Capacity | 150 lb (68 kg) |
| Mount Pattern | Universal up to 863 x 450 mm |
| Tilt Range | +/- 10° |
| Extension Depth | 2.67" (68 mm) min to 6" (152 mm) max |
| Post-Install Leveling | 0.75" (19 mm) |
| Color | Black |
| Dimensions (Product) | Height: 19.18", Width: 38", Depth: 2.67" |
| Weight | 36.30 lbs (shipping) |
| Shipping Dimensions | Height: 12.80", Width: 41.20", Depth: 4.10" |
| Certifications | UL, TUV safety standards |
| Durability | Theft Resistant |
| Application/Usage | Wall |
Package Contents and Installation Essentials
- Large Fit Extended Tilt Display Wall Mount
- Leveling Screw
- Ball End Hex-Key
Designed for straightforward wall installation with included tools for leveling and secure setup.
Why Choose Chief RLXT3 VESA Wall Mount
The Chief RLXT3 delivers next-generation performance with robust wall plate design, smooth tilt adjustment, and safety certifications for reliable large display mounting.
Mount your 43-86" display securely—Order the Chief RLXT3 today!
Brand: Chief
Type: Wall Mount
MPN: RLXT3
Color: Black
Maximum Screen Size Fitment: 85 in
Maximum Weight Fitment: 150 lb
UPC: 841872176659
