Chief Fusion LSM1U Large Micro-Adjustable Fixed Wall Mount 42-86
Chief Fusion LSM1U Large Micro-Adjustable Fixed Wall Mount 42-86
Low stock: 5 left
Save 21%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Chief Fusion Large Micro-Adjustable TV Wall Mount - For 42-86 inch Displays - Fixed TV Mount - VESA Wall Mount

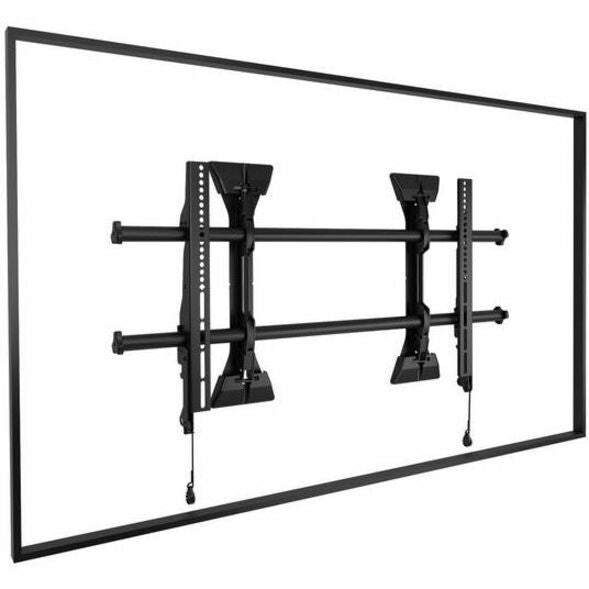

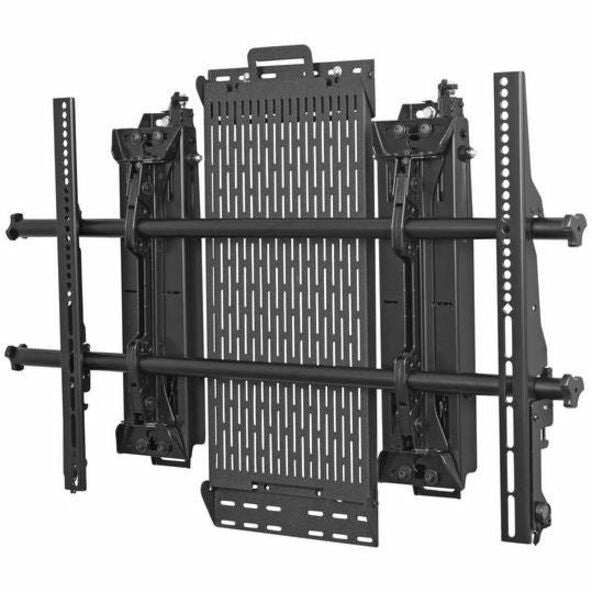

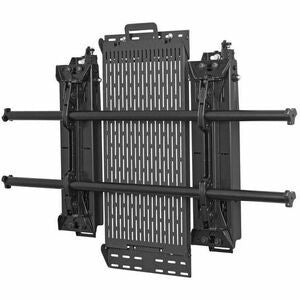

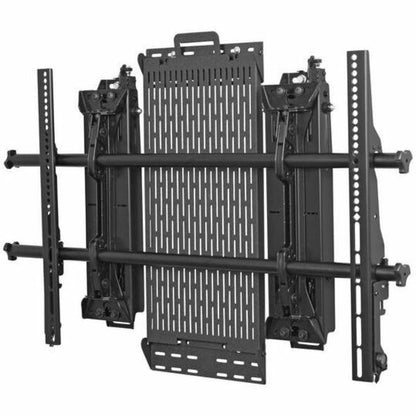

This is a Chief Fusion LSM1U Large Micro-Adjustable Fixed Wall Display Mount designed for mounting one flat panel display measuring 42 to 86 inches. Engineered by Chief Mfg. (Legrand Group), this low-profile VESA wall mount offers precise adjustments including lateral shift, height, and leveling for professional installations. MPN: LSM1U; UPC: 841872163260. It supports up to 200 lb with enhanced stability, faster setup, improved cable management, and security features like ClickConnect technology.
Advanced Mounting Features
- Micro-Adjustable Design – Includes Control Zone Leveling for post-install fine-tuning of height and leveling, plus integrated teardrop design for pre-installing bolts to the wall.
- ClickConnect Technology – Provides an audible click for safe screen engagement, with set screws ensuring the mount remains rigid, stable, and secure over time.
- Lateral Adjustment & Height Adjustable – Flexible positioning for large displays; supports improved lateral shift.
- Cable Management – Built-in cable stand offers easy access under the screen for routing and organization.
- Low-Profile Solution – Only 2 inches deep, solving common flat panel installation challenges with added stability and enhanced security.
- Leveling System – Ensures perfect alignment post-installation.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand Name | Chief |
| Manufacturer | Legrand Group / Chief Mfg. |
| Manufacturer Part Number | LSM1U |
| Product Line | Fusion Wall Fixed |
| Product Model | LSM1U |
| Product Name | Large Fusion Micro-Adjustable Fixed Wall Display Mount |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 1 |
| Minimum Screen Size Supported | 42" |
| Maximum Screen Size Supported | 86" |
| Maximum Load Capacity | 200 lb |
| Features | Cable Management, Lateral Adjustment, Leveling System, Flexible |
| Height Adjustable | Yes |
| Product Color | Black |
| Mounting Pattern | 100 x 100, 871 x 500 |
| Height | 18.25" |
| Width | 34.75" |
| Depth | 2" |
| Weight | 19.30 lb |
| UPC | 841872163260 |
| Certifications & Standards | UL |
| Country of Origin | China |
Installation & Maintenance Guide
Pro-designed for faster installs with features like pre-installable bolts and audible security confirmation. General pro tip: Use a stud finder and level for wall mounting; torque screws to manufacturer specs.
- Attach wall plate using teardrop design for quick bolt pre-installation.
- Hang display with ClickConnect for secure engagement and audible click.
- Adjust using Control Zone Leveling for height and leveling fine-tuning.
- Secure with set screws; route cables via built-in stand.
- Periodically check stability and tighten as needed.
Why Choose Chief Fusion LSM1U
The Chief Fusion series provides installer-friendly adjustments, low-profile mounting, and robust security for large displays in commercial or home setups, backed by UL certification and proven stability.
Securely mount your 42-86 inch display with Chief LSM1U—Add to cart now!
Brand: Chief
Model: LSM1U
Type: Wall Mount
Compatible Brand: Chief
MPN: LSM1U
Color: Black
Country of Origin: China
Location: Indoor Only
UPC: 841872163260
