Chief ConnexSys Video Wall Adjustable TV Mount - For 42-80 Inch Displays - VESA Wall Mount - Black

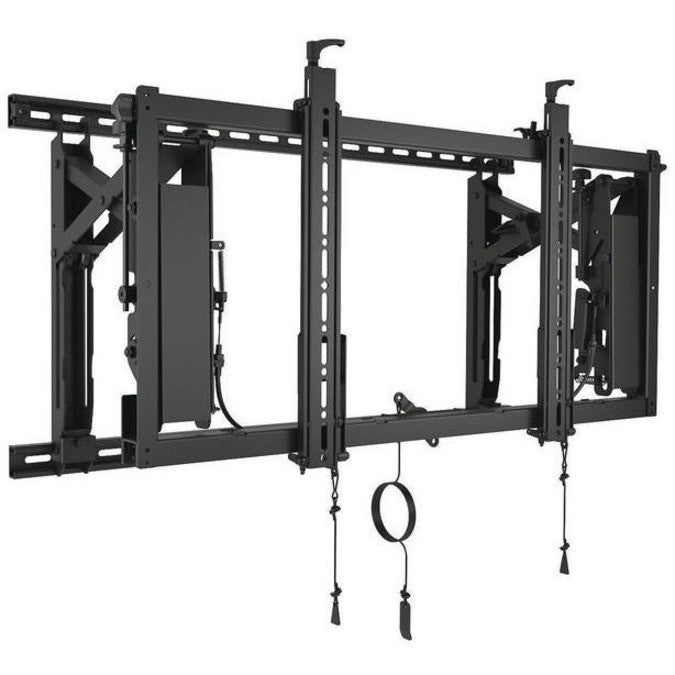

This is a Chief ConnexSys Video Wall Landscape Mounting System with Rails wall mount designed for a single flat panel display. It supports displays sized 42 inches to 80 inches with a maximum load capacity of 150 lb. The mount uses strut channel connections for row leveling and includes PowerZone adjustment points along with RapidDraw release for service access.

Key Features

• Leveling System
• Tilt
• Lateral Adjustment
• Lockable
• Adjustable Depth
• Height Adjustable
• Tool-free ClickConnect latching
• PowerZone provides 6 points of adjustment
• RapidDraw Display Release cord extends 13.4 inches
• Kickstand provides 20 degrees of bottom tilt access
• Rigid frame maintains alignment
• Compatible with most 1-5/8 inch channel strut

Comprehensive Technical Specifications

Additional Information

Speed: Hang units on a single strut channel for quick row leveling. No need for horizontal spacers. Vertical measurement is simply the height of the display to the next rail. Reduces installation time especially for XL and recessed configurations.

Alignment: Height adjustment plus or minus 1 inch on each interface. Tilt adjustment at single pivot point. Depth can be set between 4 inches and 7.4 inches from the wall. Both sides adjust independently. Walls can be out of alignment by up to 2 inches horizontally. Three levels of lateral adjustment.

Serviceability: Cord release system gently and remotely pops any screen out for easy access. Protects displays by not requiring an aggressive push to release. Releases only on demand. Cord can be set up to pull for release from any 90 degree angle.

Rigidity: Rigid frame keeps displays where you set them even after extending for service. Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps or pushes.
