C2G HDMI & USB-B Pass-Thru Single Gang Wall Plate Brushed Aluminum
C2G HDMI & USB-B Pass-Thru Single Gang Wall Plate Brushed Aluminum
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
C2G HDMI & USB-B Pass-Thru Single Gang Wall Plate Brushed Aluminum

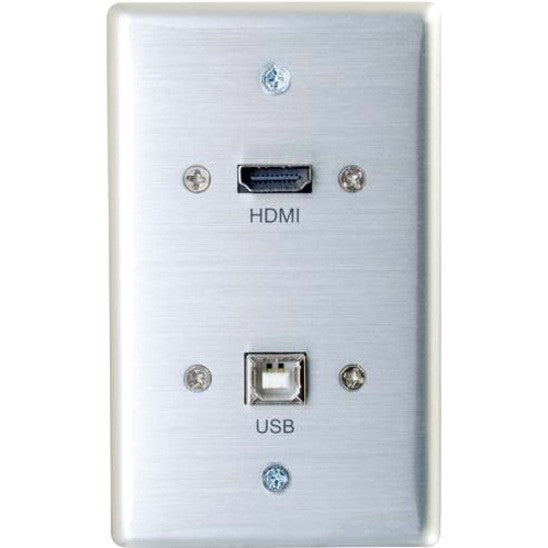

This is a C2G HDMI and USB B Pass Through Wall Plate - Single Gang, a 1-gang pass-through faceplate designed for clean in-wall cabling transitions with one HDMI port and one USB-B port. Constructed from durable brushed aluminum, it features thin, flexible pigtails for tight bend radius installations in standard junction boxes. MPN: 39874; UPC: 757120398745. Ideal for professional setups in classrooms, conference rooms, houses of worship, commercial, and residential environments.
Key Features & Benefits

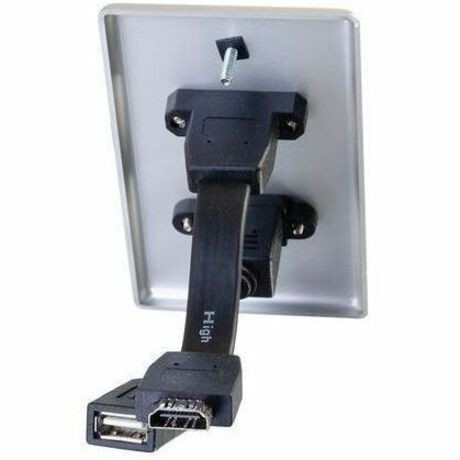

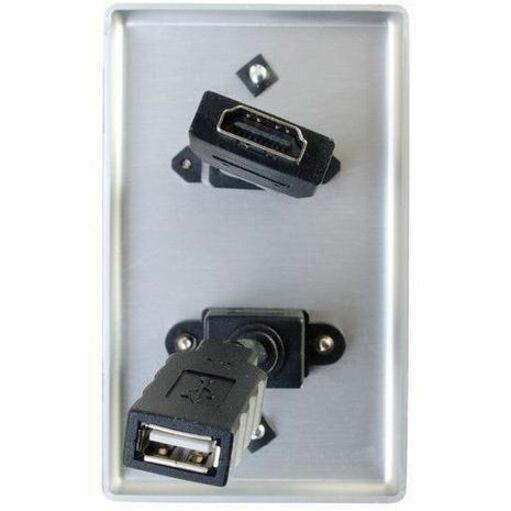

- Pass-Through Design – HDMI and USB-B ports with thin, flexible pigtails accommodate tight bend radius in standard junction boxes for seamless in-wall routing.
- Durable Construction – High-quality brushed aluminum (5052 alloy, HRB22 hardness, anodized) ensures long life in high-traffic commercial settings resistant to wear and tear.
- Professional Appearance – Clean, single-gang wall mount offers a sleek, brushed aluminum finish in gray color family for modern AV installations.
- Advanced Cable Specs – HDMI: 30AWG conductors, 30V rating, 58pF/m capacitance, specific attenuation values; USB: Supports full/high-speed with impedance 90±15%, detailed shielding and insulation.
- Compliance & Safety – CE approved, RoHS 2 conformant, REACH, NDAA compliant; environmentally friendly materials.
- Versatile Use – Perfect for AV signal passthrough in education, corporate, and worship venues.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | C2G |
| Manufacturer | Legrand Group |
| MPN / Manufacturer Item Number | 39874 |
| UPC | 757120398745 |
| Product Type | Faceplate / Wall Plate |
| Number of Gangs | 1 |
| Mount Type | Wall Mount |
| Interfaces/Ports | 1 x HDMI Port(s), 1 x USB B Port(s) |
| Product Color | Brushed Aluminum |
| Color Family | Gray |
| Product Material | Aluminum, Polyvinyl Chloride (PVC) |
| Wall Plate Material | Brushed Aluminum 5052, Hardness HRB22, Anodizing |
| Height | 4.5" |
| Width | 2.8" |
| Weight (Approximate) | 4.74 oz |
| Application/Usage | Commercial, Residential, Classrooms, Conference Rooms, Houses of Worship |
| HDMI Voltage Rating | 30V |
| HDMI Nominal Capacitance | 58pF/m |
| HDMI Conductor Resistance | @ 20°C max, 30AWG: 376.96 Ω/km |
| HDMI Insulation Resistance | 10M Ω/km @ 20°C DC 500V |
| HDMI Attenuation | @ 0.30~825MHz 5dB/3.0M; @ 825~2475MHz 12dB/3.0M; @ 2475~4125MHz 20dB/3.0M; @ 4125~5100MHz 25dB/3.0M |
| USB Voltage Rating | 30V |
| USB Conductor Resistance | @ 20°C max, 28AWG: 232 Ω/km; 24AWG: 93.25 Ω/km |
| USB Insulation Resistance | 10M Ω/km @ 20°C DC 500V |
| USB Time Delay | 5.2ns/m (max) |
| USB Impedance | 90±15% |
| USB Propagation Delay Skew | 100ps (Full-/High-speed only) |
| USB Attenuation/Insertion Loss | 1.5dB/2M@0.1GHz; 5.0dB/2M@1.25GHz; 7.5dB/2M@2.5GHz; 25dB/2M@7.5GHz |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| NDAA Compliant | Yes |
| Manufacturer Warranty | 18 Years |
Installation & Maintenance Guide
Designed for standard single-gang junction boxes; pro tip: Ensure sufficient depth for pigtail bend radius (HDMI min 30mm, USB min 47mm).
- Turn off power at breaker; remove existing plate if present.
- Route HDMI/USB cables through wall to junction box.
- Connect pigtails to in-wall cables; secure in box.
- Mount plate with screws; test connections.
- Clean with mild soap; avoid abrasives on anodized finish.
Why Choose C2G HDMI & USB Wall Plate
Offers reliable passthrough for AV/USB signals with robust aluminum build and detailed electrical performance specs, backed by 18-year warranty from Legrand Group.
Elevate your in-wall AV setup—Add C2G 39874 to cart today!
Brand: C2G
Material: Aluminum
Type: Wall Plate
Finish: Brushed Nickel
MPN: 39874
Mounting Style: Screw
Color: Brushed Aluminum
Plate Design: Single Gang with HDMI and USB ports
Country of Origin: Vietnam
Port Type: HDMI
Number of Gangs: 1
Number of Ports: 2
Box Shape: Rectangular
Suitable For: Interior
Application: Commercial
Model: 39874
Item Height: 4.5 in
Item Width: 2.8 in
Room: Any Room
UPC: 757120398745
