Description

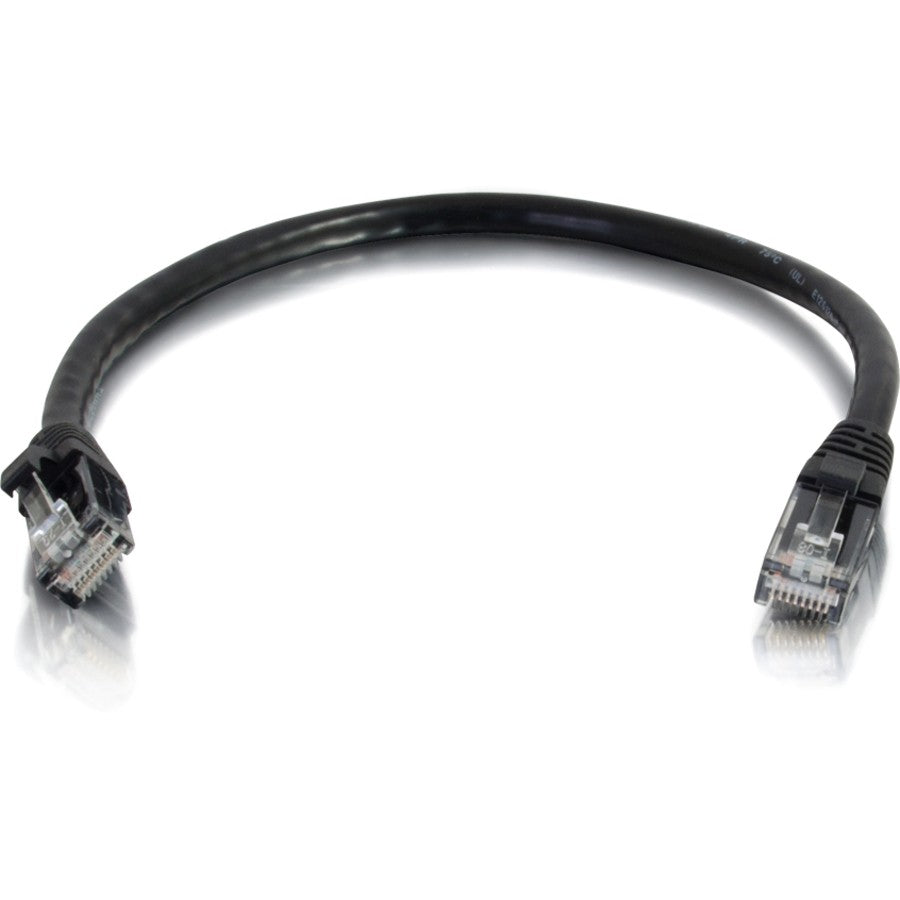

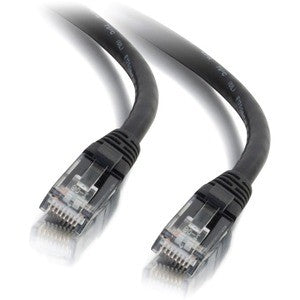

C2G 1ft Cat6 Snagless UTP Ethernet Patch Cable Black
This is a C2G 1ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable in Black. Engineered for reliable high-speed network connections, it features snagless RJ45 connectors with 50-micron gold-plated contacts and stranded bare copper conductors. MPN: 27150; UPC: 757120271505. Ideal for short-run patching in network setups supporting Gigabit Ethernet and more.
Key Features of C2G Cat6 Snagless Ethernet Cable

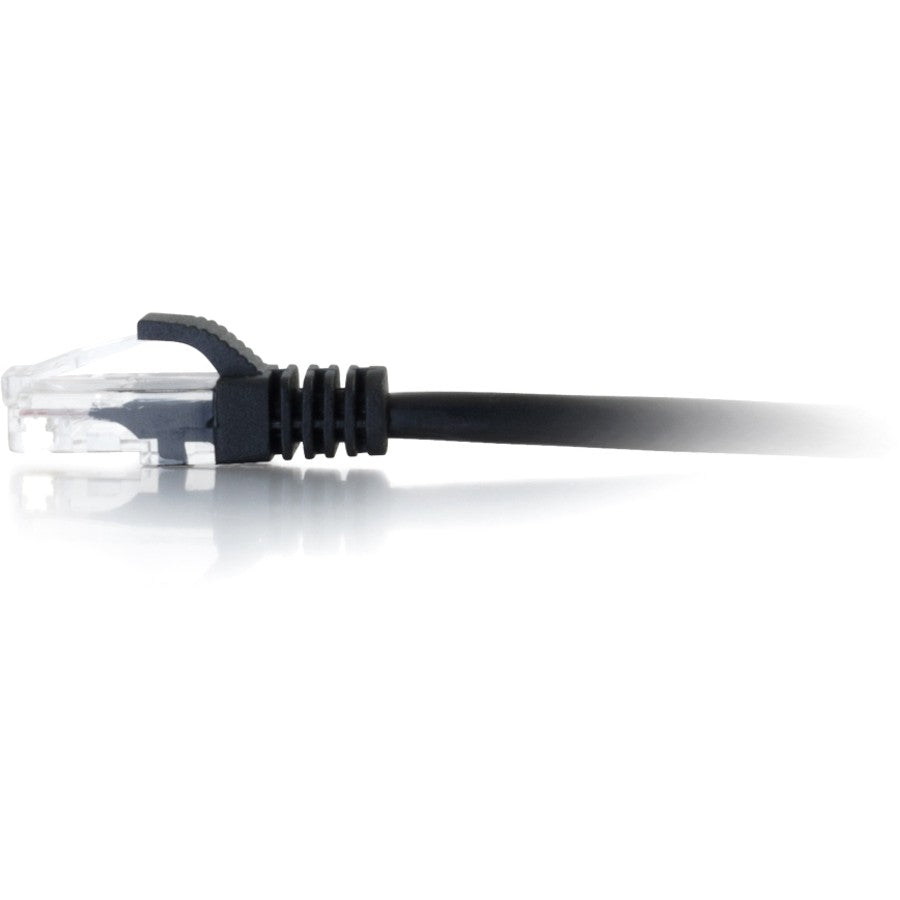

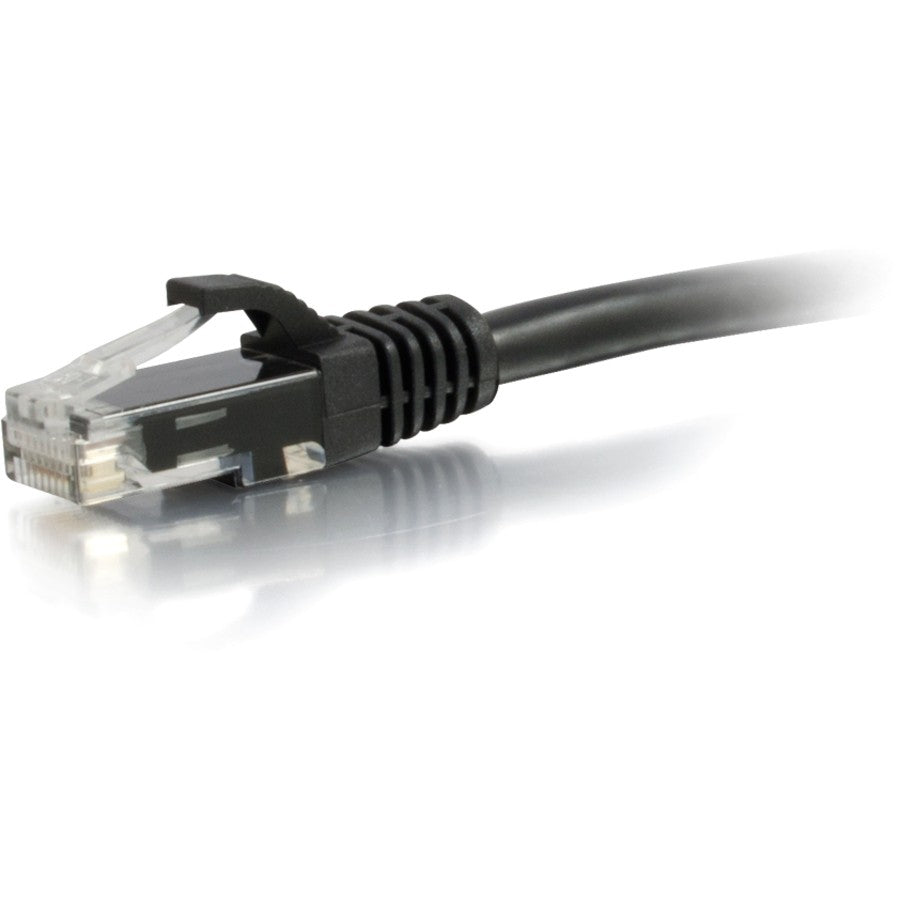

- Snagless Design – Molded strain relief boots prevent connector tab damage during installation and removal.

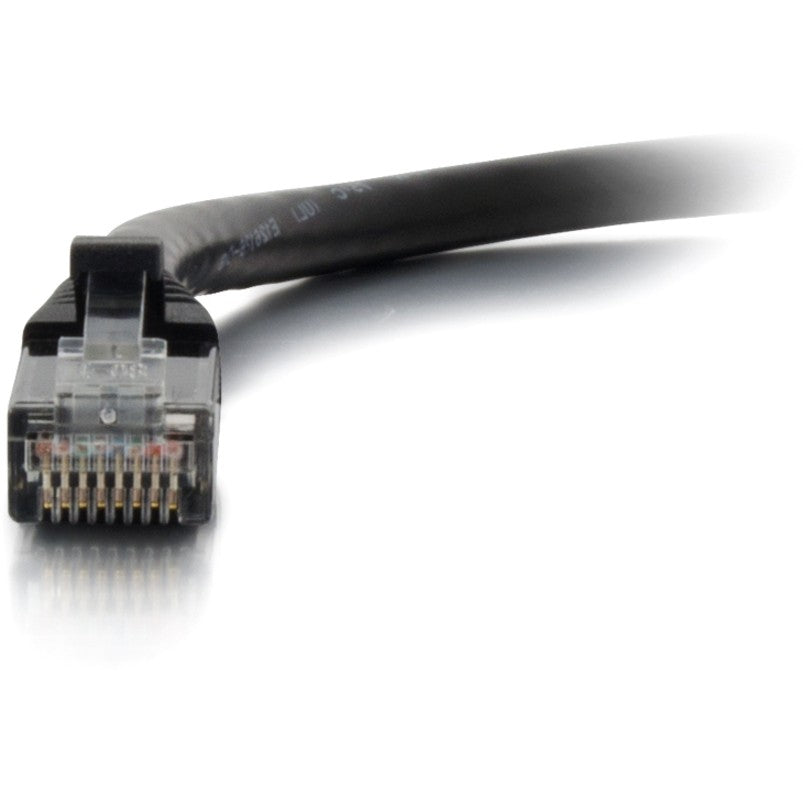

- 50-Micron Gold-Plated RJ45 Connectors – Ensures corrosion-free, low-loss connections for consistent performance.
- 24AWG Stranded Bare Copper Conductors – Four twisted pairs deliver optimal signal integrity for Category 6 standards.
- Unshielded Twisted Pair (UTP) – Reduces crosstalk while maintaining flexibility for tight spaces.
- T568B Wiring Scheme – Standard configuration compatible with most network equipment.
- PVC Jacket – Durable outer layer with 6.20mm diameter for easy routing.
- RoHS Compliant & Lifetime Warranty – Environmentally friendly construction backed by manufacturer assurance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | C2G |
| Manufacturer | Legrand Group |
| MPN | 27150 |
| UPC | 757120271505 |
| Product Name | 1ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Black |
| Cable Length | 1 ft |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Shielding | Unshielded (UTP) |
| American Wire Gauge | 24 AWG |
| Conductor Type | Stranded Bare Copper (7/0.20) |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Conductor Colors | Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White |
| Insulation Material | High-density Polyethylene (HDPE) |
| Insulation Diameter | 0.98 ± 0.05 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | Minimum Average 0.60 mm |
| Cable Outer Diameter | 6.20 ± 0.30 mm |
| Connector Type | 8P8C (RJ-45) Male x 2 |
| Connector Gender | Male |
| Connector Material | Polycarbonate |
| Contact Material | Copper Alloy |
| Contact Plating | 50 µm Gold |
| Hood Material | Molded PVC |
| Wiring Scheme | T568B |
| Product Color | Black |
| Weight (Approximate) | 0.03 lb |
| Temperature Rating | 60°C |
| Voltage Rating | 30V |
| Standards | Category 6 TIA/EIA-568-B-2.1 Draft 9, UL |
| Approvals | RoHS Compliant |
| Warranty | Lifetime |
| Country of Origin | China |
| DC Resistance | 9.38 Ω/100m (maximum) |
| Impedance | 100 Ω |
| Capacitance | 5600 pF/100m |
| Propagation Delay | 545 ns/100m (maximum) |
| Delay Skew | 45 ns/100m (maximum) |
| Features | Stranded, Molded, Unshielded Twisted Pair (UTP), Snagless |
| Package Type | Polybag |
| Device Supported | Network Device, Network Adapter, Hub, Switch, Router, DSL Modem, Patch Panel |
Supported Applications and Compatibility
- Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5), 55/155 Mbps ATM
- Voice, T1, High bandwidth applications such as 622 ATM, Wideband
- Compatible with Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels, and other twisted-pair applications
Why Choose C2G 1ft Cat6 Ethernet Cable
Built to TIA/EIA Category 6 standards with precise electrical characteristics for reliable performance in demanding network environments. The snagless design and gold-plated contacts minimize downtime, while the lifetime warranty provides long-term confidence.
Connect with confidence—Order your C2G Cat6 patch cable today!
Brand: C2G
Features: Gold Plated
MPN: 27150
Color: Blue
Country of Origin: China
Compatible Brand: C2G
Connector A: Ethernet (RJ-45) Male
Cable Length: 1 ft
Connector B: Ethernet (RJ-45) Male
Manufacturer Warranty: Lifetime
Type: Does not apply
UPC: 757120271505
