Brinks Matte Black Rim Exit Device 28"-42" ANSI Grade 1 UL/ADA
Brinks Matte Black Rim Exit Device 28"-42" ANSI Grade 1 UL/ADA
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Brinks Matte Black Rim Exit Device 28"-42" ANSI Grade 1 UL/ADA

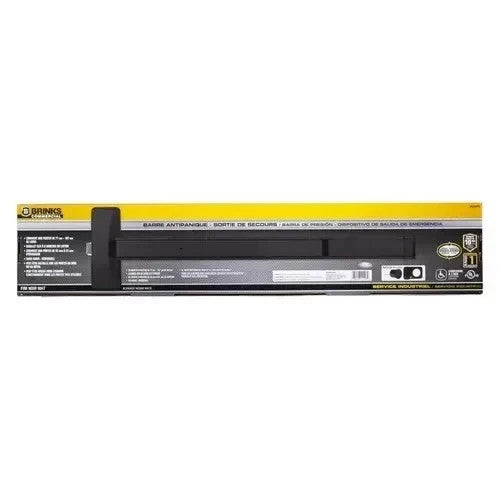

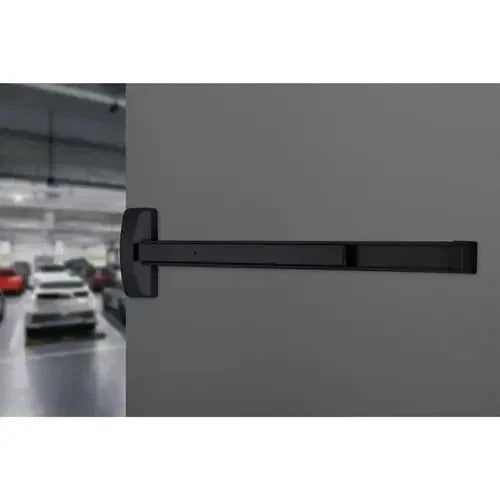

The Brinks Matte Black Rim Exit Device is a commercial-grade steel push bar designed for 28" to 42" wide doors. Product photos confirm the matte black finish, reversible non-handed layout, included 6-pin SC4 brass cylinder, steel pull plate, and full hardware kit for wood or metal doors in commercial and residential settings.
Key Features
- Universal Non-Handed Design - Reversible for left- or right-handed doors, fits 28" to 42" wide and 1.75" to 2" thick doors.
- Heavy-Duty Steel Construction - ANSI Grade-1 rated for high-traffic commercial and residential use.
- Matte Black Finish - Sleek modern appearance shown on the device and packaging.
- Complete Installation Kit - Includes 6-pin SC4 brass cylinder, steel pull plate, and all mounting hardware.
- ADA and UL Compliant - Meets UL 305 and ADA requirements for accessibility and safety.
- Deadlocking Latch Bolt - 5/8" projection for secure locking on single doors or pairs with mullion.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Brinks |
| Type | Commercial Exit Device |
| Color | Matte Black |
| Material | Steel |
| Finish | Matte |
| Suitable For | Commercial & Residential |
| Item Width | 32 in (fits 28"-42" doors) |
| Country of Origin | United States |
| Door Compatibility | 28" to 42" wide, 1.75" to 2" thick, wood or metal |
| Handing | Non-Handed (Reversible) |
| Latch Bolt | Deadlocking, 5/8" projection |
| Cylinder | 6-Pin SC4 Brass Cylinder |
| Standards | ANSI Grade-1, UL 305, ADA Compliant |
| Weight | 9.5 lbs |
| Dimensions | 34.5"W x 6.9"H x 2.9"D |
Compatibility & Fitment
This rim exit device works with single doors or pairs of doors (with mullion), wood or metal doors 28" to 42" wide and 1.75" to 2" thick, and indoor or outdoor commercial and residential applications. Verify door dimensions before installation.
What Is Included
- Brinks Matte Black Rim Exit Device
- 6-Pin SC4 brass cylinder
- Steel pull plate
- Full installation hardware kit
Brand: Brinks
Type: Commercial Exit Device
Color: Black
Material: Steel
Finish: Matte
Suitable For: Commercial & Residential
Item Width: 32 in
Country of Origin: United States
