Black Box ACU1700A KVM Extender 4K@60Hz HDMI 1.4 USB 2.0 CAT5e/6/6A 328ft
Black Box ACU1700A KVM Extender 4K@60Hz HDMI 1.4 USB 2.0 CAT5e/6/6A 328ft
Low stock: 3 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Black Box ACU1700A KVM Extender - 4K@60Hz, HDMI 1.4, USB 2.0, CAT5e/6/6A up to 328ft

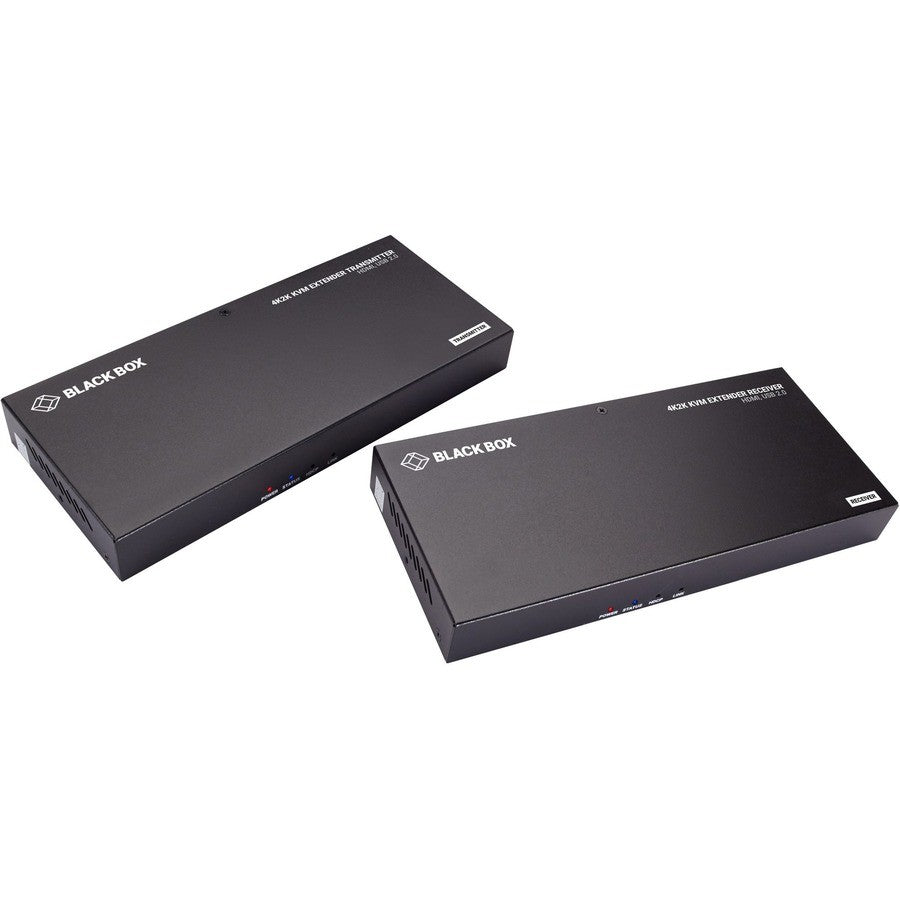

This is a Black Box KVM Extender kit (model ACU1700A) designed to extend high-resolution 4K@60Hz video, USB 2.0 HID devices, and control signals over CAT5e/6/6A cable up to 328 feet. The system includes a local transmitter unit connected to the computer and a remote receiver unit for the user's KVM console, with support for an additional monitor at the local unit. UPC: 822088131021. It requires only one power supply for both units, making it ideal for remote access in server rooms, control centers, or secure environments.
Key Features of Black Box ACU1700A KVM Extender
- 4K@60Hz Video Extension – Transmits 4096 x 2160 resolution at 4:2:0 8-bit chroma subsampling over HDMI 1.4 for crystal-clear visuals up to 328.08 ft.
- USB 2.0 HID Support – Connects keyboards, mice, and other human interface devices seamlessly for full remote control.
- Single Cable Solution – Uses one CAT5e/6/6A cable to carry video, USB, power, and control signals (including RS232 via Phoenix connectors).
- Local Monitoring – Attach a monitor directly to the transmitter for on-site administration without interrupting remote access.
- 1 Computer / 1 Local User – Supports one host computer and one local user setup with wired connectivity.
- RoHS & WEEE Compliant – Environmentally friendly design meets Restriction of Hazardous Substances and Waste Electrical and Electronic Equipment standards.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Black Box Corporation |
| Manufacturer Part Number | ACU1700A |
| UPC | 822088131021 |
| Product Type | KVM Extender |
| Connectivity Technology | Wired (CAT5e/6/6A) |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 @ 60Hz (4:2:0 8-bit) |
| HDMI | Yes (HDMI 1.4), 2 Ports |
| USB | Yes (USB 2.0), 5 Ports |
| Weight | 3.5 lbs |
| Dimensions (H x W x D) | 3.1" x 7.1" x 12.3" |
| Country of Origin | China |
| Warranty | 3 Year Double Diamond Standard |
| Environmental Compliance | RoHS, WEEE |
Package Contents & Setup Essentials
- 1 x Transmitter
- 1 x Receiver
- 1 x 12VDC, 2A Power Supply
- 4 x Power Cords (US, UK, EU, AU)
- 2 x 3-Pin Phoenix Connectors
- 2 x Mounting Brackets + 4 Screws
Pro tip: Mount units using included brackets in a rack or wall for optimal cable management; connect CAT cable between transmitter and receiver, power only the local unit.
Why Choose Black Box ACU1700A KVM Extender
Black Box delivers reliable, long-distance KVM extension with single-cable simplicity and support for modern 4K displays, USB peripherals, and local monitoring—perfect for IT professionals needing secure, high-performance remote access.
Extend your KVM setup with Black Box ACU1700A—Order the 4K@60Hz CAT extender today!
Brand: Black Box
Type: Extender
MPN: ACU1700A
Color: Black
Compatible Brand: Black Box Corporation
Country of Origin: China
Manufacturer Warranty: 3 Years
Connector A: HDMI
Connector B: HDMI 1.4
Connection Split/Duplication: 1:1
Output Voltage: 12 V
Unit Quantity: 3.5
Item Height: 3.1 in
Item Width: 7.1 in
Item Length: 12.3 in
UPC: 822088131021
