B2854 1.5 HP Pool Pump Motor 56Y Frame Square Flange Replaces Century AO Smith
B2854 1.5 HP Pool Pump Motor 56Y Frame Square Flange Replaces Century AO Smith
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
B2854 1.5 HP Pool Pump Motor 56Y Frame Square Flange Replaces Century AO Smith

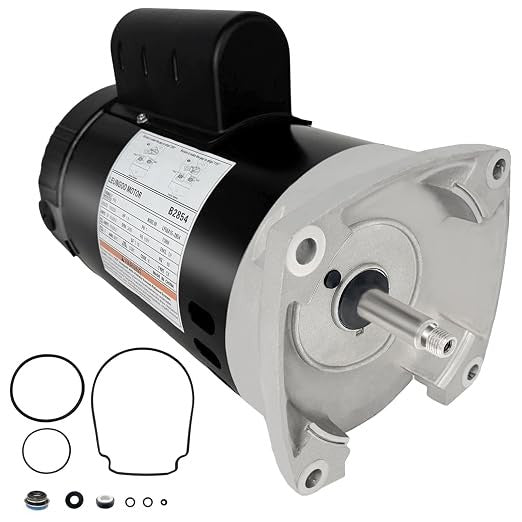

The LEUNGOO B2854 is a 1.5 HP pool pump motor designed as a direct replacement for Century/AO Smith models. It features a 56Y square flange frame, dual-voltage 115/230V operation, and includes a set of replace parts. Product photos show the black-and-silver motor, labeled box, shaft dimensions, and included gaskets/seals.
Key Features

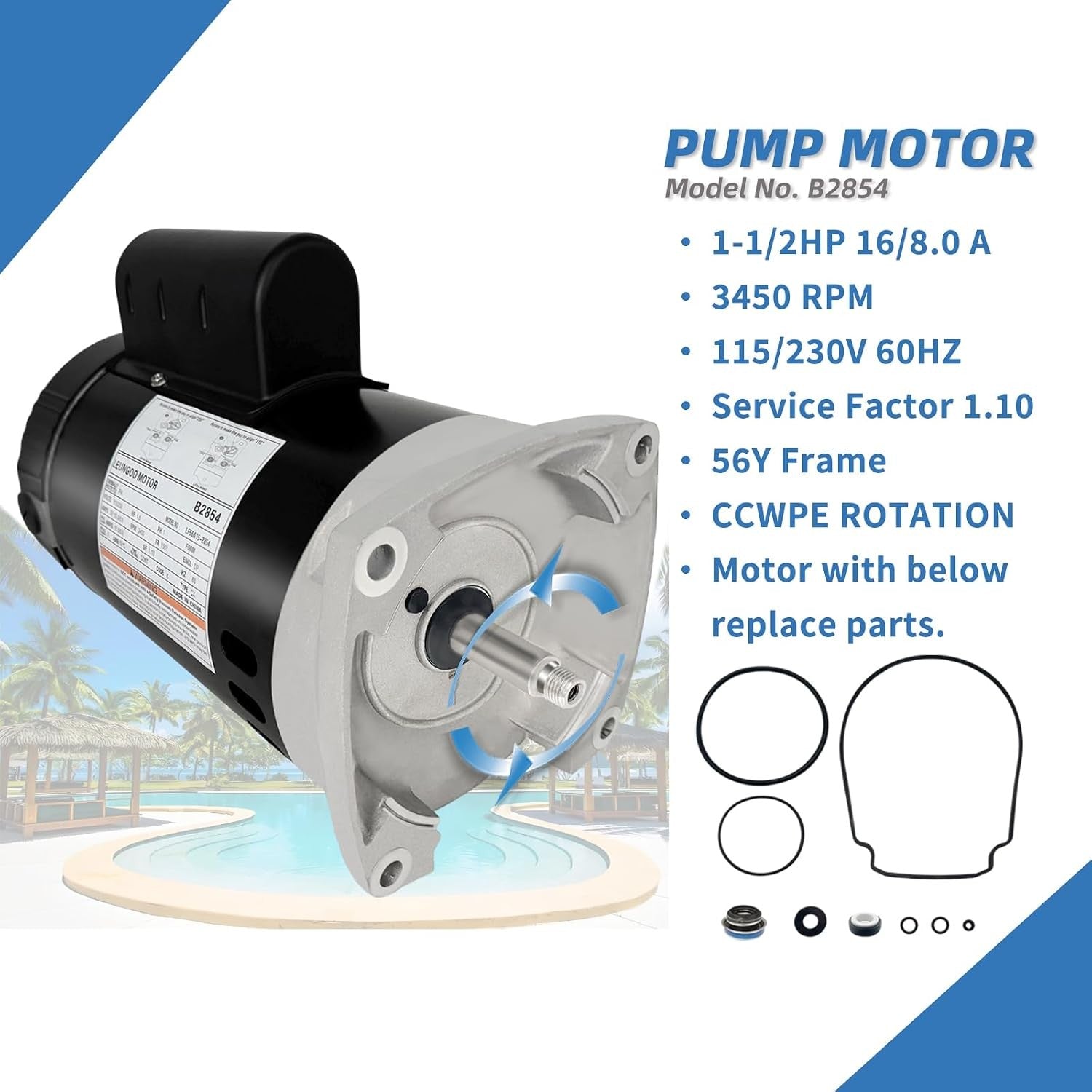

- 1.5 HP Performance - 3450 RPM, 8.0/16.0 Amps, 1.1 service factor for reliable pool pump operation.
- Square Flange Design - 56Y frame with ODP enclosure as shown on the motor label and box.

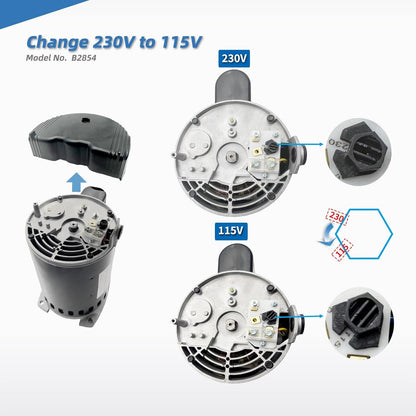

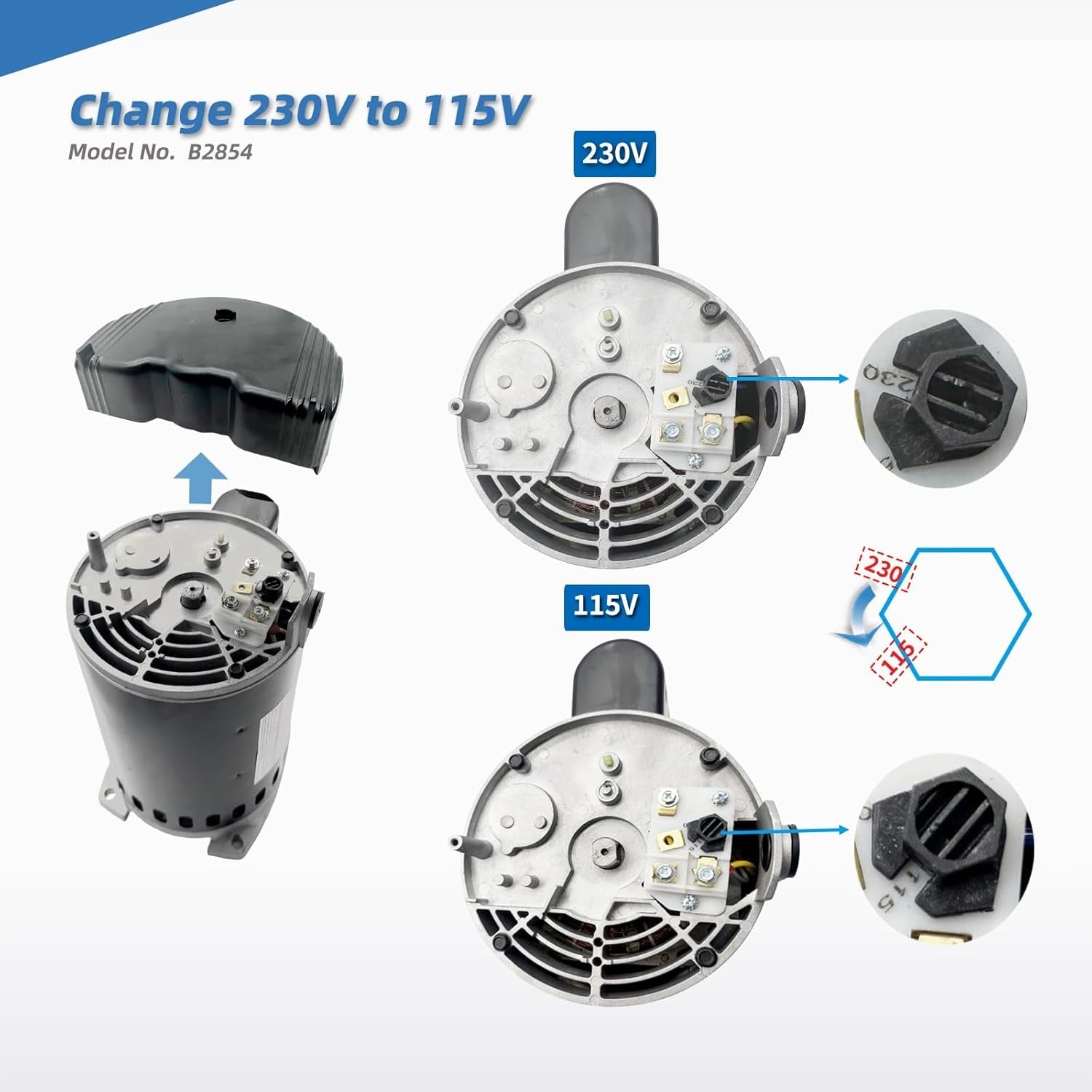

- Dual Voltage - 115/230V 60Hz with wiring diagram for voltage selection visible on the motor.
- Includes Replace Parts - Gaskets, seals, and hardware shown in product images.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LEUNGOO |
| MPN | B2854 |
| HP | 1.5 |
| Voltage | 115/230V |
| RPM | 3450 |
| Amps | 8.0/16.0 |
| Frame | 56Y Square Flange |
| Service Factor | 1.1 |

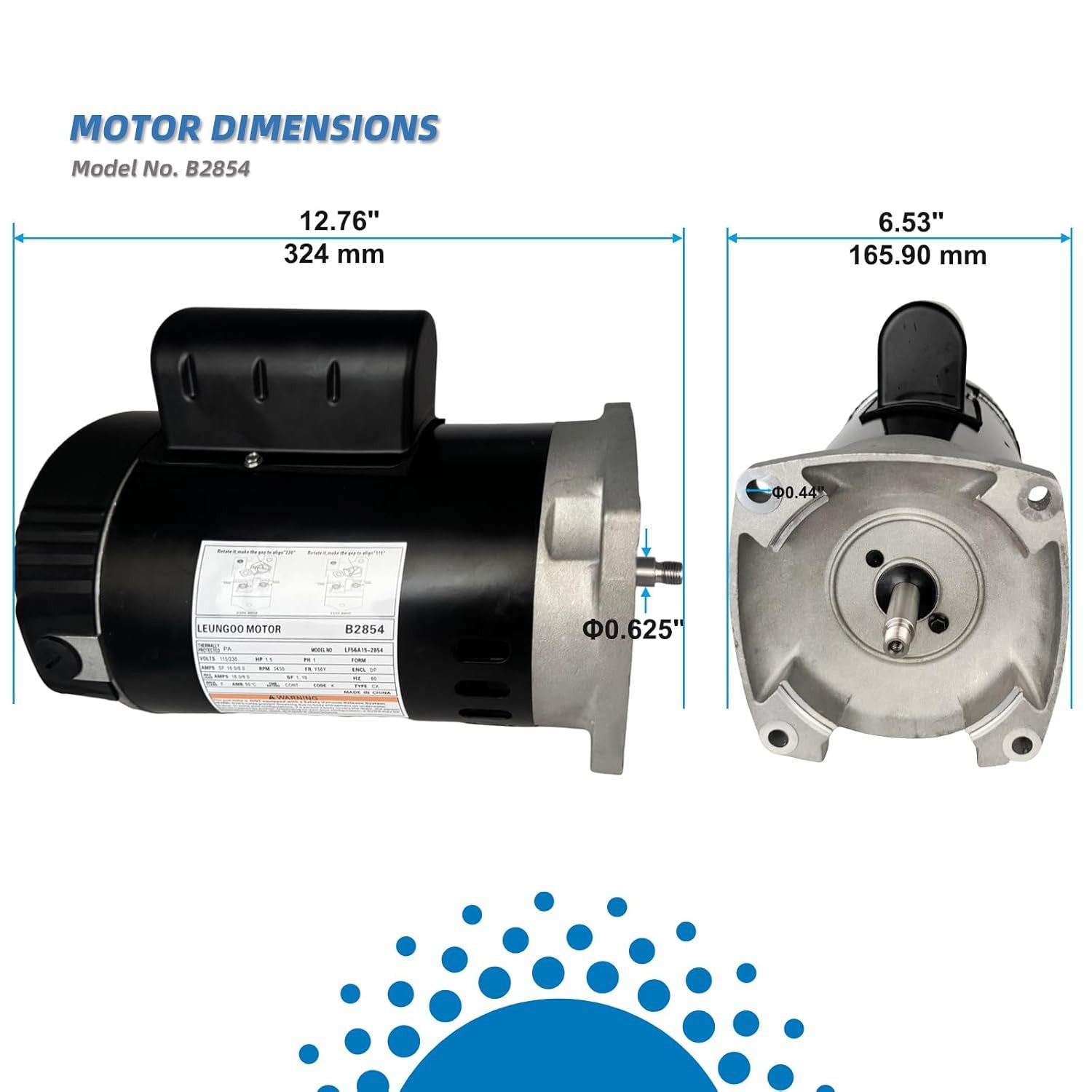

| Length | 12.76 in (324 mm) |
| Width | 6.53 in (165.9 mm) |
| Shaft | 0.625 in diameter |

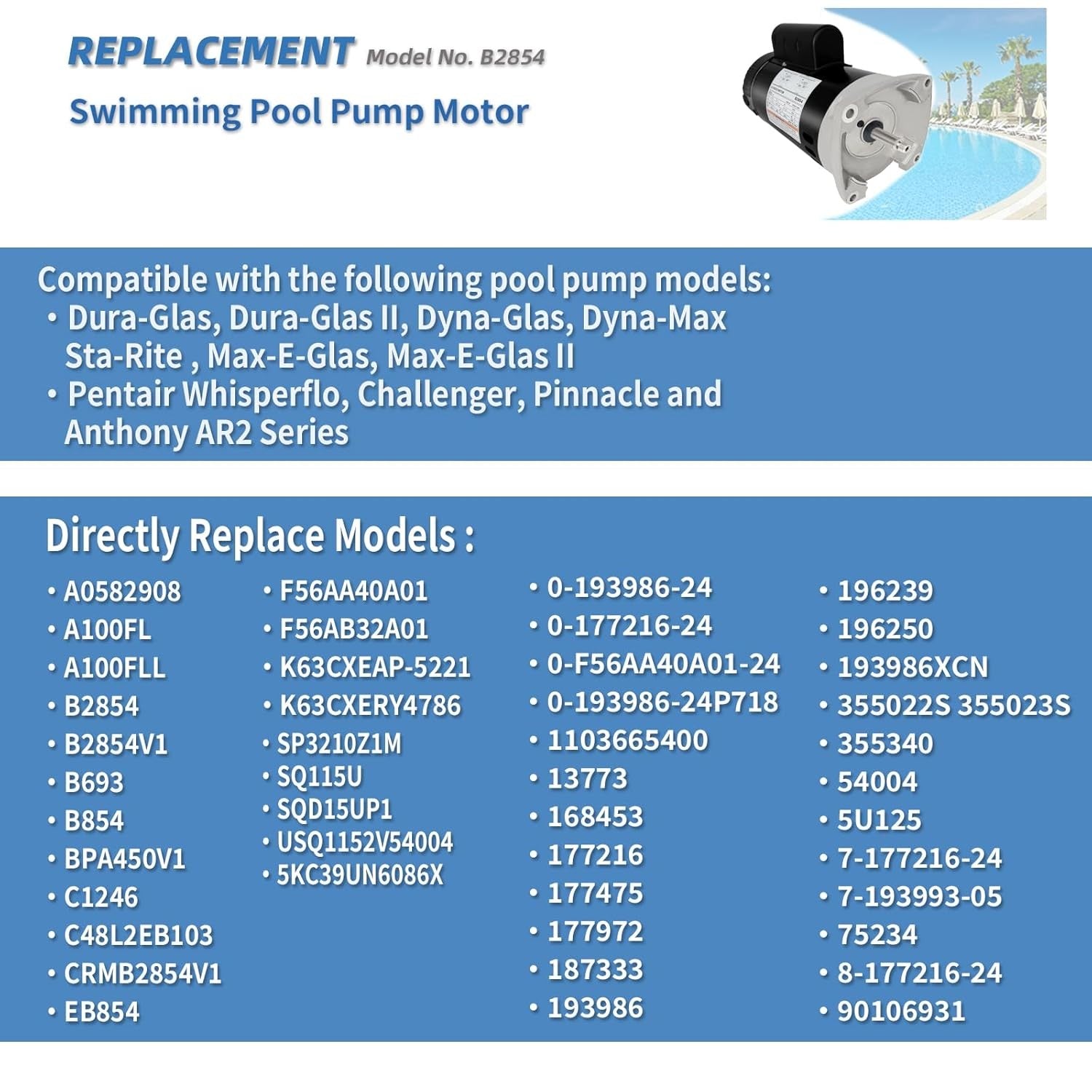

Compatibility
Direct replacement for listed Century/AO Smith and compatible pool pump models including Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max, Sta-Rite Max-E-Glas, Max-E-Glas II, Pentair Whisperflo, Challenger, Pinnacle, and Anthony AR2 Series. Full cross-reference list visible on product images.

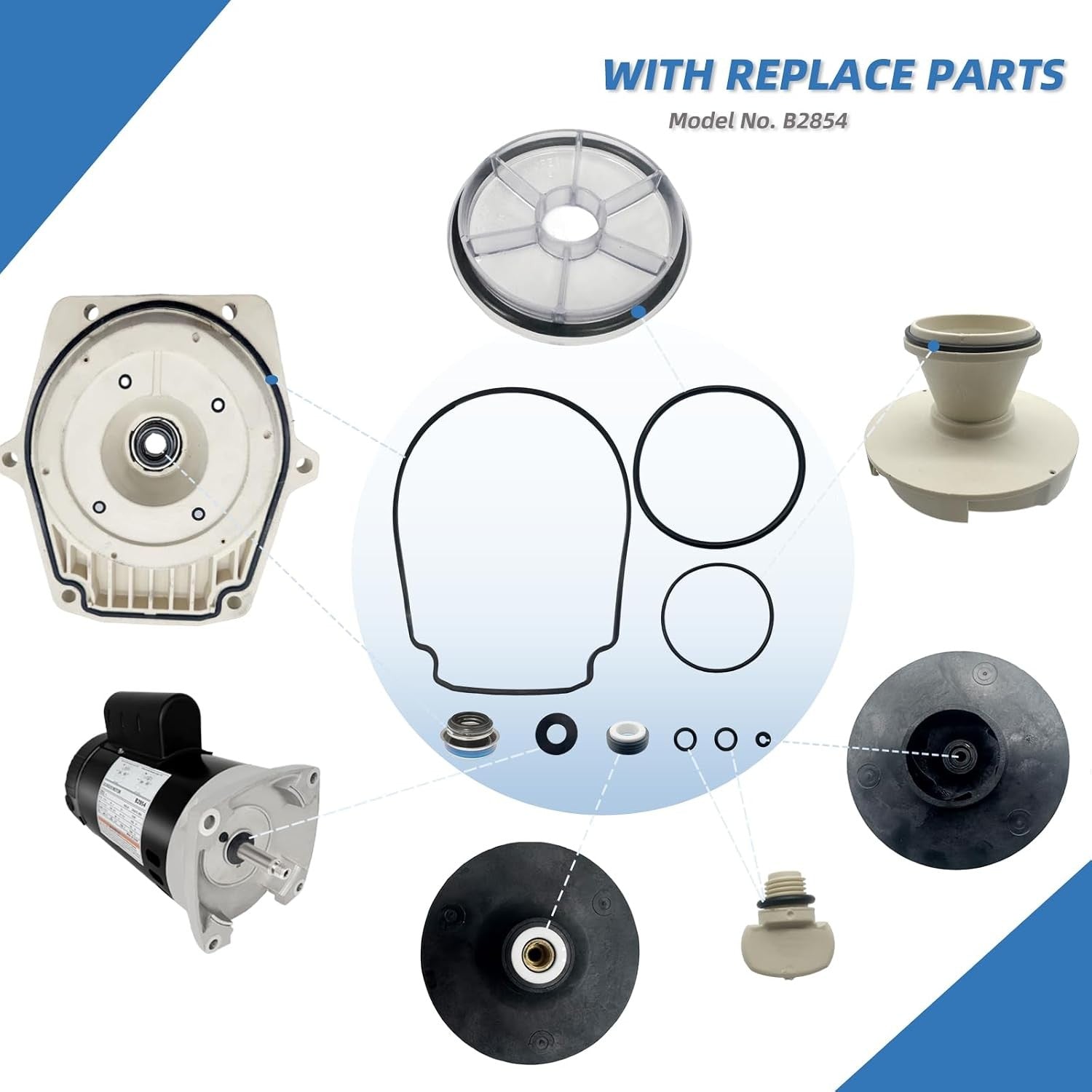

What Is Included
- B2854 pool pump motor
- Replace parts set (gaskets, seals, O-rings)
Brand: LEUNGOO
Type: AO Smith Pool Pump Motors
Set Includes: Gasket
Material: Metal
MPN: B2854
Number in Pack: 1
Color: Black
