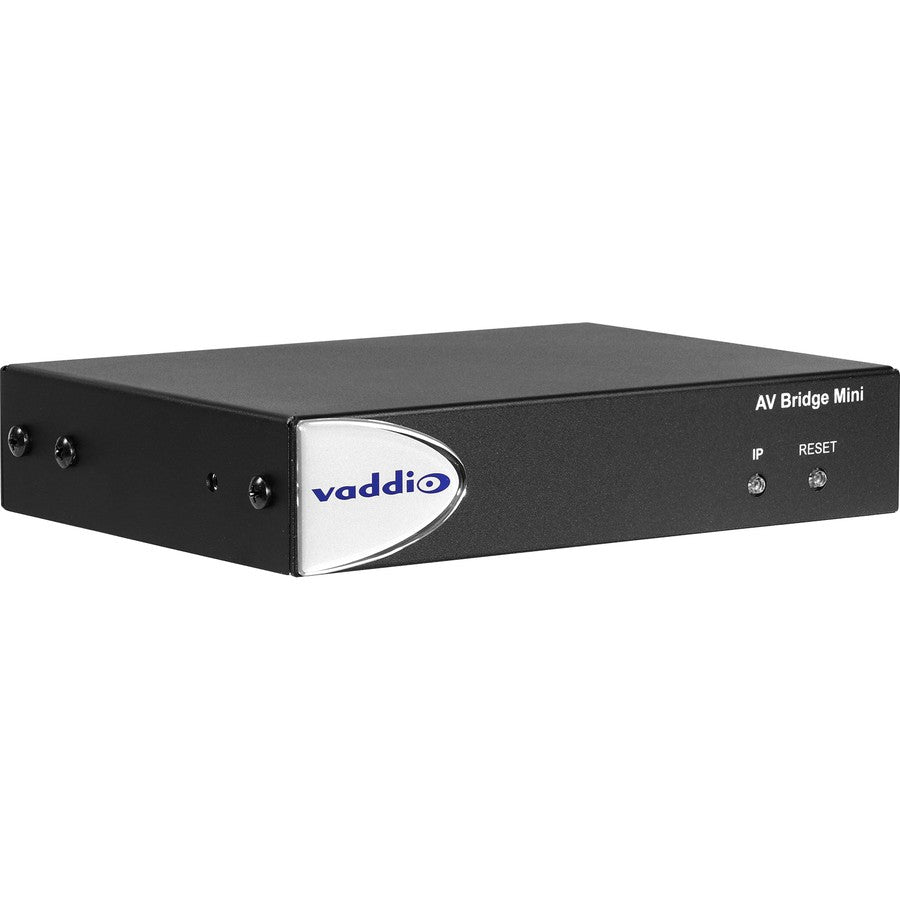

Vaddio Bridge Mini Audio/Video Encoder - For Video Conferencing Applications

This is a Video Encoder designed for video conferencing applications. The Vaddio Bridge Mini Audio/Video Encoder encodes, captures and streams content from a convenient half-rack unit size. With the AV Bridge Mini HD Audio/Video Encoder, any high definition HDMI and audio source can be bridged into soft conferencing applications such as Skype for Business, Zoom and WebEx through its USB 3.0 interface. Production-quality live streams on platforms like YouTube Live, UStream, LiveStream and Panopto are supported through flexible RTMP capabilities.

The Vaddio Bridge Mini integrates pro AV sources or systems into software conferencing codec or live streaming applications. HDMI input accepts 4K (3840 x 2160) signals and encodes and scales appropriately. It outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality. PoE powered operation extends power and connectivity. The half rack unit size fits anywhere with simple user interface and control. A mixer controls audio levels and outputs. It seamlessly interfaces with Vaddio HD cameras, presentation systems, video mixing consoles and other pro audio products. Two balanced audio line inputs and outputs integrate with external DSPs. Standards-based UVC and UAC drivers minimize interoperability problems.

Key Features

• Video Streaming, Video Encoding, Video Capturing and Audio Encoder functions
• HDMI input accepts 4K (3840 x 2160) signals and encodes and scales appropriately
• Simultaneous USB 3.0 and IP streaming output up to 1080p quality
• PoE powered for extended power and connectivity
• Half rack unit size for easy installation
• Simple user interface and control with set and forget operation
• Audio mixer for controlling levels and outputs
• Seamless interface with Vaddio HD cameras, presentation systems, video mixing consoles and pro audio products
• Two balanced audio line inputs and outputs for external DSP integration
• Standards-based UVC and UAC drivers

Comprehensive Technical Specifications

Package Contents

• AV Bridge Mini
• PoE Power Injector with AC Cord Set(s)
• 3' (0.9m) cat-5 Cable, Black
• 6' (1.8m) USB 3.0 Cable, type A to B
• 4 x 3-position Phoenix-style Connectors

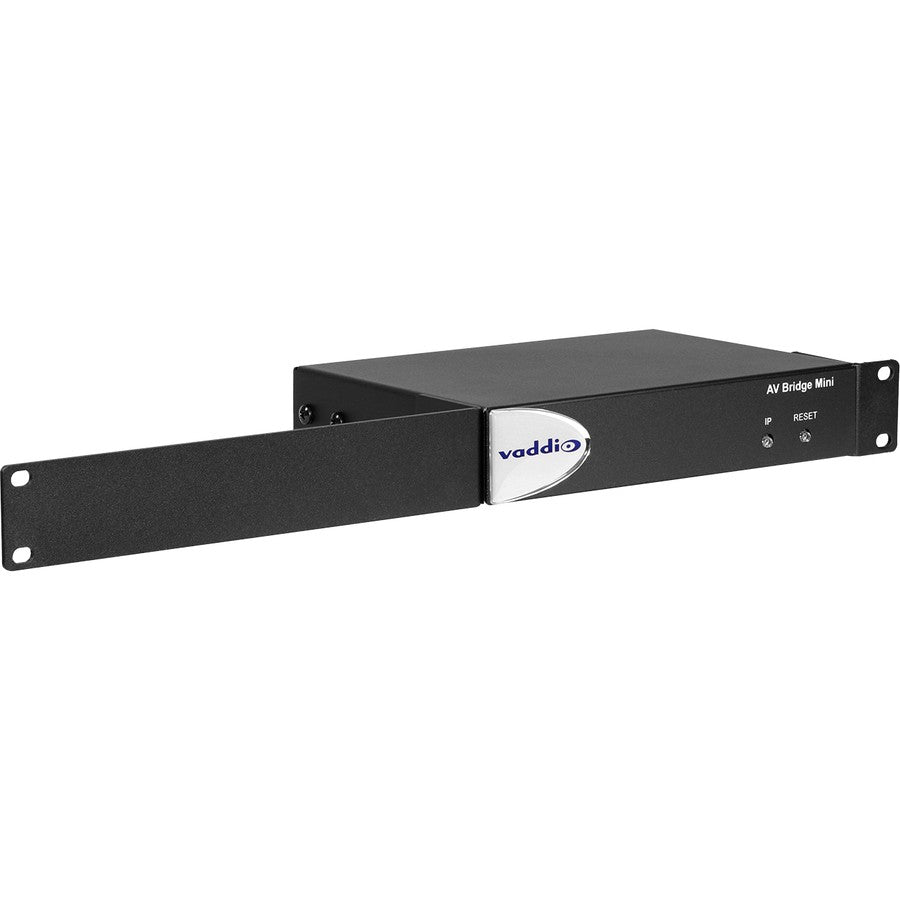

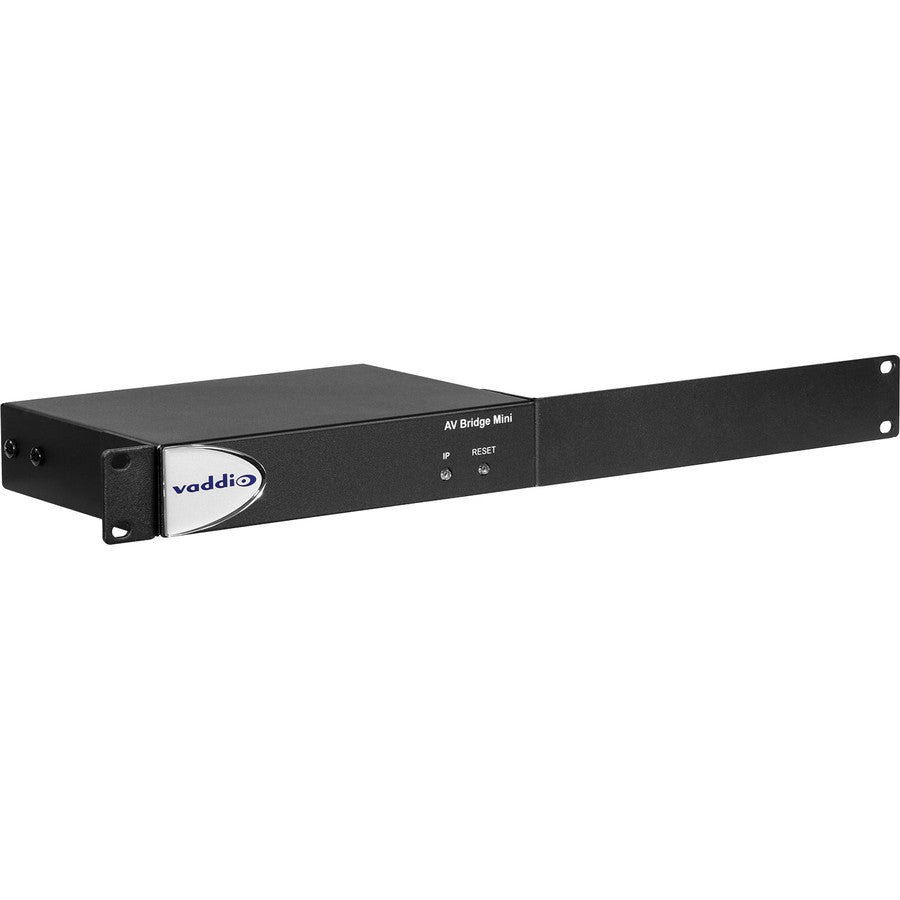

• Rack Mounting Kit (for Mounting the AV Bridge Mini into a Full rack Space)
• Quick-Start Guide
