ASUS TUF Gaming 1000W 80+ Gold Fully Modular ATX 3.0 PSU – TUF-GAMING-1000G
ASUS TUF Gaming 1000W 80+ Gold Fully Modular ATX 3.0 PSU – TUF-GAMING-1000G
Low stock: 3 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

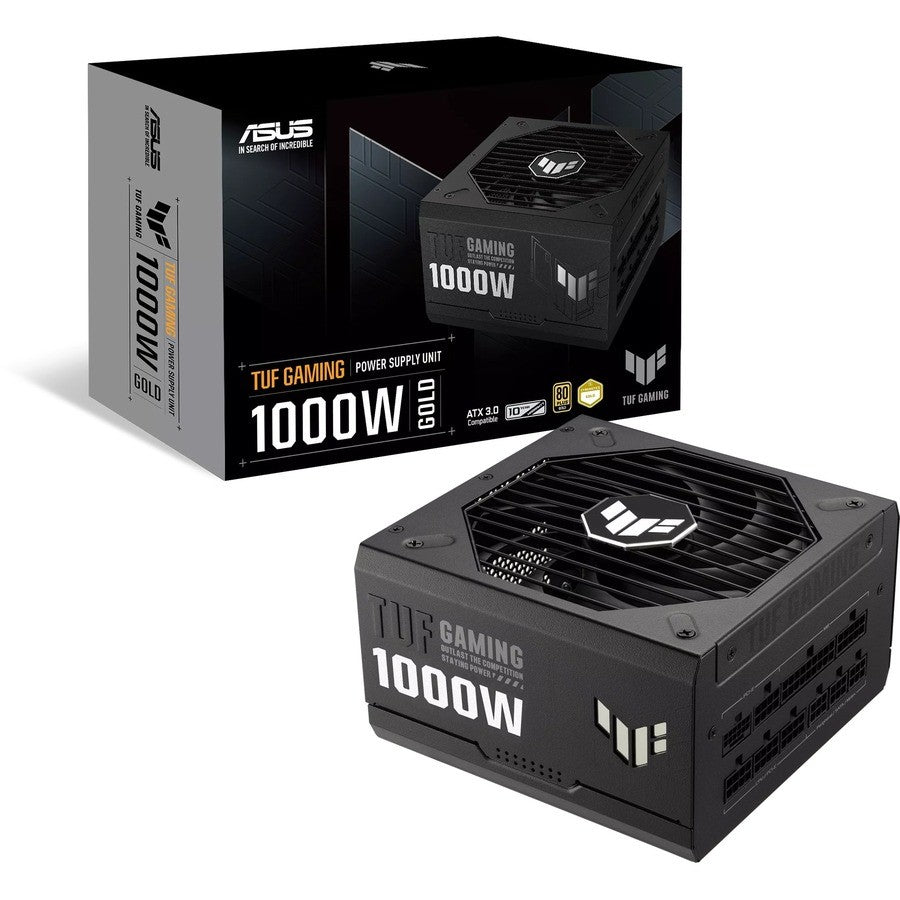

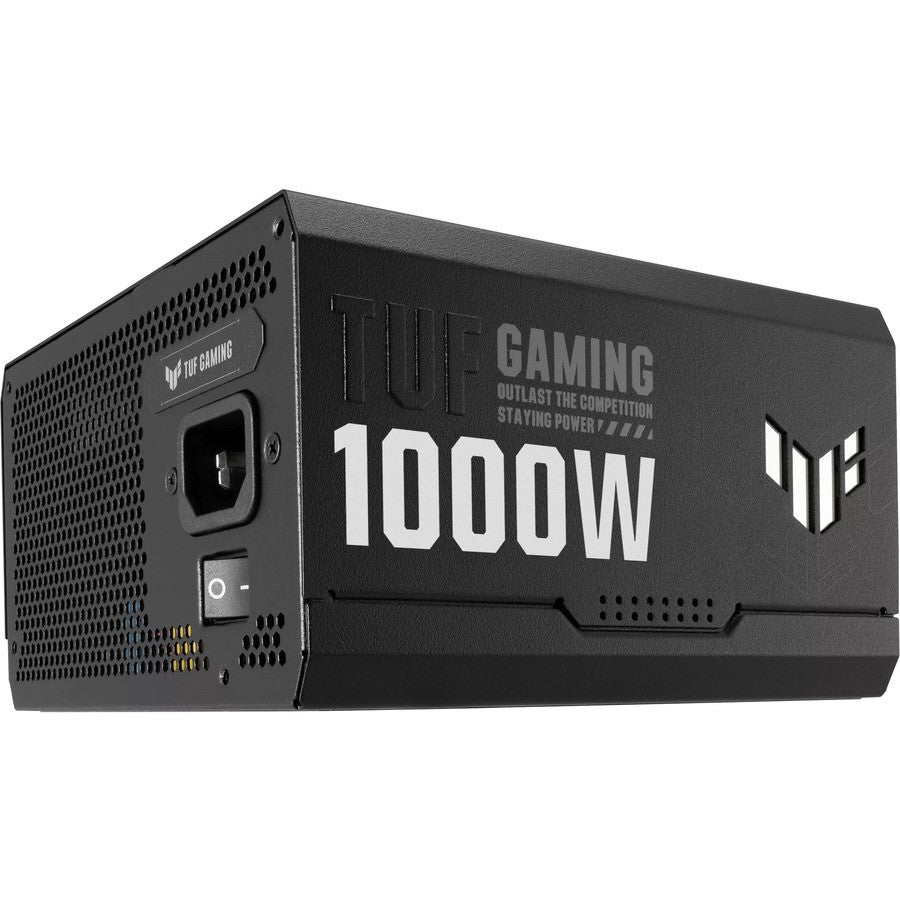

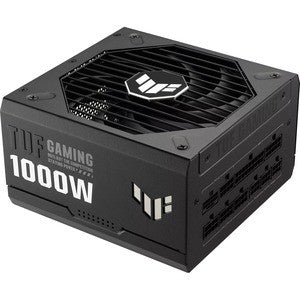

ASUS TUF Gaming 1000W Gold 80+ Fully Modular ATX 3.0 PSU
This is a 1000W 80 PLUS Gold certified fully modular ATX power supply unit designed for high-performance gaming PCs. The ASUS TUF Gaming 1000W Gold features military-grade components, ATX 3.0 compliance, and a 16-pin PCIe cable for PCIe Gen 5.0 graphics cards. MPN: TUF-GAMING-1000G; UPC: 195553786485. It delivers reliable power with up to 92% efficiency, a 135mm axial-tech fan, and a 10-year worldwide warranty.
Key Features of ASUS TUF Gaming 1000W Gold PSU
- Military-Grade TUF Components – Capacitors rated for 105°C operation with up to 170,000 hours lifespan for confident building and long-term reliability.

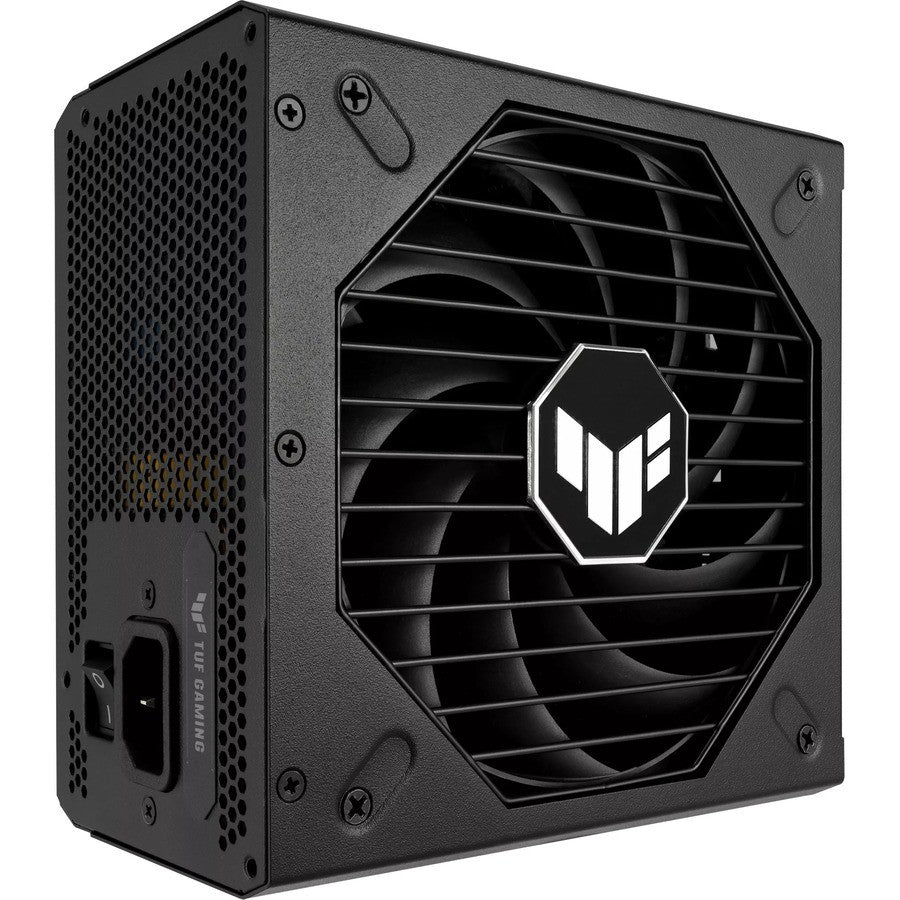

- Dual Ball Fan Bearings – 135mm fan lasts up to twice as long as sleeve bearing designs, providing exemplary cooling.
- Protective PCB Coating – Conformal coating protects against short-circuits from moisture, dust, and debris.
- ATX 3.0 Compliance – Fully compliant with tighter voltage regulation; includes 16-pin PCIe cable supporting up to 600W for PCIe Gen 5.0 GPUs.

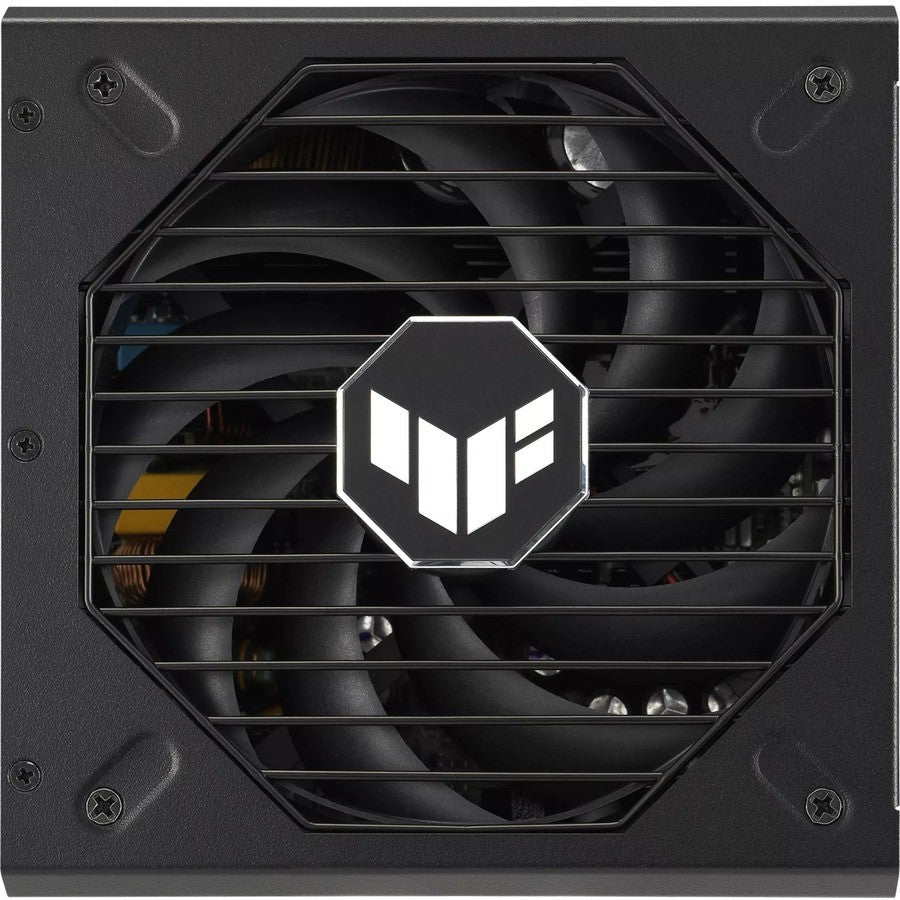

- Axial-tech Fan Design – Smaller hub, longer blades, and barrier ring for efficient cooling at low RPMs with reduced noise.
- 80 PLUS Gold Certification – Up to 92% efficiency using low-ESR Japanese capacitors, minimizing heat and fan noise.

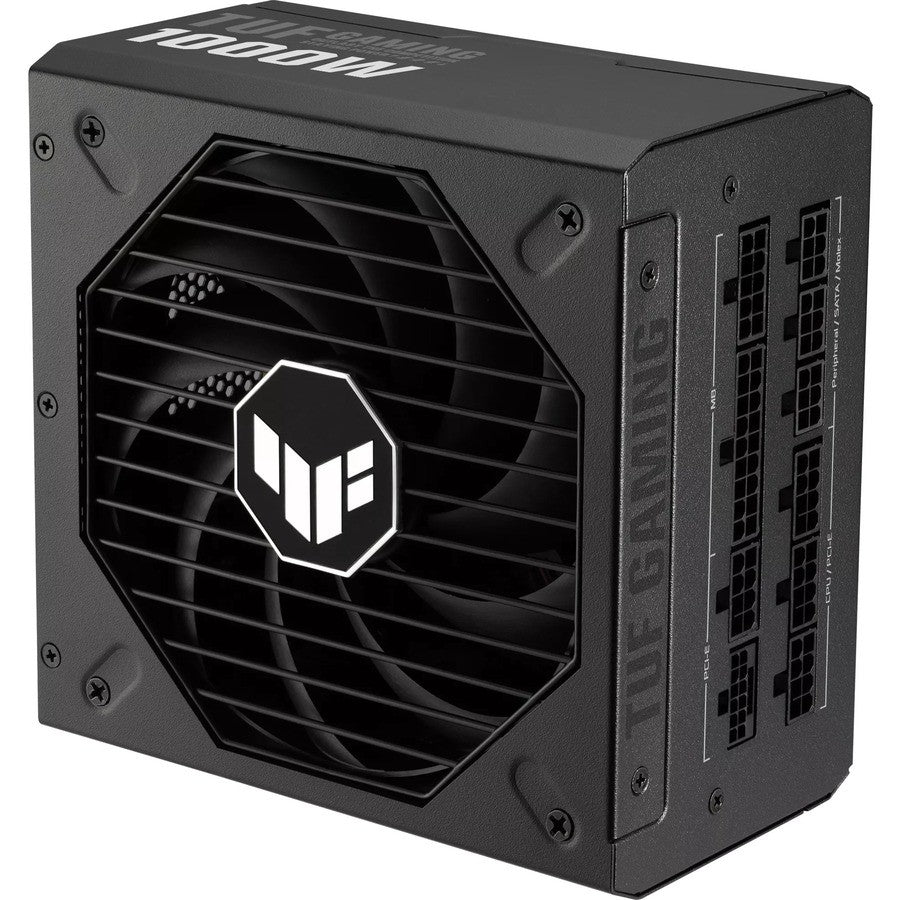

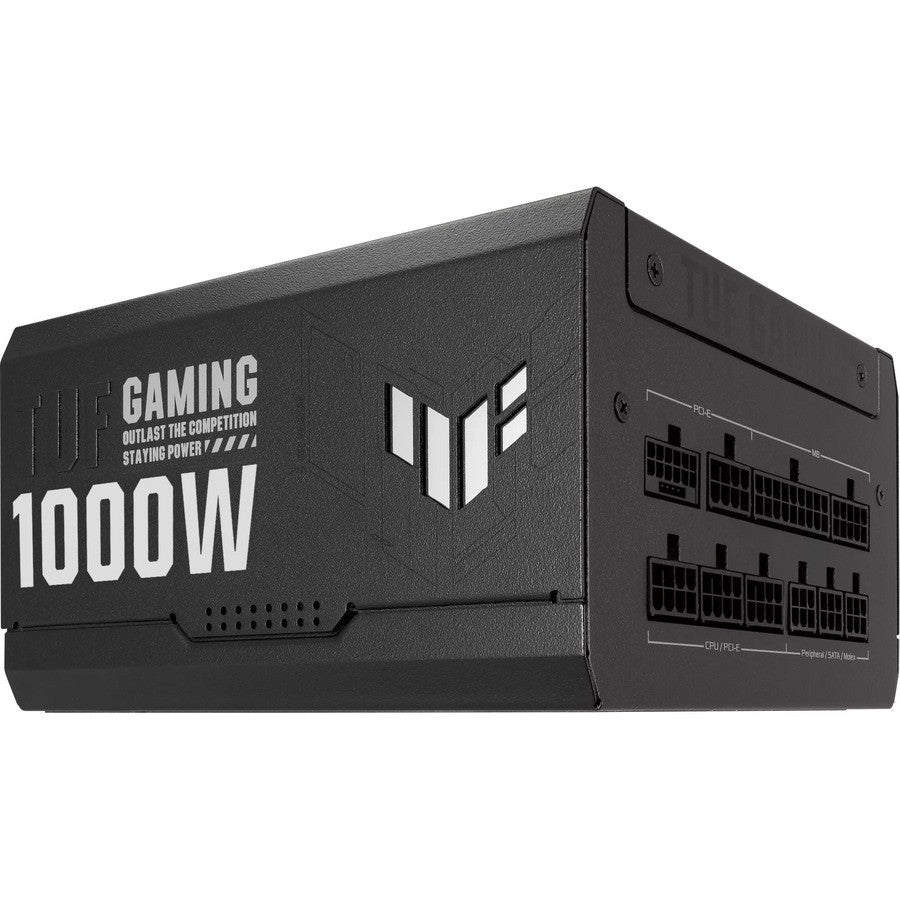

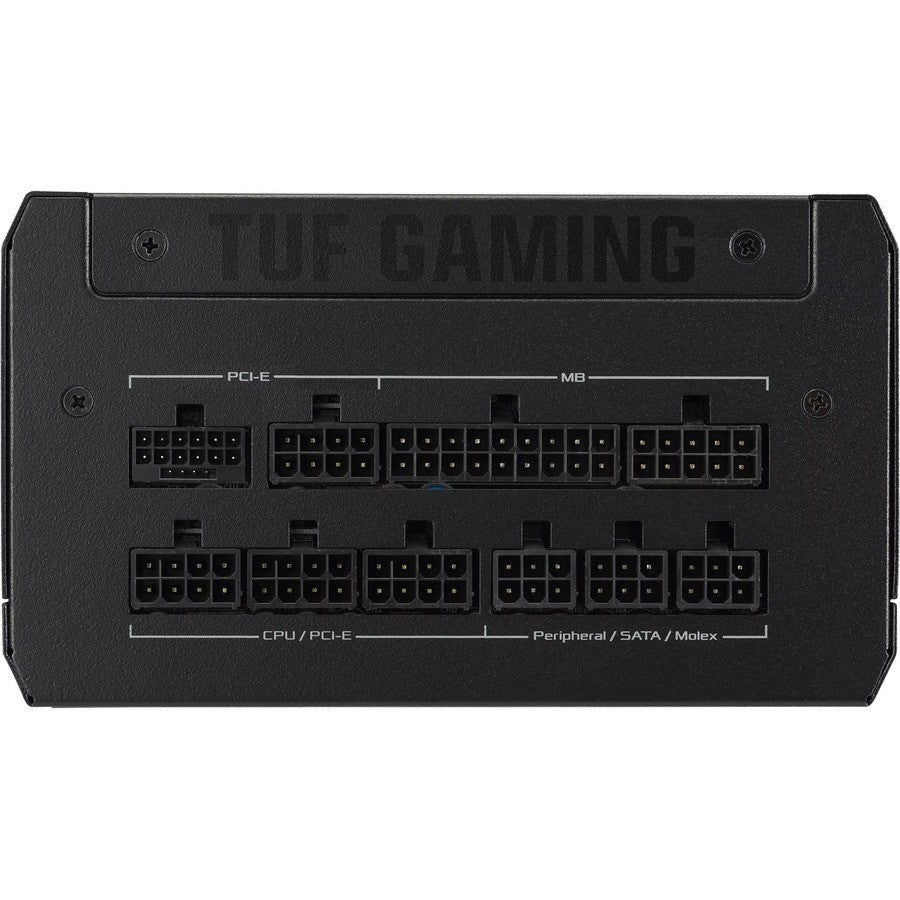

- Fully Modular Etched Cables – Etched design offers sleeved aesthetics with added flexibility for tight spaces.
- 10-Year Worldwide Warranty – Backed by ASUS confidence in durability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ASUS Computer International |
| Brand Name | TUF |
| MPN | TUF-GAMING-1000G |
| UPC | 195553786485 |
| Product Type | Power Supply |
| Power Rating | 1000W |
| Efficiency | 80 PLUS Gold / 92% |
| Specification Compliance | ATX 3.0, ATX12V |
| Modular | Yes (Fully Modular) |
| Number of Fans | 2 |
| Fan Details | 135mm Axial-tech with Dual Ball Bearings |
| Output Voltages | 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V |
| Output Details | 3.3 V DC @ 25 A; 5 V DC @ 25 A; 12 V DC @ 83.3 A; -12 V DC @ 0.8 A; 5 V @ 3 A |
| Output Current | 25 A, 83.30 A, 800 mA, 3 A |
| Physical Height | 5.9" |
| Physical Width | 5.9" |
| Physical Depth | 3.4" |
| Weight (Approximate) | 5.47 lb |
| Shipping Weight | 6.90 lb / 6.9 lb |
| Shipping Dimensions | Height: 4.3" / 4.30"; Width: 12.3" / 12.30"; Depth: 7.9" / 7.90" |
| Country of Origin | CHINA |
| Warranty | 10 Year Worldwide |
| Capacitors | Japanese, Low-ESR; Rated 105°C, up to 170,000 hours lifespan |
Installation & Maintenance for TUF Gaming PSU
Standard ATX installation; pro tip: Ensure case airflow supports high-wattage PSUs.
- Mount in PC case ATX slot using provided screws.
- Connect fully modular cables as needed; route 24-pin ATX, CPU 8-pin/4+4-pin, PCIe including 16-pin for Gen5 GPU.
- Secure cables with ties for optimal airflow.
- Test power-on; monitor voltages under load.
- Clean dust from fan periodically; use compressed air, power off PSU first.
Why Choose ASUS TUF Gaming 1000W Gold
Engineered for durability with military-grade components, advanced cooling, and future-proof ATX 3.0 support, ideal for powering demanding gaming rigs with high-end GPUs.
Power up reliably with ASUS TUF Gaming 1000W Gold—Order today!
Brand: ASUS
Type: Power Module
Maximum Power: 1000 W
Color: Black
Features: AVR (Automatic Voltage Regulation)
Compatible Brand: Universal
Model: TUF Gaming
MPN: TUF-GAMING-1000G
Unit Quantity: 80-89 A
Form Factor: 1000W
Maximum Wattage: TUF-GAMING-1000G
Cooling: 1000-1499 W
Maximum Input Current: Rigid
Surge Energy Capacity: Black
Item Length: China
UPC: 195553786485
