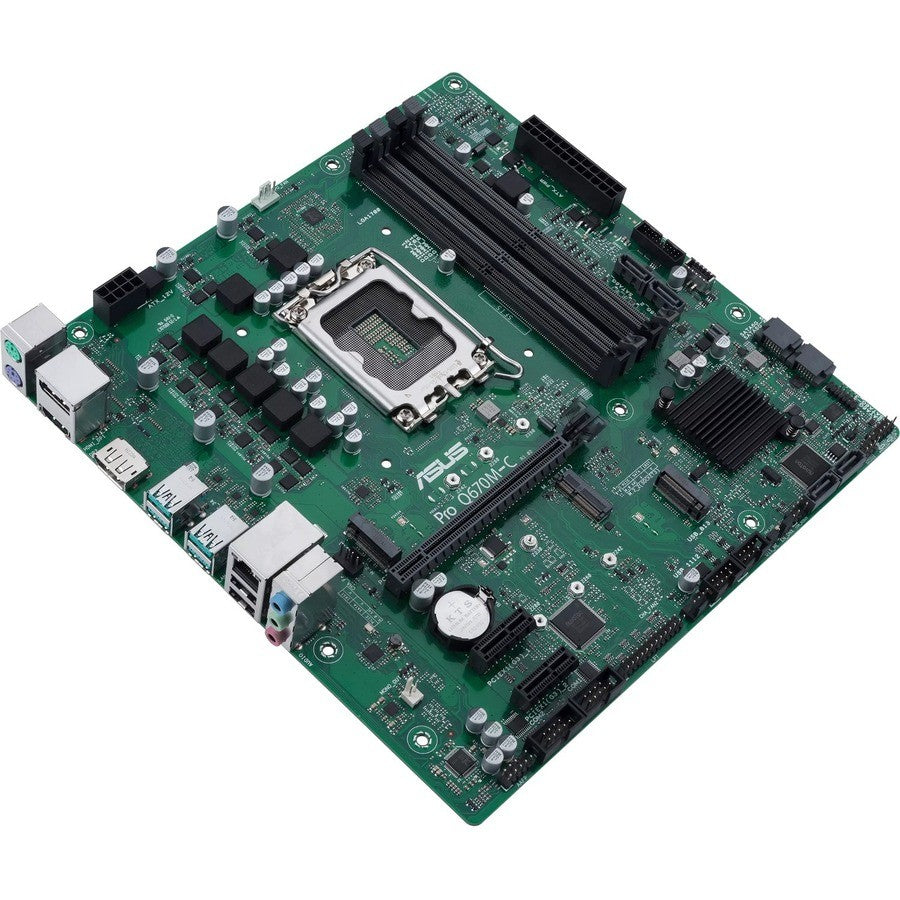

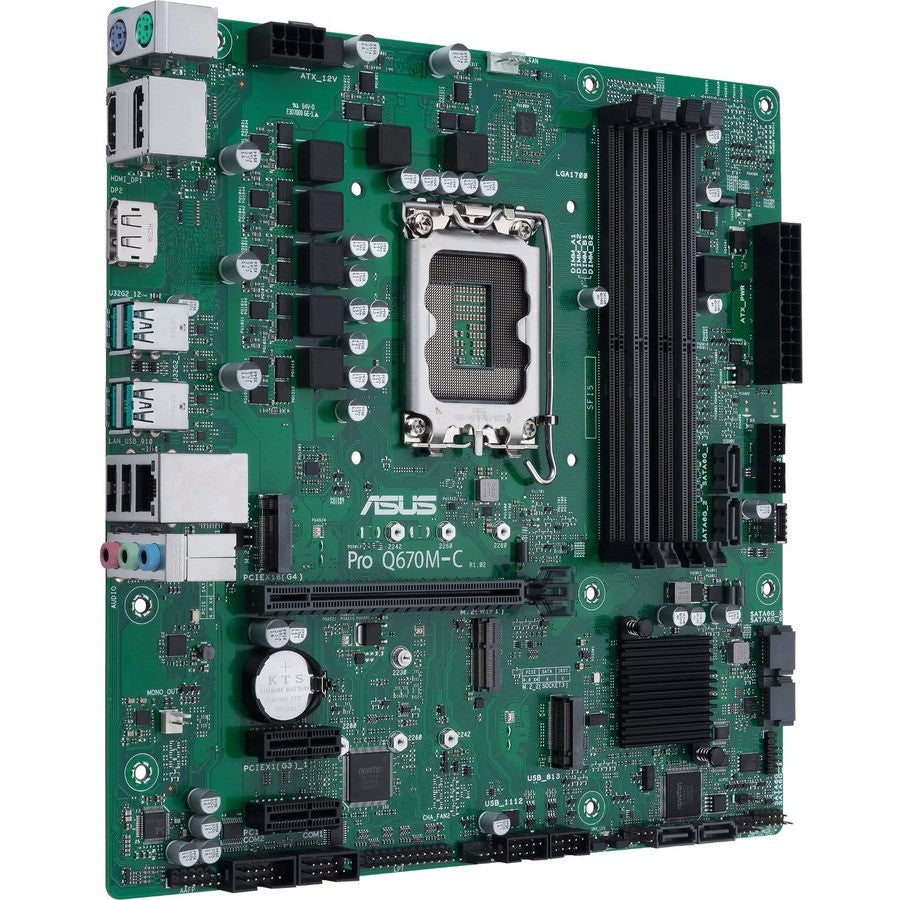

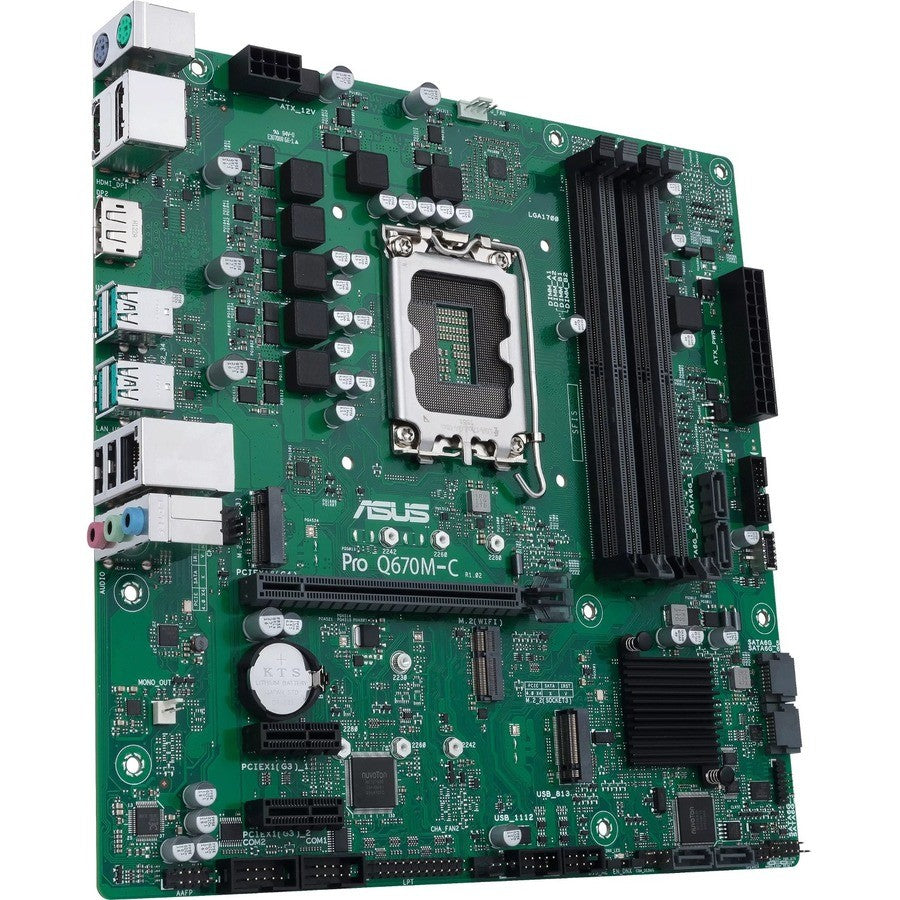

ASUS PRO Q670M-C-CSM Q670 LGA-1700 Micro ATX Motherboard
This is a Desktop Motherboard manufactured by ASUS with the Intel Q670 chipset and Socket LGA-1700 support for 12th Gen Intel Core processors including Core i3, Core i5, Core i9, Pentium, and Celeron models.
The PRO Q670M-C-CSM model supports up to 128 GB DDR5 SDRAM across 4 DIMM slots at 4800 MHz and includes Intel Optane Memory readiness along with vPro support for business environments.
Key Features
- Micro-ATX Q670 business motherboard with Intel vPro support
- ASUS CSM program for stable supply and end-of-life notifications
- ASUS Control Center Express for enterprise-level system administration
- Boot defender with NIST SP 800-193 compliance and self-recovering BIOS
- Q-LED diagnostic display and COM debug header
- High-quality components for consistent performance in demanding s
- Event log and commercial BIOS kit for maintenance
Comprehensive Technical Specifications
| Manufacturer | ASUS |
| Manufacturer Item Number | PROQ670M-C-CSM |
| Product Model | PRO Q670M-C-CSM |
| Product Series | PRO |
| UPC | 195553518383 |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i3, Core i5, Pentium, Core i9, Celeron |
| Total Processors Supported | 1 |
| Memory Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Intel Optane Memory Ready | Yes |
| Form Factor | Micro ATX |
| Physical Width | 9.6" |
| Physical Depth | 9.6" |
| Weight | 2.10 |
| Country of Origin | CHINA |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Controller Type | Serial ATA/600 |
| Intel RST | Yes |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Total Expansion Slots | 3 |
| PCI Express Slots | 3 |
| PCI Express x1 Slots | 2 |
| PCI Express x16 Slots | 1 |
| Total USB Ports | 6 |
| USB 2.0 Ports | 2 |
| USB 3.2 Gen 2 Type-A Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Network RJ-45 Ports | 1 |
| SATA Interfaces | 6 |
| M.2 Interfaces | 2 |
| Onboard USB Ports | 7 |
| Onboard USB 2.0 Ports | 4 |
| Onboard USB 3.2 Ports | 3 |
Brand: ASUS
Form Factor: AT
Compatible CPU Brand: ASUS
Model: PRO Q670M-C-CSM
Features: Dual LAN
Number of Memory Slots: 4
Input/Output Ports: DisplayPort
MPN: PROQ670M-C-CSM
Expansion Slots: PCI Express x1
Country of Origin: China
UPC: 195553518383
