Key Features

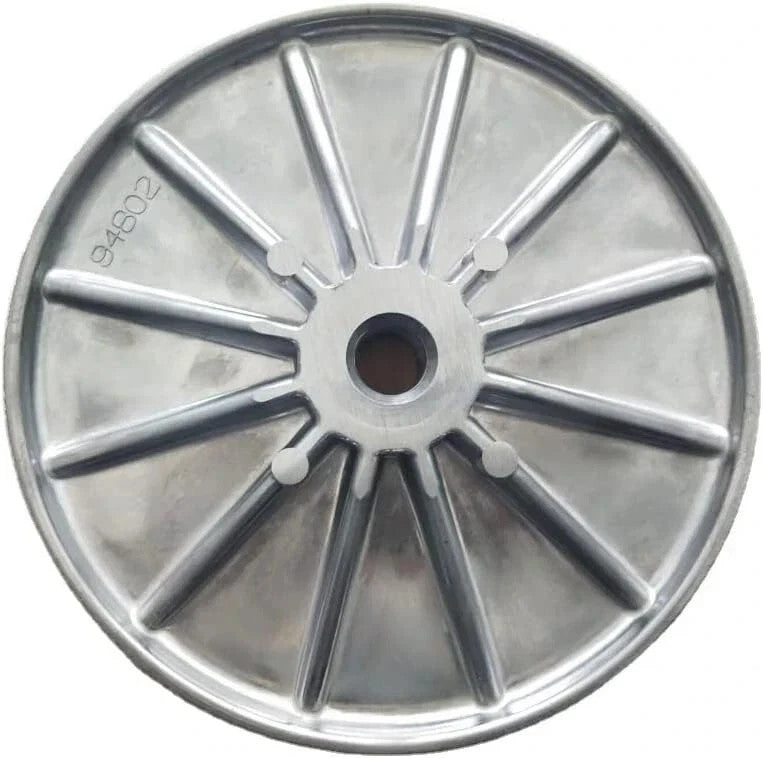

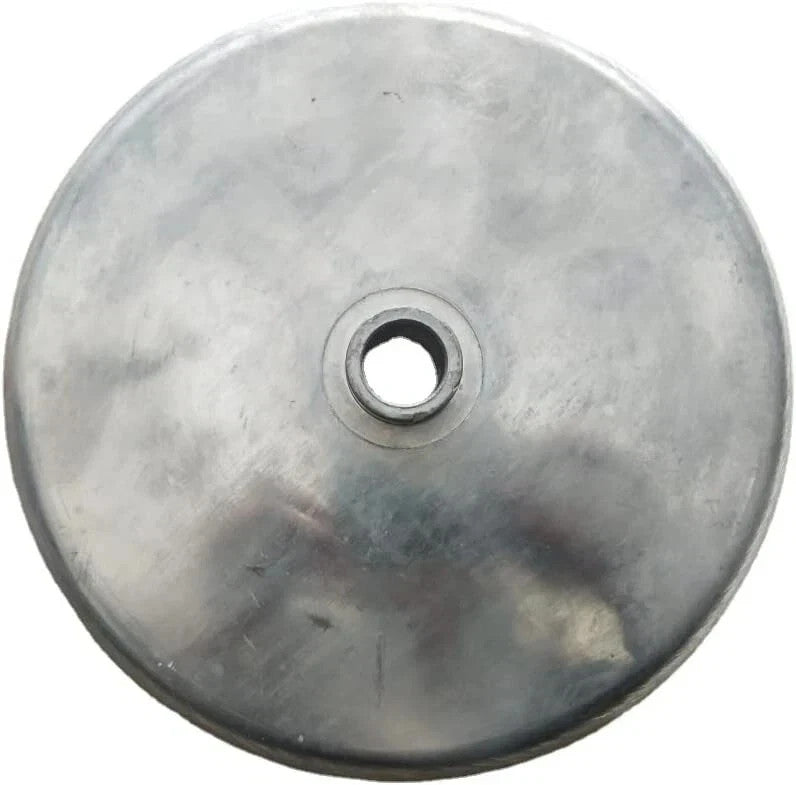

• Direct OEM Replacement – Part #94802, designed exclusively for ARO PD30 pumps.
• Premium Stainless Steel – Corrosion-resistant for aggressive chemicals and abrasive fluids.
• Industrial-Grade Durability – Withstands high-pressure cycles and harsh operating conditions.
• Precision Machined – Ensures perfect alignment and leak-free diaphragm sealing.
• Easy Maintenance – Simplifies pump rebuilds with straightforward installation.

Technical Specifications

Compatible Pump Model

This outer pressure plate is exclusively compatible with:

• ARO PD30 – 3-Inch Metallic & Non-Metallic Pneumatic Diaphragm Pumps

Important: Not compatible with ARO PD20, PD15, PD10, or any other ARO or competitor pump models. Verify your pump’s model number and part diagram before ordering.

Installation Guide

Replace the outer pressure plate safely and efficiently:

1. Safety First: Shut off air supply, depressurize the pump, and disconnect power.
2. Access Chamber: Remove the fluid cover bolts on the diaphragm side using a socket wrench.
3. Remove Old Plate: Carefully detach the worn pressure plate from the diaphragm shaft.
4. Install New Plate: Align the new #94802 plate over the diaphragm and shaft assembly.
5. Reassemble: Reinstall the fluid cover and torque bolts evenly to ARO specifications (refer to PD30 manual).
6. Test Pump: Restore air supply, check for leaks, and confirm smooth diaphragm operation.

Why This Pressure Plate?

The ARO PD30 Outer Pressure Plate is a mission-critical component that prevents diaphragm blowouts and maintains consistent pumping pressure. Made from corrosion-resistant stainless steel, it excels in chemical transfer, slurry handling, and high-cycle industrial applications. Regular replacement during routine maintenance extends pump life and reduces costly downtime.
