Pleatedfold AMP-11-1625-45 16x25x4.5 MERV 13 Pleated HVAC Furnace Air Filter – Electrostatic, 12-Month

Key Features

• MERV 13 Pleated HVAC Filtration - High-density pleated media is designed to capture fine airborne particles while maintaining airflow. Product imagery states capture of 95% of particles as small as 0.3-1 μm.
• Electrostatically Charged Synthetic Fiber - Electrostatic synthetic filter media is shown in close-up callouts for this Pleatedfold AMP-11-1625-45 replacement filter.
• Adjustable 4-Inch Side Panels - Side panels extend from 11.78 to 15.78 inches so the same 16x25x4.5 MERV 13 filter can be customized to a range of HVAC openings.

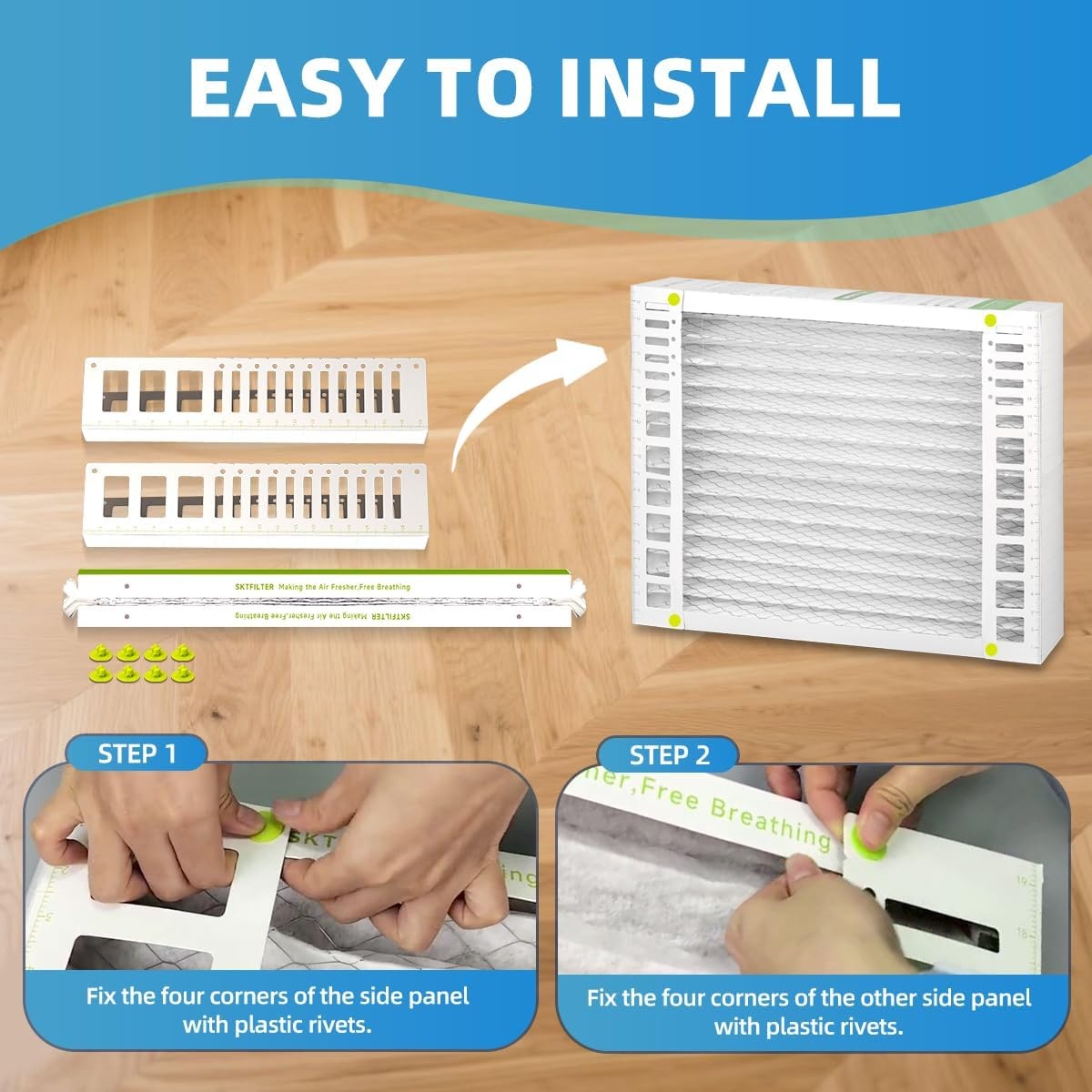

• Tool-Free Plastic Rivet Assembly - Four corners of each side panel fasten with plastic rivets, then the assembled filter slides into the slot in about 1-2 minutes with no tools.
• Galvanized Metal Wire Pleat Support - Galvanized metal wire in the frame helps hold the pleats stable for longer service in furnace and air conditioner systems.
• Higher Pleat Count Media - The white pleated pack is shown with a dense pleat pattern to increase media surface area inside the 4.33-inch actual depth.
• 12-Month Filter Life - Listed replacement interval is 12 months for this 1 pack HVAC air filter, depending on household use and system runtime.

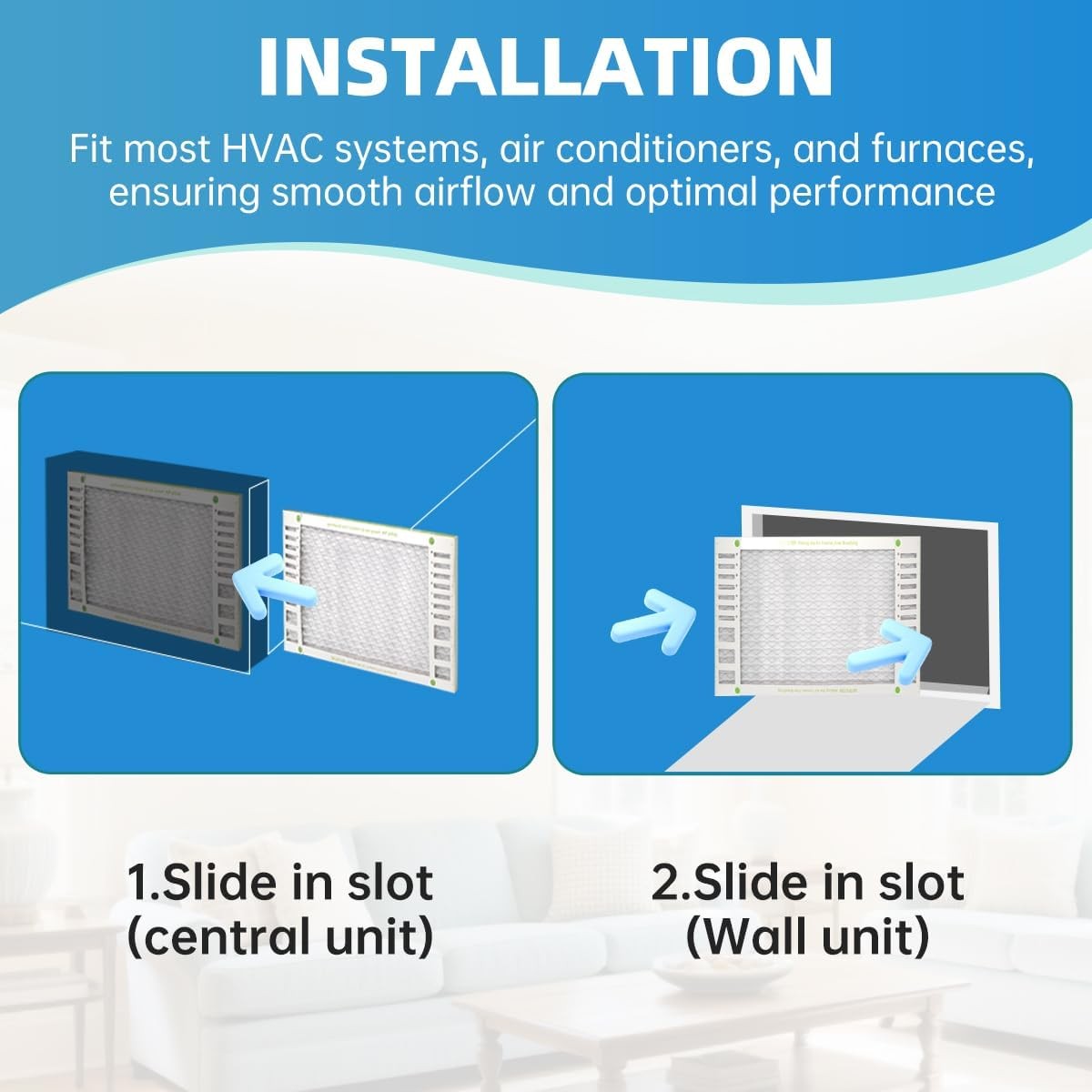

• Central and Wall HVAC Fit - Installation graphics show the filter sliding into a central HVAC unit slot or a wall unit slot for furnace and air conditioner applications.

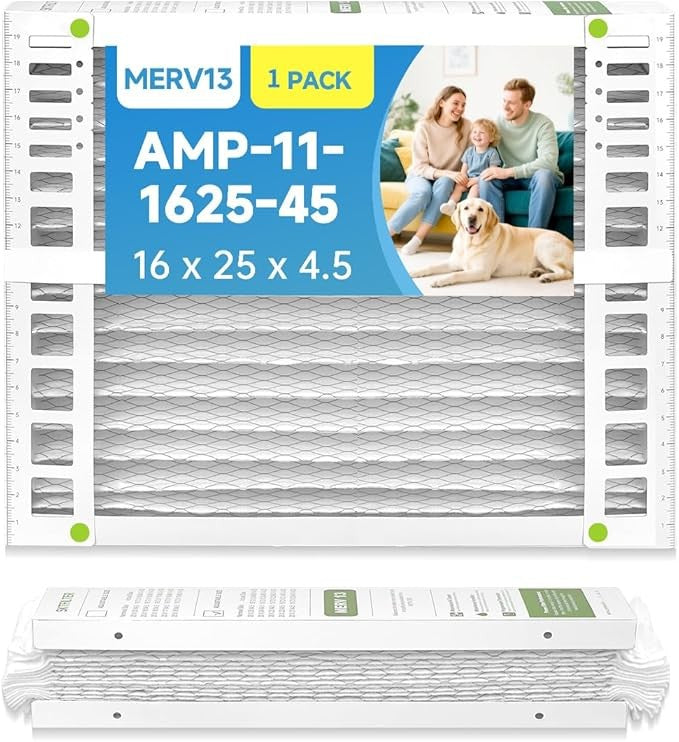

• White 1-Pack Replacement Format - One Pleatedfold AMP-11-1625-45 unit with EAN 0768834529547, made for buyers searching 16x25x4.5 MERV 13 pleated furnace filters.

Technical Specifications

Compatibility / Fitment

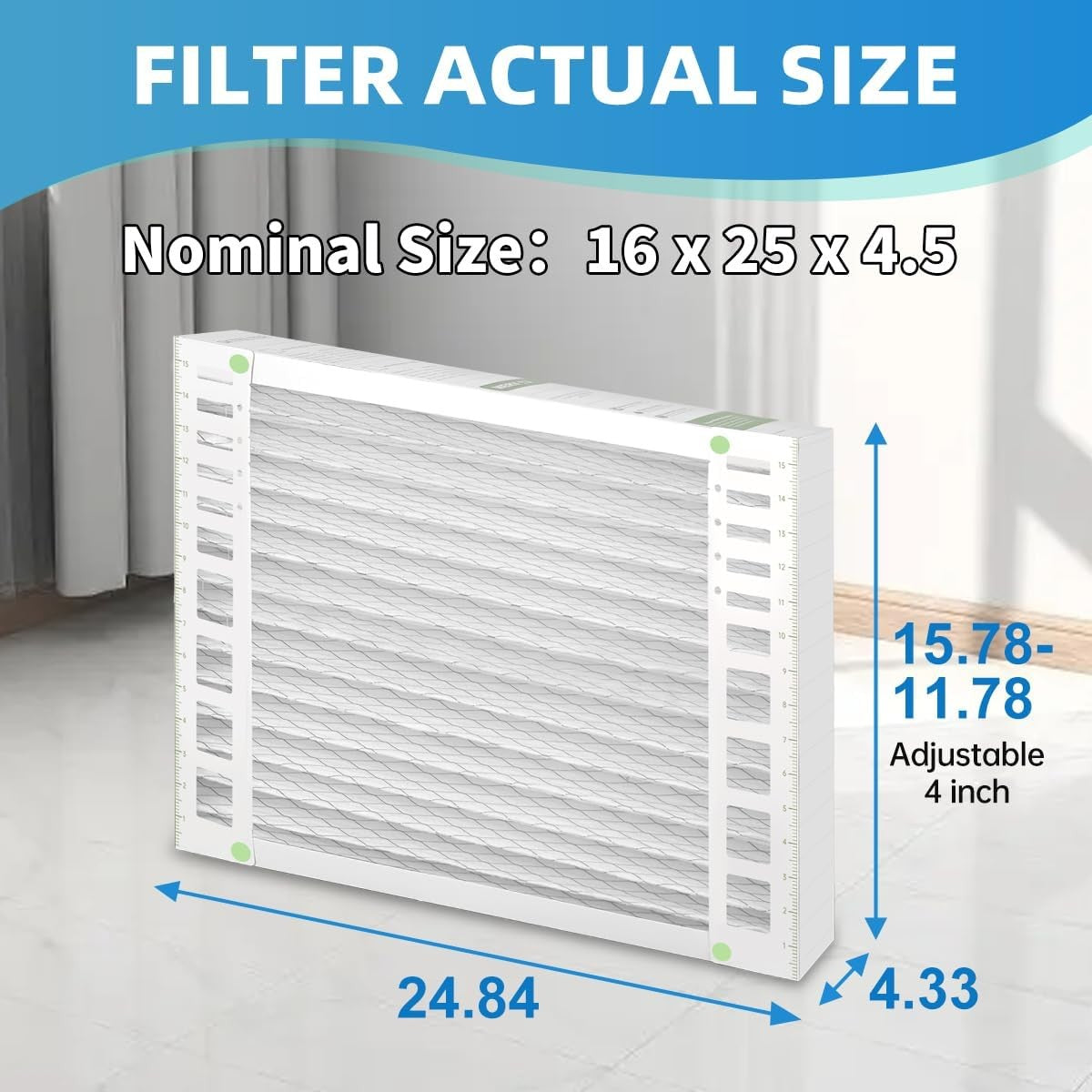

This Pleatedfold AMP-11-1625-45 is a 16 x 25 x 4.5 inch nominal MERV 13 HVAC air filter with an actual size of 11.78-15.78 x 24.84 x 4.33 inches. Measure the filter slot before ordering: the plastic side panels adjust across a 4-inch span so the shorter dimension can be set between 11.78 and 15.78 inches. After the panels are riveted in place, slide the assembled filter into a central HVAC unit slot or a wall unit slot. It is listed for furnace and air conditioner use and is intended for common residential HVAC openings that accept this 16x25x4.5 pleated replacement size.

Confirm airflow arrows and slot depth on your existing cabinet. The 4.33-inch actual thickness is the measured depth of this 4.5-inch nominal pack, not a 1-inch disposable filter.

Use Cases

Use this 1 pack Pleatedfold MERV 13 pleated furnace air filter as a scheduled HVAC replacement in homes and light indoor spaces. Product application graphics show living rooms, bedrooms, offices, and households with pets. Image callouts also identify common airborne loads such as dust, lint, pollen, wildfire smoke particles, and other fine particles. Pair the AMP-11-1625-45 with a matching 16x25x4.5 HVAC slot when you want electrostatic synthetic media and a 12-month change interval instead of a thinner disposable pad.

What Is Included

• 1 x Pleatedfold AMP-11-1625-45 MERV 13 pleated HVAC furnace air filter (16 x 25 x 4.5 nominal)
• Adjustable plastic side panels and plastic rivets shown on the filter for customizing the 11.78-15.78 inch opening
