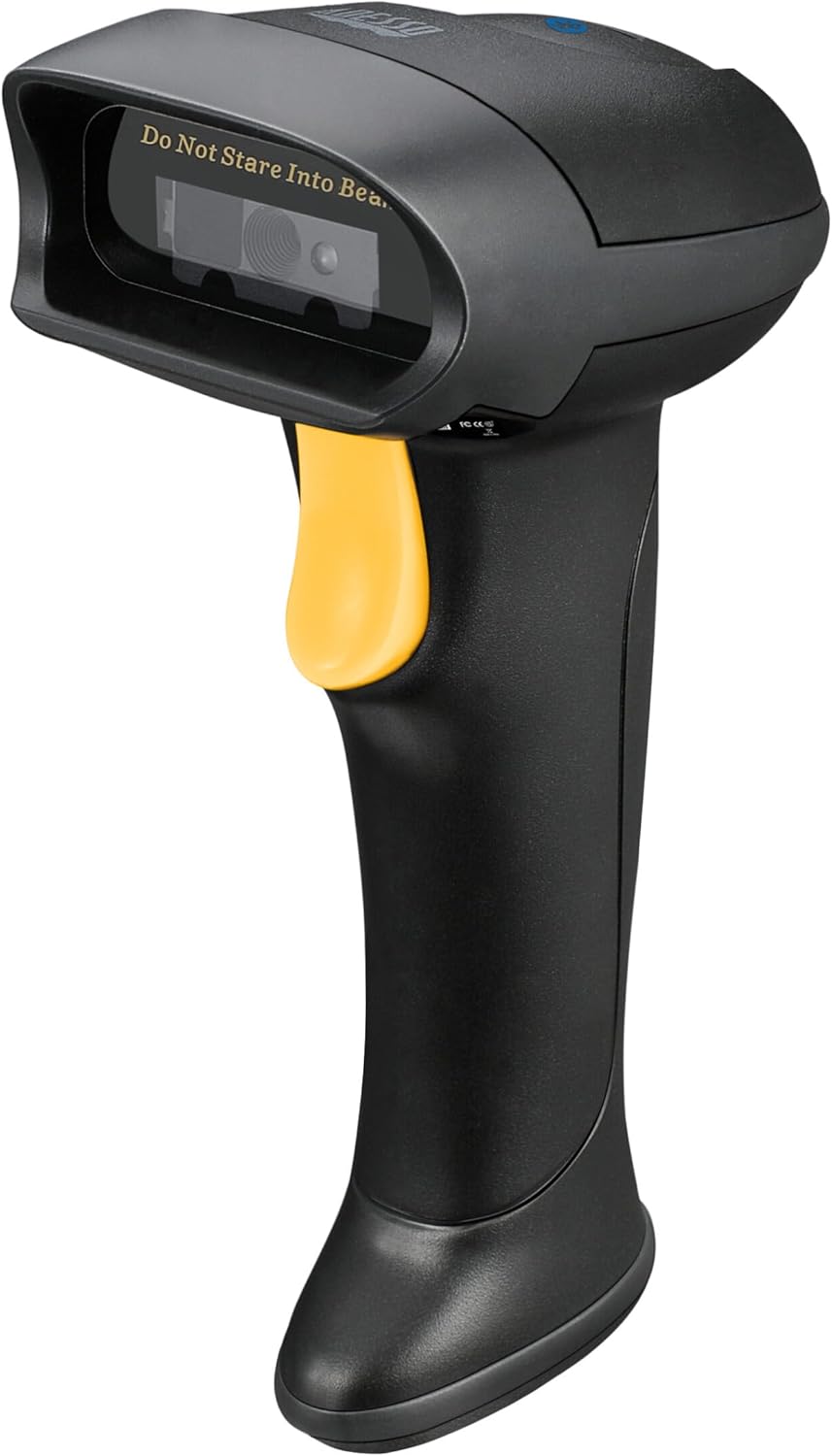

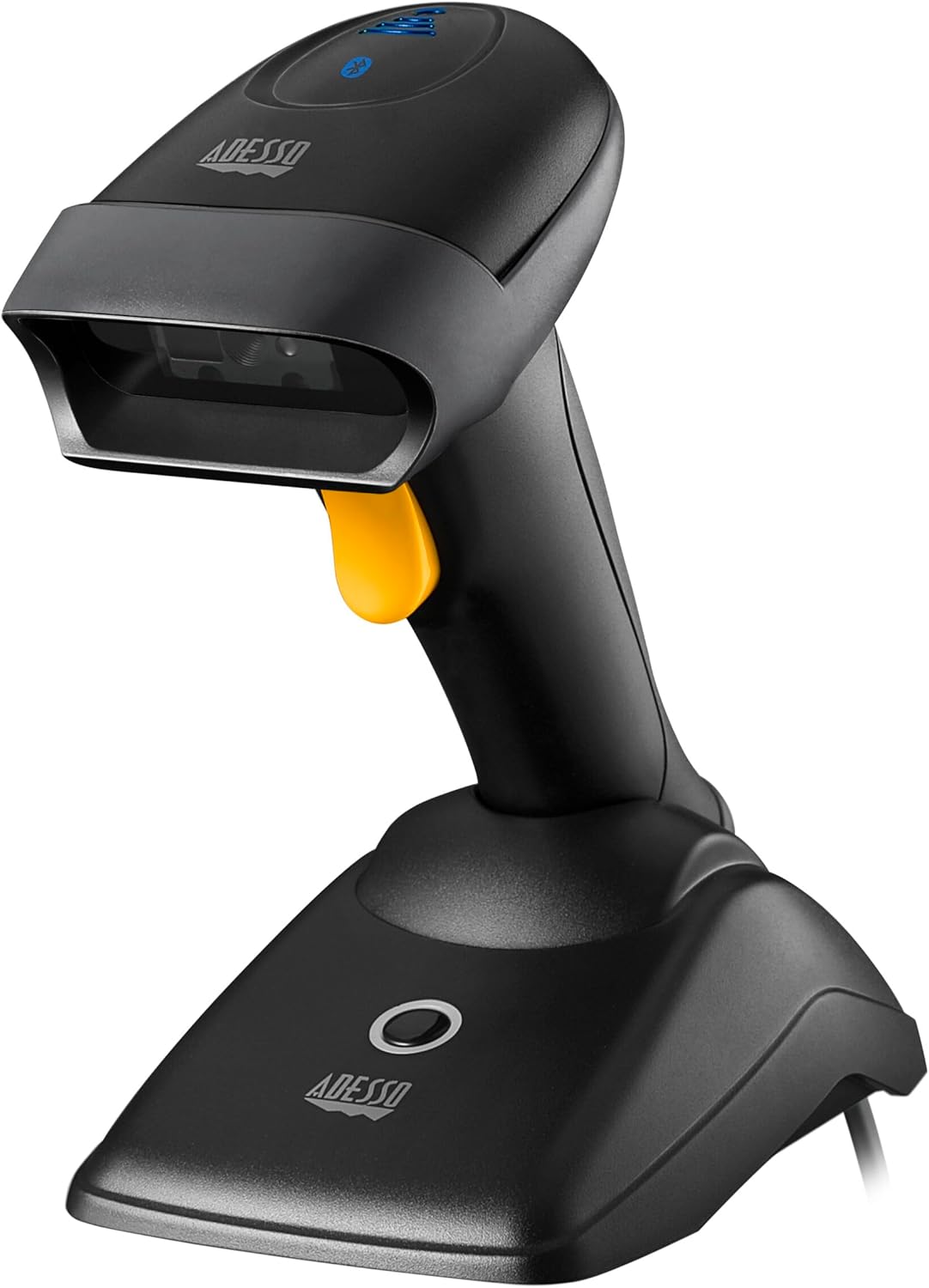

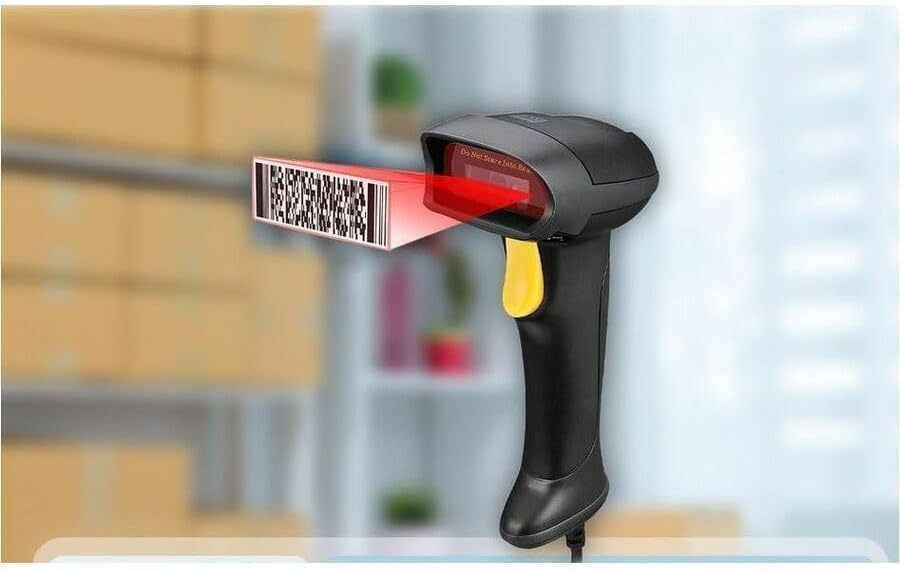

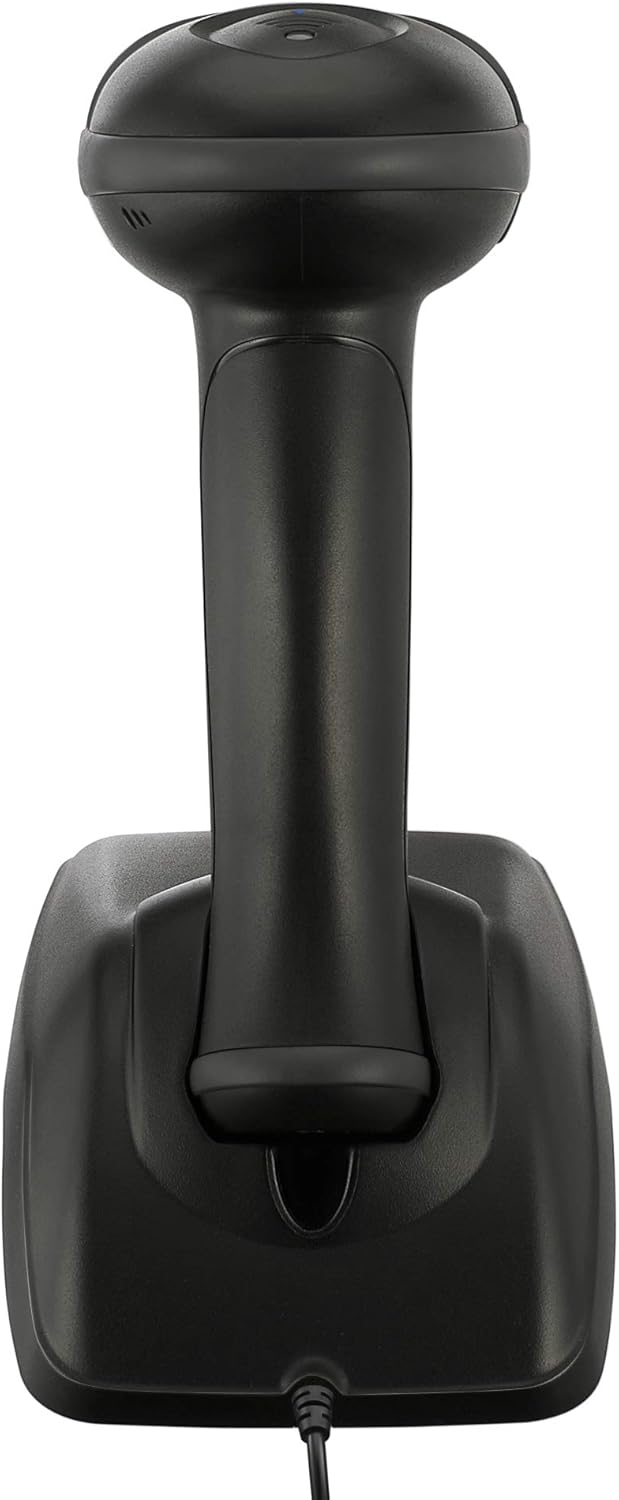

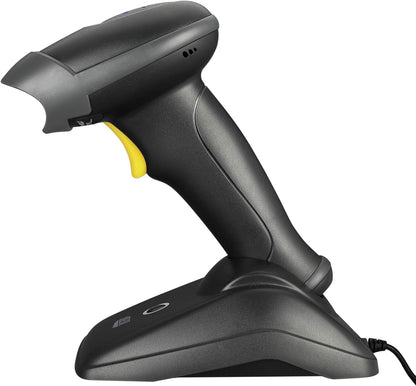

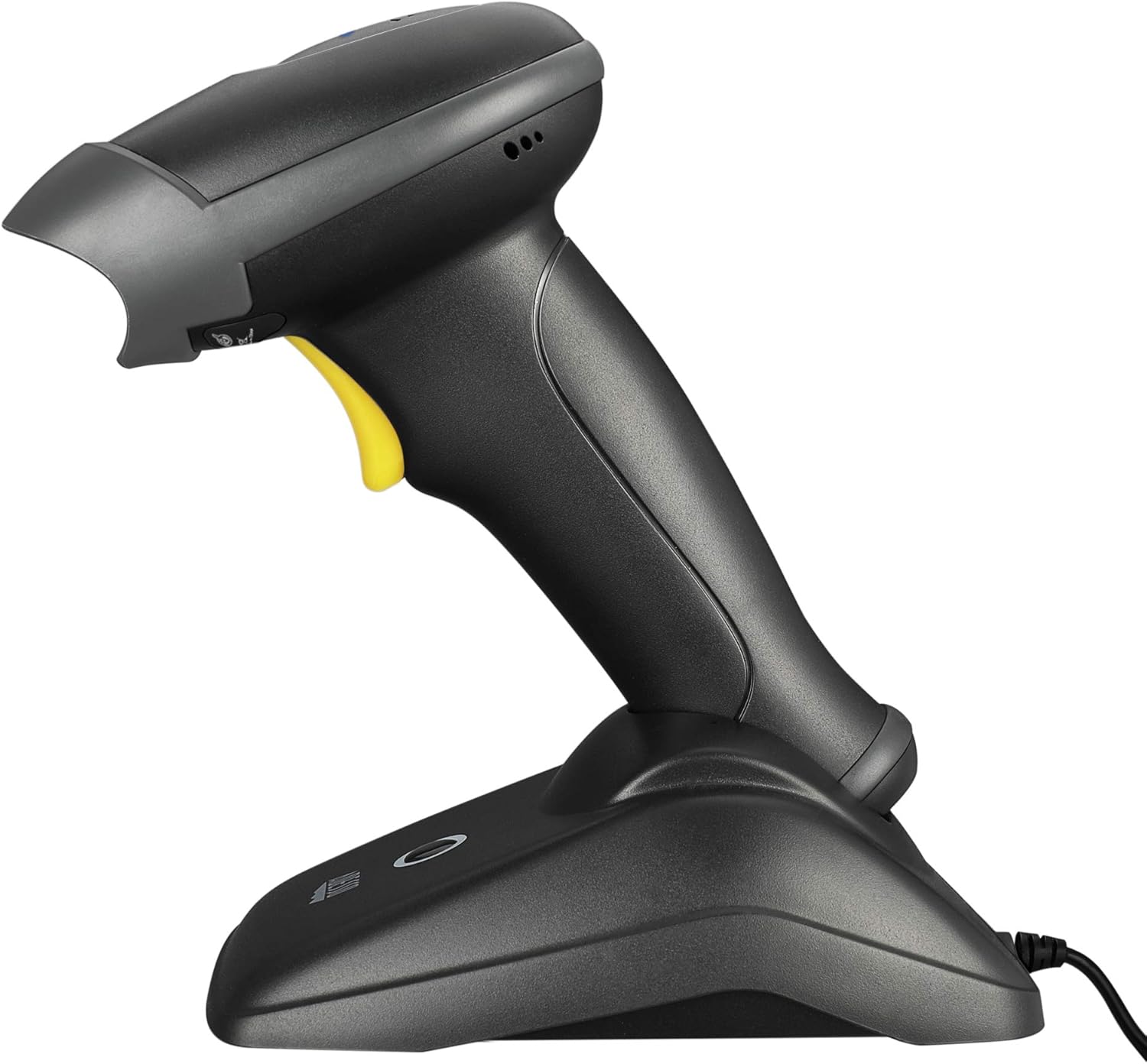

Adesso NuScan 2500 2D USB Handheld Barcode Scanner QR Code CMOS USB HID
Adesso NuScan 2500 2D USB Handheld Barcode Scanner QR Code CMOS USB HID
Low stock: 5 left
Save 2%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Adesso NuScan 2500 Barcode Scanner
This is a corded 2D handheld barcode scanner from Adesso Inc. designed for reliable 1D and 2D code reading in retail, office, and inventory environments. The Adesso NuScan 2500 Barcode Scanner features a CMOS image sensor for fast scanning of barcodes including QR codes, Data Matrix, and PDF417. MPN: NuScan 2500; UPC: 783750014526. It connects via USB for plug-and-play operation with a 2-meter cable.
Key Features of Adesso NuScan 2500 Barcode Scanner
- CMOS Image Sensor – 640 x 480 pixel resolution captures 1D and 2D barcodes with high accuracy across various surfaces and lighting s.
- Wide Symbology Support – Reads Code 128, EAN-13/8, UPC-A/E, Code 39, QR Code, PDF417, Data Matrix, Aztec, and more for versatile application use.
- USB HID Connectivity – Keyboard wedge emulation ensures seamless integration with Windows, POS systems, and standard computers without additional drivers.
- Optimized Decode Range – Effective scanning from contact up to 12.5 inches, suitable for close-range retail and detailed inventory tasks.

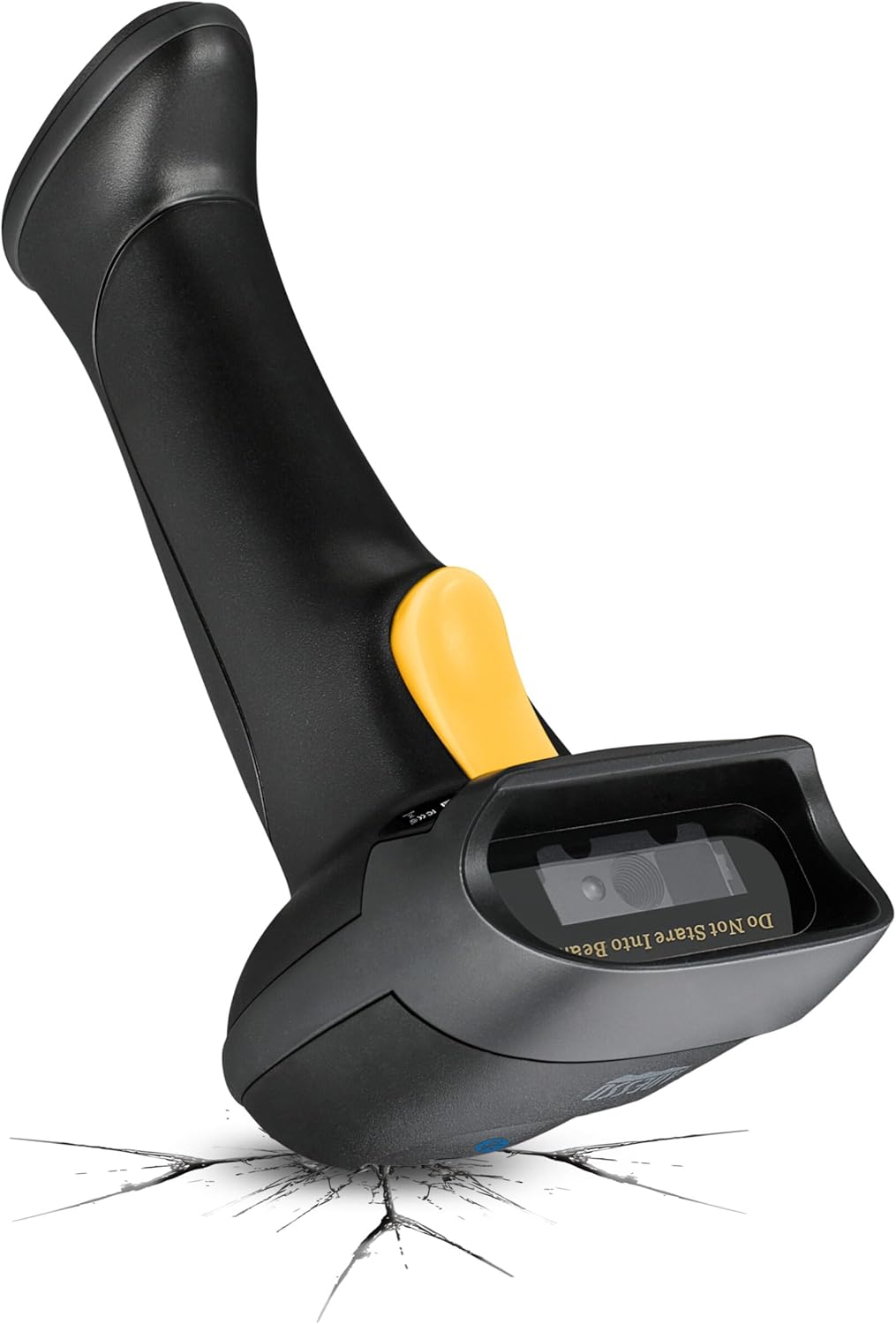

- Rugged Construction – Withstands multiple 1.5-meter drops to concrete, built for daily operational durability.
- 2-Meter USB Cable – Provides flexibility in workstation setup while maintaining a stable corded connection.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Adesso Inc. |
| Manufacturer Item Number | NuScan 2500 |
| UPC | 783750014526 |
| Scanner Type | Handheld 2D CMOS Image Barcode Scanner |
| Image Sensor | 640 x 480 pixels CMOS |
| Light Source | 617 nm LED |
| Scan Speed | 60 frames per second |
| Connectivity | USB 2.0 (HID Keyboard Wedge) |
| Cable Length | 2 meters |
| Scanner Dimensions (H x W x D) | 105 mm x 67 mm x 163.5 mm (4.13" x 2.64" x 6.44") |
| Scanner Weight | 140 g (4.94 oz) |
| Package Weight | 1.90 lbs |
| Package Dimensions (H x W x D) | 4.30" x 10.70" x 7.30" |
| Drop Specification | 1.5 m drops to concrete |
Setup and Operation Guide for NuScan 2500
Plug-and-play setup takes under 1 minute for immediate use in most systems.
- Connect Cable: Plug the USB cable into the scanner base and your computer or POS terminal.
- Power On: The scanner activates automatically upon connection; LED indicator confirms status.
- Configure: Scan configuration barcodes from the manual for custom settings if needed.
- Test Scan: Aim at a barcode and pull the trigger; beep and LED flash indicate successful decode.
- Cleaning: Wipe lens with microfiber cloth and isopropyl alcohol; avoid abrasives.
Why Choose Adesso NuScan 2500 Barcode Scanner
The Adesso NuScan 2500 delivers dependable corded performance for high-volume scanning needs, with broad symbology support and robust build quality suited for point-of-sale and warehouse applications.
Enhance your scanning efficiency—Order the Adesso NuScan 2500 Barcode Scanner today!
Brand: Adesso
Connectivity: USB
Type: Barcode Scanner
Series: NuScan
Model: 2500
MPN: NuScan 2500
UPC: 783750014526
