Reman CV Axle Shaft for Chrysler/Dodge Minivans 1990-1994 60-3001
Reman CV Axle Shaft for Chrysler/Dodge Minivans 1990-1994 60-3001
Low stock: 1 left
Save 30%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

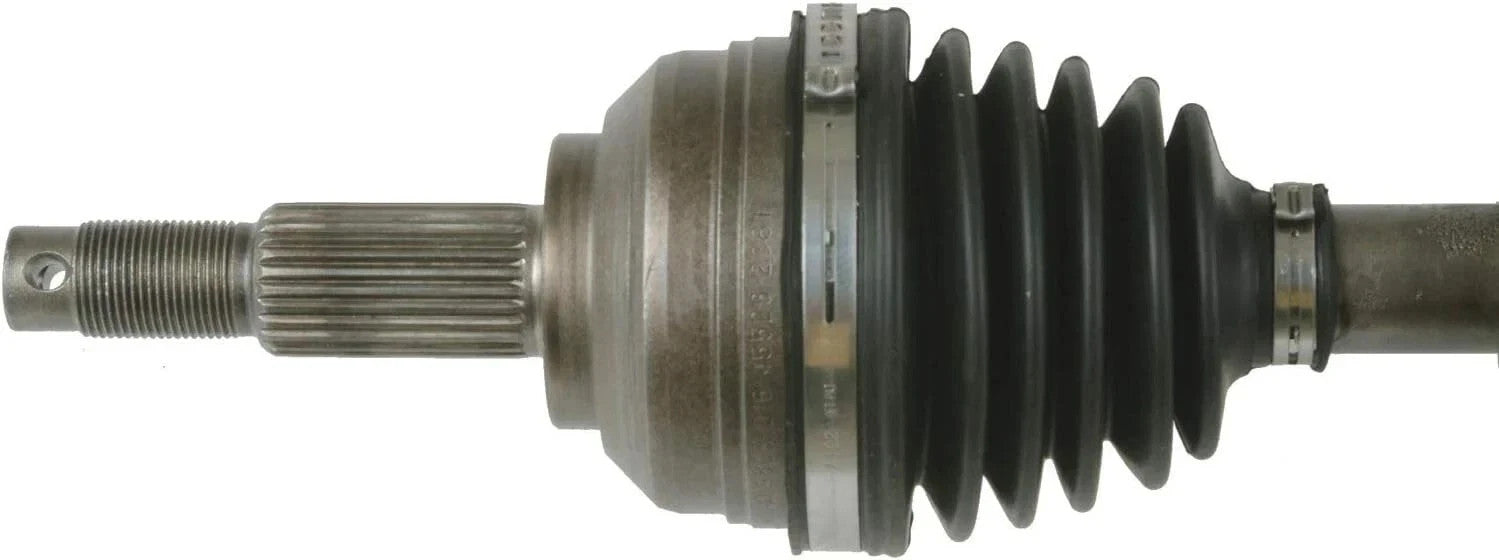

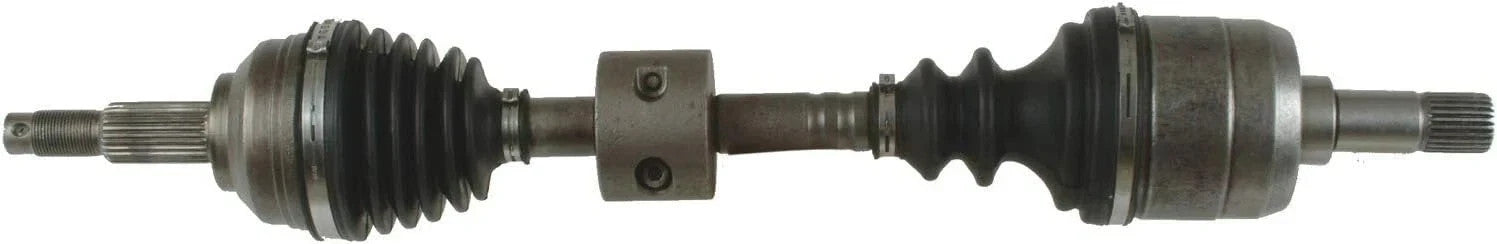

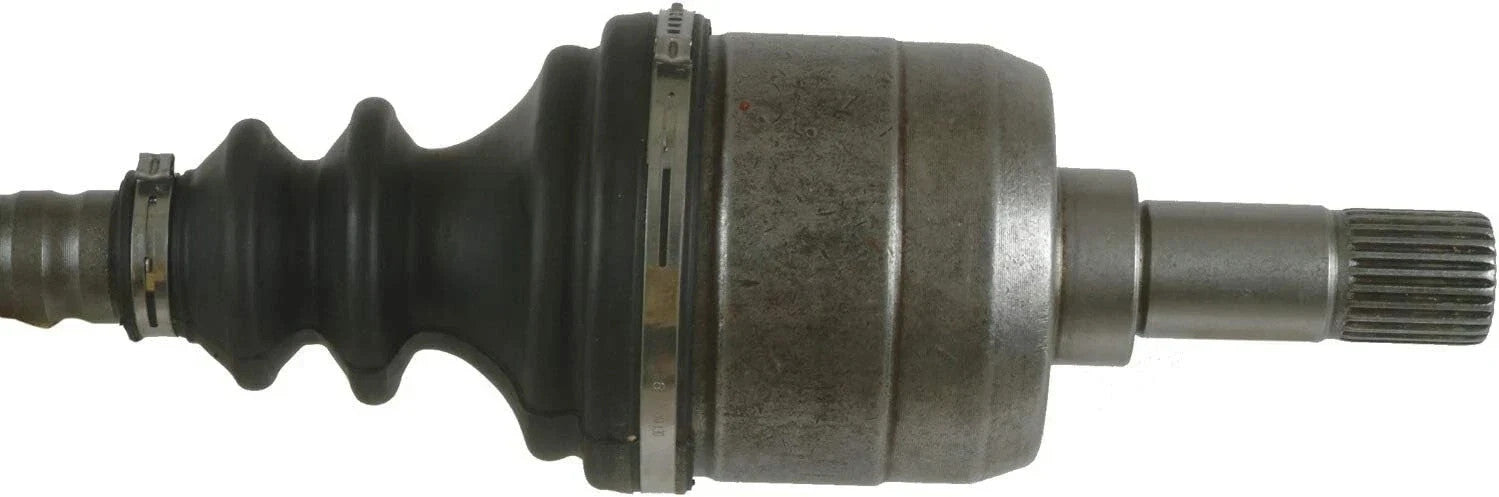

Remanufactured CV Drive Axle Shaft - Cardone 60-3001
Restore smooth, vibration-free performance with the Cardone 60-3001 Remanufactured CV Drive Axle Shaft. Precision-engineered to meet or exceed OEM standards, this high-quality replacement ensures reliable power transfer and long-lasting durability for select Chrysler, Dodge, and Plymouth minivans.
Key Features
- OEM-Quality Fit - Precision-ground housings, races, and cages for exact specifications.
- Durable Neoprene Boots - Resistant to cracking, tearing, and environmental damage.
- High-Temperature Grease - Premium lubricant withstands extreme heat and torque.
- Pneumatically Crimped Clamps - Secure, leak-proof seal between boot and housing.
- Eco-Friendly Remanufacturing - Reduces energy and raw material use by up to 80%.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | Cardone 60-3001 |
| Part Type | Remanufactured CV Drive Axle Shaft |
| Material | High-Strength Steel, Neoprene Boots, Premium Grease |
| Finish | Corrosion-Resistant Painted |
| Weight | 4.5 lbs |
Compatible Models and Trims
Verify fitment using your vehicle's VIN or OEM part number on mopar.com before purchase to avoid returns.
| Brand | Model | Years | Trim / Engine | Notes |
|---|---|---|---|---|
| Chrysler | Town & Country | 1990-1991 | Base, LX; 3.3L V6, 3.8L V6 | Front Left or Right; FWD, Automatic |
| Chrysler | Voyager | 1991-1994 | Base, LX, SE; 3.0L V6, 3.3L V6, 3.8L V6 | Front Left or Right; FWD, Automatic |
| Dodge | Caravan | 1990-1994 | Base, SE, LE, ES; 2.5L I4, 3.0L V6, 3.3L V6, 3.8L V6 | Front Left or Right; FWD, Automatic |
| Plymouth | Voyager | 1990-1994 | Base, SE; 3.0L V6, 3.3L V6, 3.8L V6 | Front Left or Right; FWD, Automatic |
Not compatible with Toyota, Lexus, AWD, or post-1994 models.
Installation Guide
Install with confidence using these step-by-step instructions:
- Gather Tools: Socket set, torque wrench, pry bar, jack, and jack stands.
- Lift & Secure Vehicle: Safely raise the side being worked on and support with jack stands.
- Remove Wheel: Loosen lug nuts, remove the wheel, and set aside.
- Detach Old Axle: Remove axle nut, disconnect from hub and transmission, then carefully extract.
- Install New Axle: Insert splines into transmission and hub, align properly, and secure with new retaining nut.
- Torque to Spec: Tighten axle nut to manufacturer’s torque specifications (typically 180-200 ft-lbs).
- Reassemble & Test: Reinstall wheel, lower vehicle, and test drive to confirm smooth, vibration-free operation.
Why Choose Cardone Remanufactured?
Every Cardone CV axle is fully remanufactured: outer housings, races, and cages are precision-ground to original specs, splines and threads are re-chased for perfect fit, and new boots, clamps, and grease are installed. The result? OEM-level reliability at a lower cost — with proven performance and reduced environmental impact.
Upgrade your Chrysler or Dodge minivan with the trusted Cardone 60-3001 CV axle shaft — built for performance, backed by quality!
Brand: Cardone
Type: CV Drive Axle Shaft
OE/OEM Part Number: 4384737, 4346873, 4346887, 4384722, 4384735, 4511103, 4511105
Manufacturer Part Number: 60-3001
