JARBIH 5 Pack 1M 45 Degree 7mm Ultra Thin LED Aluminum Channel Gray
The JARBIH 5-pack ultra-thin LED aluminum profiles provide 45° oblique lighting for cabinets, wardrobes, and shelves. Each gray 1M channel measures 7 mm at its thickest point and includes a matching 5 m roll of 4 mm wide DC12V LED strip. The anodized 6063-T5 aluminum and soft silicone diffuser are shown in the product images.
Key Features

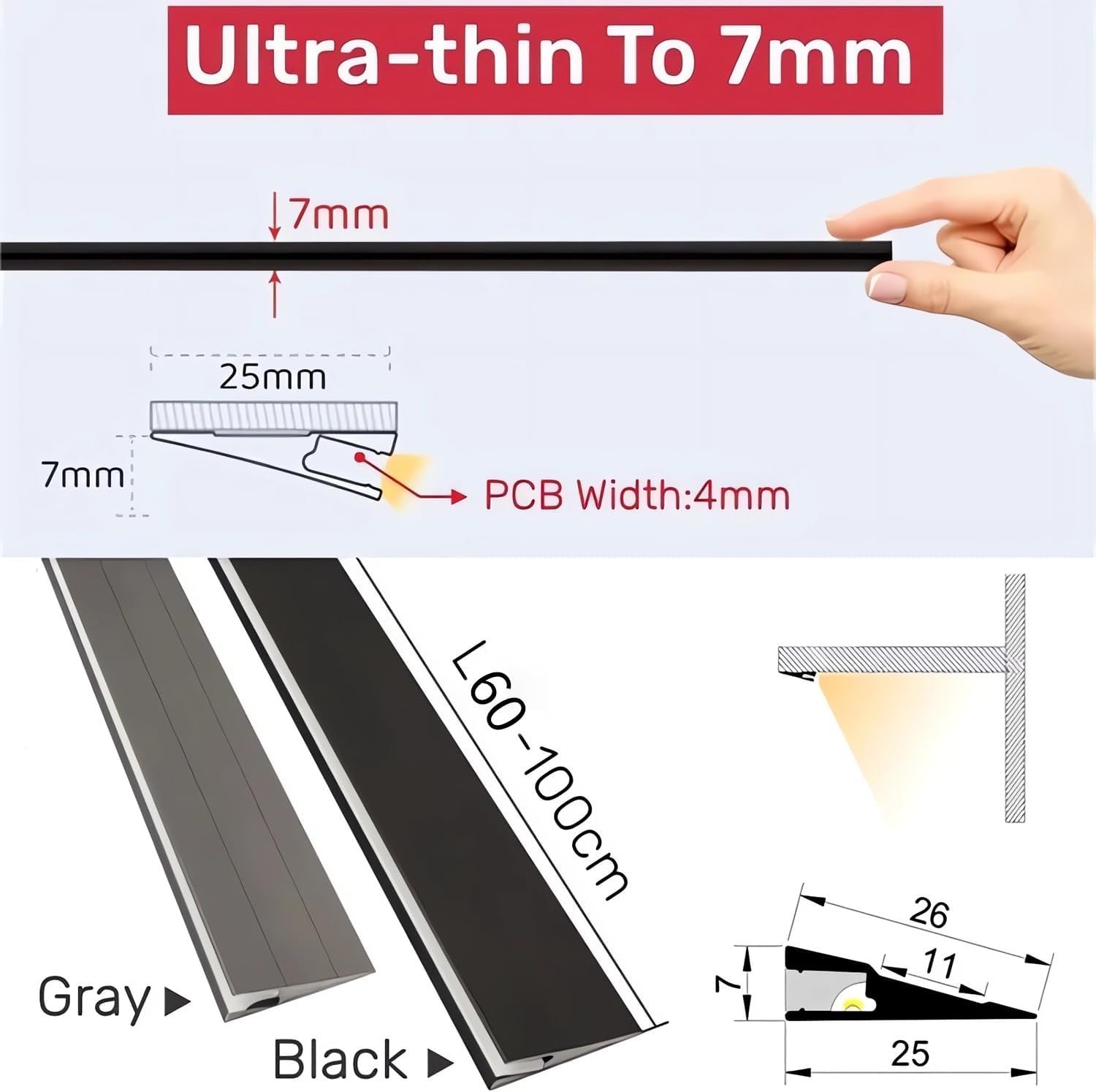

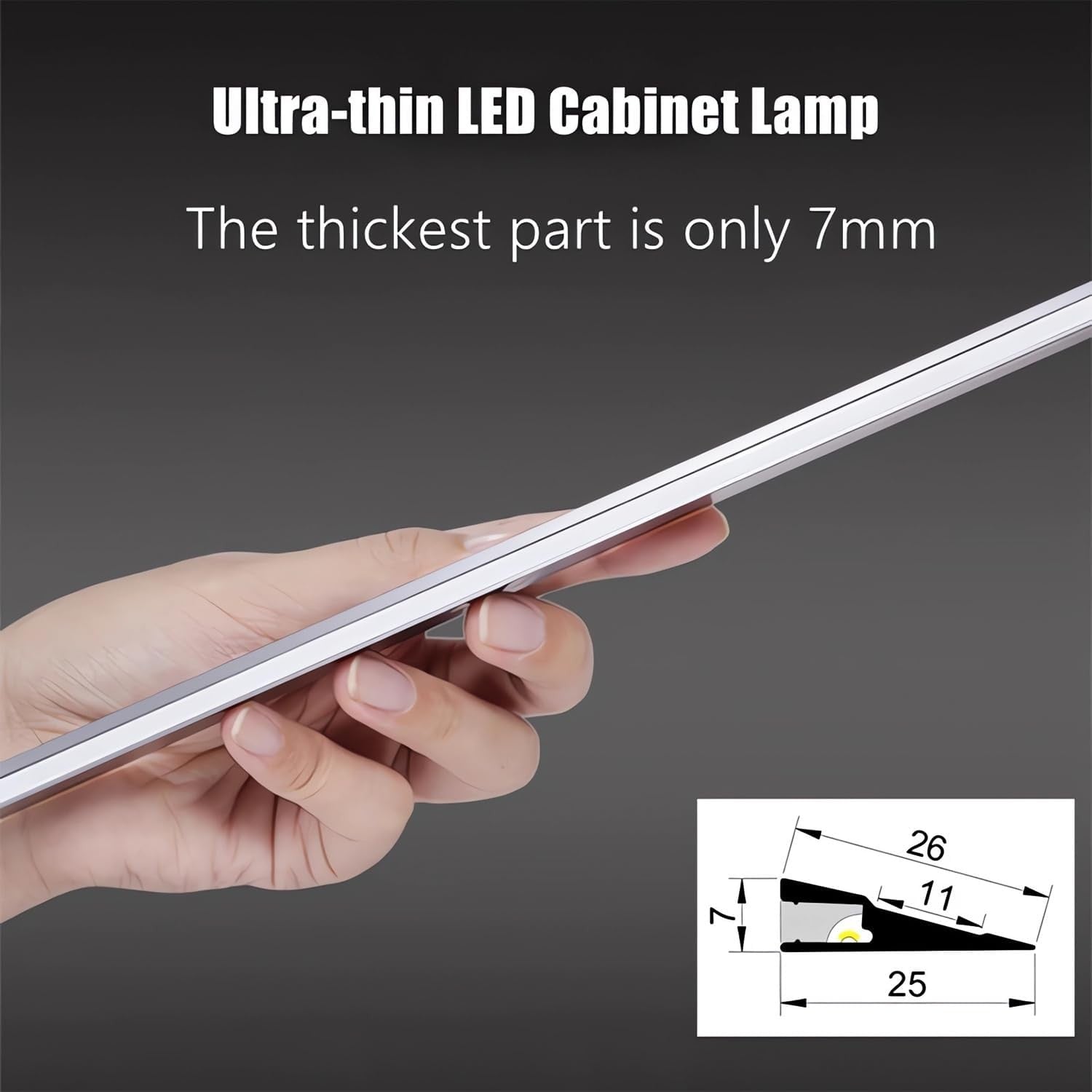

- Ultra-Thin Profile - 1 mm at the thinnest edge and 7 mm at the thickest edge for hidden surface mounting.

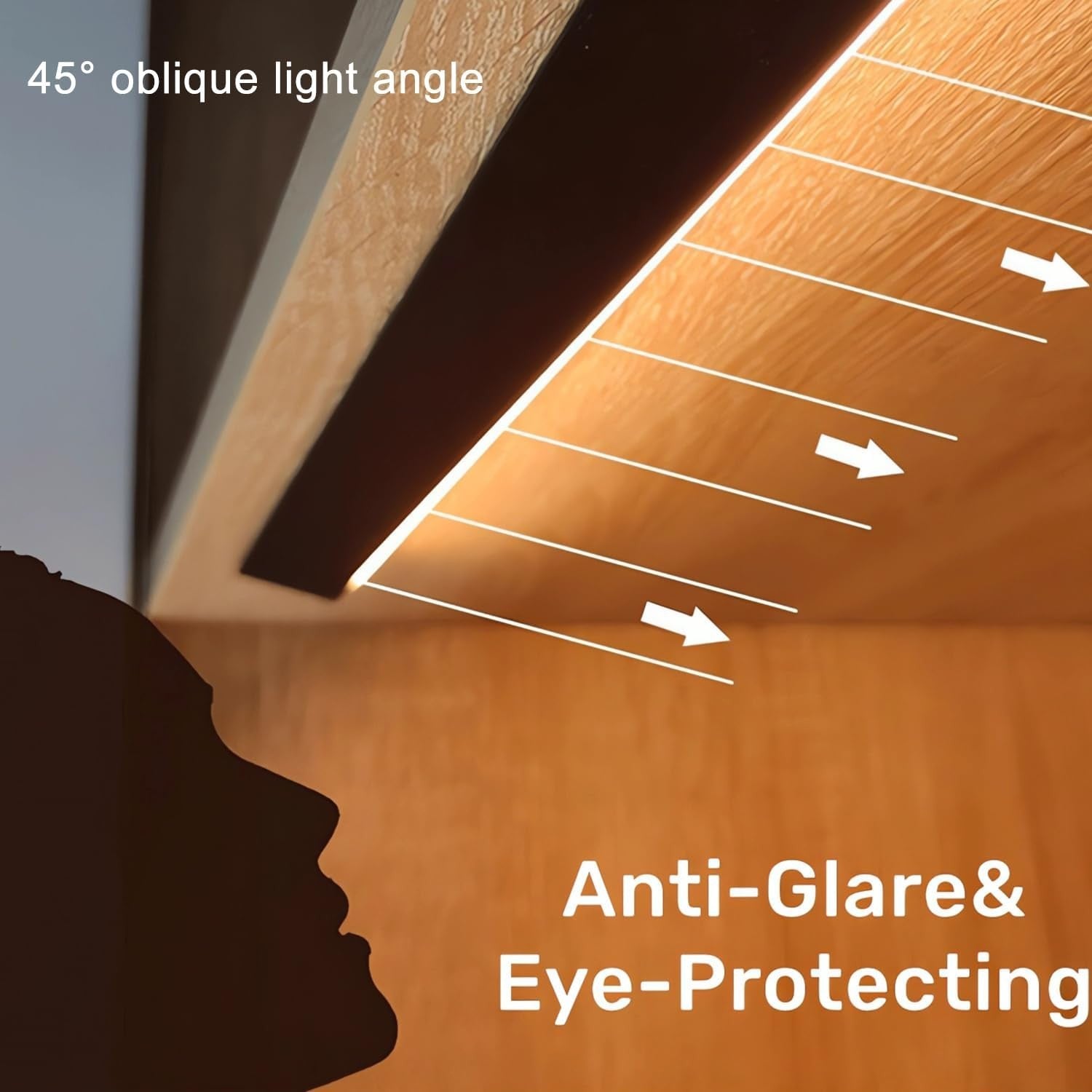

- 45° Oblique Lighting - Creates directional light and shadow contrast along cabinet edges and shelves.
- Anodized Aluminum Construction - 6063-T5 aluminum with anodized finish and soft silicone cover for durability and even light diffusion.
- Included LED Strip - 5 m length of 4 mm wide DC12V LED strip supplied with each 5-pack set.
- Double-Sided Tape Mounting - Adhesive backing allows direct attachment to cabinet surfaces before installing the LED strip and cover.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | JARBIH |
| MPN | RAN |
| EAN | 767392837552 |
| Profile Length | 1 m / 3.3 ft each (5 pieces) |
| Profile Height | 7 mm maximum |
| LED Strip Length | 5 m total |
| LED Strip Width | 4 mm |
| LED Strip Voltage | DC12V |
| Material | 6063-T5 anodized aluminum with silicone diffuser |
| Color | Gray |
Installation

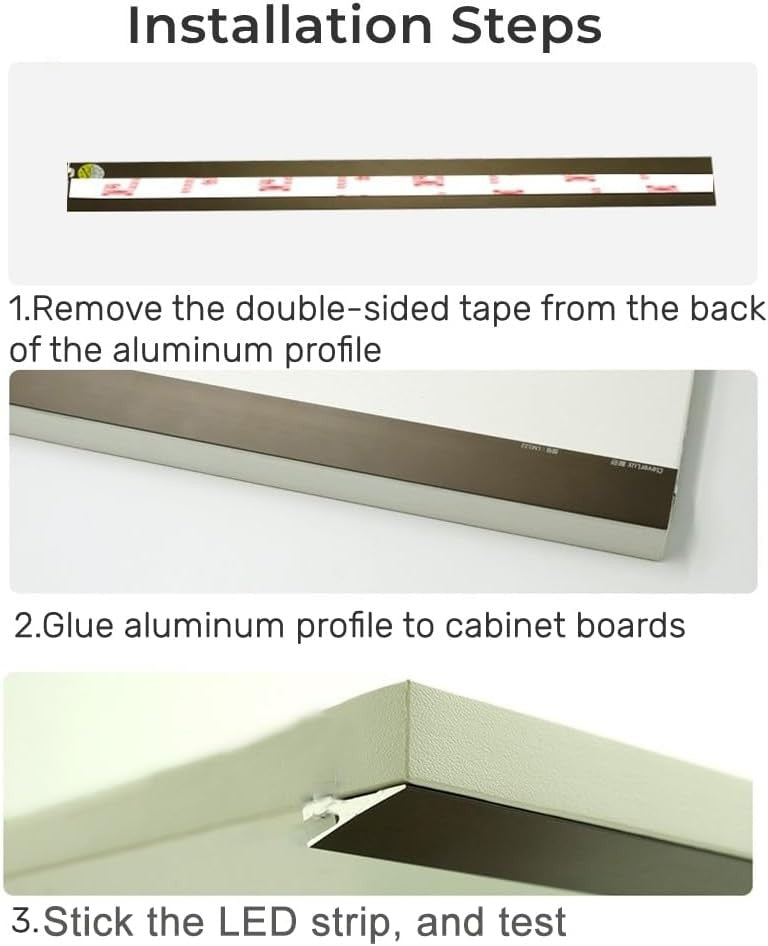

Remove the double-sided tape backing, press the aluminum profile onto the mounting surface, insert the LED strip, and snap the silicone cover in place. The process is shown step-by-step in the product images.
What Is Included

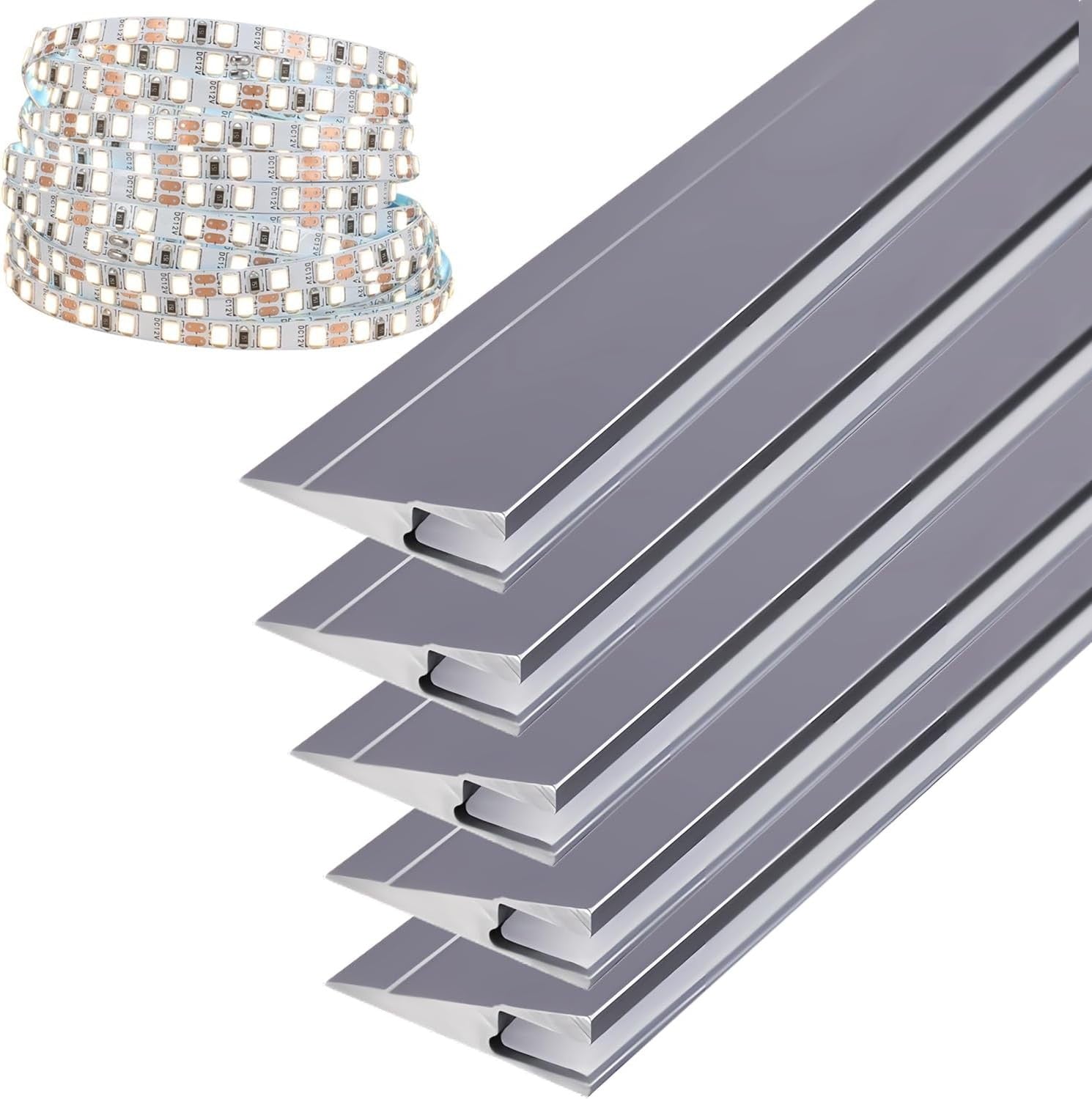

- 5 × 1 m gray ultra-thin LED aluminum profiles
- 5 m roll of 4 mm wide DC12V LED strip
- Silicone diffuser covers
Brand: JARBIH
Type: Ultra-Thin Led Aluminum Profile
Mounting Style: Surface Mount
MPN: RAN
LED Material: Aluminum
LED Color: Gray
Unit Quantity: 5
Unit Type: Unit
EAN: 0767392837552
