36" Concealed Sliding Barn Door Hardware Soft Close Aluminum Track 28" Opening
36" Concealed Sliding Barn Door Hardware Soft Close Aluminum Track 28" Opening
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
FINOSEN 36" Concealed Sliding Barn Door Hardware with Soft Close
The FINOSEN 36-inch concealed sliding barn door hardware kit features an aluminum top track, soft-close mechanism, and invisible floor track. Designed for wall-mount installation on interior doors with a minimum 28-inch opening width, this system supports doors up to 132 lbs and 1-1/4" to 1-3/4" thick. Door panel is not included.
Key Features

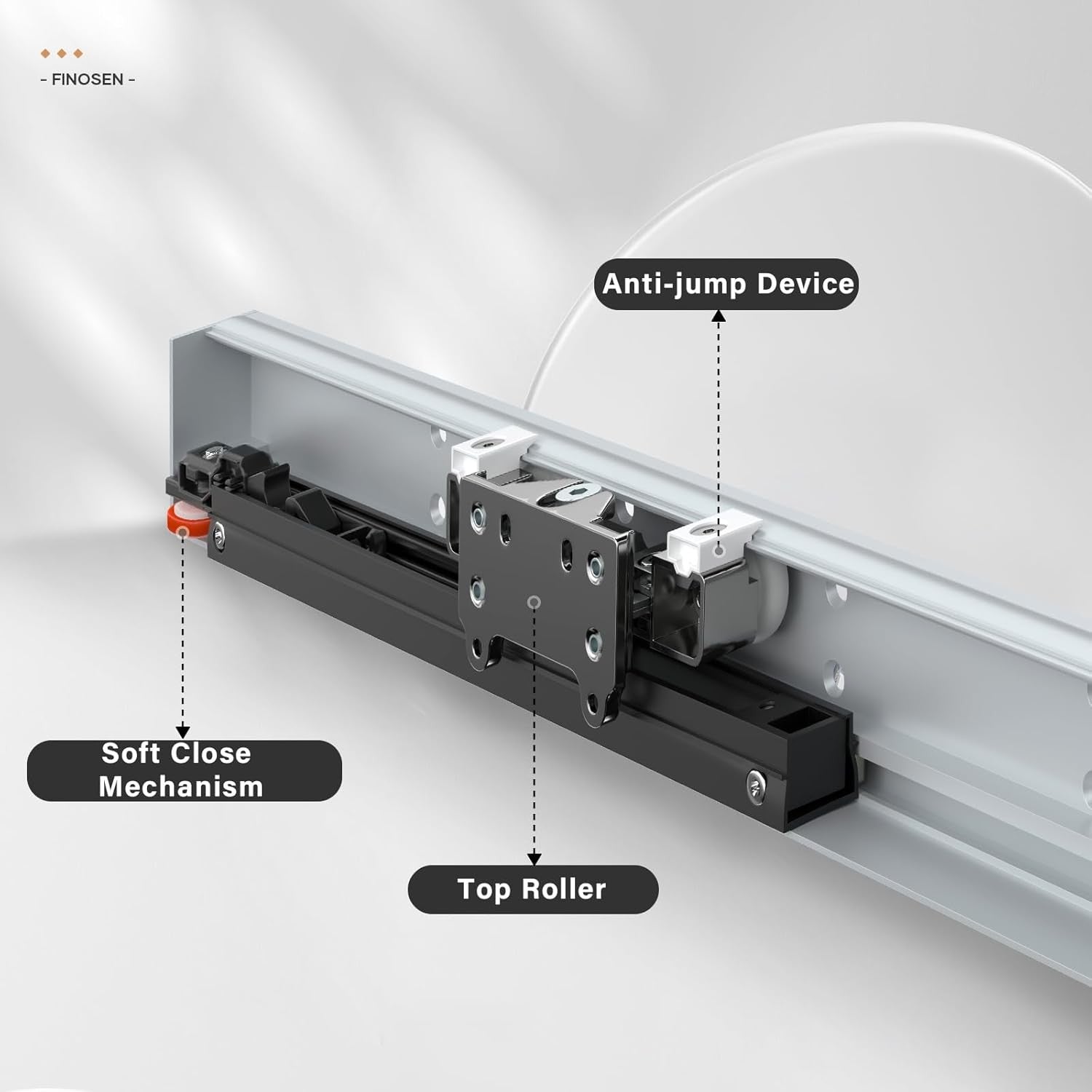

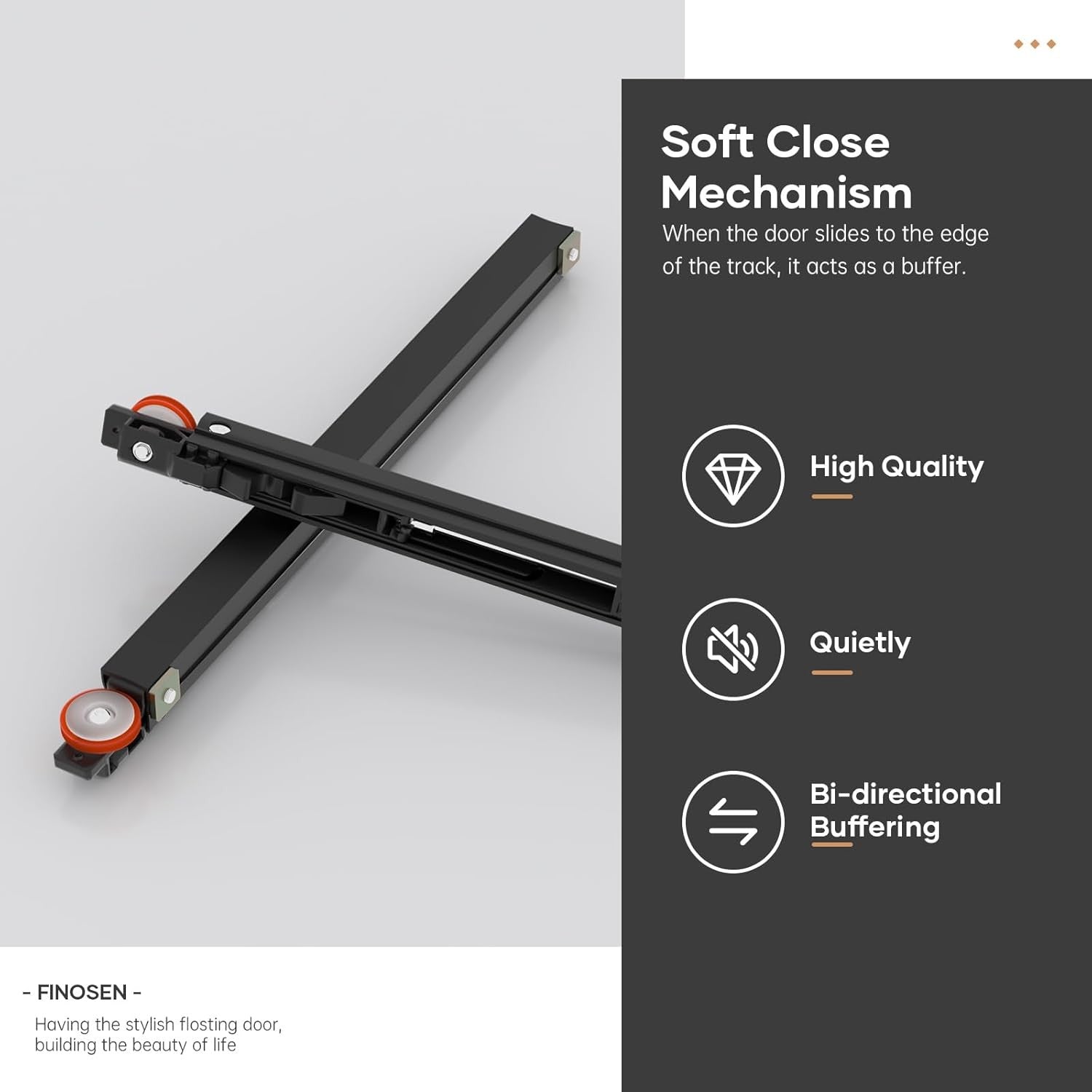

- Soft Close Mechanism - Dual soft-close units provide smooth, quiet operation in both directions.

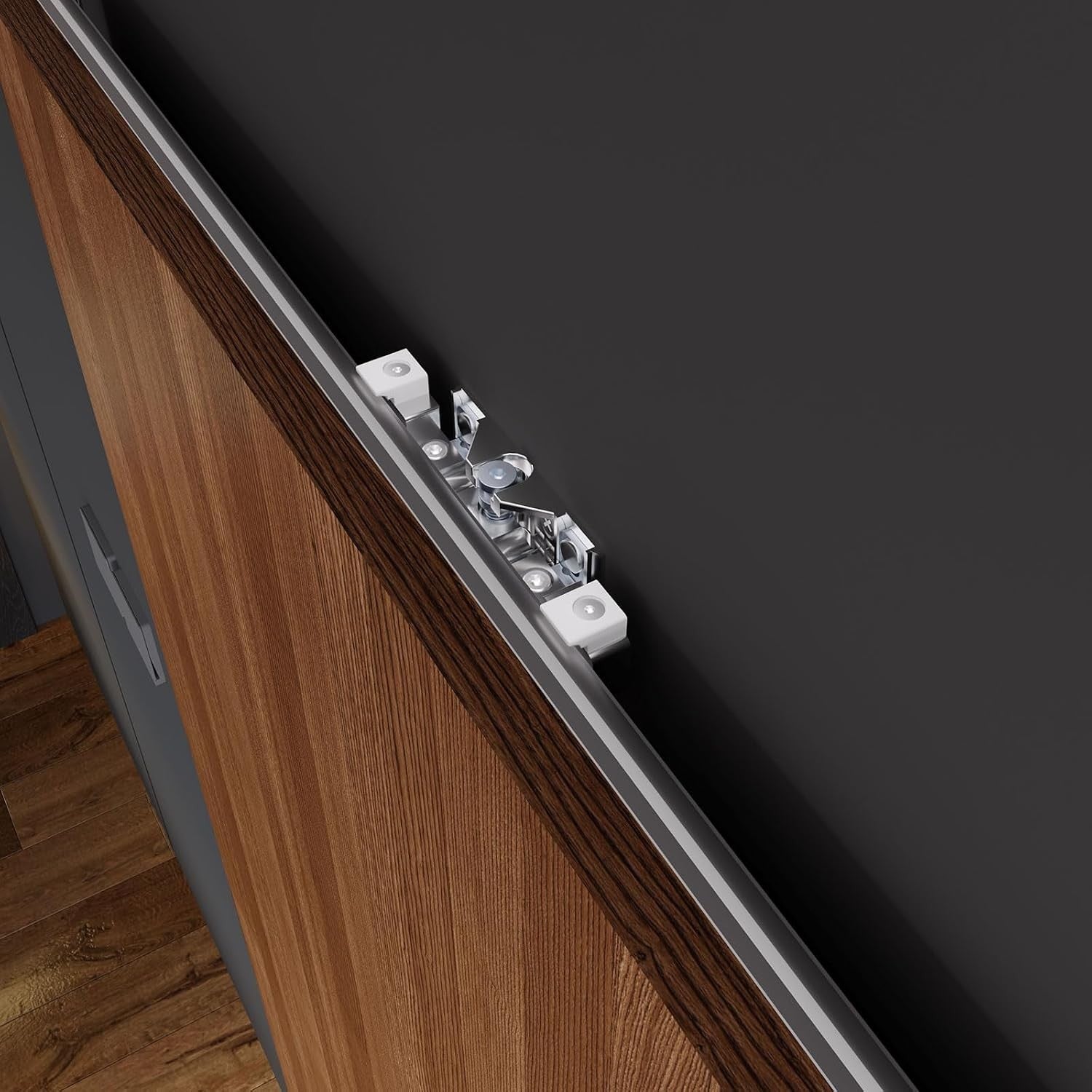

- Concealed Aluminum Track - 35-3/4" top track mounts above the door for a hidden appearance.

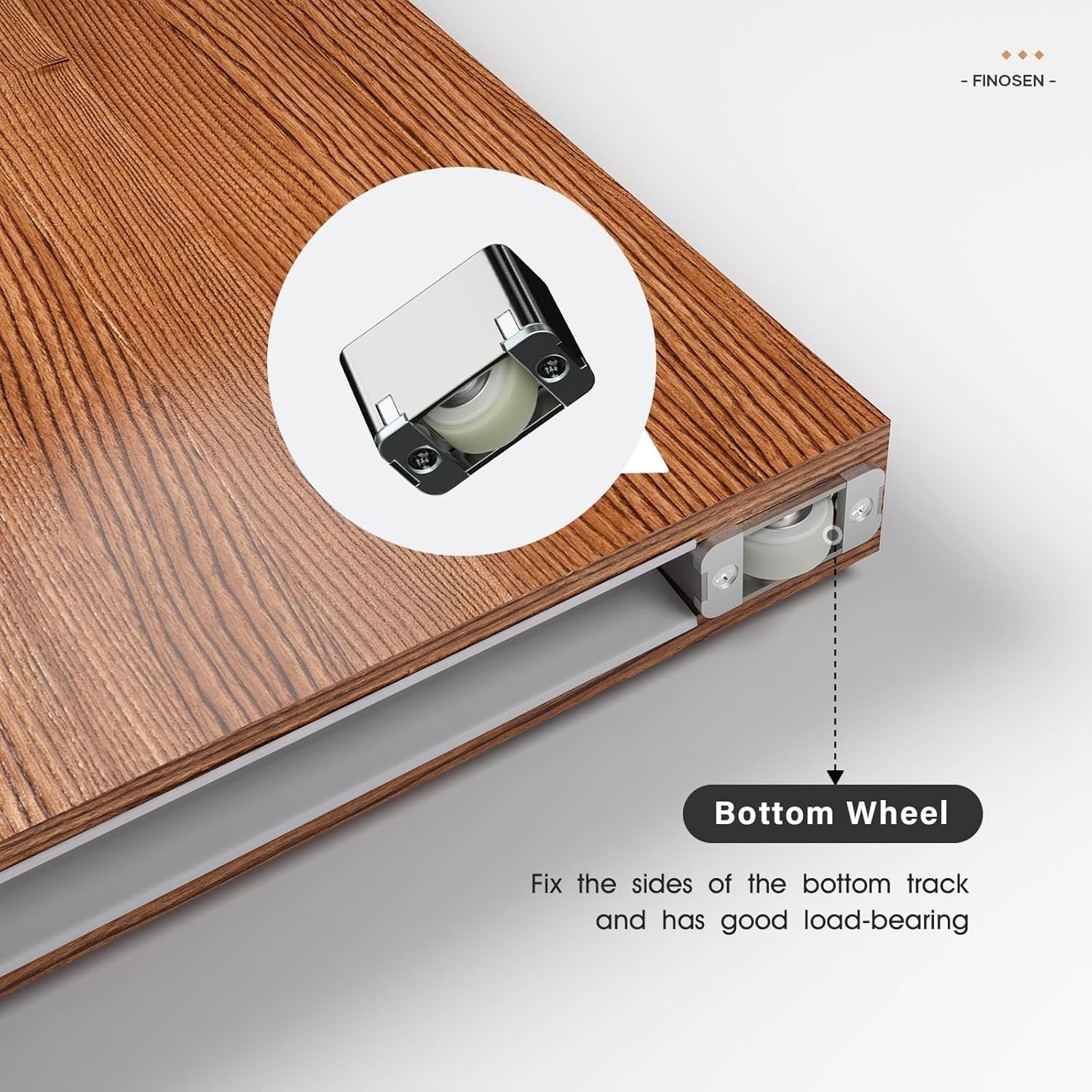

- Invisible Floor Track - Bottom track and wheels keep the floor surface clear while guiding the door.
- Wall Mount System - Hardware installs directly to the wall above the doorway.

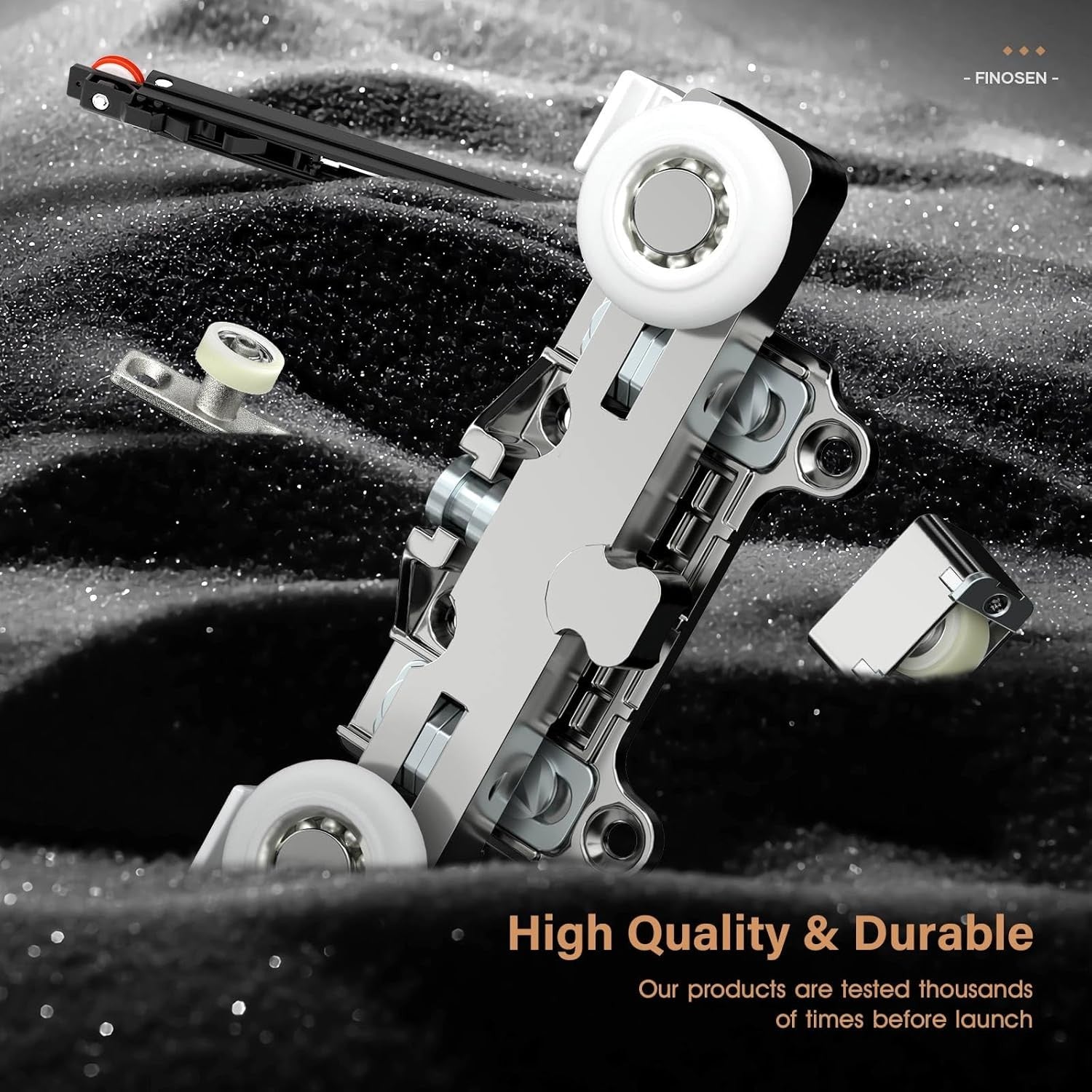

- Durable Construction - Silver-coated aluminum track with nylon rollers resists corrosion and rust.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | FINOSEN |
| MPN | FI_0504_36_A |
| Track Length | 35-3/4 inch |

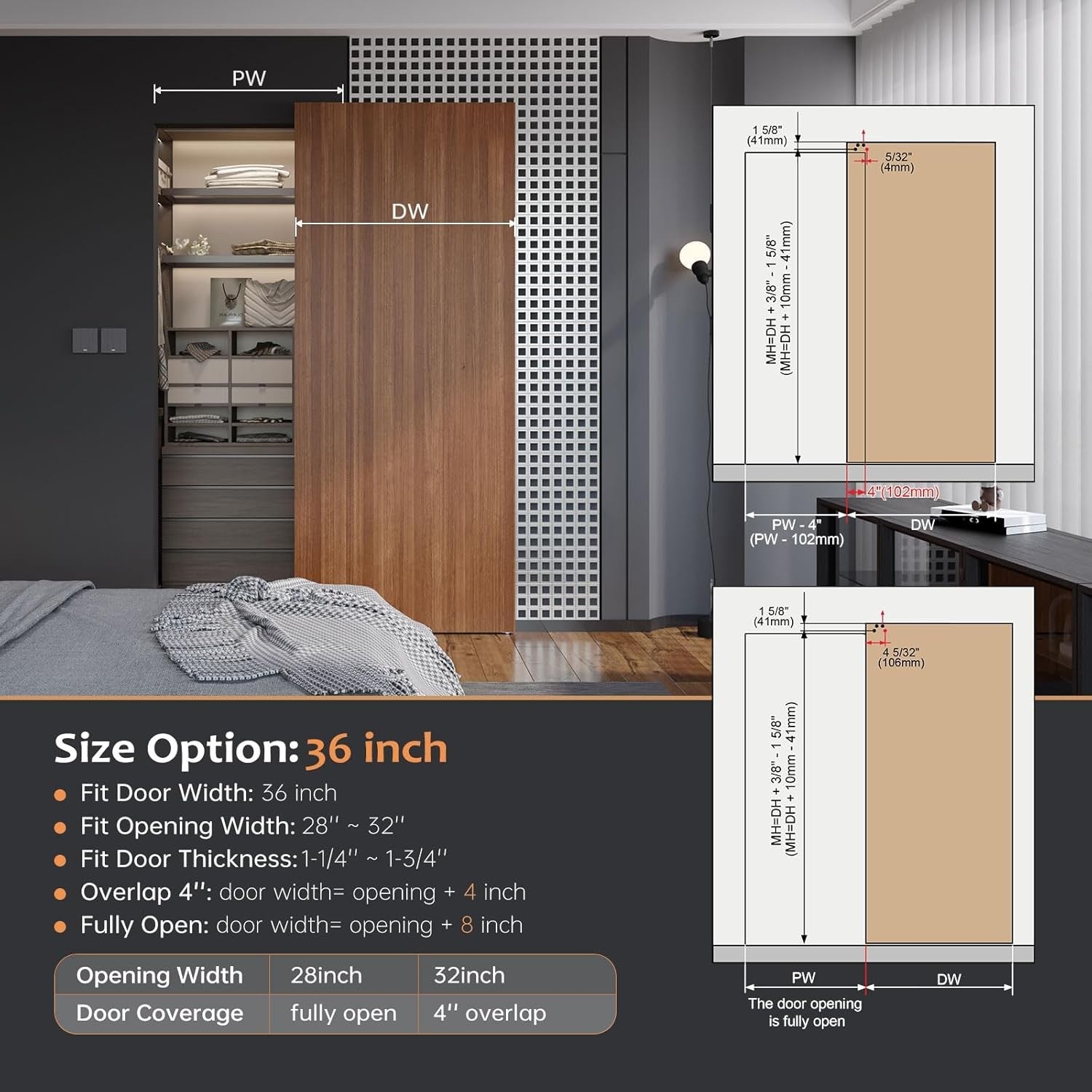

| Minimum Opening Width | 28 inch |
| Door Thickness Range | 1-1/4" to 1-3/4" |
| Maximum Door Weight | 132 lb |
| Minimum Door Width | 28-17/32 inch |

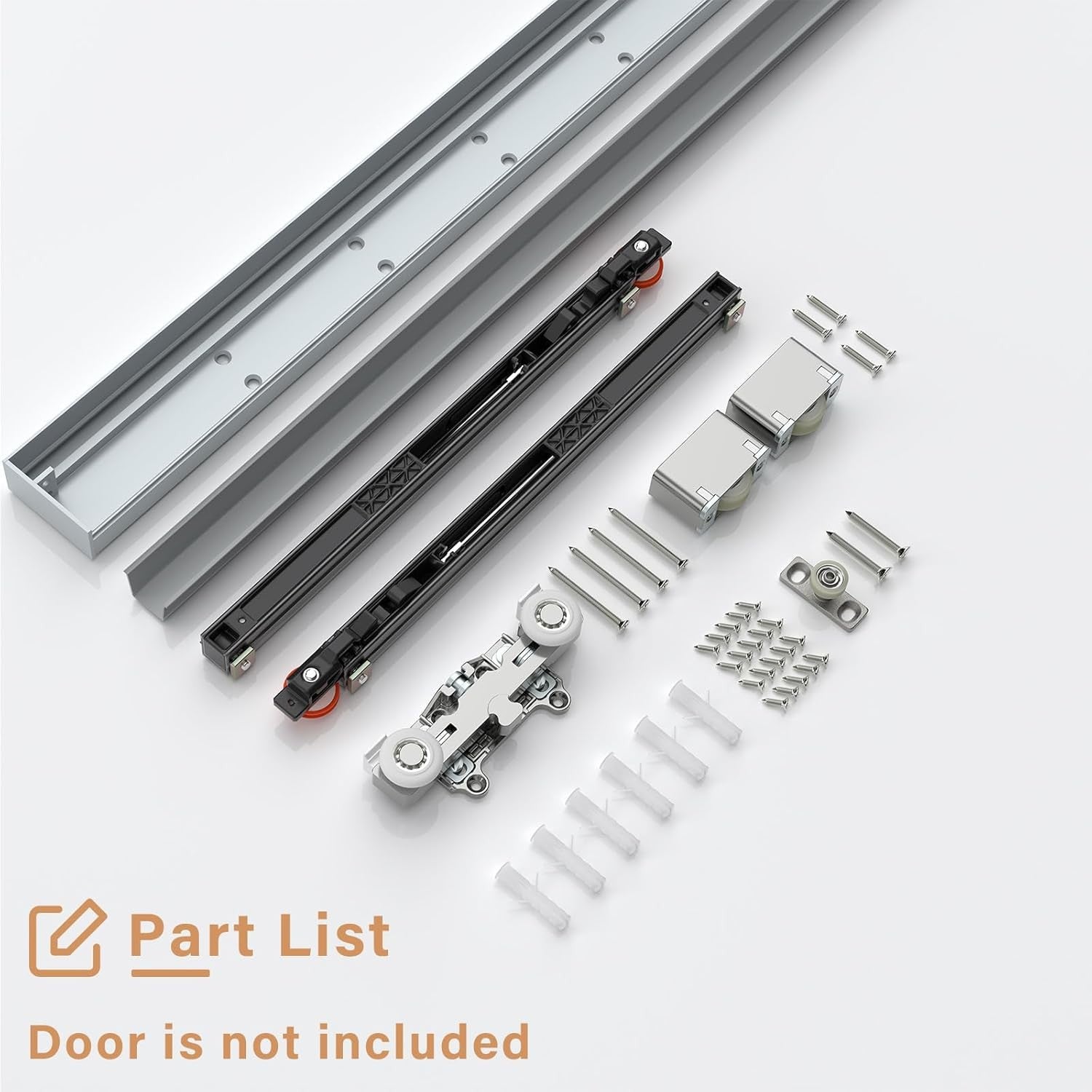

What Is Included
- 1 x 35-3/4" aluminum top track
- 1 x top roller assembly
- 2 x soft-close mechanisms
- 2 x end caps
- 2 x bottom wheels
- 1 x bottom track
- 1 x floor guide
- All necessary screws and hardware
Installation Notes

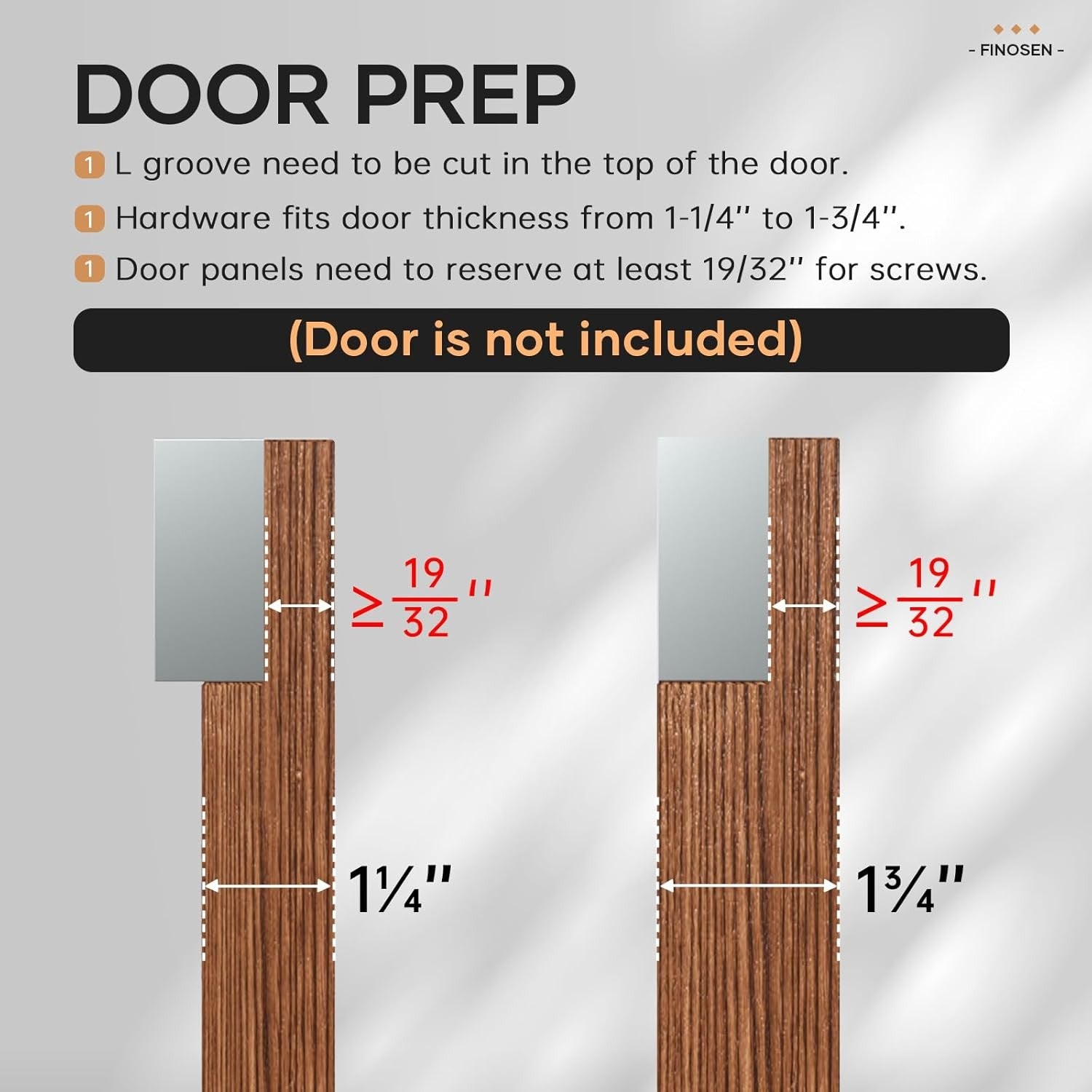

The track can be cut to fit smaller openings. An L-groove must be cut in the top of the door panel, leaving at least 19/32" of door thickness for screws. Ensure the floor is flat before installation.
Brand: FINOSEN
Suitable For: Barn Door
Type: Concealed Sliding Barn Door Hardware
Material: Aluminum
Color: Silver
Item Length: 36 in
MPN: FI_0504_36_A
Number in Pack: 1
Items Included: Barn Door Hardware
Style: Modern
Fixings Supplied: Yes
