Betesy Hardware 28" 500LB Heavy Duty Drawer Slides Full Extension Side Mount Ball Bearing 1 Pair
Betesy Hardware 28" 500LB Heavy Duty Drawer Slides Full Extension Side Mount Ball Bearing 1 Pair
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

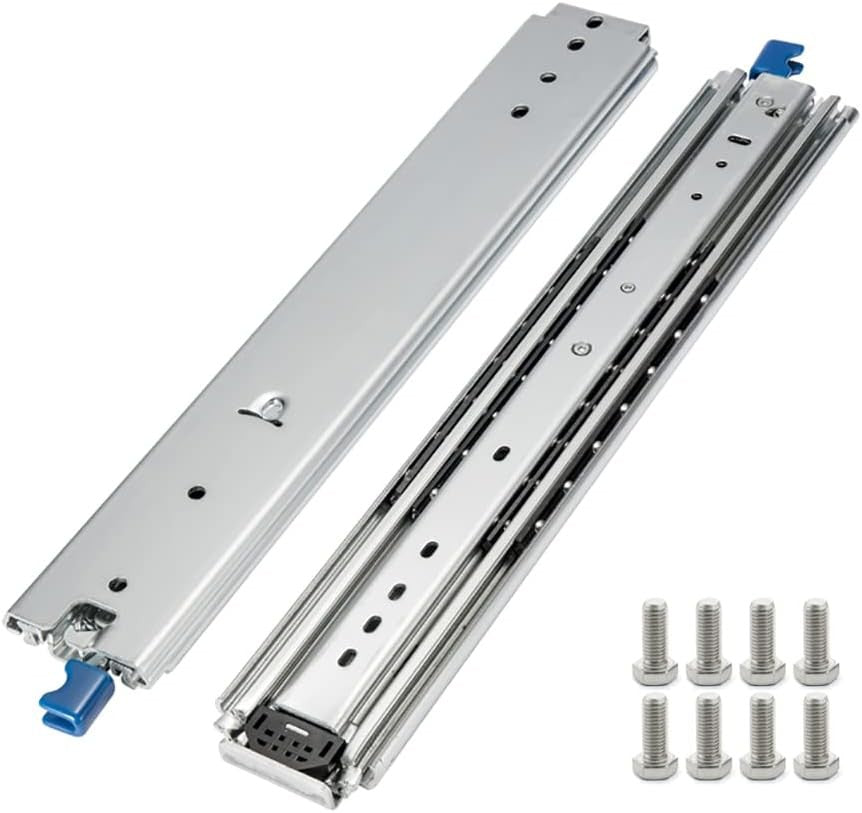

28 Inch 500LB Heavy Duty Side Mount Full Extension Ball Bearing Drawer Slides - 1 Pair by Betesy Hardware
This is a 1 pair of 28 Inch 500LB Load Capacity Heavy Duty Drawer Slides with Full Extension Side Mount Ball Bearing Drawer Rails from Betesy Hardware. Built from 2.5mm thickened cold rolled alloy steel with zinc plated finish for rust resistance, these slides feature a locking mechanism and silent operation. MPN: BD-HVNE-76-28. Ideal for demanding applications like custom drawers, beds, and storage units.
Key Features of Betesy Hardware Heavy Duty Drawer Slides

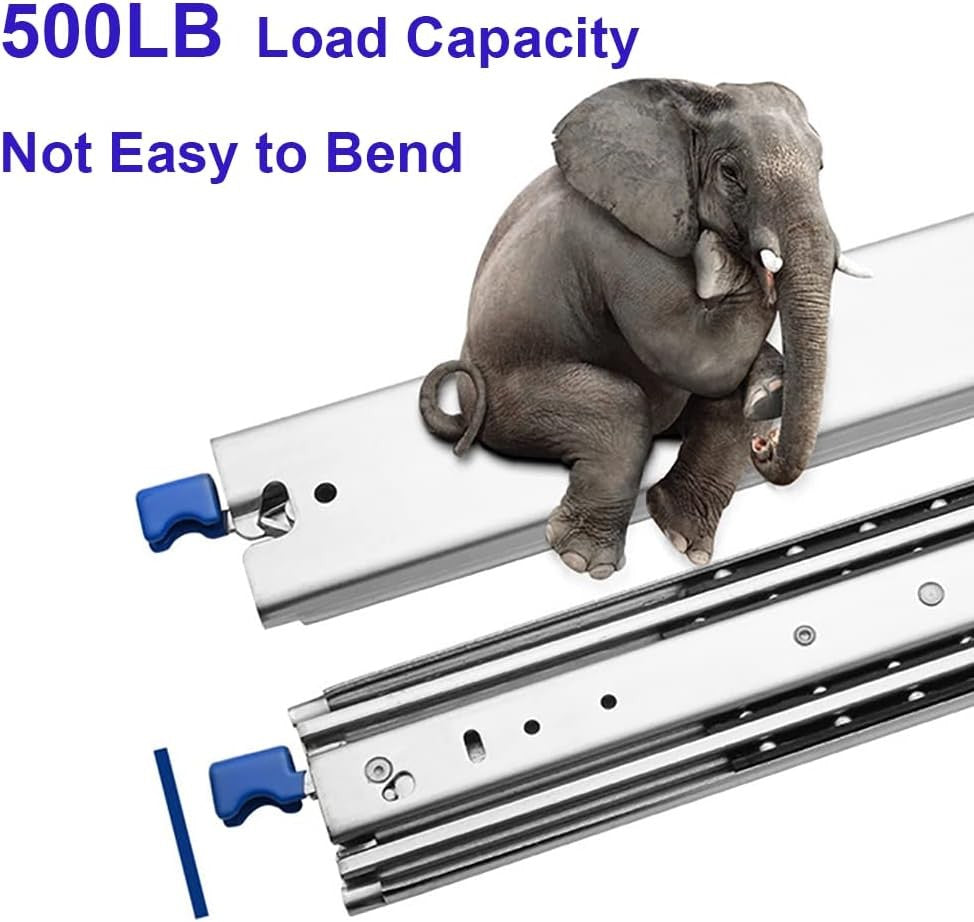

- 500 LB Load Capacity – Supports heavy loads with full extension for complete access.

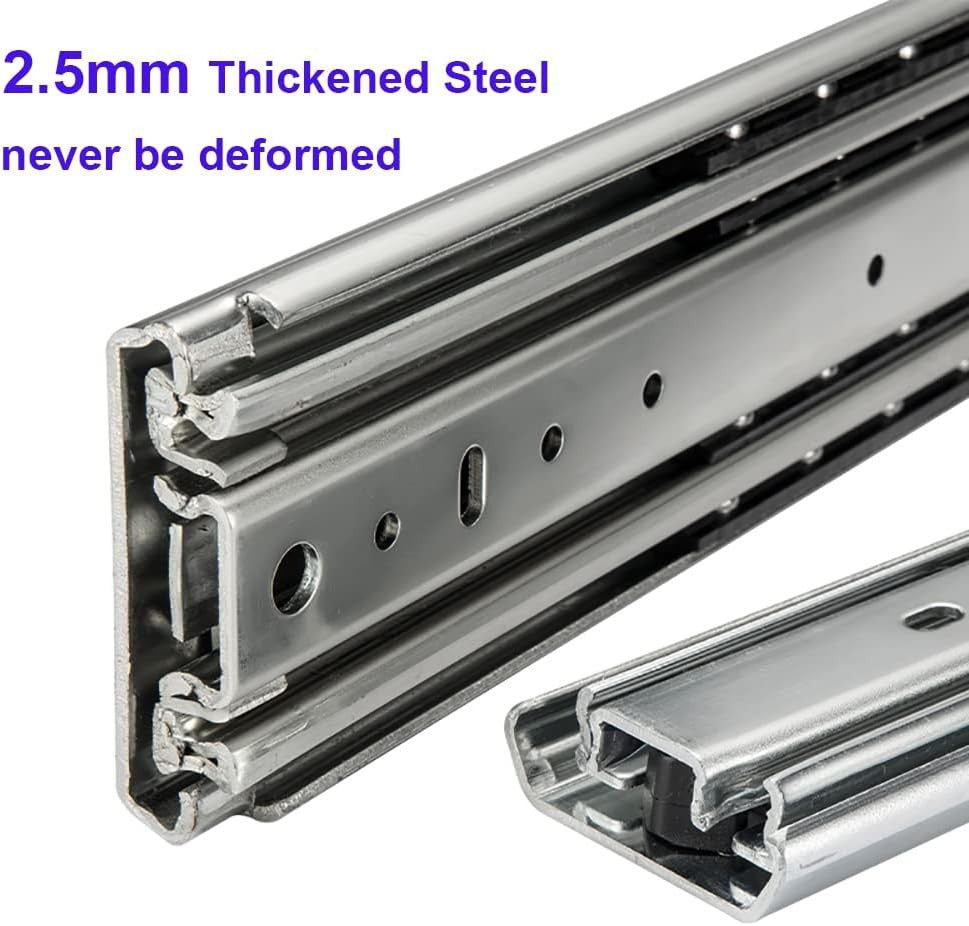

- Premium 2.5mm Thickened Steel – Cold rolled alloy steel with zinc plating for superior moisture resistance and durability.

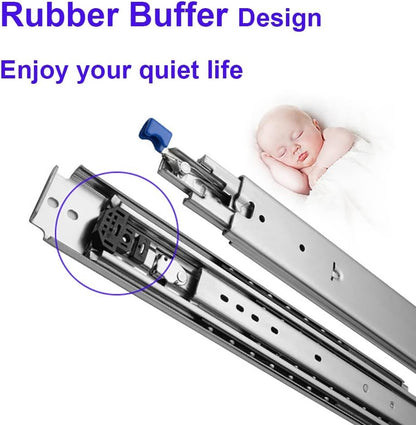

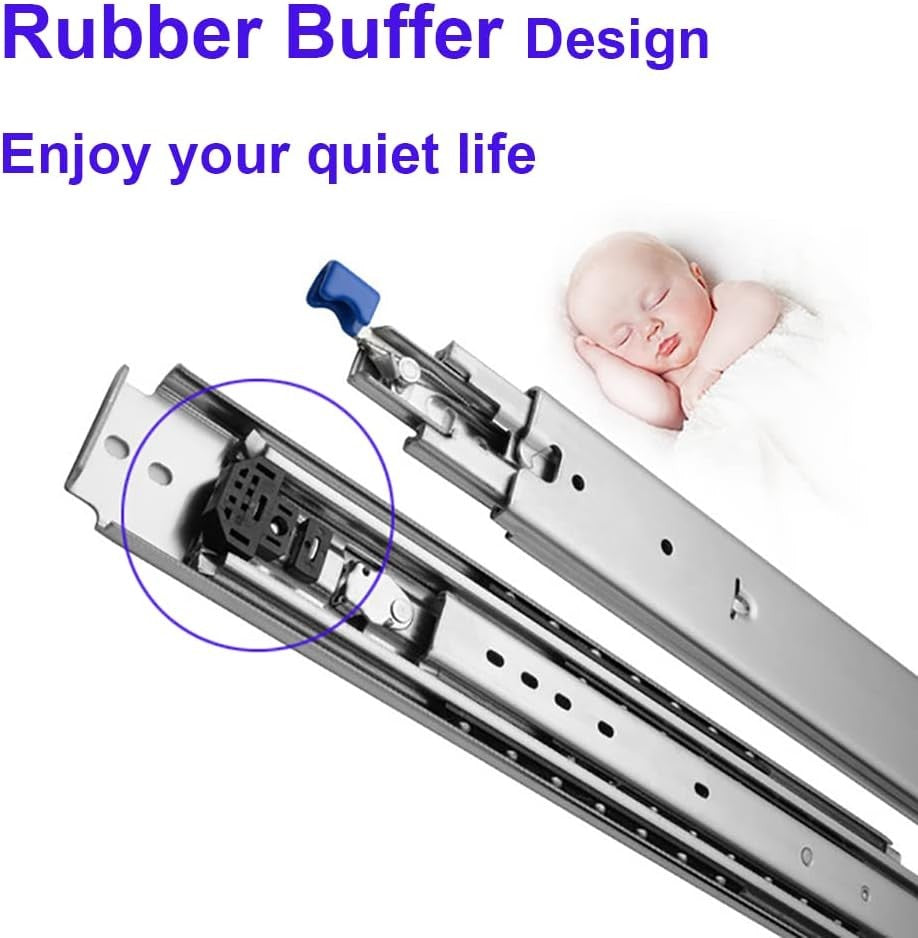

- Silent Design – Nylon rubber ends reduce noise during use for a quieter environment.
- Lock Function – Secure locking device prevents unintended sliding; unlocks with a gentle pull (device not separable).

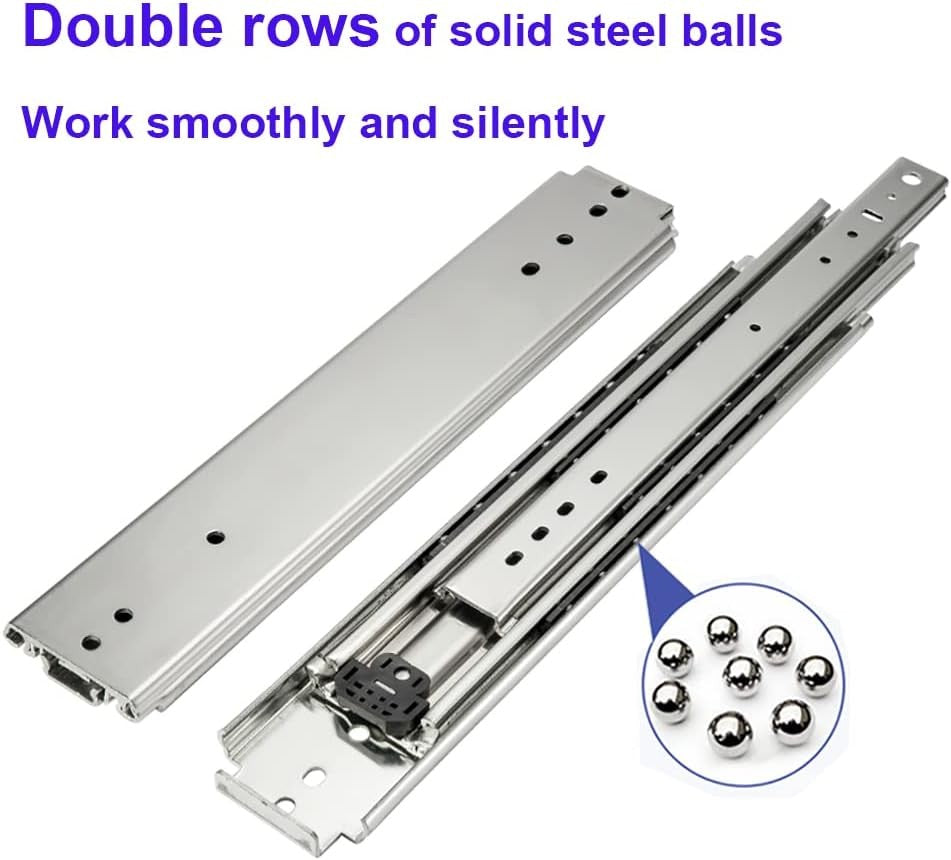

- Ball Bearing Construction – Smooth side mount operation with included screws for easy setup.
- Lifetime Service – Contact for solutions if issues arise.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Betesy Hardware |
| MPN | BD-HVNE-76-28 |
| Length | 28 Inches |
| Width | 76mm (2.99 Inches) |
| Thickness | 19mm (0.75 Inches) |
| Material | Alloy Steel (Cold Rolled, 2.5mm Thickened) |
| Color | Silver |
| Finish Type | Zinc Plated |
| Mounting Type | Side Mount |
| Maximum Weight Capacity | 500 Pounds |
| Extension Type | Full Extension |
| Drawer Type | Ball Bearing Slide, Side Mount |
| Includes | Screws |

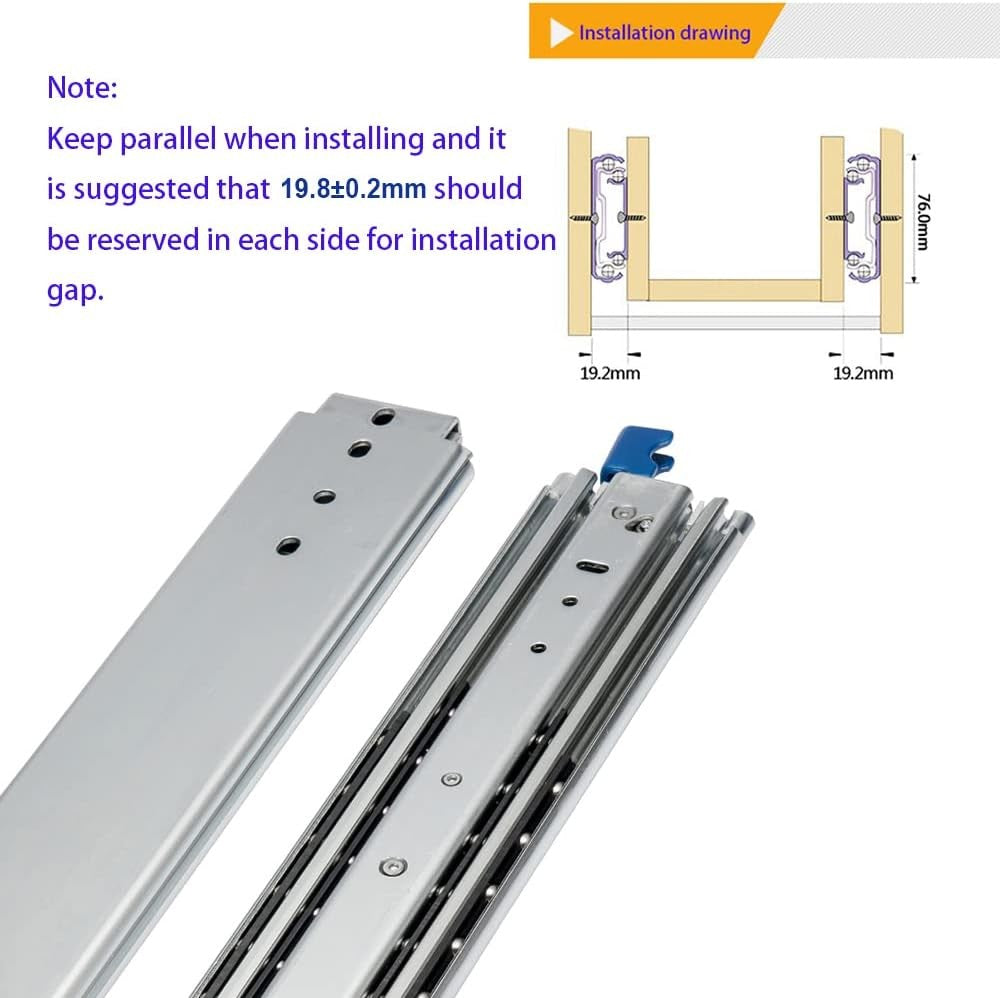

Installation & Maintenance Guide for Heavy Duty Drawer Slides
Plan assembly carefully as slides cannot be separated. Use thin spacers under drawers during install for alignment. Pro tip: Test load extension before final securing.
- Prepare Surfaces: Ensure cabinet and drawer sides are level and clean.
- Mount Slides: Attach to cabinet with included screws; maintain parallel alignment.
- Position Drawer: Suspend drawer with spacers; secure slides to drawer sides.
- Test Operation: Extend fully, check lock function and smoothness under load.
- Maintenance: Wipe clean periodically; lubricate ball bearings if needed for longevity.
Why Choose Betesy Hardware 28 Inch Drawer Slides?
Users praise these slides for sturdy performance in custom builds like slide-out beds in vans and heavy truck drawers, holding 170+ lbs smoothly without sagging. The locking feature and quiet glide make them reliable for workshops, RVs, and home storage.
Upgrade your heavy-duty storage with Betesy Hardware 28 Inch 500LB Drawer Slides—Order your pair today!
Brand: Does not apply
Type: Ball Bearing
Material: Alloy Steel (Cold Rolled, 2.5mm Thickened)
Color: Silver
MPN: BD-HVNE-76-28
Number in Pack: 2
Style: Side Mount Full Extension
Manufacturer Warranty: Lifetime
