1 Pair 20 Inch Soft Close Drawer Slides Full Extension Ball Bearing 200 lb
1 Pair 20 Inch Soft Close Drawer Slides Full Extension Ball Bearing 200 lb
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
HBL' 1 Pair 20 Inch Soft Close Drawer Slides Full Extension Ball Bearing 200 lb
The HBL' 20-inch soft-close drawer slides are heavy-duty cabinet hardware made from cold-rolled steel with a zinc-plated finish. Each pair features full-extension ball-bearing construction, a 200 lb load capacity, and a hydraulic soft-close mechanism for quiet operation. The slides measure 20 inches long, 1-3/4 inches wide, and 1/2 inch thick.
Key Features

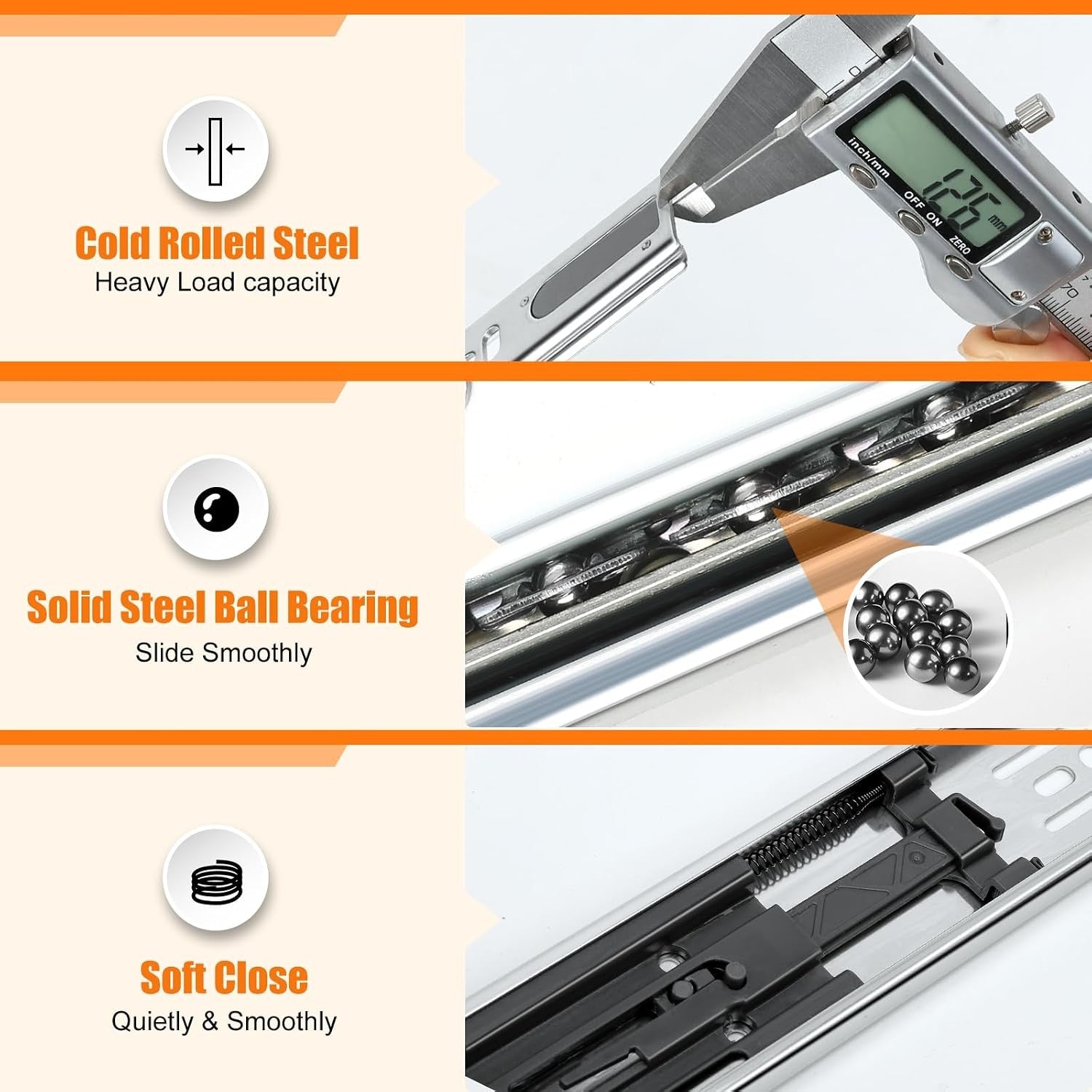

- Soft Close Mechanism - Hydraulic damper and double-spring design for smooth, quiet closing.
- 200 lb Capacity - Heavy-duty construction supports up to 200 pounds per pair.
- Full Extension - Three-section ball-bearing design extends fully for complete drawer access.
- Rust-Resistant Finish - Zinc-plated cold-rolled steel provides long-lasting durability.
- Double Anti-Drop Protection - Keeps drawer secure while allowing easy removal for cleaning.

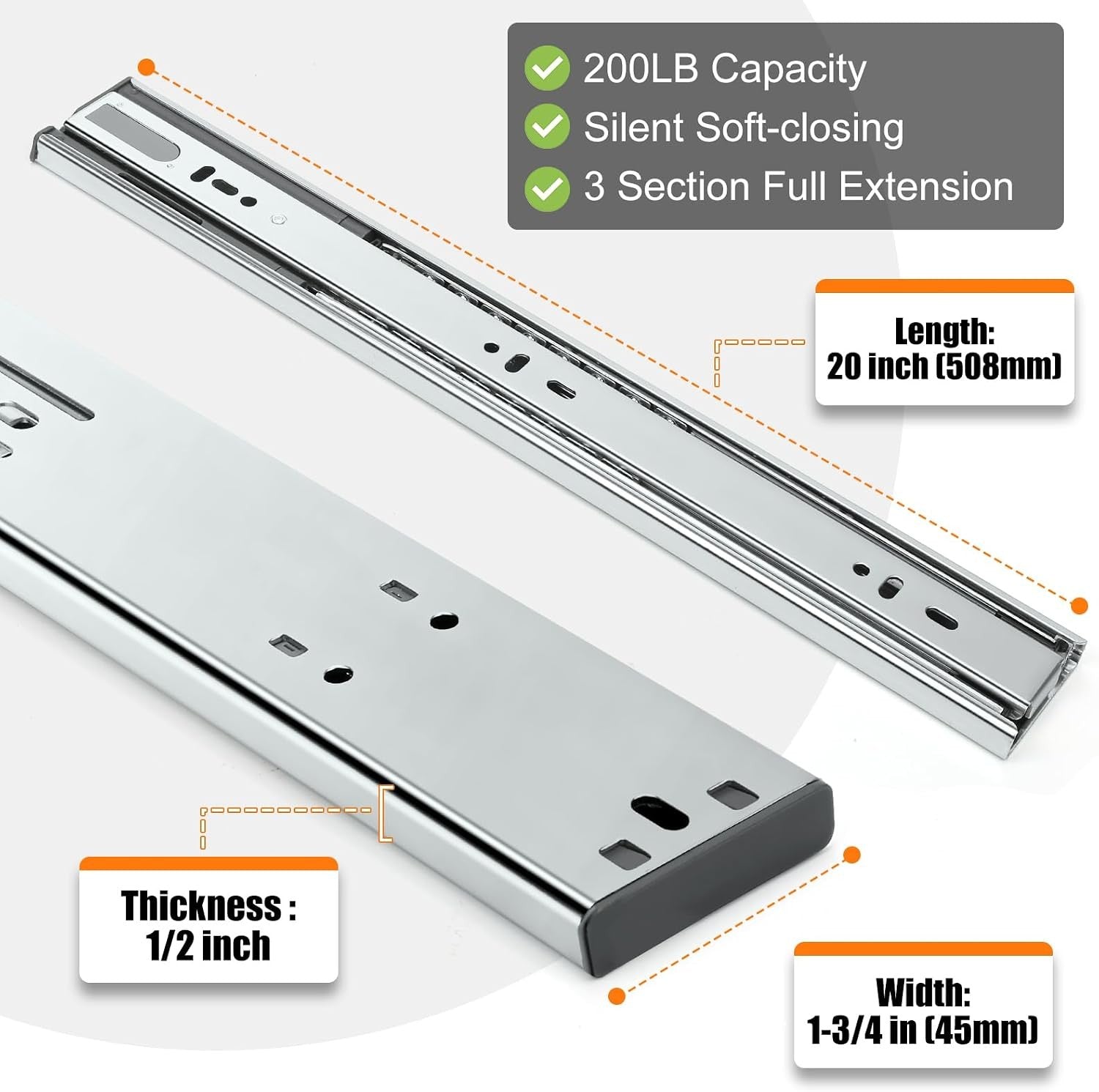

Technical Specifications
| Specification | Details |
|---|---|
| Brand | HBL' |
| MPN | DLS |
| Length | 20 in (508 mm) |
| Width | 1-3/4 in (45 mm) |
| Thickness | 1/2 in (12.7 mm) |
| Load Capacity | 200 lb |
| Material | Cold-rolled steel with zinc plating |
| Extension Type | Full extension, 3-section |
Installation Notes

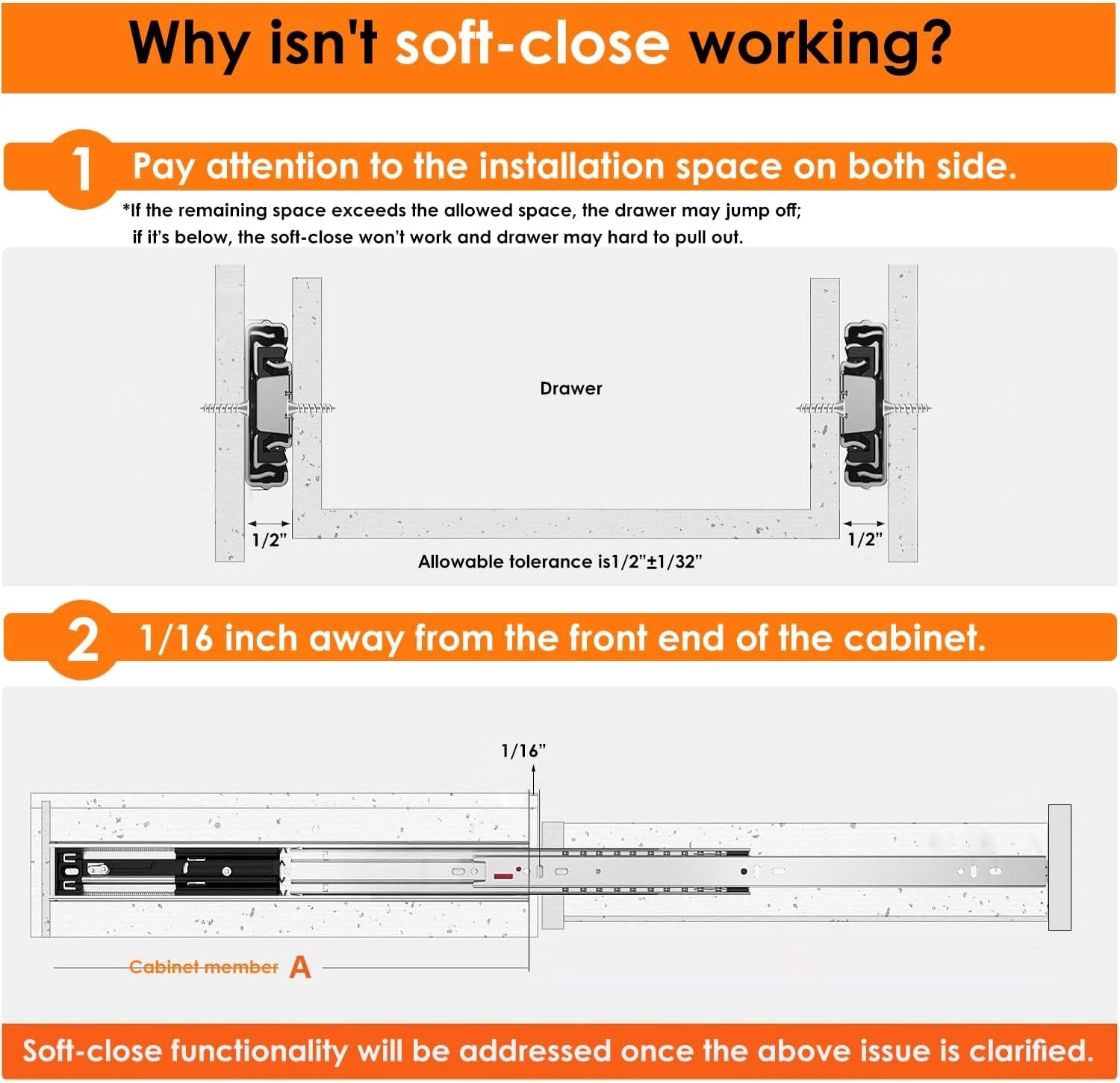

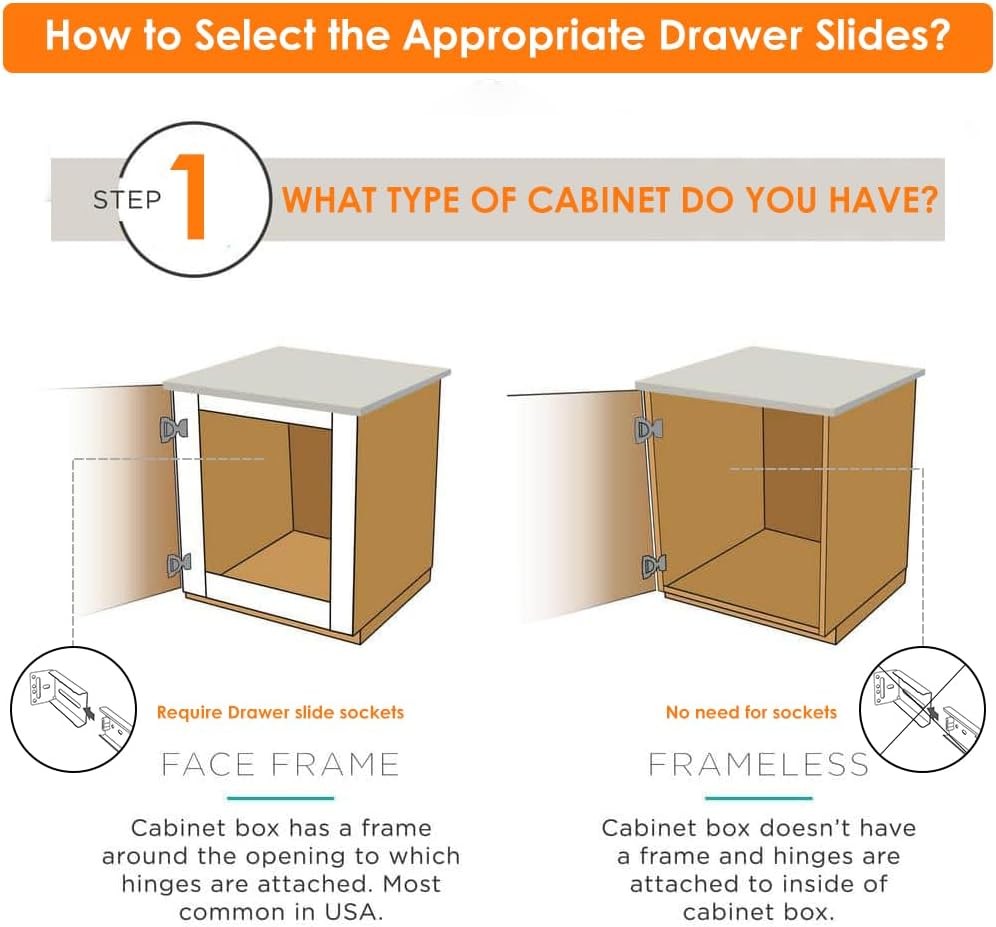

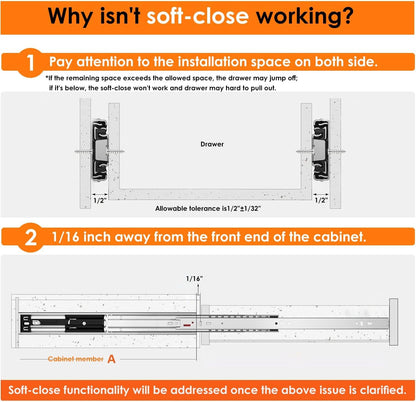

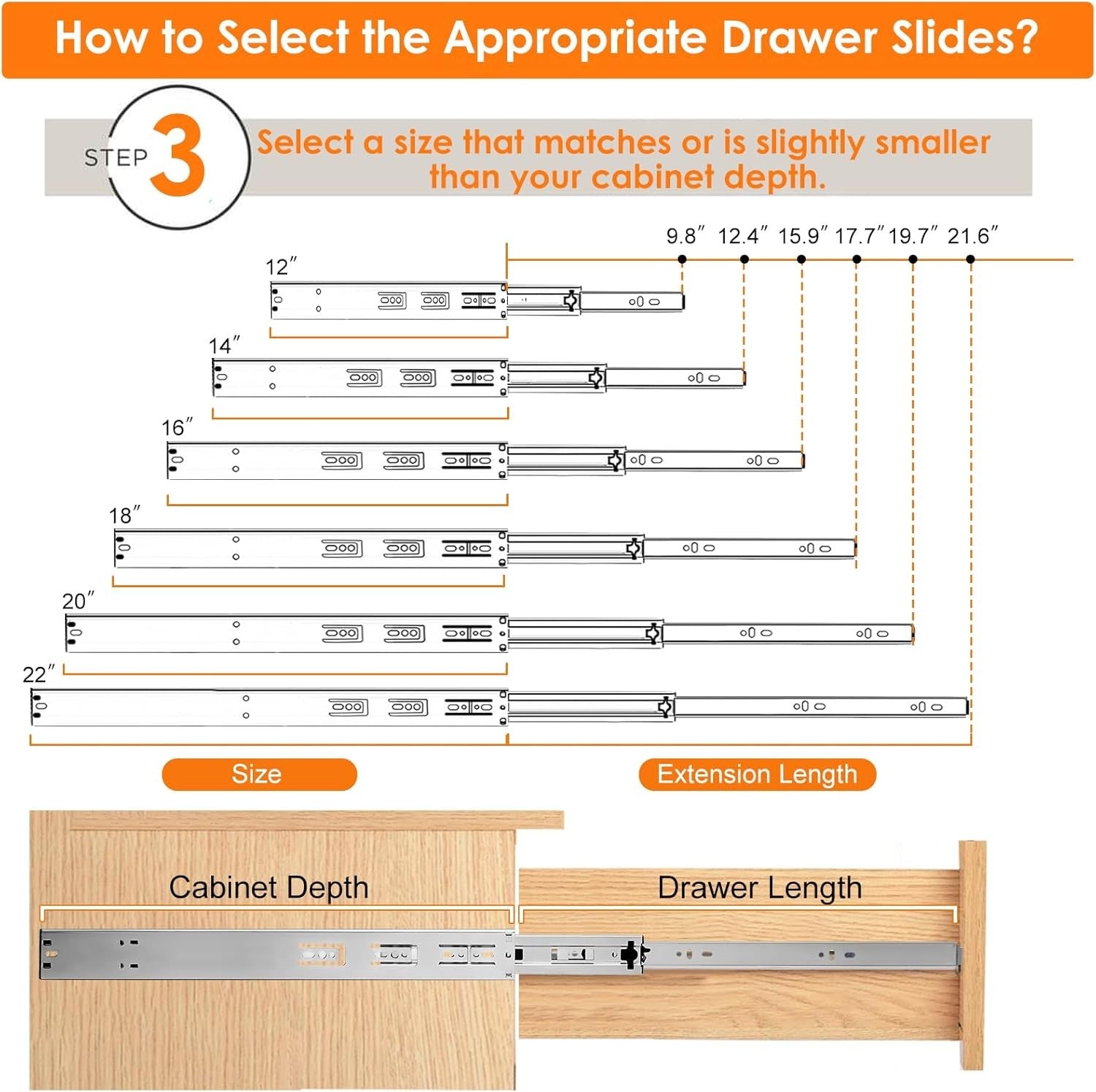

Requires 1/2 inch clearance on each side for proper soft-close function. Video installation guidance is available from the manufacturer. Suitable for both face-frame and frameless cabinets (rear mounting brackets may be needed for face-frame applications).
What Is Included

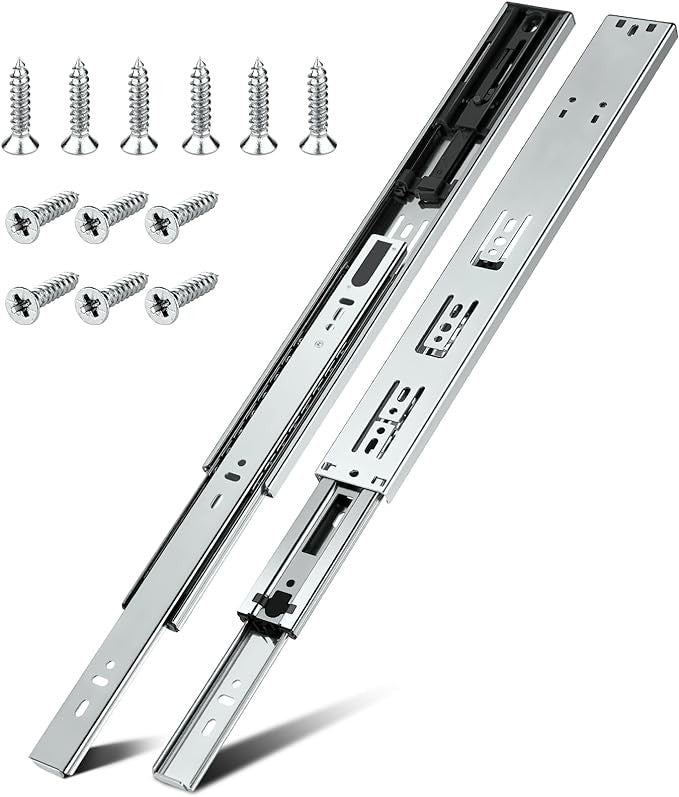

- 1 Pair (2 slides) of 20-inch soft-close drawer slides
Brand: HBL'
Closing Type: Soft Close
Type: Full Extension
Item Width: 1.75 in
Material: Cold-rolled steel with zinc plating
Item Height: 0.5 in
Color: Silver
Item Length: 20 in
MPN: DLS
Number in Pack: 2
Extension Length: 20 in
