HPE Aruba Instant On AP22D Wi-Fi 6 Dual Band Access Point - Indoor
HPE Aruba Instant On AP22D Wi-Fi 6 Dual Band Access Point - Indoor
Out of stock
Save 45%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

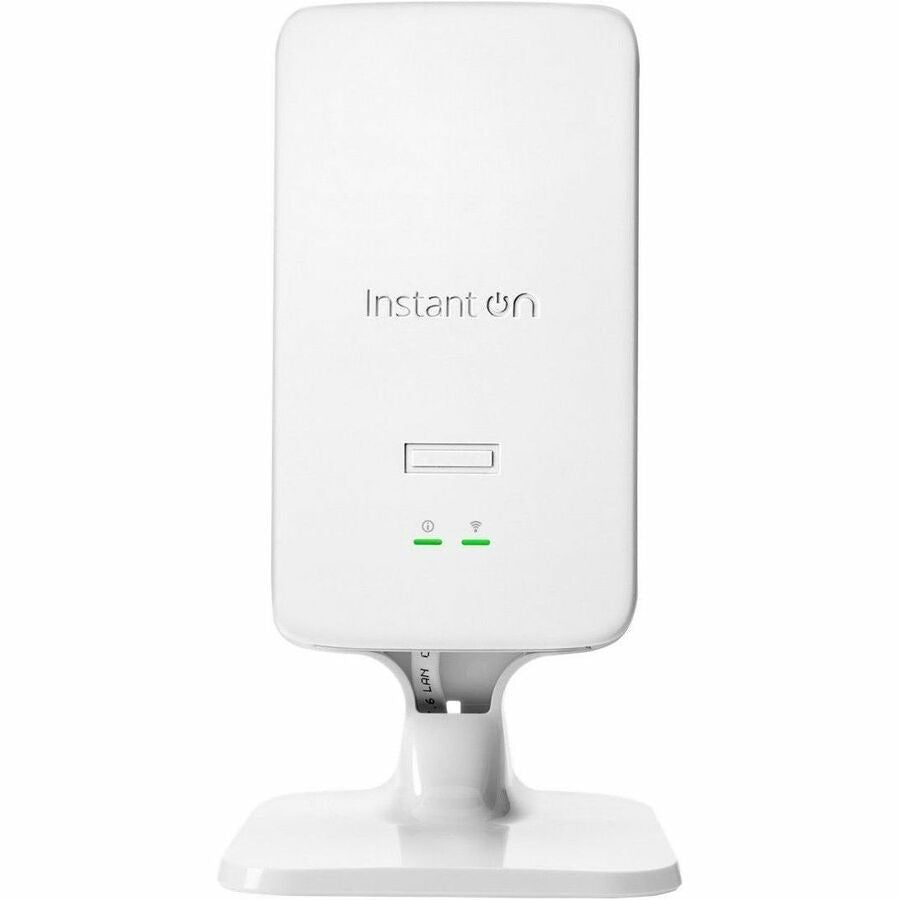

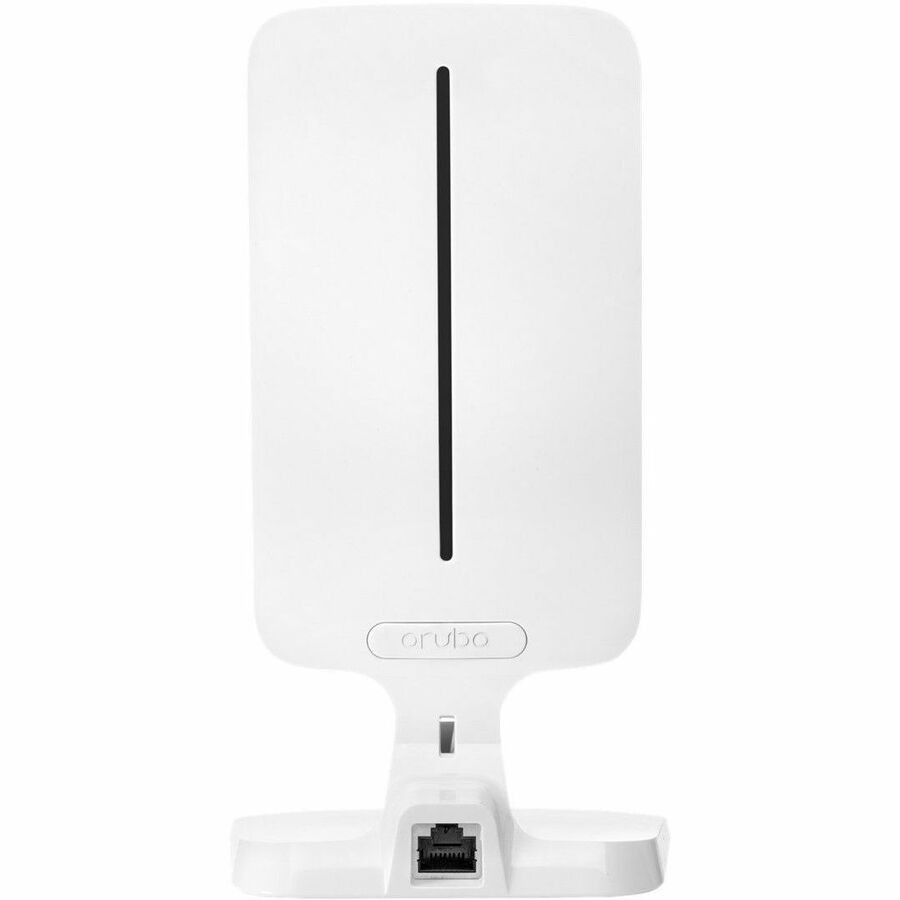

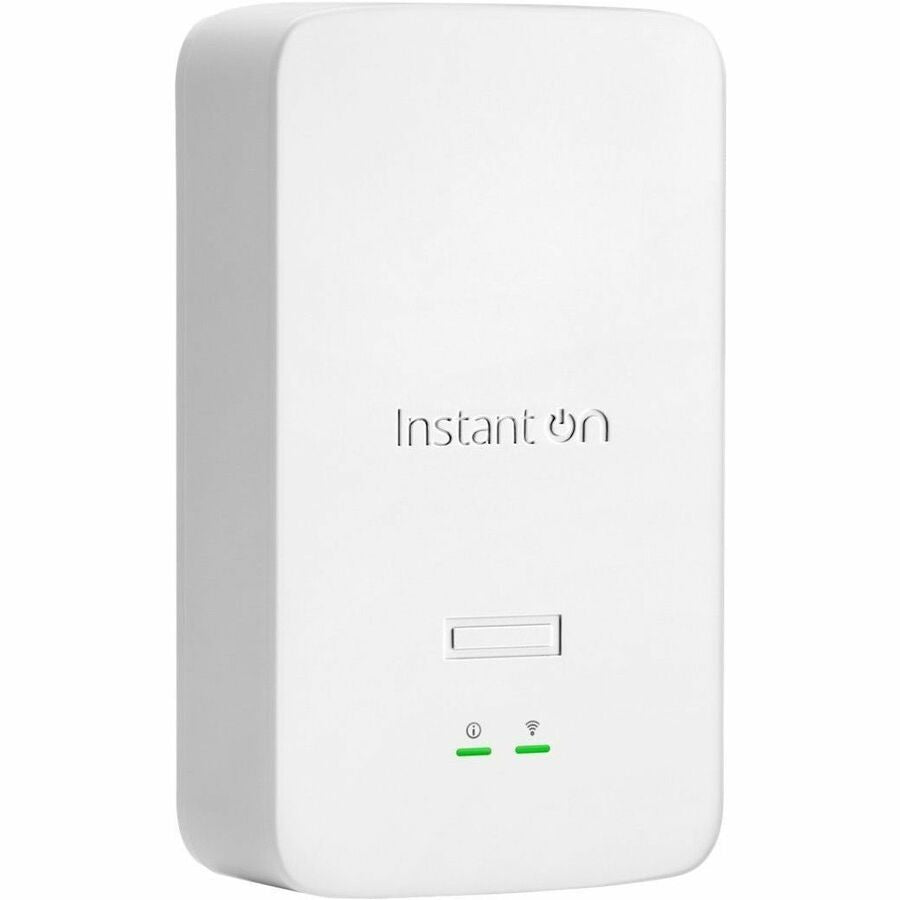

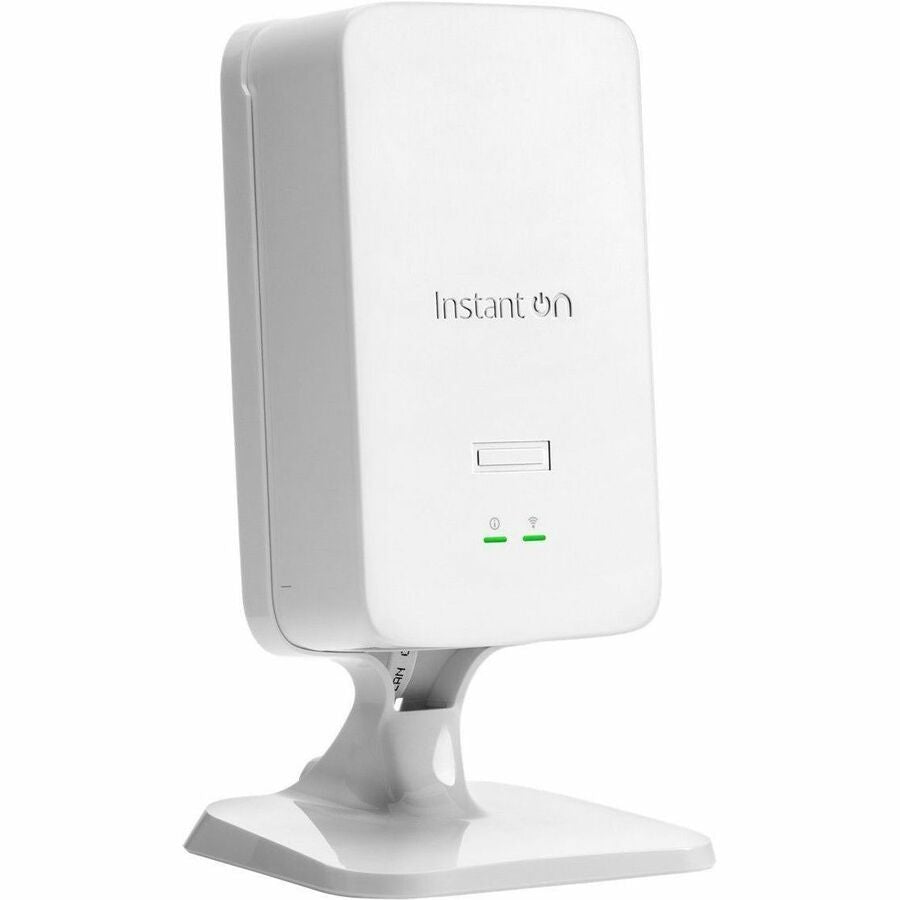

HPE Aruba Instant On AP22D Wi-Fi 6 Dual Band Access Point - Indoor
This is a HPE Instant On AP22D Dual Band Wi-Fi 6 IEEE 802.11ax 1.44 Gbit/s Wireless Access Point - Indoor. Designed for small businesses facing increased network demands from remote work, IoT devices, and high-bandwidth applications, it delivers superior Wi-Fi 6 performance, coverage, and speed. MPN: S1U75A; UPC: 190017676289. Supports 30 to over 150 simultaneous connections with simple cloud management via the Aruba Instant On mobile app.
Key Features of HPE Aruba Instant On AP22D
- Wi-Fi 6 (IEEE 802.11ax) – Dual band operation on 2.4 GHz and 5 GHz for enhanced capacity and efficiency.
- MU-MIMO, OFDMA, and up to 4 Spatial Streams – Handles multiple devices simultaneously for smooth video calls and downloads.
- Automatic Beamforming and Smart Mesh – Extends coverage to hard-to-reach areas without additional wiring.
- Built-in TPM, WPA3, and Wireless Access Control – Secures networks with two-factor authentication, WPA2/WPA3/OWE support.
- 5x Ethernet Ports – Includes 2.5 Gigabit Ethernet and Gigabit Ethernet with PoE PD support.
- Easy Setup – Works out of the box with app-based guest/employee networks, no licensing fees.
- Versatile Mounting – Ceiling, wall, rail, or desktop options included.
- Power over Ethernet – Compatible with 802.3bt/at/af for simplified installation.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE Aruba |
| Manufacturer | Hewlett Packard Enterprise |
| Product Line | Instant On |
| Product Model | AP22D |
| MPN | S1U75A |
| UPC | 190017676289 |
| Product Type | Wireless Access Point |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz, 5 GHz |
| Wireless Transmission Speed | 1.44 Gbit/s |
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Antenna Form Factor | Internal |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2, WPA3 |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 5 |
| PoE PD Port | Yes |
| Communication Protocols | PPPoE, DHCP, RADIUS |
| Power Consumption | 50 W |
| Form Factor | Ceiling Mountable, Wall Mountable, Rail-mountable, Desktop |
| Indoor/Outdoor | Indoor |
| Height | 5.9" |
| Width | 3.4" |
| Depth | 1.9" |
| Weight (Approximate) | 12.70 oz |
| Certifications & Standards | 802.3bt, 802.3at, 802.3af |
Package Contents
- Instant On AP22D Wireless Access Point
- Instant On Quick Start Guide
- Combined Ceiling and Wall Rail Mount Clip
- Desktop Mount
- Ethernet Cable
Deployment and Management
Pro tip: Use the Aruba Instant On mobile app for zero-touch provisioning and remote management. Mount using included hardware for optimal coverage; connect via PoE for power and data.
- Download Aruba Instant On app and create account.
- Power via PoE injector or switch.
- Follow app prompts for Wi-Fi setup and network configuration.
- Mount in central location; enable mesh for extended range.
- Monitor devices and performance through cloud dashboard.
Why Choose HPE Aruba Instant On AP22D
Provides enterprise-grade Wi-Fi 6 for small businesses with no extra licensing, industry-leading support, and features like two-factor authentication and automatic software updates for reliable, secure connectivity.
Elevate your business network with HPE Aruba Instant On AP22D—Order now!
Brand: Aruba
Type: Wireless Access Point
Features: Beamforming
Model: AP22D
Color: White
MPN: S1U75A
Number of LAN Ports: 5
Maximum Wireless Data Rate: Wireless-Wi-Fi 802.11ax
Connectivity: Wired-Ethernet (RJ-45)
Ports: Ethernet (RJ-45)
Item Height: 5.9"
Item Width: 3.4"
Item Length: 1.9"
UPC: 190017676289
